KitchenAid 3KSM5CBTWH0 mixer Parts
Here are the diagrams and repair parts for KitchenAid 3KSM5CBTWH0 mixer, as well as links to manuals and error code tables, if available.
By Schematic

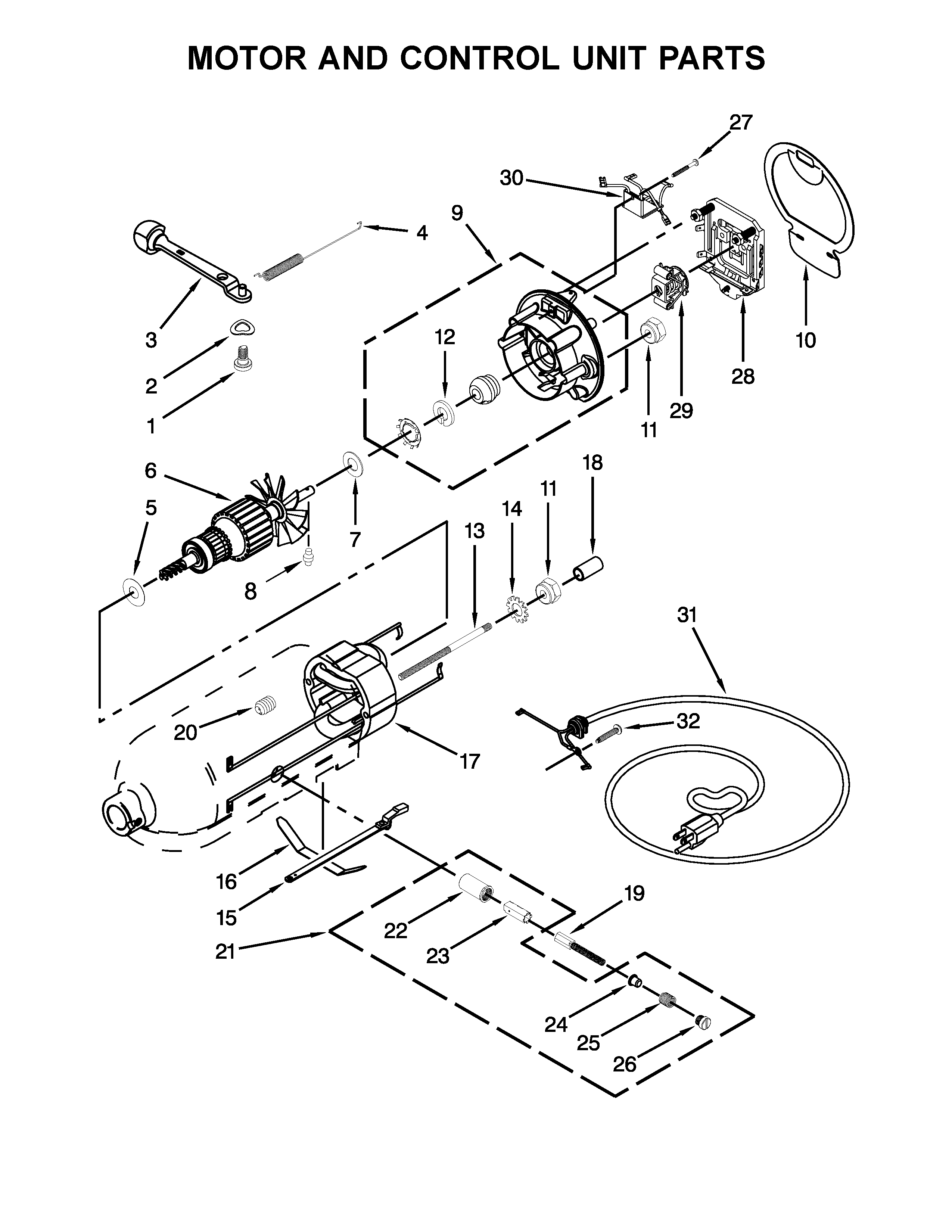

SELECT DIAGRAM
Browse Parts for3KSM5CBTWH0 Mixer

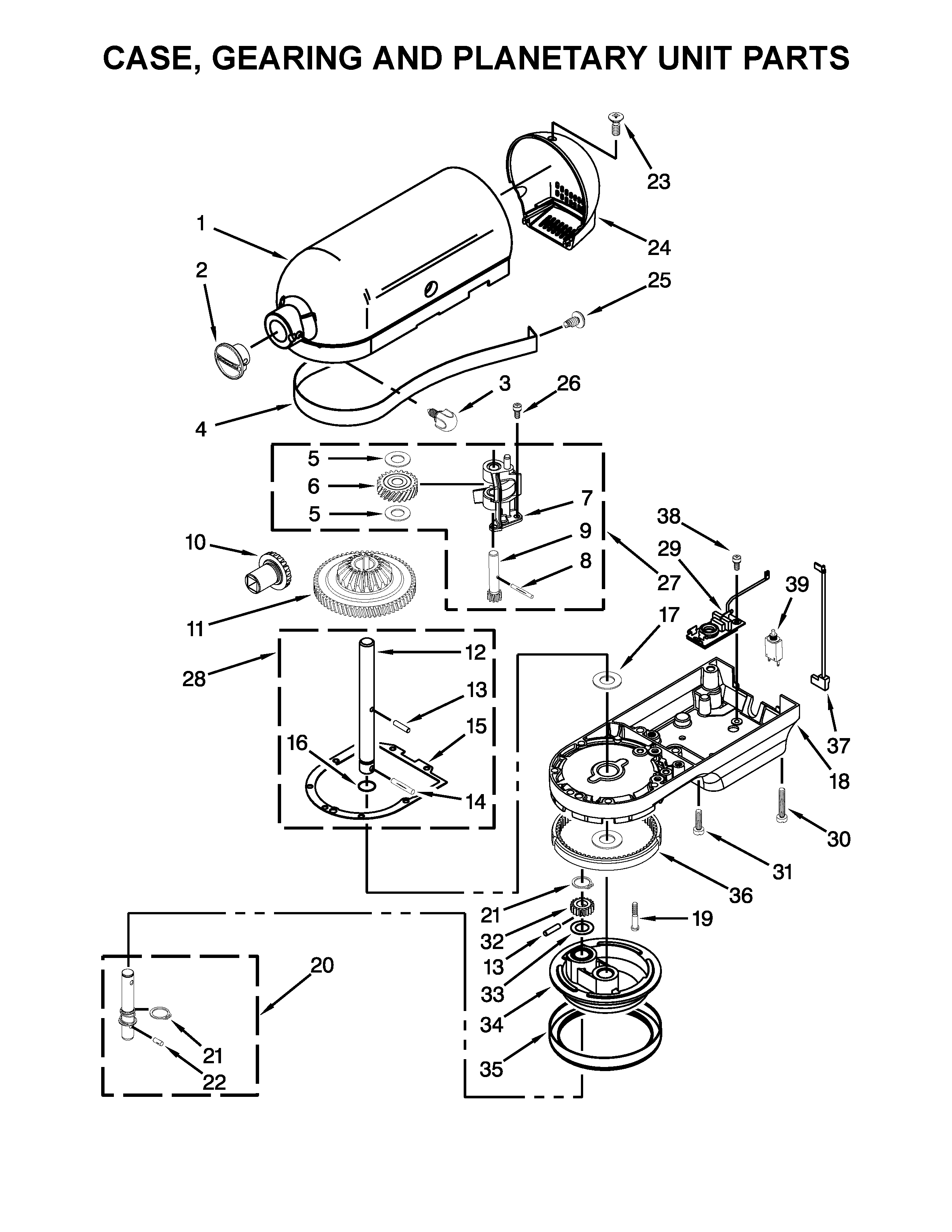

Case, gearing and planetary unit parts diagram
Pin-groove
Part #9705443Replaced by #WP9705443
Manufacturer substitutionThis part replaces 9705443. Substitute parts can look different from the original.This item is not returnableIn Stock$5.6615% OFF Phone Price : $6.66
Qty

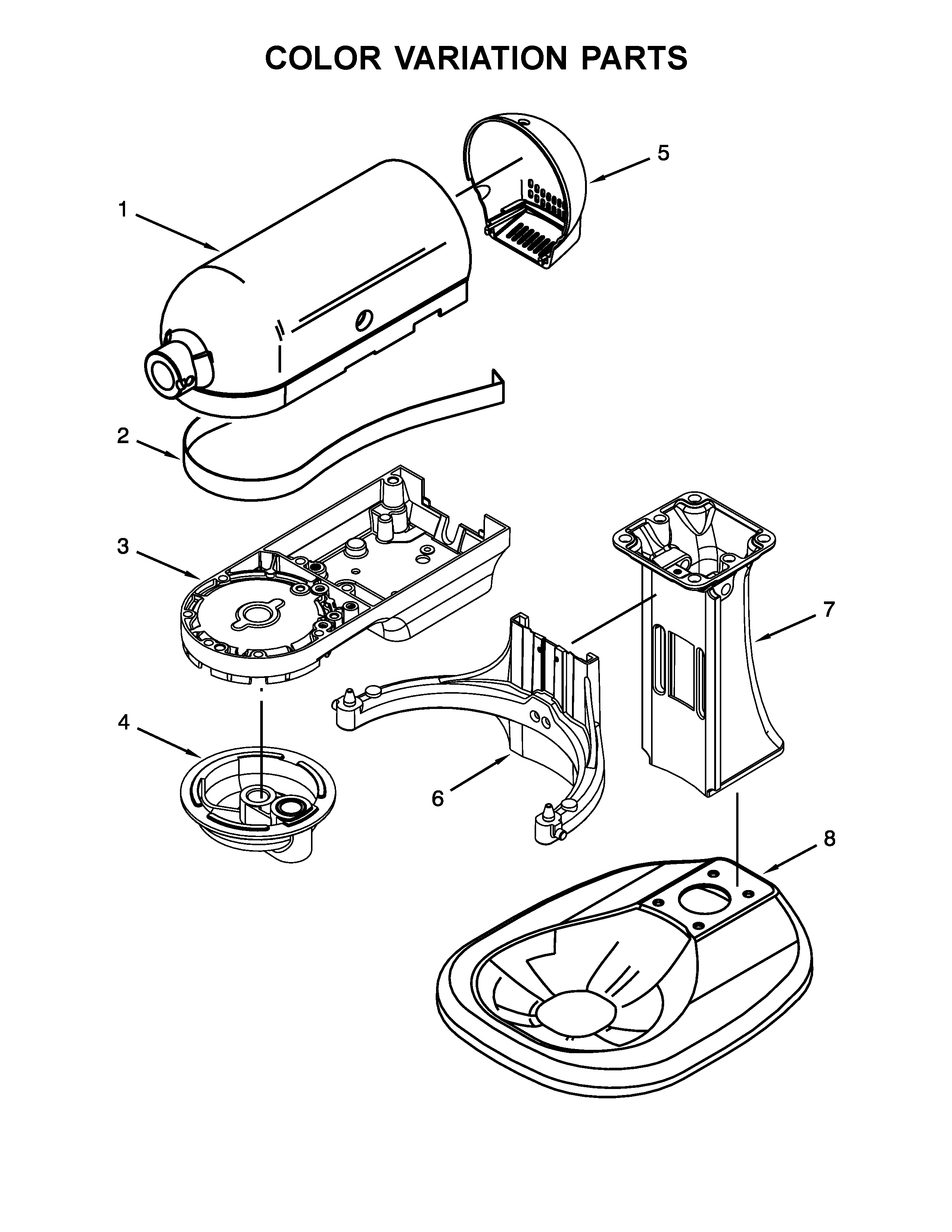

Color variation parts diagram
Trim Band (black)
Part #W10906451Replaced by #W11092114
Manufacturer substitutionThis part replaces W10906451. Substitute parts can look different from the original.In Stock$61.25QtyCase, gearing and planetary unit parts diagram
Screw
Part #3400617Replaced by #W10853069
Manufacturer substitutionThis part replaces 3400617. Substitute parts can look different from the original.In Stock$28.95QtyCase, gearing and planetary unit parts diagram
Grooved Pin
Part #9704677Replaced by #W11664709
Manufacturer substitutionThis part replaces 9704677. Substitute parts can look different from the original.In Stock$31.26QtyColor variation parts diagram

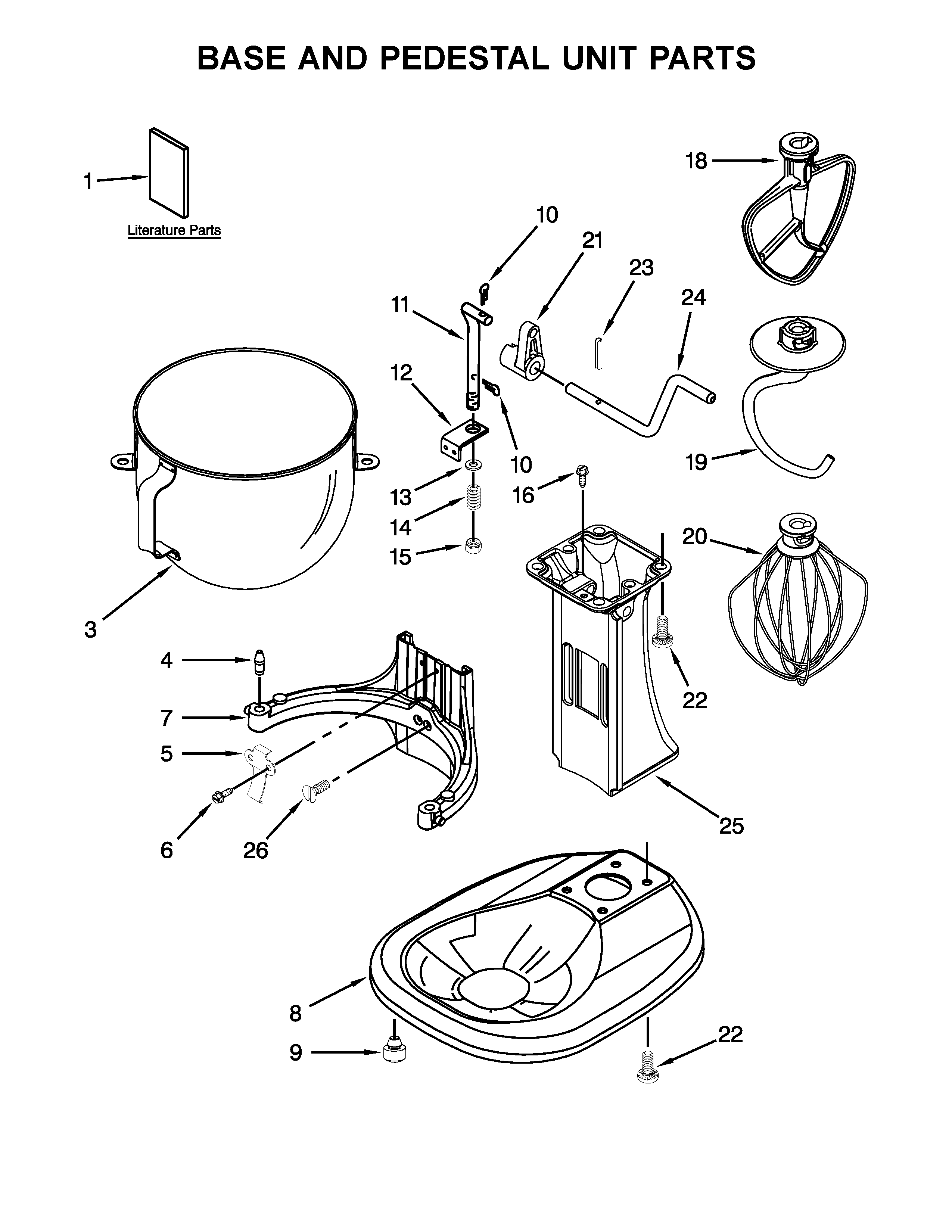

Stand Mixer Base
Part #240493-2Replaced by #W11233906
Manufacturer substitutionThis part replaces 240493-2. Substitute parts can look different from the original.In Stock$64.708% OFF Phone Price : $70.70QtyCase, gearing and planetary unit parts diagram
Hubcap
Part #242765-2Replaced by #W11048596
Manufacturer substitutionThis part replaces 242765-2. Substitute parts can look different from the original.This item is not returnableIn Stock$12.7414% OFF Phone Price : $14.74QtyColor variation parts diagram
Cover
Part #240253-22Replaced by #W11084313
Manufacturer substitutionThis part replaces 240253-22. Substitute parts can look different from the original.In Stock$53.97QtyCase, gearing and planetary unit parts diagram
Gasket
Part #4162324Replaced by #W11805888
Manufacturer substitutionThis part replaces 4162324. Substitute parts can look different from the original.In Stock$100.10QtyColor variation parts diagram
Housing
Part #240291-21Replaced by #WP240291-21
Manufacturer substitutionThis part replaces 240291-21. Substitute parts can look different from the original.In Stock$98.0111% OFF Phone Price : $110.01QtyColor variation parts diagram
Cover
Part #240253-1Replaced by #WP240253-1
Manufacturer substitutionThis part replaces 240253-1. Substitute parts can look different from the original.In Stock$46.13Qty
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad worm gear, damaged planetary gear assembly...
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure...
Main cause: worn carbon motor brushes...
Main causes: phase control board failure, wiring connection problem, faulty electronic control board...
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m...
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit...
Main cause: attachment clearance setting needs adjustment...
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged....
Repair time and Difficulty
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar...
Repair time and Difficulty
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps....
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Find out what’s wrong with your appliance by following a circuit....
Learn how to decipher symbols so you can buy the right part for your problem....
Find out five tips and techniques to help get the most out of your stand mixer....
