Craftsman 917298561 tiller Parts

Here are the diagrams and repair parts for Craftsman 917298561 tiller, as well as links to manuals and error code tables, if available.

Craftsman 917298561 tiller
By Schematic
By Part

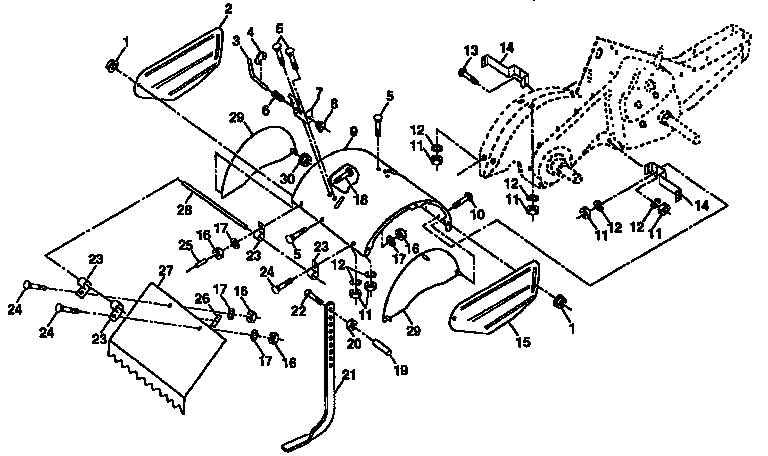

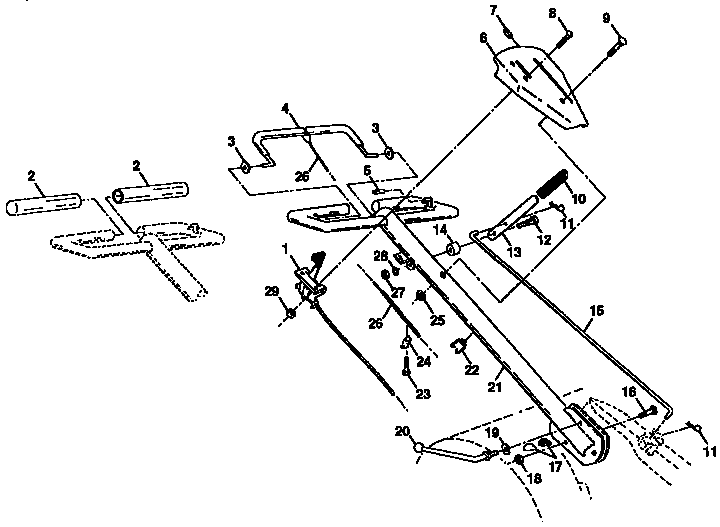

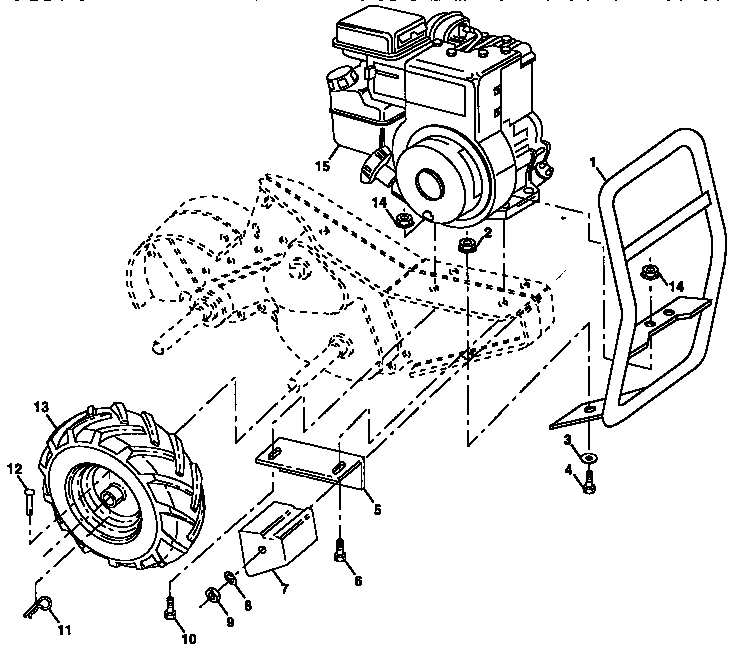

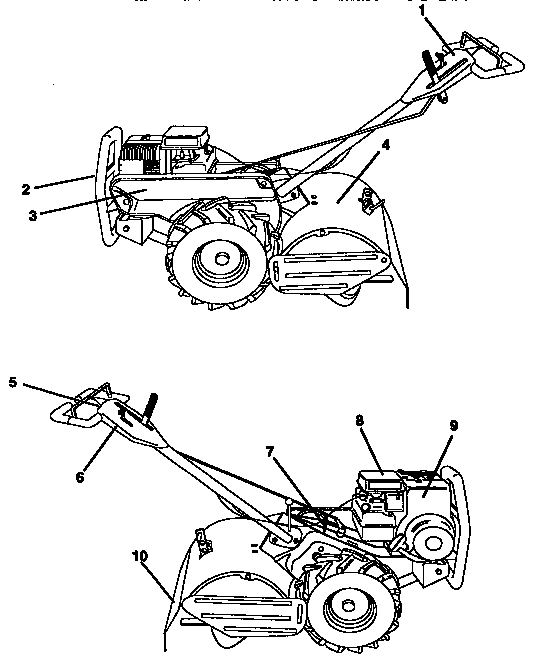

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for917298561 Tillers

  • Shaft.secondary.reduction.crt for Craftsman 917298561 - Part 532102112

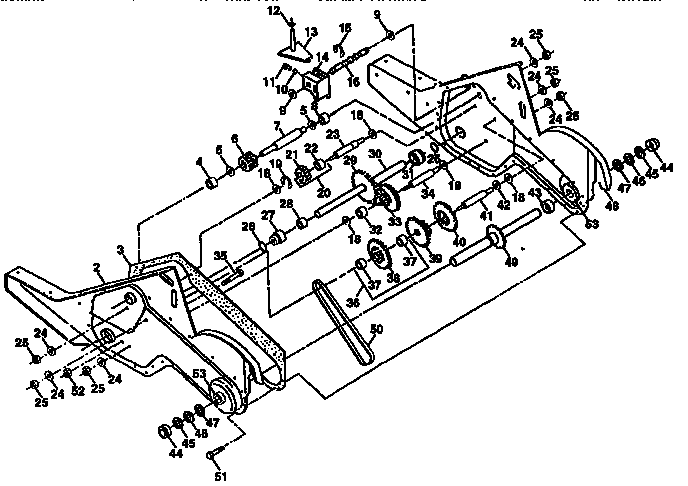

    Repair parts, transmission diagram

    Shaft 2red

    Part #102112X

    Replaced by #532102112

    Info Icon
    Manufacturer substitution
    This part replaces 102112X. Substitute parts can look different from the original.
    In Stock
    $87.27
    Minus Item
    Qty
    Plus Item
  • Hub.asm.rh.17.tiller.black for Craftsman 917298561 - Part 581813701

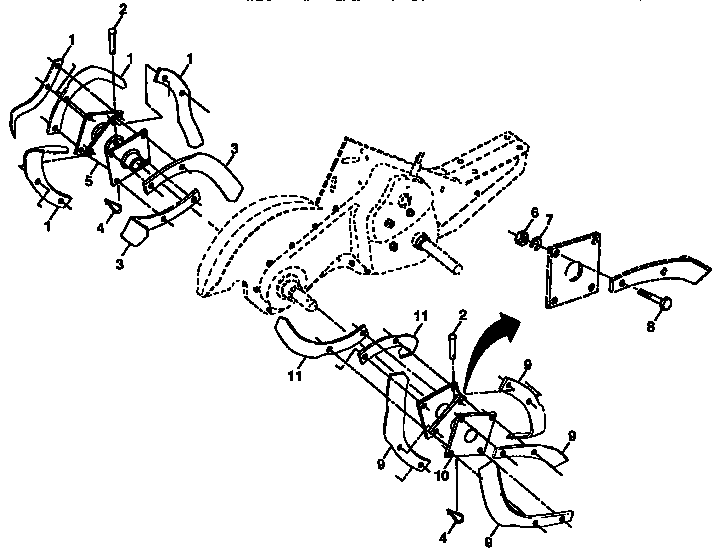

    Repair parts, tine assembly diagram

    Tiller Tine Hub And Plate Assembly, Right

    Part #132728

    Replaced by #581813701

    Info Icon
    Manufacturer substitution
    This part replaces 132728. Substitute parts can look different from the original.
    In Stock
    $117.62
    Minus Item
    Qty
    Plus Item
  • Klip Ring for Craftsman 917298561 - Part 812000039

    Repair parts, transmission diagram

    Lawn & Garden Equipment Retainer Ring

    Part #12000039

    Replaced by #812000039

    Info Icon
    Manufacturer substitution
    This part replaces 12000039. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Husqvarna Tiller Ground Drive Chain for Craftsman 917298561 - Part 532102134

    Repair parts, transmission diagram

    Tiller Chain, #25-50

    Part #102134X

    Replaced by #532102134

    Info Icon
    Manufacturer substitution
    This part replaces 102134X. Substitute parts can look different from the original.
    In Stock
    $38.68
    13% OFF Phone Price : $44.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Split Spacer for Craftsman 917298561 - Part 532131691

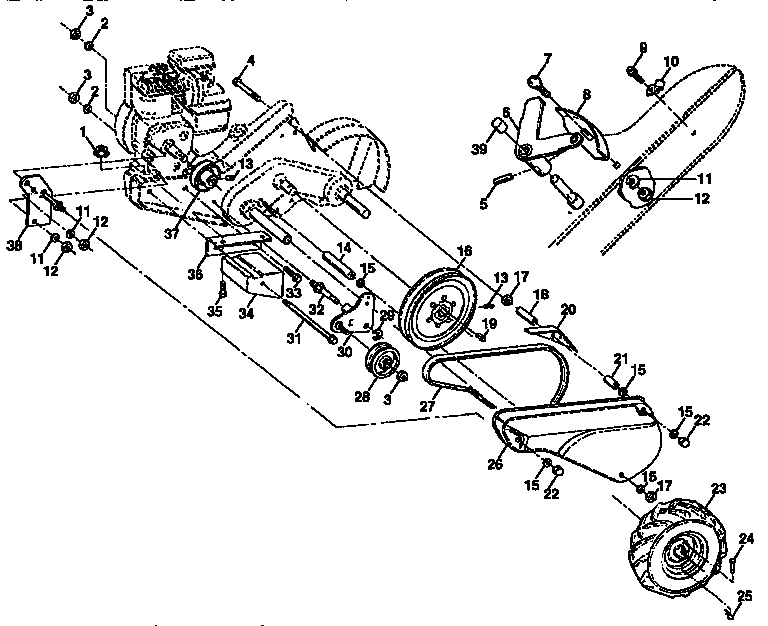

    Repair parts, mainframe, left side diagram

    Split Spacer

    Part #131691

    Replaced by #532131691

    Info Icon
    Manufacturer substitution
    This part replaces 131691. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Conduit Clip T for Craftsman 917298561 - Part 532009484

    Repair parts, mainframe, left side diagram

    Lawn & Garden Equipment Cable Bracket

    Part #9484R

    Replaced by #532009484

    Info Icon
    Manufacturer substitution
    This part replaces 9484R. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.26
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn & Garden Equipment Steel Ball for Craftsman 917298561 - Part 532100482

    Repair parts, transmission diagram

    Ball

    Part #7392M

    Replaced by #532100482

    Info Icon
    Manufacturer substitution
    This part replaces 7392M. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.40
    11% OFF Phone Price : $9.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Rally Tiller Gear Case Oil Seal for Craftsman 917298561 - Part 532155236

    Repair parts, transmission diagram

    Cup

    Part #9672R

    Replaced by #532155236

    Info Icon
    Manufacturer substitution
    This part replaces 9672R. Substitute parts can look different from the original.
    In Stock
    $12.96
    13% OFF Phone Price : $14.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Counterweight for Craftsman 917298561 - Part 532102383

    Repair parts, mainframe, left side diagram

    Counterweight

    Part #102383X

    Replaced by #532102383

    Info Icon
    Manufacturer substitution
    This part replaces 102383X. Substitute parts can look different from the original.
    In Stock
    $174.70
    Minus Item
    Qty
    Plus Item
  • Husqvarna Tiller Ground Drive Chain for Craftsman 917298561 - Part 532106147

    Repair parts, transmission diagram

    Chain

    Part #106147X

    Replaced by #532106147

    Info Icon
    Manufacturer substitution
    This part replaces 106147X. Substitute parts can look different from the original.
    In Stock
    $67.03
    8% OFF Phone Price : $73.03Info Icon
    Minus Item
    Qty
    Plus Item
