GE
Washer

Model # GCWP1005M1CC Official GE washer

Here are the diagrams and repair parts for Official GE GCWP1005M1CC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |

Washer Tub Seal WH02X10032
#311

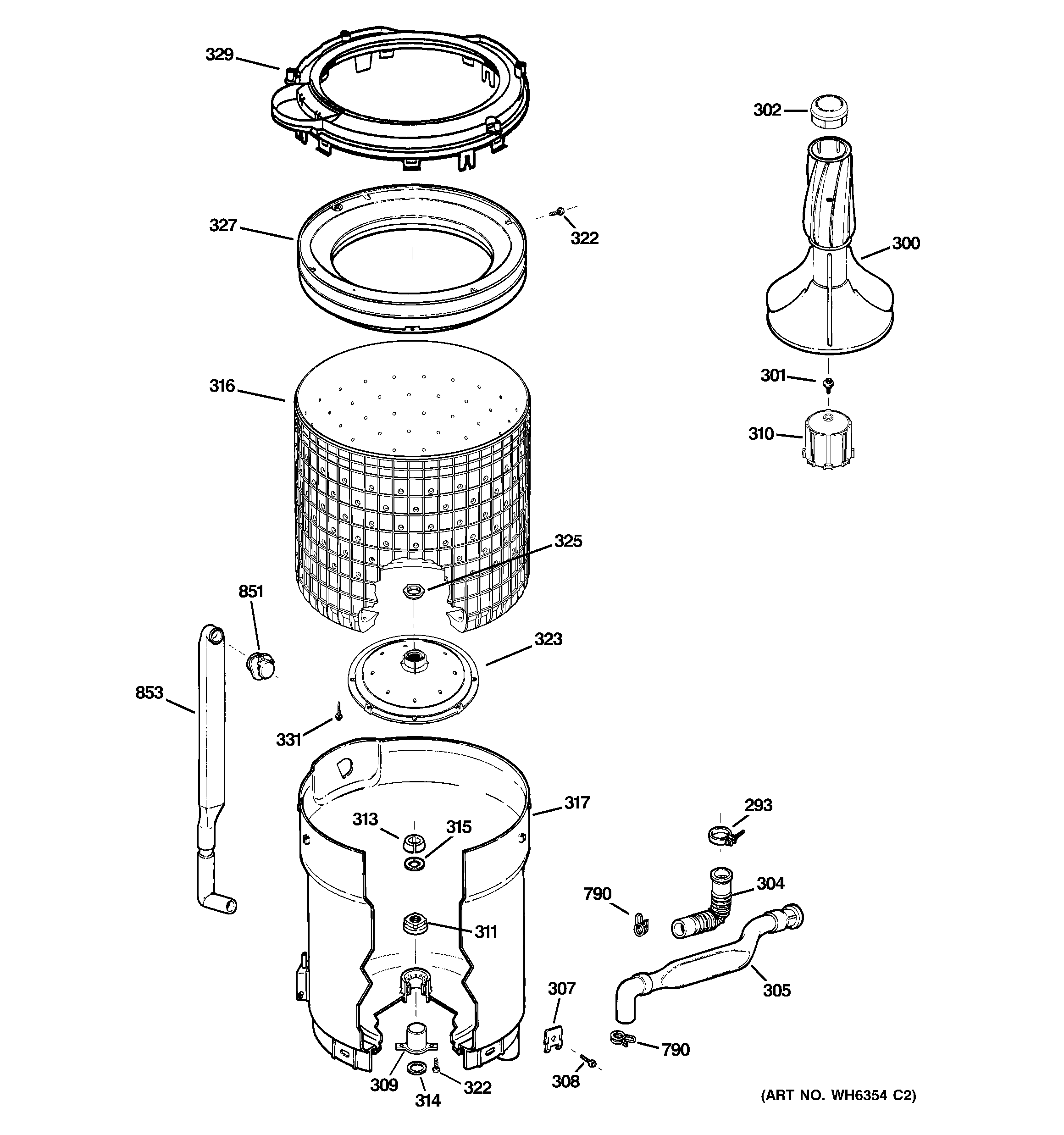

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$10.51
16% OFF Phone Price : $12.51
In Stock
Tub Bearing WH02X1198
#309

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1198

Replaced by #WH2X1198

?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
BEST SELLER
$29.01
17% OFF Phone Price : $35.01
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31
14% OFF Phone Price : $7.31
In Stock
Washer Agitator (replaces Wh43x25442) WH43X10034
#300

Tub, basket & agitator diagram

Washer agitator (replaces wh43x25442)

Part #WH43X10034

BEST SELLER
$59.70
9% OFF Phone Price : $65.70
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87
11% OFF Phone Price : $112.87
In Stock
Washer Agitator Coupler WH43X10032
#310

Tub, basket & agitator diagram

Washer agitator coupler

Part #WH43X10032

BEST SELLER
$24.86
19% OFF Phone Price : $30.86
In Stock
Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$64.73
8% OFF Phone Price : $70.73
In Stock
Spring Clip WH01X2117
#9

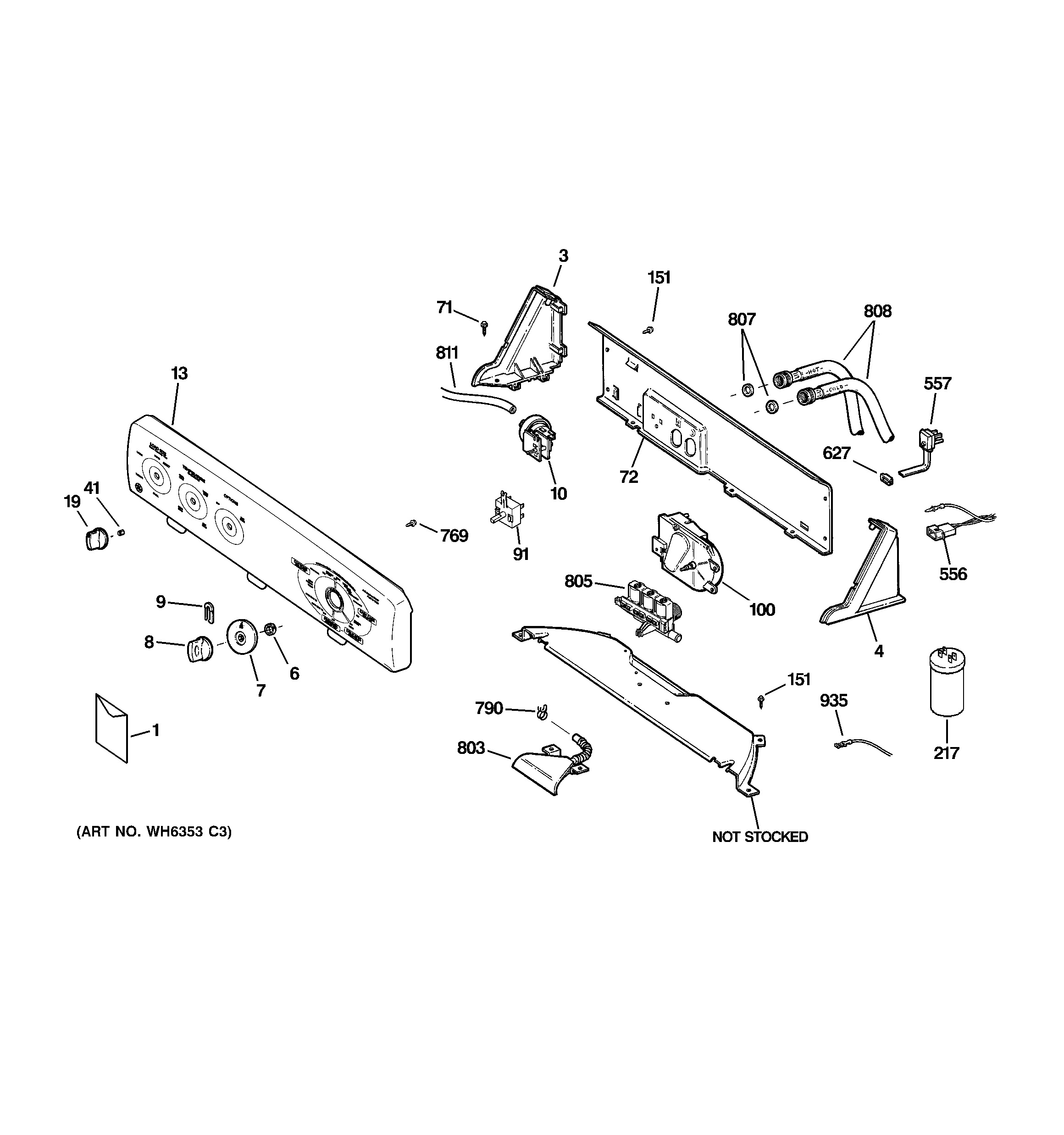

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Washer External Drain Hose (replaces Wh41x367) WH41X10096
#825

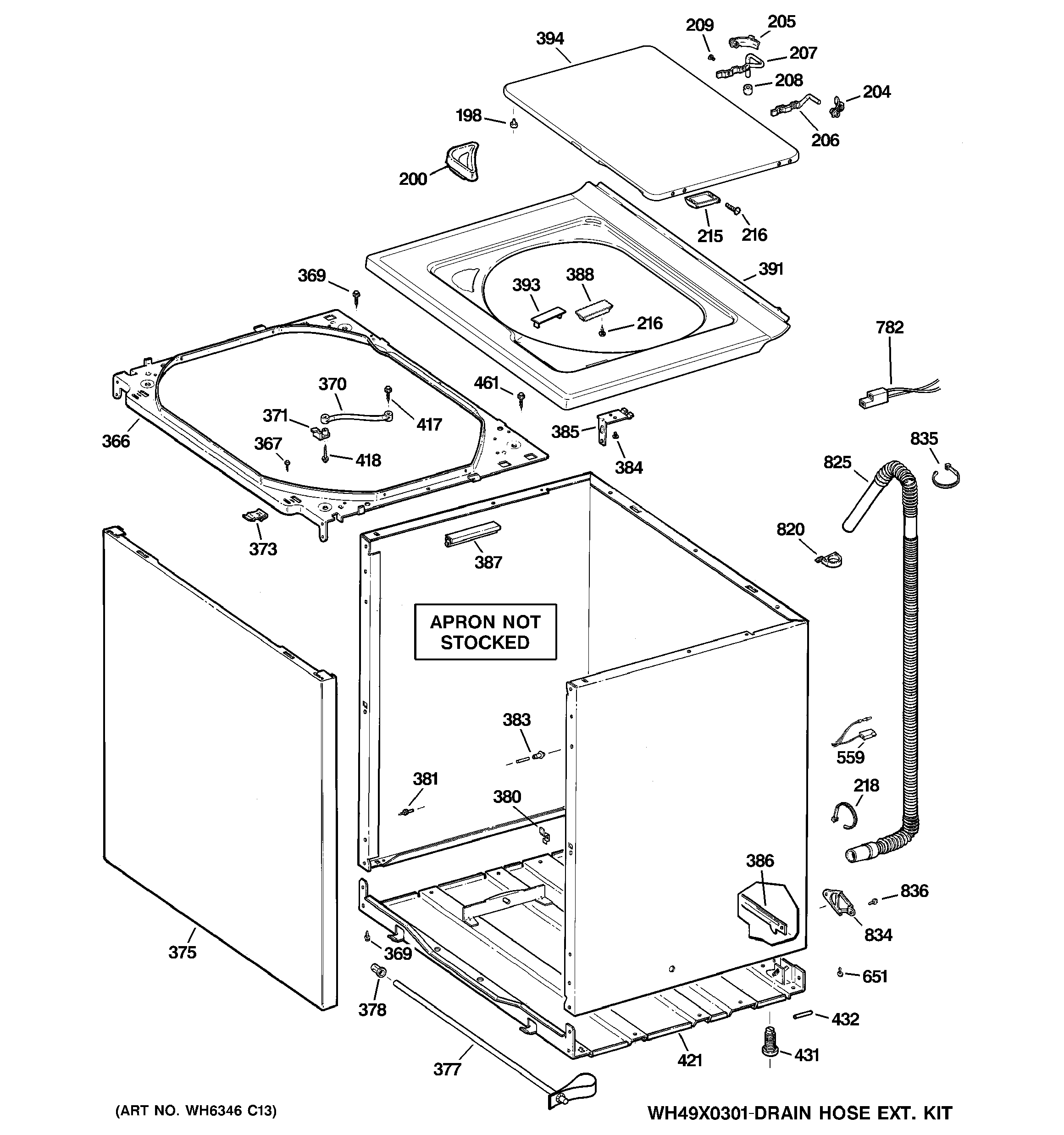

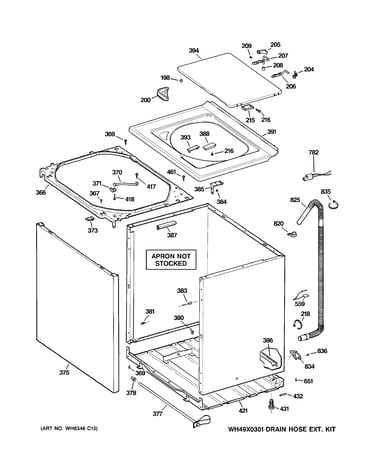

Cabinet, cover & front panel diagram

Washer external drain hose (replaces wh41x367)

Part #WH41X10096

BEST SELLER
$22.74
21% OFF Phone Price : $28.74
In Stock
Washer Start Capacitor (replaces Wh12x10212) WH12X10462
#217

Controls & backsplash diagram

Washer start capacitor (replaces wh12x10212)

Part #WH12X10462

BEST SELLER
$31.46
16% OFF Phone Price : $37.46
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
