Craftsman
Gas Walk-Behind Mower

Model #24738911 Craftsman lawn mower

Here are the diagrams and repair parts for Craftsman 24738911 lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

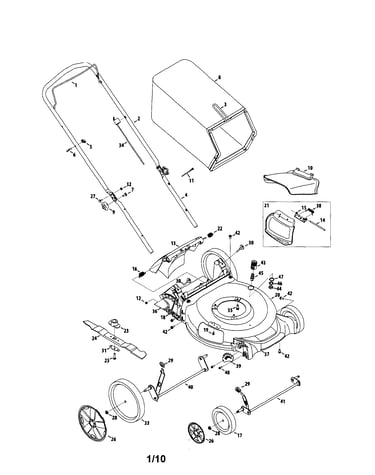

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 49 parts

Lawn Mower Side Chute Deflector

#10

Lawn mower Diagram

$11.62 |
11% OFF MSRP:$13.00

In Stock

Lawn Mower Blade Support

#31

Lawn mower Diagram

Lawn mower blade support

Part #736-0524B
This item is not returnable
$5.52

In Stock

Lawn & Garden Equipment Nut

#32

Lawn mower Diagram

Lawn & garden equipment nut

Part #712-04064
This item is not returnable
$3.24

In Stock

Lawn & Garden Equipment Hex Bolt, 3/8-24 x 1-1/2-in

#25

Lawn mower Diagram

Lawn & garden equipment hex bolt, 3/8-24 x 1-1/2-in

Part #710-1044
This item is not returnable
$3.03 |
8% OFF MSRP:$3.30

In Stock

Lawn Mower Handle Knob

#9

Lawn mower Diagram

Lawn mower handle knob

Part #720-04072A
This item is not returnable
$5.30 |
25% OFF MSRP:$7.10

In Stock

Lawn Tractor Screw

#7

Lawn mower Diagram

Lawn tractor screw

Part #710-04998
This item is not returnable
$3.53 |
14% OFF MSRP:$4.10

In Stock

Lawn & Garden Equipment Flange Nut

#28

Lawn mower Diagram

Lawn & garden equipment flange nut

Part #712-04217
This item is not returnable
$3.77

In Stock

Lawn & Garden Equipment Shoulder Screw

#27

Lawn mower Diagram

Lawn & garden equipment shoulder screw

Part #738-04419A
This item is not returnable
$2.81 |
15% OFF MSRP:$3.30

In Stock

Lawn Mower Wheel

#17

Lawn mower Diagram

Lawn mower wheel

Part #634-04642
$18.16

In Stock

Lawn Mower Deck Water Nozzle

#45

Lawn mower Diagram

$18.64

In Stock

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
