Kenmore 1163561090 upright vacuum Parts
Here are the diagrams and repair parts for Kenmore 1163561090 upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1163561090 Vacuum Cleaners

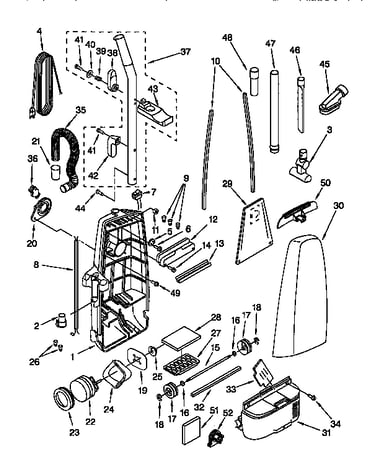

Dust compartment diagram
Kenmore Vacuum Hepa Bag, Type O, 2-pack
Part #50690
The manufacturer no longer makes this part, and there's no substitute part
Vacuum Screw
Part #4368563
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Vacuum Crevice Tool
Part #4368684
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Vacuum Inlet Cover
Part #4368676
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Hose
Part #4369814
The manufacturer no longer makes this part, and there's no substitute part

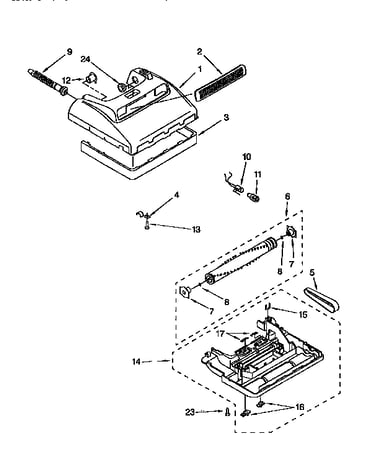

Nozzle and motor diagram
Bulb Socket
Part #4369526
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Protector
Part #4369733
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Packing
Part #4369547
The manufacturer no longer makes this part, and there's no substitute part
Nozzle and motor diagram
Nozzle
Part #4369837
The manufacturer no longer makes this part, and there's no substitute part
Nozzle and motor diagram
Agitator
Part #4369524
The manufacturer no longer makes this part, and there's no substitute part
