Kenmore 6286648312 electric range Parts
Here are the diagrams and repair parts for Kenmore 6286648312 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 6286648312 Ranges

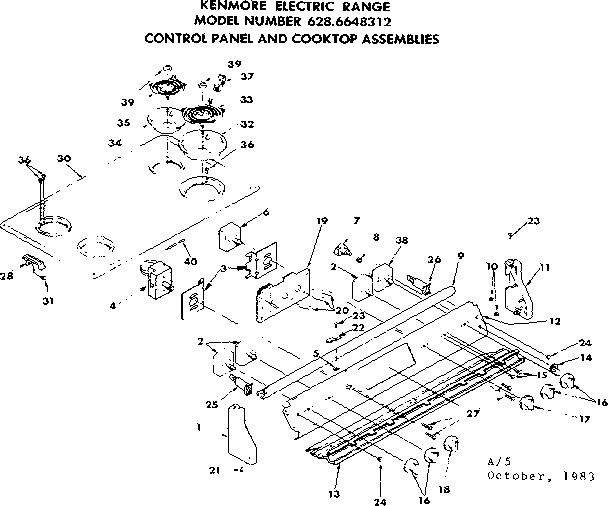

Control panel and cooktop assemblies diagram
Screw
Part #1313060Replaced by #5301313060
Manufacturer substitutionThis part replaces 1313060. Substitute parts can look different from the original.In Stock$30.41
Qty
Door and drawer assemblies diagram
Drawer Guide
Part #1324091Replaced by #5303209487
Manufacturer substitutionThis part replaces 1324091. Substitute parts can look different from the original.In Stock$43.25QtyControl panel and cooktop assemblies diagram
Screw
Part #1164517Replaced by #08003300
Manufacturer substitutionThis part replaces 1164517. Substitute parts can look different from the original.In Stock$28.46QtyOptional backguard kit/end panel kit diagram
End Cap
Part #1324796Replaced by #08013600
Manufacturer substitutionThis part replaces 1324796. Substitute parts can look different from the original.In Stock$47.69QtyControl panel and cooktop assemblies diagram
Hinge
Part #1317482Replaced by #5308003325
Manufacturer substitutionThis part replaces 1317482. Substitute parts can look different from the original.In Stock$55.99QtyControl panel and cooktop assemblies diagram
Main Top (white)
Part #1317549Replaced by #5308015918
Manufacturer substitutionThis part replaces 1317549. Substitute parts can look different from the original.In Stock$220.97QtyBody assembly diagram
Screw
Part #1164477Replaced by #08002868
Manufacturer substitutionThis part replaces 1164477. Substitute parts can look different from the original.In Stock$17.2010% OFF Phone Price : $19.20
QtyDoor and drawer assemblies diagram
Door Panel (almond)
Part #1325518Replaced by #5301325518

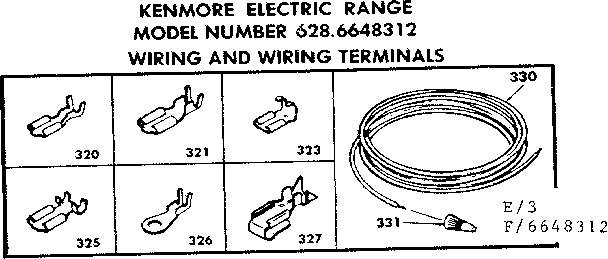

Manufacturer substitutionThis part replaces 1325518. Substitute parts can look different from the original.In Stock$59.92QtyWiring and wiring terminals diagram
Blue Wire
Part #1167813Replaced by #5301167813
Manufacturer substitutionThis part replaces 1167813. Substitute parts can look different from the original.In Stock$25.75QtyDoor and drawer assemblies diagram
Spacer
Part #1311965Replaced by #5308003153
Manufacturer substitutionThis part replaces 1311965. Substitute parts can look different from the original.In Stock$30.08Qty
