Model # 587720410 Official Kenmore portable dishwasher
Here are the diagrams and repair parts for Official Kenmore 587720410 portable dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

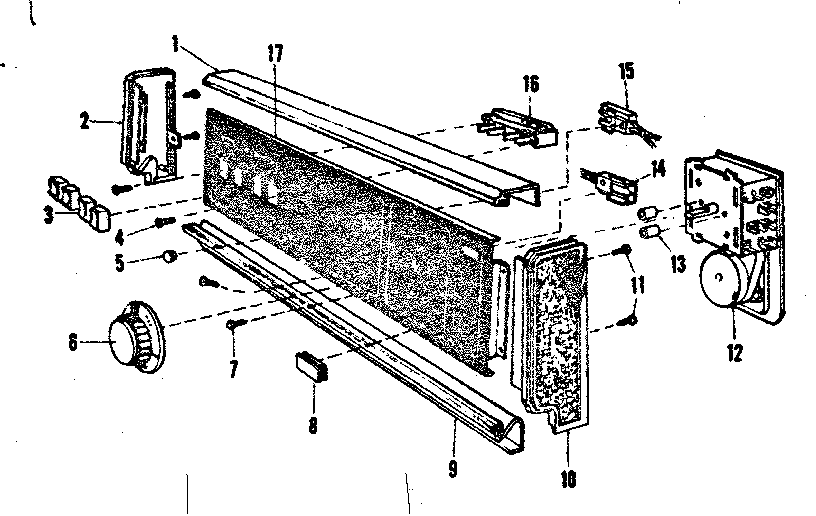

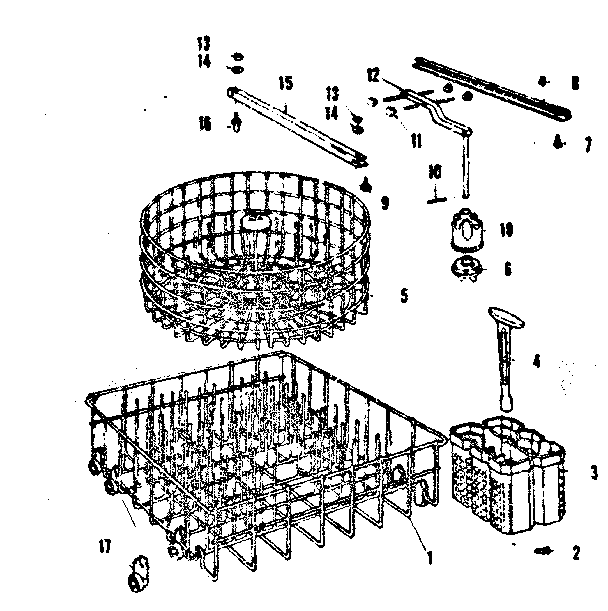

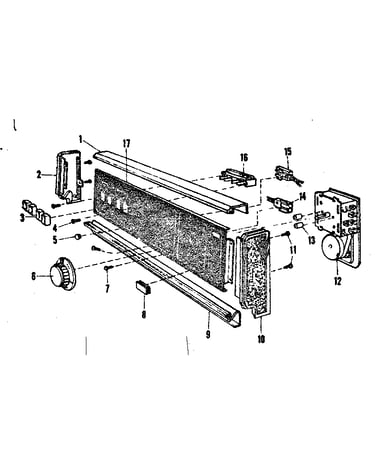

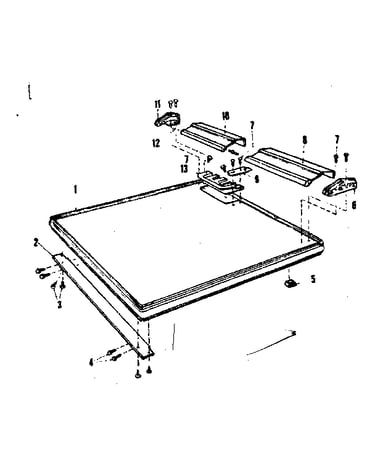

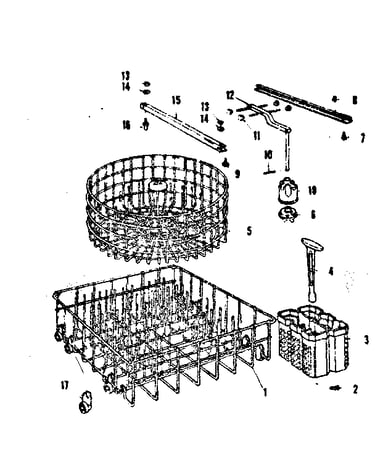

SELECT DIAGRAM
Browse Parts for587720410 Portable Dishwasher
- #22

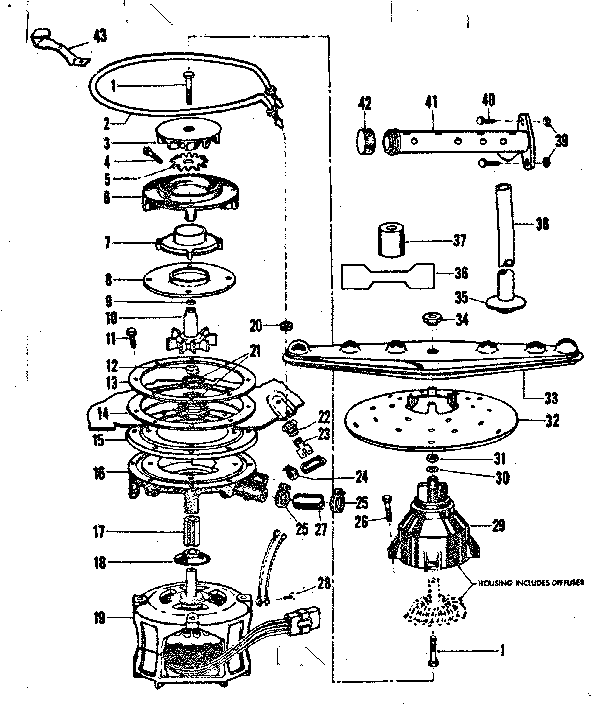

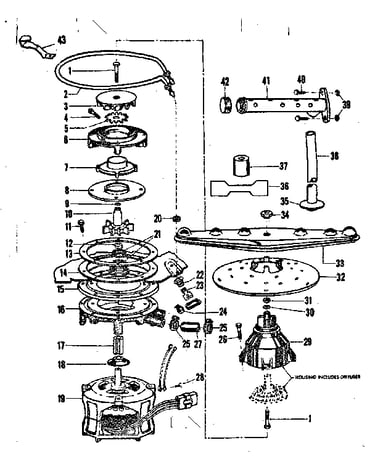

Motor, heater, and spray arm diagram
NutPart #806834
Replaced by #154106202
?Manufacturer substitutionThis part replaces 806834. Substitute parts can look different from the original.$7.76 |11% OFF Phone Price : $8.76In Stock - #13

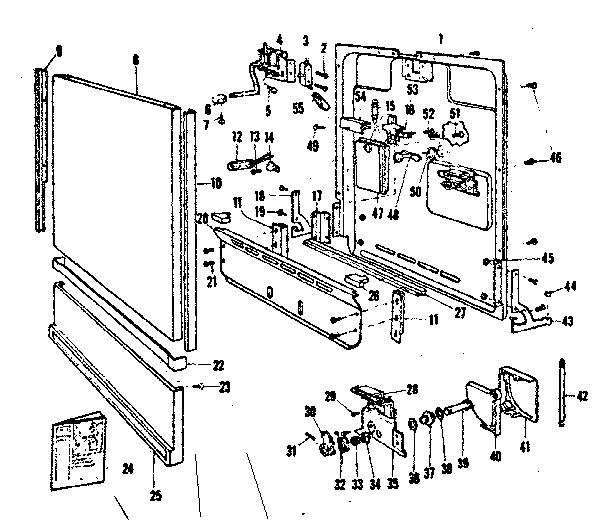

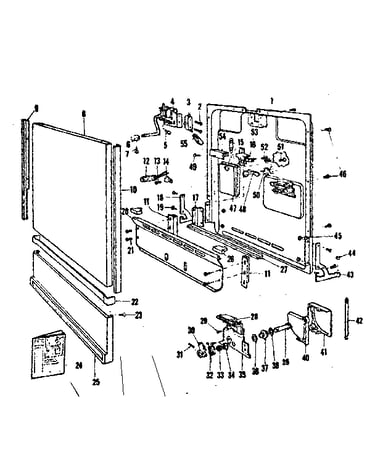

Door and access panel diagram
ScrewPart #803416
Replaced by #5300803416
?Manufacturer substitutionThis part replaces 803416. Substitute parts can look different from the original.This item is not returnable$7.34In Stock - #31
Motor, heater, and spray arm diagram
NutPart #804527
Replaced by #316205500
?Manufacturer substitutionThis part replaces 804527. Substitute parts can look different from the original.This item is not returnable$28.62In Stock - #13

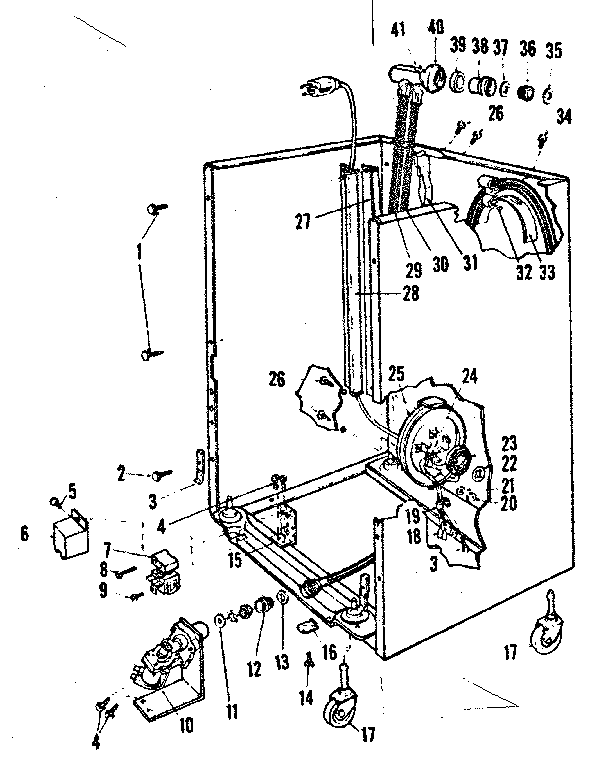

Frame diagram
WasherPart #800787
Replaced by #5303161296
?Manufacturer substitutionThis part replaces 800787. Substitute parts can look different from the original.This item is not returnable$12.16 |14% OFF Phone Price : $14.16In Stock - #46
Door and access panel diagram
ScrewPart #806812
Replaced by #5300806967
?Manufacturer substitutionThis part replaces 806812. Substitute parts can look different from the original.This item is not returnable$5.20In Stock - #30
Door and access panel diagram
CamPart #806566
Replaced by #154180301
?Manufacturer substitutionThis part replaces 806566. Substitute parts can look different from the original.$19.00In Stock - #27

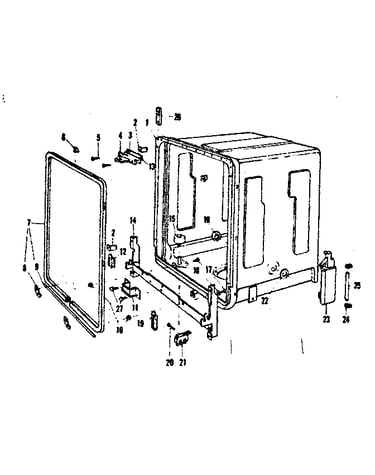

Tub details diagram
ScrewPart #806830
Replaced by #5300806830
?Manufacturer substitutionThis part replaces 806830. Substitute parts can look different from the original.This item is not returnable$3.37In Stock - #33
Motor, heater, and spray arm diagram
Spray armPart #805577
Replaced by #5300808961
?Manufacturer substitutionThis part replaces 805577. Substitute parts can look different from the original.$166.70In Stock - #33
Door and access panel diagram
Cam springPart #806567
Replaced by #5300806567
?Manufacturer substitutionThis part replaces 806567. Substitute parts can look different from the original.$35.11In Stock - #43
Door and access panel diagram
Arm assemblyPart #805681
Replaced by #5300805681
?Manufacturer substitutionThis part replaces 805681. Substitute parts can look different from the original.$82.22In Stock
