KitchenAid
Stand Mixer

Model # KSM500WH0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid KSM500WH0 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

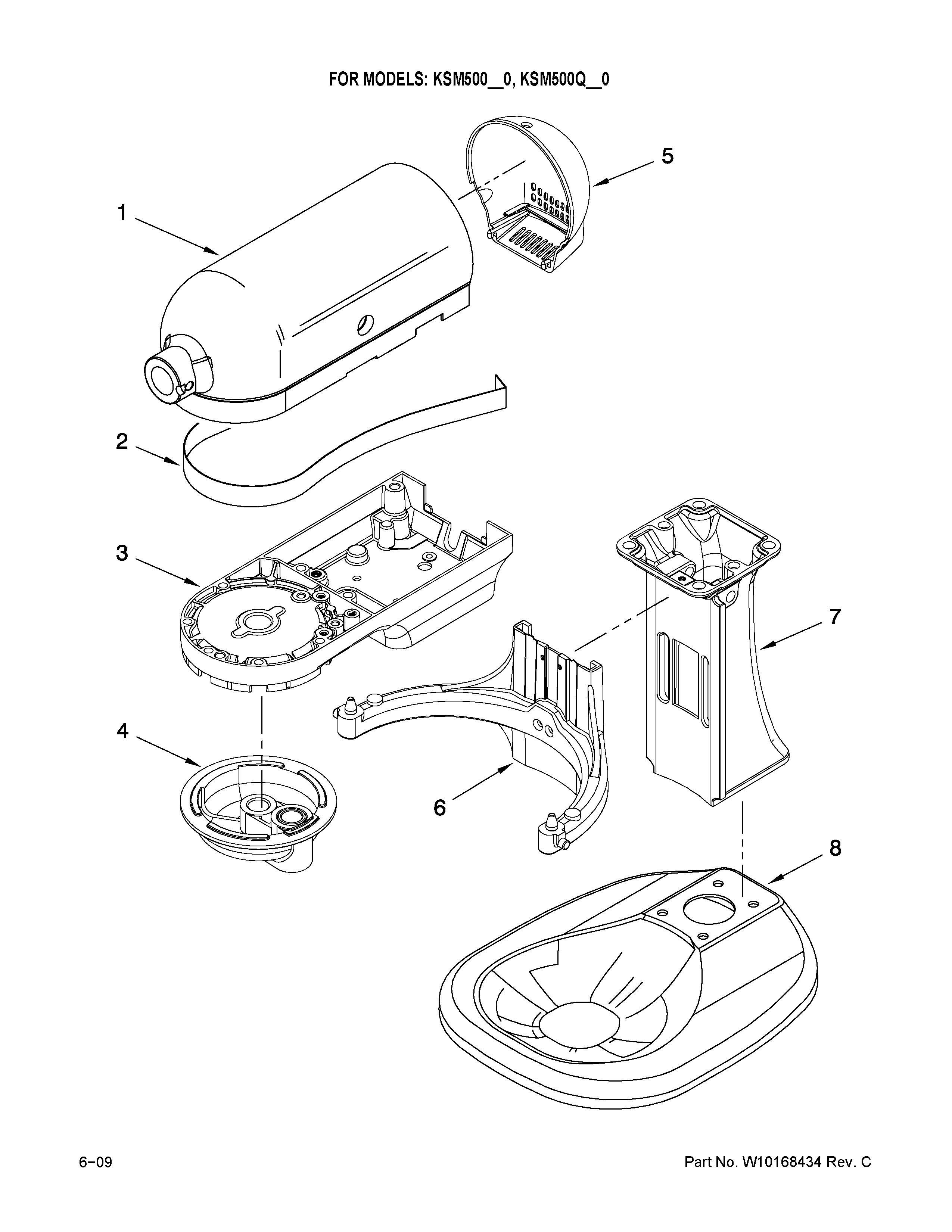

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |

Dryer Drum Roller Ring 9703438
#21

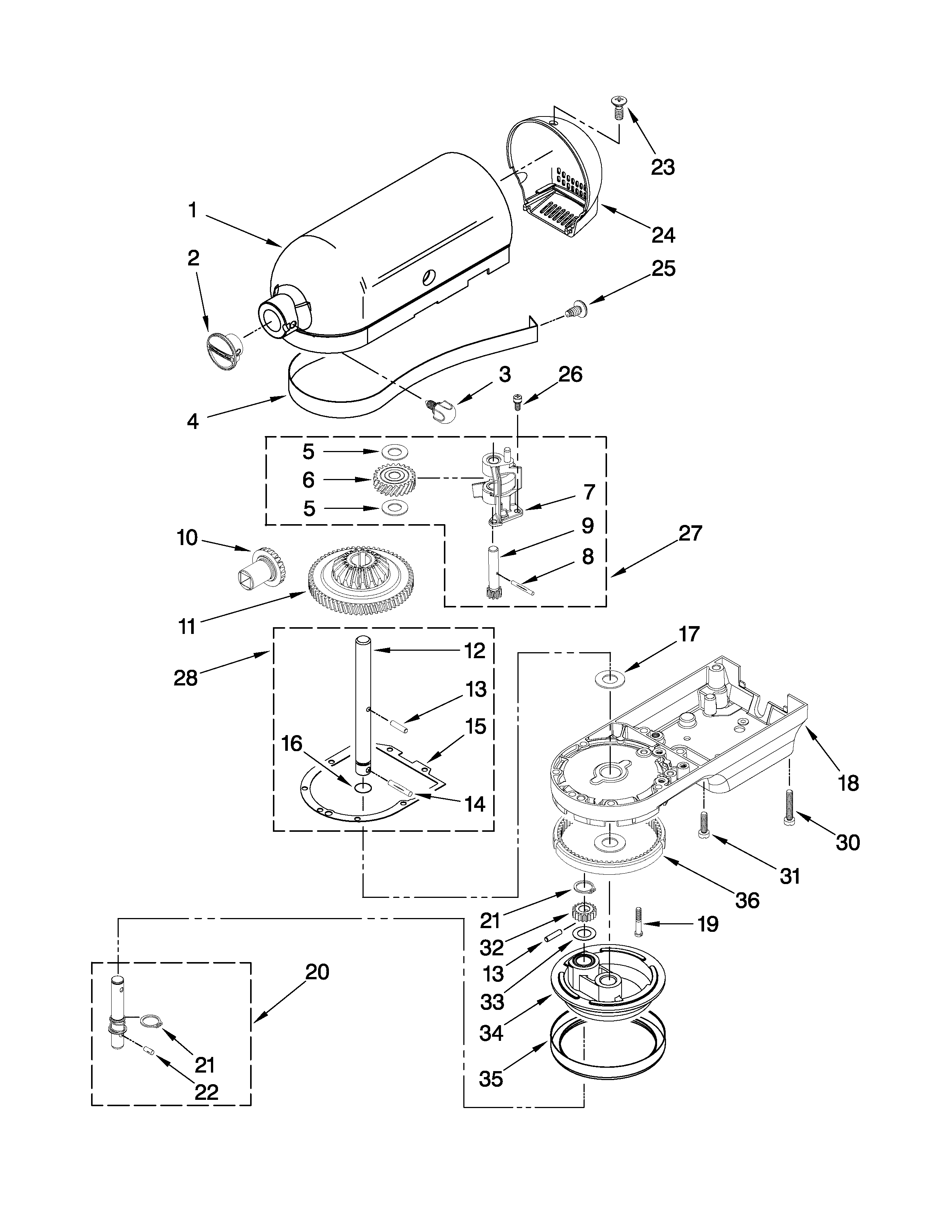

Case, gearing and planetary unit diagram

Dryer drum roller ring

Part #9703438

Replaced by #WP9703438

?
Manufacturer substitution
This part replaces 9703438. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79
75% OFF MSRP : $15.00
In Stock
Stand Mixer Worm Gear W10112253
#6

Case, gearing and planetary unit diagram

Stand mixer worm gear

Part #W10112253

Replaced by #WPW10112253

?
Manufacturer substitution
This part replaces W10112253. Substitute parts can look different from the original.
BEST SELLER
$15.09
12% OFF Phone Price : $17.09
In Stock
Beater-mxr 240235-4
#18

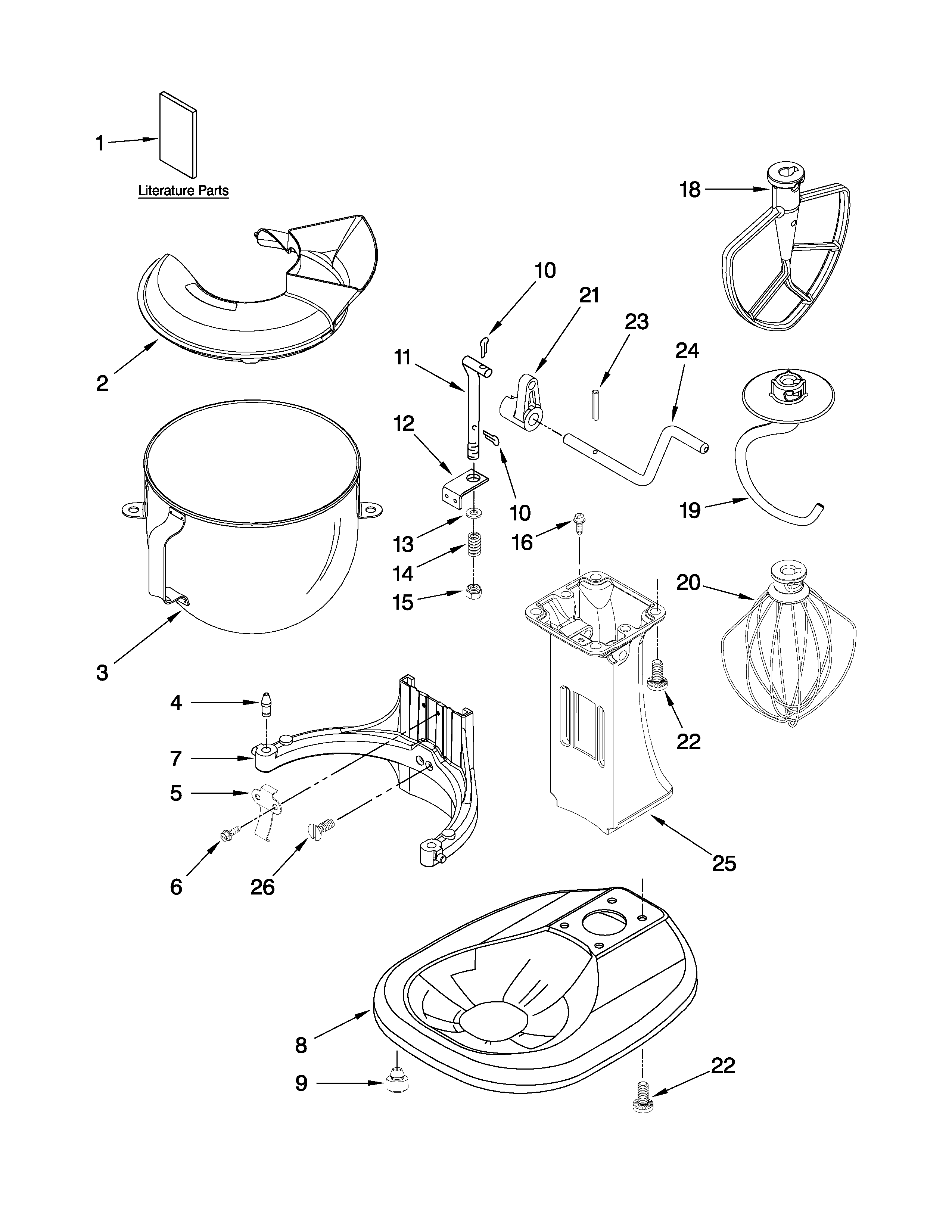

Base and pedestal unit diagram

Beater-mxr

Part #240235-4

Replaced by #W11356332

?
Manufacturer substitution
This part replaces 240235-4. Substitute parts can look different from the original.
$20.51
20% OFF Phone Price : $25.51
In Stock
Spring 3182857
#5

Base and pedestal unit diagram

Spring

Part #3182857

Replaced by #WP3182857

?
Manufacturer substitution
This part replaces 3182857. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Pin-dowel 240018-1
#13

Case, gearing and planetary unit diagram

Pin-dowel

Part #240018-1

Replaced by #WP9707223

?
Manufacturer substitution
This part replaces 240018-1. Substitute parts can look different from the original.
This item is not returnable
$4.58
18% OFF Phone Price : $5.58
In Stock
Ring-o 67500-55
#16

Case, gearing and planetary unit diagram

Ring-o

Part #67500-55

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 67500-55. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Power Cord W10164883
#31

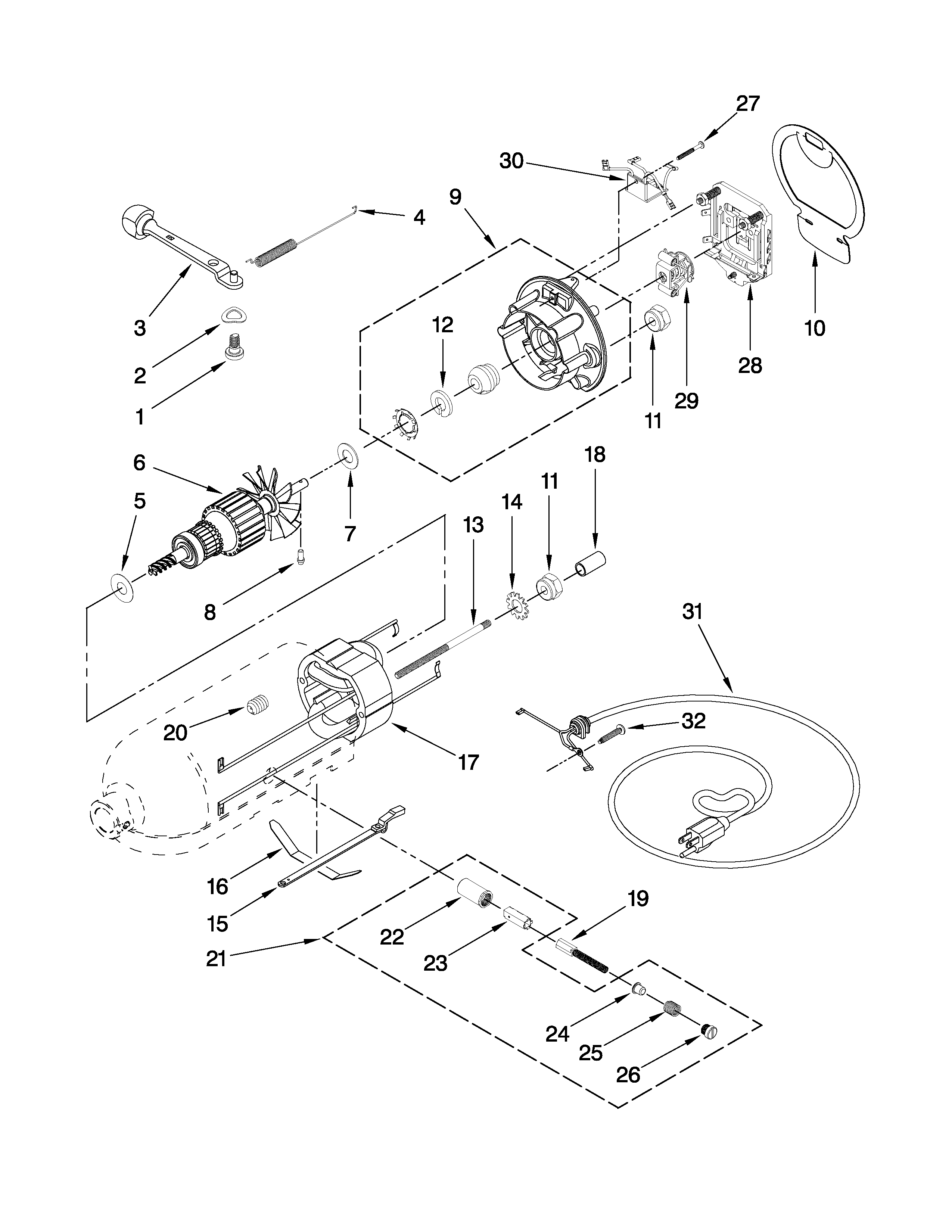

Motor and control parts diagram

Power cord

Part #W10164883

Replaced by #W11545825

?
Manufacturer substitution
This part replaces W10164883. Substitute parts can look different from the original.
$14.29
12% OFF Phone Price : $16.29
In Stock
Speed Lever 9709276
#3

Motor and control parts diagram

Speed lever

Part #9709276

Replaced by #WP9709276

?
Manufacturer substitution
This part replaces 9709276. Substitute parts can look different from the original.
This item is not returnable
$5.79
15% OFF Phone Price : $6.79
In Stock
Hubcap 242765-2
#2

Case, gearing and planetary unit diagram

Hubcap

Part #242765-2

Replaced by #W11048596

?
Manufacturer substitution
This part replaces 242765-2. Substitute parts can look different from the original.
This item is not returnable
$10.39
16% OFF Phone Price : $12.39
In Stock
Pin-groove 9705443
#14

Case, gearing and planetary unit diagram

Pin-groove

Part #9705443

Replaced by #WP9705443

?
Manufacturer substitution
This part replaces 9705443. Substitute parts can look different from the original.
This item is not returnable
$4.58
18% OFF Phone Price : $5.58
In Stock

Most common symptoms to help you fix your stand mixers

Choose a symptom to see related stand mixer repairs.

Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…

Main causes: phase control board failure, wiring connection problem, faulty electronic control board…

Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…

Main cause: worn carbon motor brushes…

Main causes: bad worm gear, damaged planetary gear assembly…

Main cause: attachment clearance setting needs adjustment…

Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
