Craftsman
Gas Walk-Behind Mower

Model # 917374711 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374711 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 347 parts  |

Lock Nut 83923
Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
Lawn & Garden Equipment Screw 851084
#57

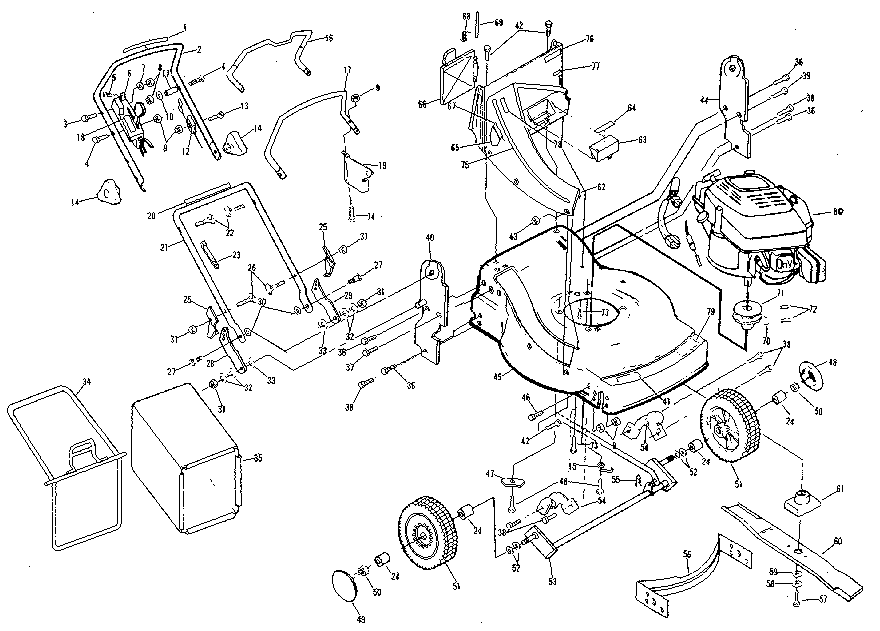

Main frame diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#59

Main frame diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

BEST SELLER
This item is not returnable
$2.79
26% OFF Phone Price : $3.79
In Stock
Molded Ignition Key 109310X
#2

Drive/speed control cable w/key switch diagram

Molded ignition key

Part #109310X

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower 22-in Deck Mulching Blade 850973
Lawn mower 22-in deck mulching blade

Part #850973

Replaced by #406713

?
Manufacturer substitution
This part replaces 850973. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Screw 850998
#48

Main frame diagram

Screw

Part #850998

Replaced by #150406

?
Manufacturer substitution
This part replaces 850998. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89
17% OFF Phone Price : $5.89
In Stock
Lock Nut 751152
Lock nut

Part #751152

Replaced by #191730

?
Manufacturer substitution
This part replaces 751152. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.20
19% OFF Phone Price : $5.20
In Stock
Decal 85463
#65

Main frame diagram

Decal

Part #85463

Replaced by #539913010

?
Manufacturer substitution
This part replaces 85463. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 751153
#44

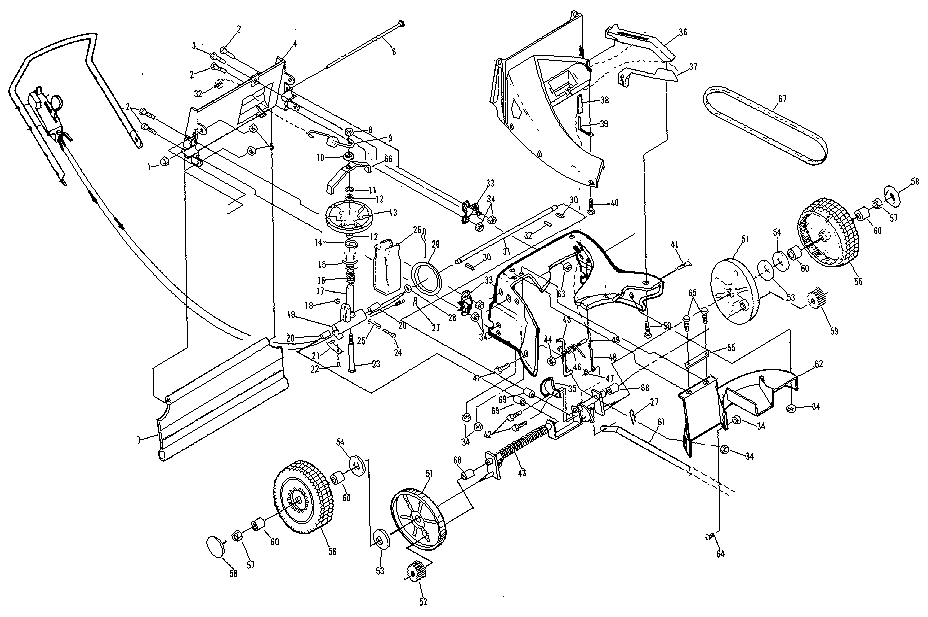

Drive assembly diagram

Lock nut

Part #751153

Replaced by #532751153

?
Manufacturer substitution
This part replaces 751153. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pulley 750684
#13

Drive assembly diagram

Pulley

Part #750684

In Stock
