Kenmore 1107003501 washer Parts
Here are the diagrams and repair parts for Kenmore 1107003501 washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

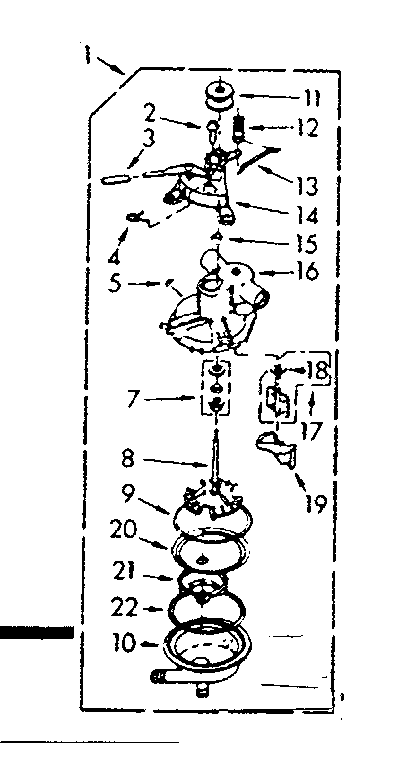

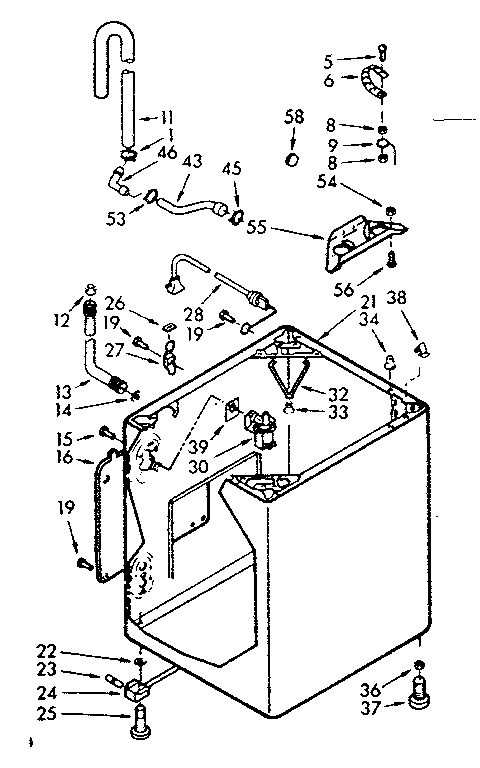

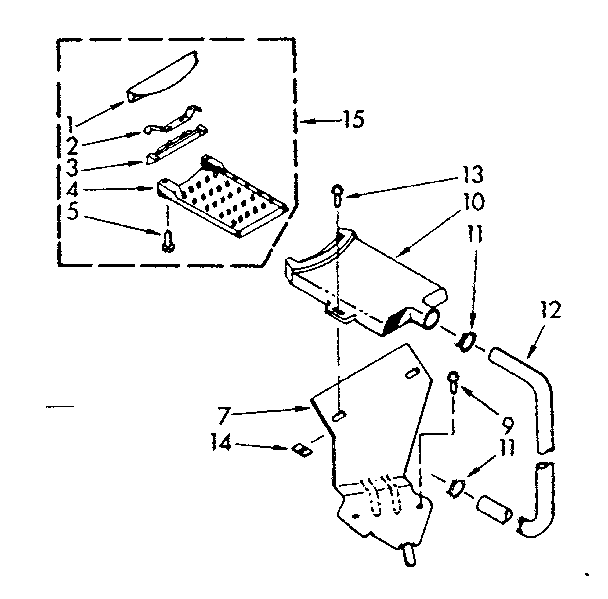

Browse Parts for 1107003501 Washer

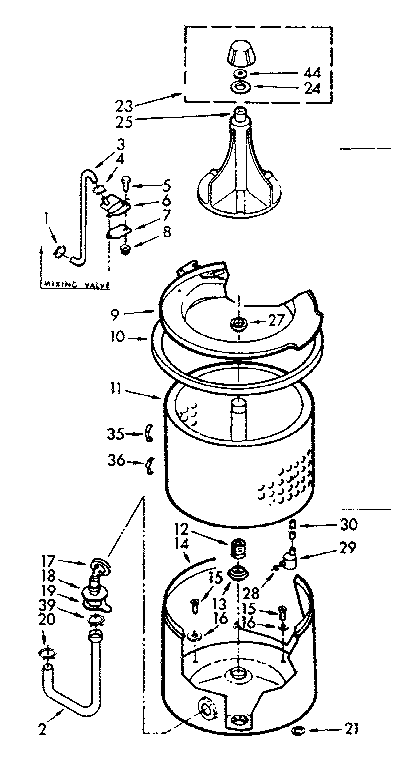

Tub and basket assembly diagram
Clamp
Part #353095Replaced by #WP356138
Manufacturer substitutionThis part replaces 353095. Substitute parts can look different from the original.In Stock$36.09
Qty

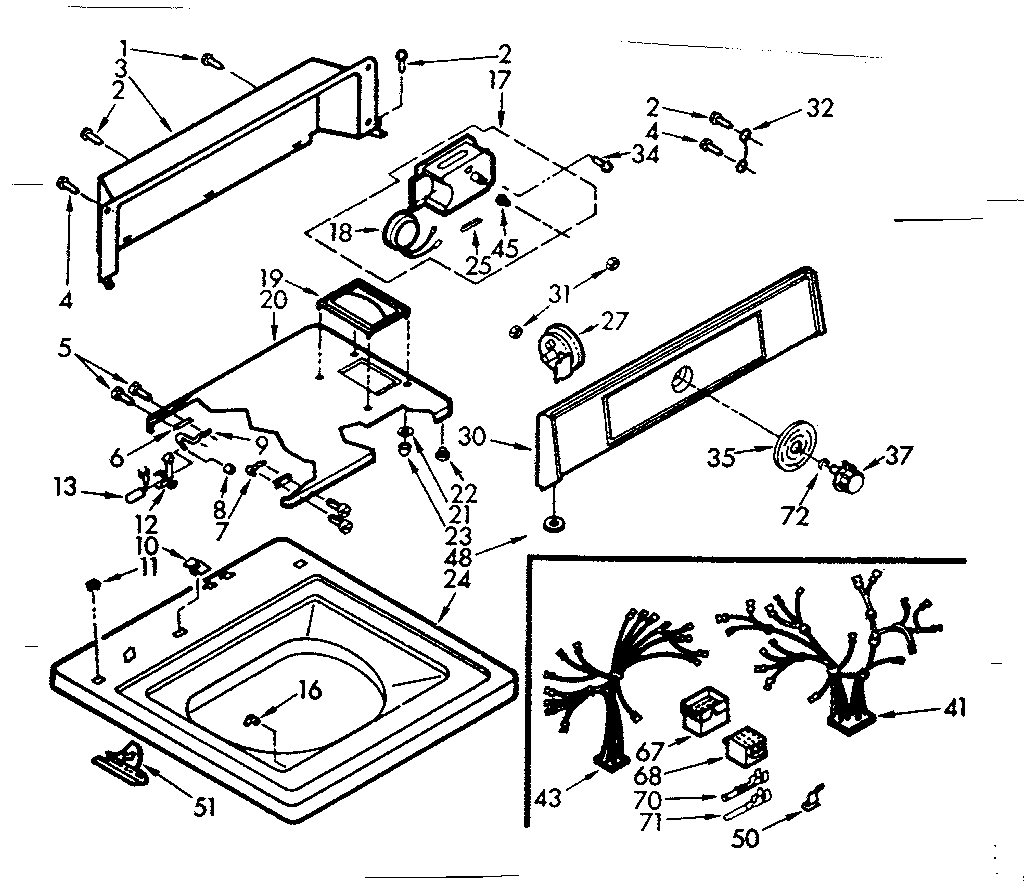

Top and console assembly diagram
Washer Lid Hinge Bracket
Part #21097Replaced by #WP21097
Manufacturer substitutionThis part replaces 21097. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67
QtyTop and console assembly diagram
Screw
Part #96435Replaced by #WP356418
Manufacturer substitutionThis part replaces 96435. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyTop and console assembly diagram
Terminal
Part #94614Replaced by #WP94614

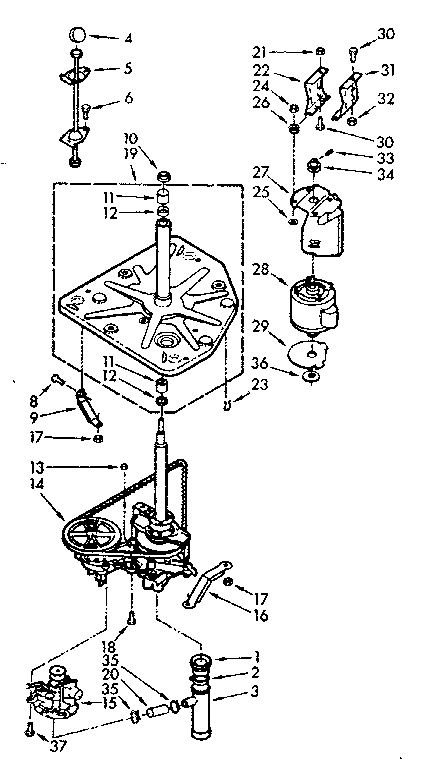

Manufacturer substitutionThis part replaces 94614. Substitute parts can look different from the original.In Stock$28.49QtyDrive system diagram
Screw
Part #96867Replaced by #386011
Manufacturer substitutionThis part replaces 96867. Substitute parts can look different from the original.In Stock$64.34Qty#NI
All parts diagram
Paint
Part #350338Replaced by #350938
Manufacturer substitutionThis part replaces 350338. Substitute parts can look different from the original.In Stock$52.5710% OFF Phone Price : $58.57QtyTop and console assembly diagram
Screw
Part #98559Replaced by #WP3390631
Manufacturer substitutionThis part replaces 98559. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyTop and console assembly diagram
Screw
Part #18724Replaced by #WPW10119828
Manufacturer substitutionThis part replaces 18724. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1319% OFF Phone Price : $5.13QtyTop and console assembly diagram
Ground Wire
Part #54570Replaced by #3184020
Manufacturer substitutionThis part replaces 54570. Substitute parts can look different from the original.In Stock$94.99QtyTub and basket assembly diagram
Screw
Part #98709Replaced by #WPW10141625
Manufacturer substitutionThis part replaces 98709. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61Qty
