Thermador PRL486EDG03 gas range Parts
Here are the diagrams and repair parts for Thermador PRL486EDG03 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

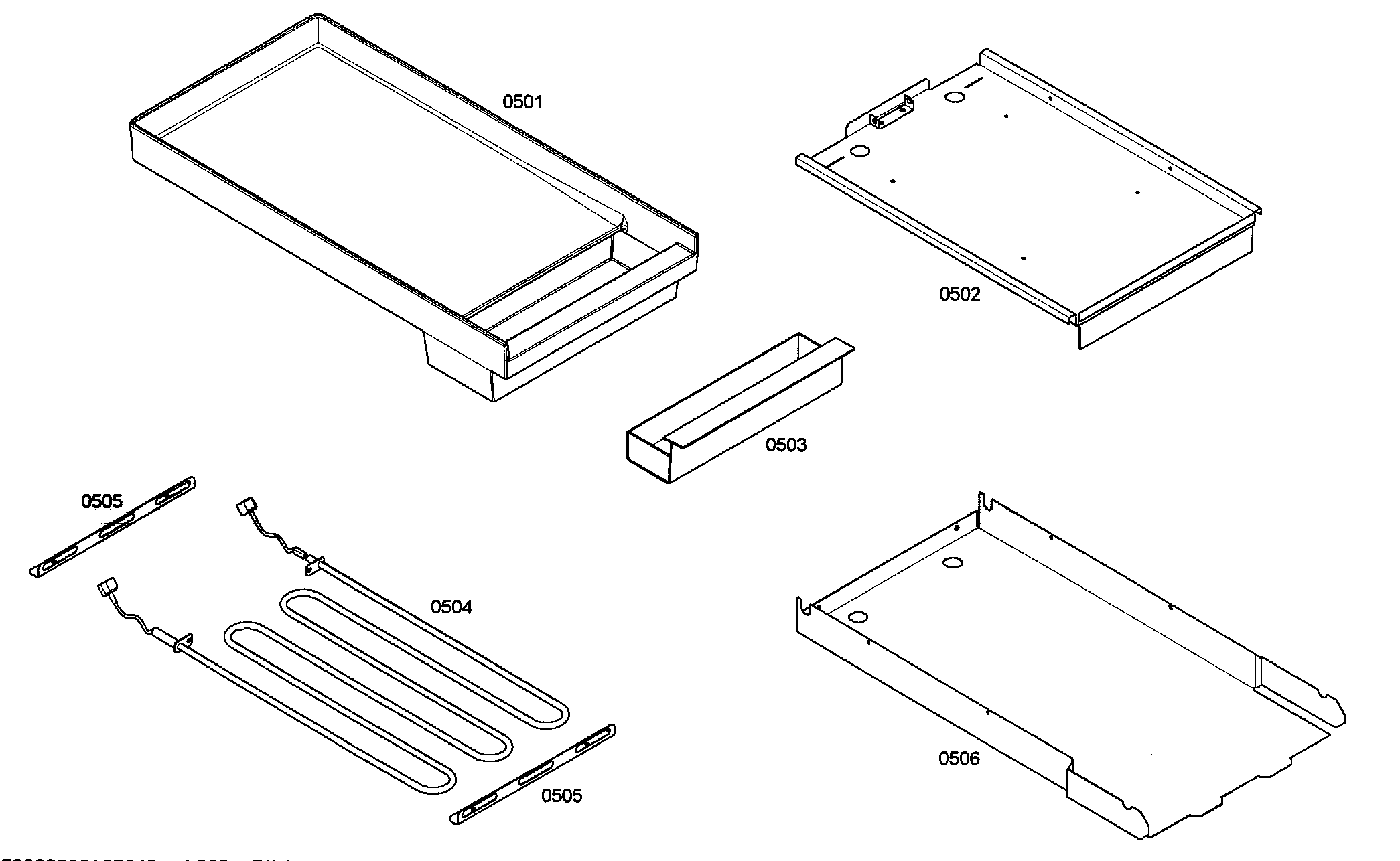

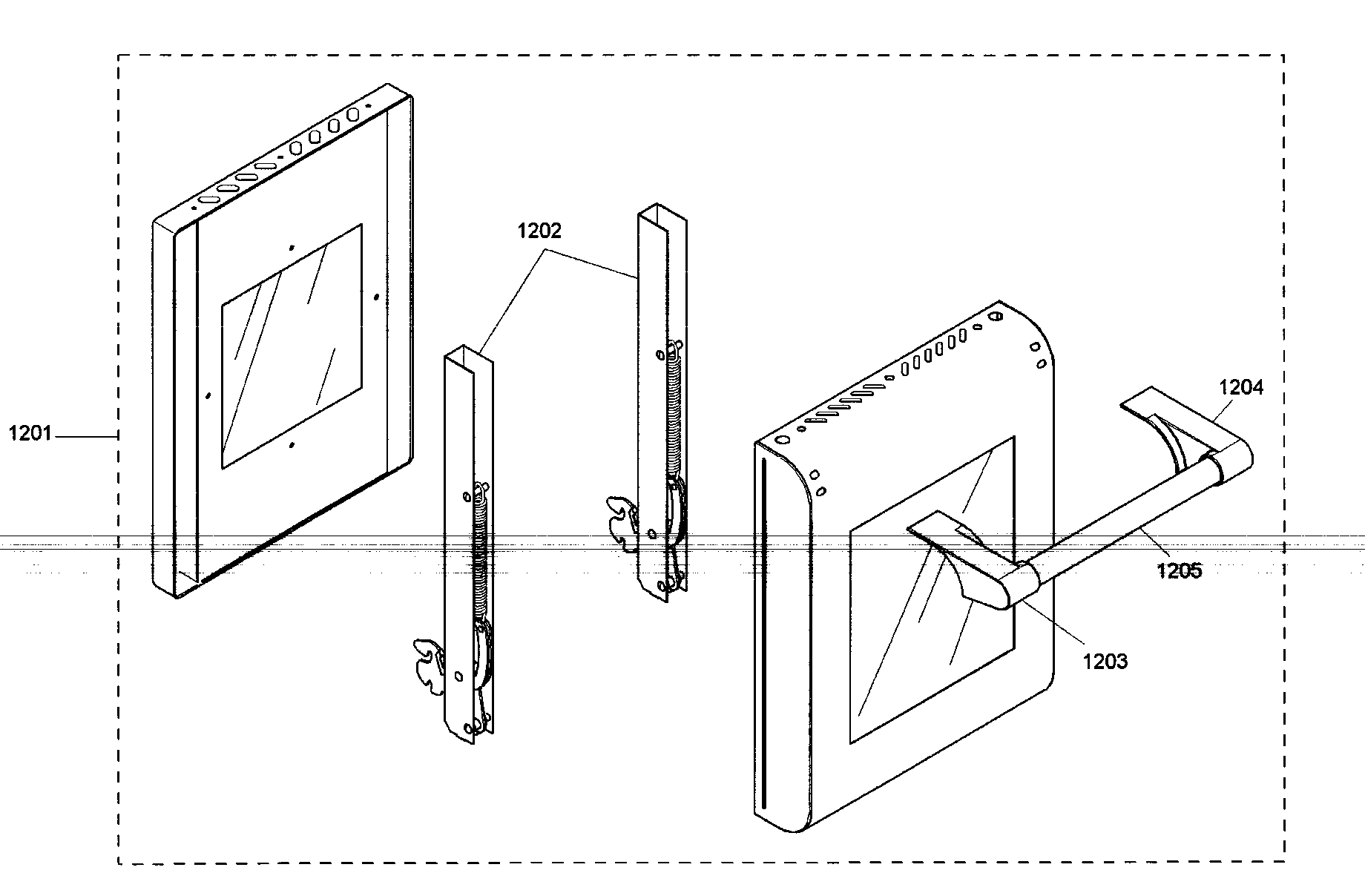

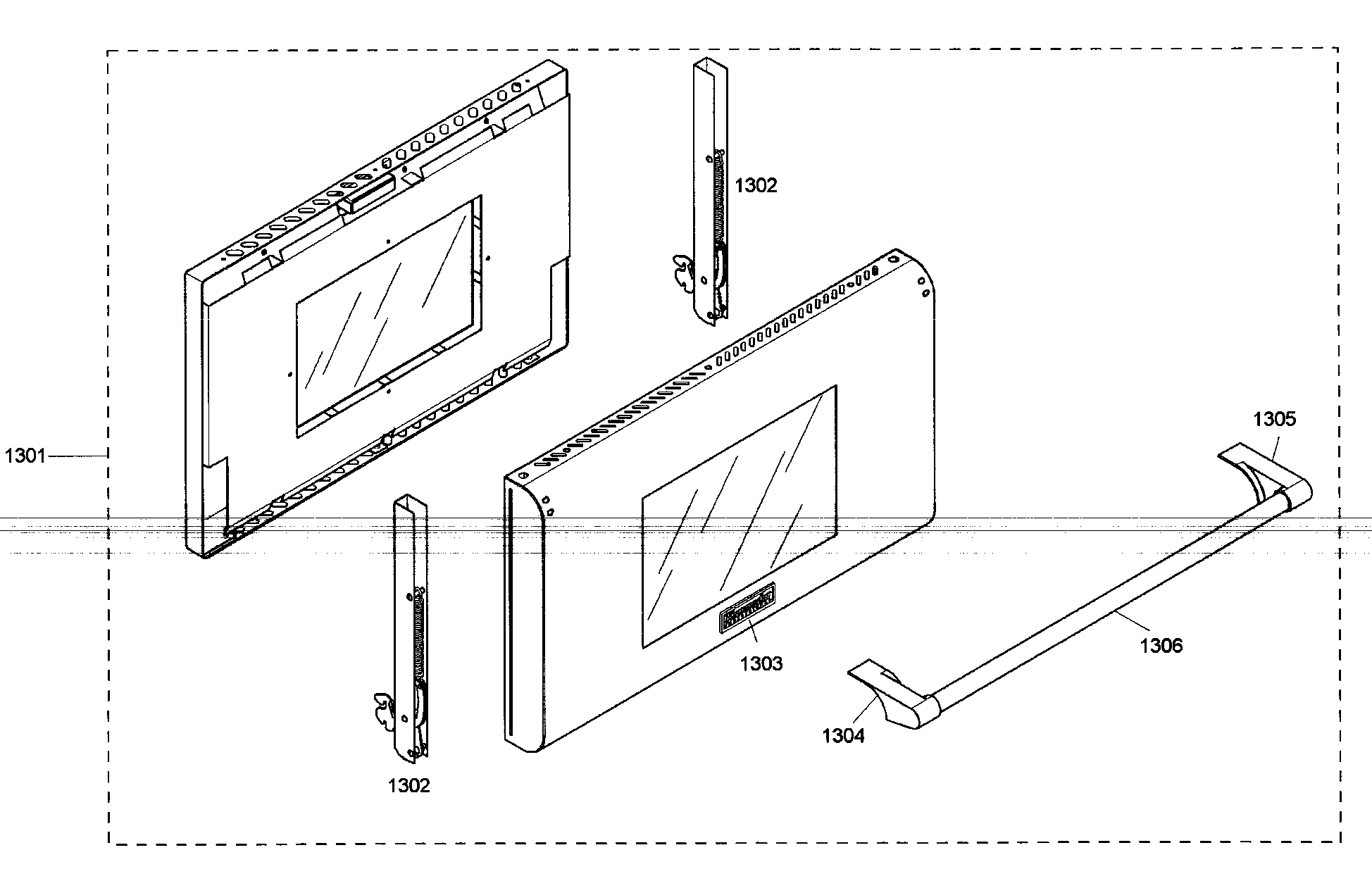

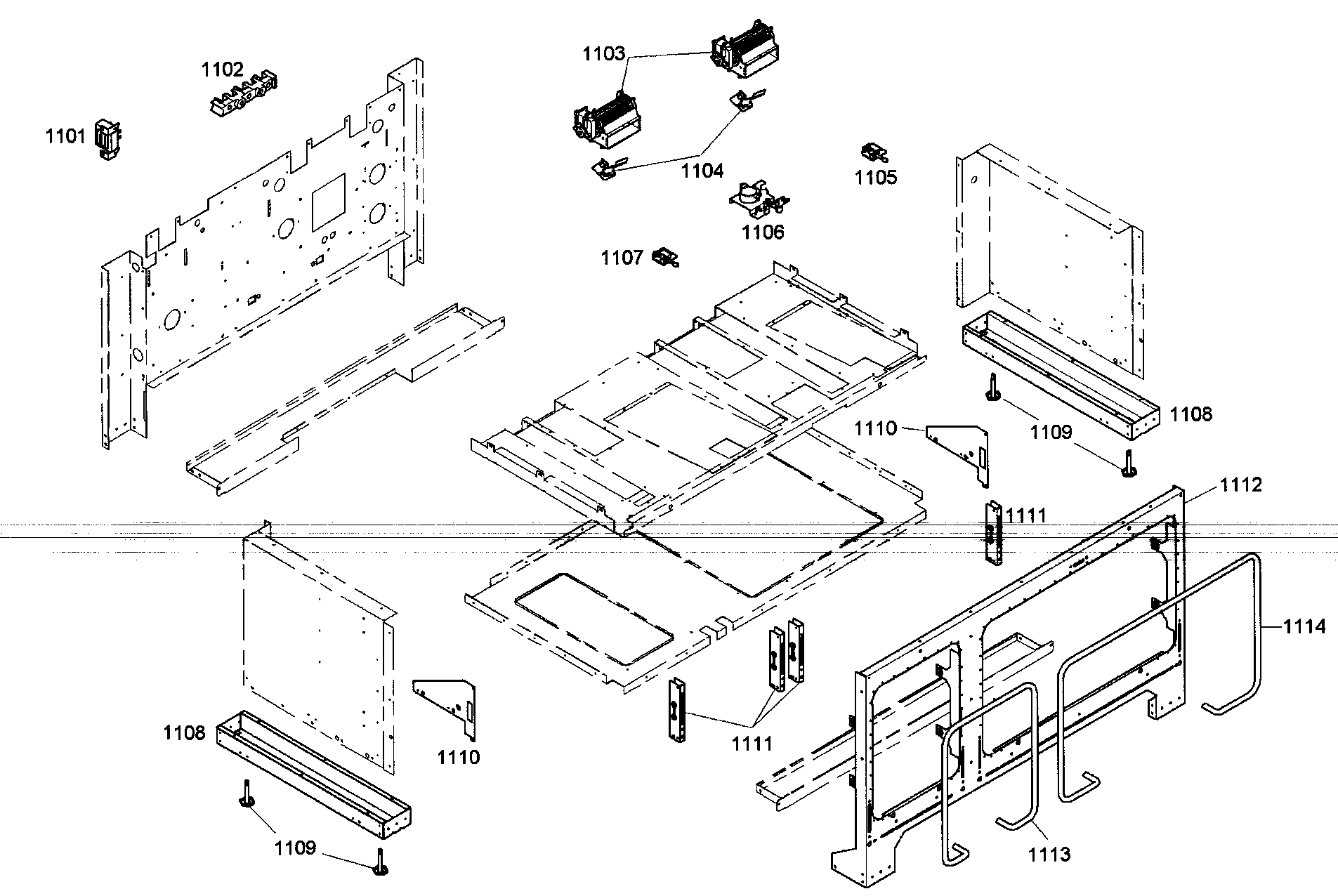

Browse Parts for PRL486EDG03 Ranges

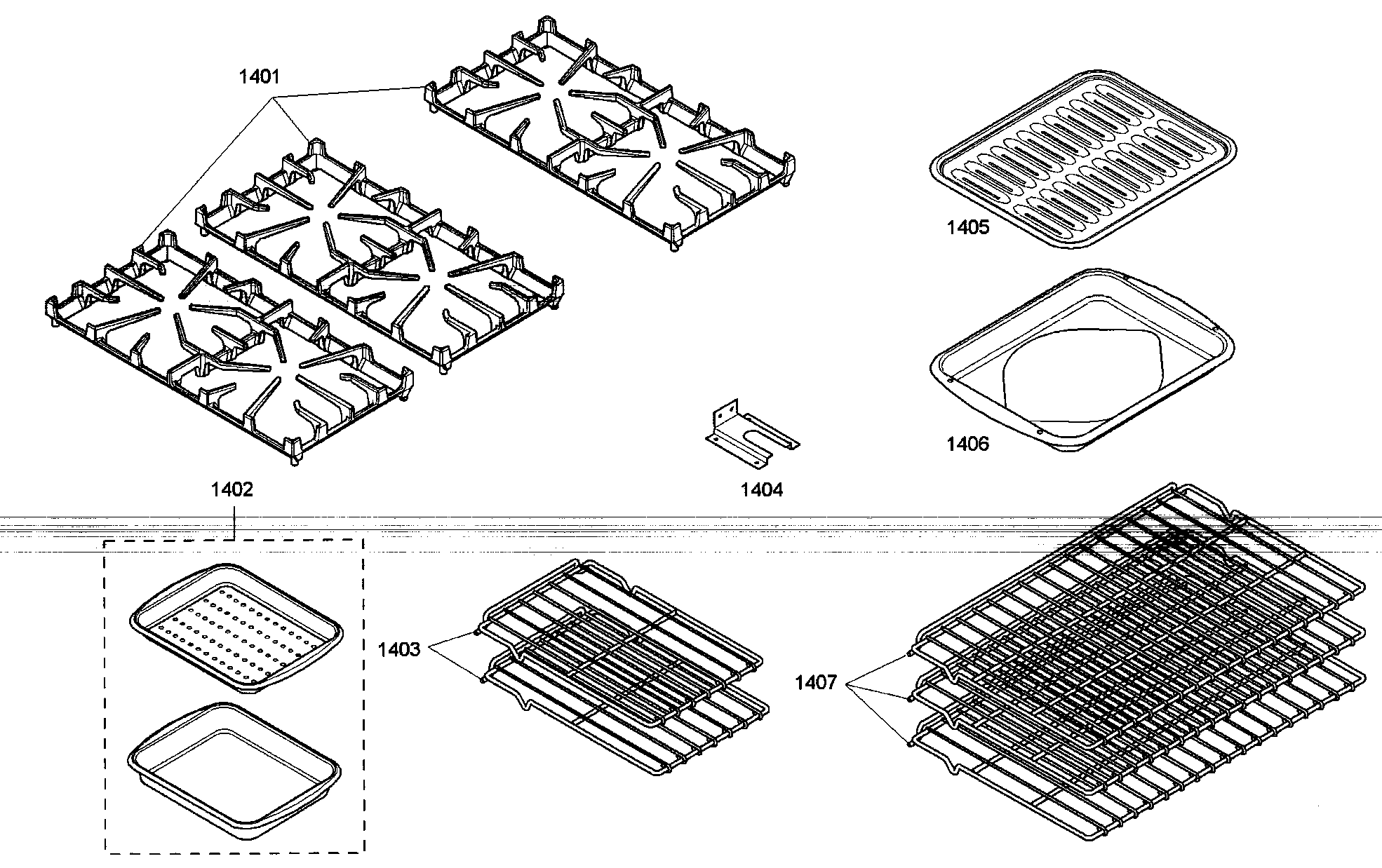

Accessory diagram
Thermador Bracket
Part #427338Replaced by #00427338
Manufacturer substitutionThis part replaces 427338. Substitute parts can look different from the original.In Stock$101.43
Qty

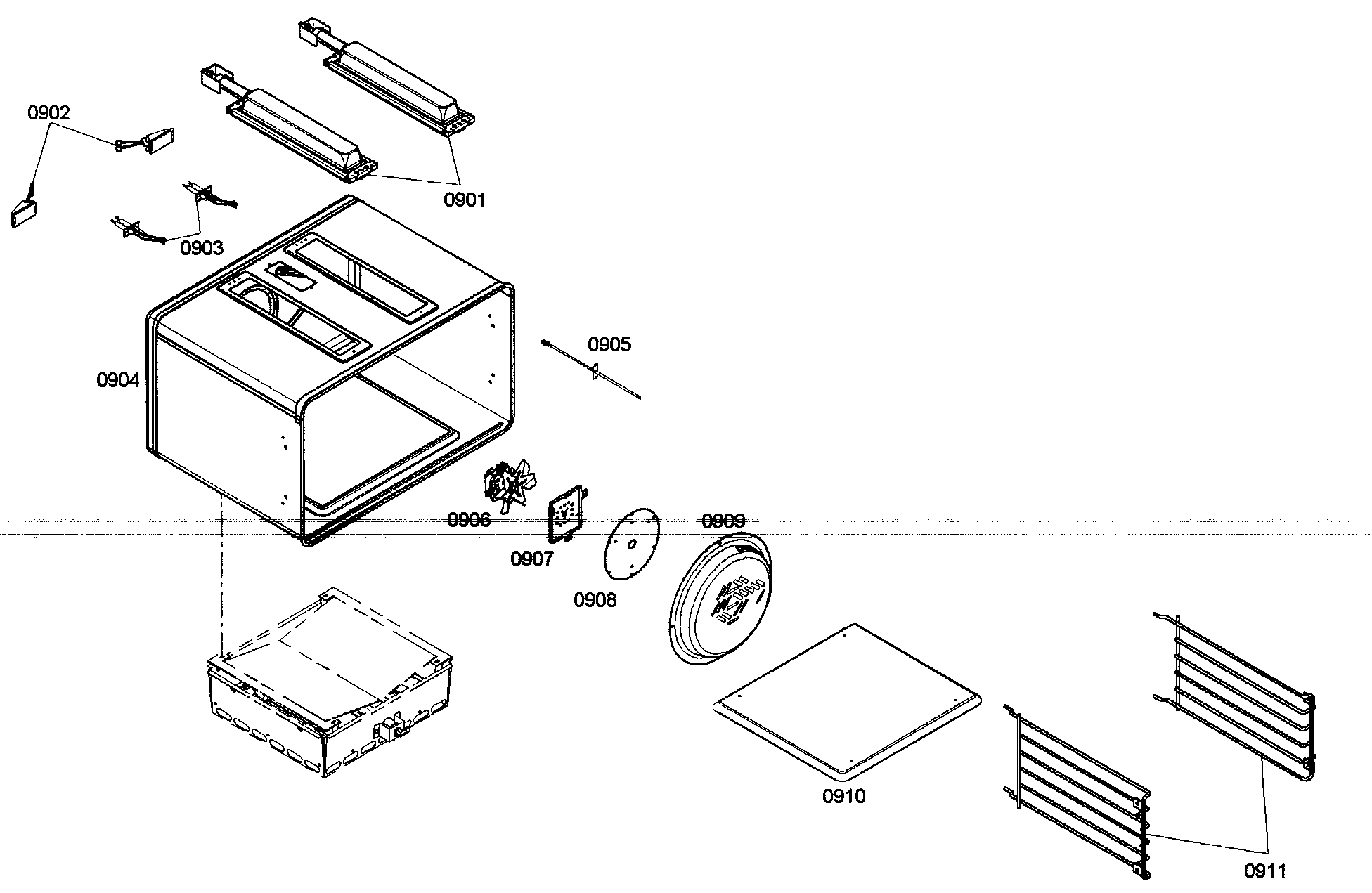

Right oven 1 diagram
Thermador Motor
Part #497756Replaced by #00497756
Manufacturer substitutionThis part replaces 497756. Substitute parts can look different from the original.In Stock$265.46$12.00 OFF Phone Price : $277.46

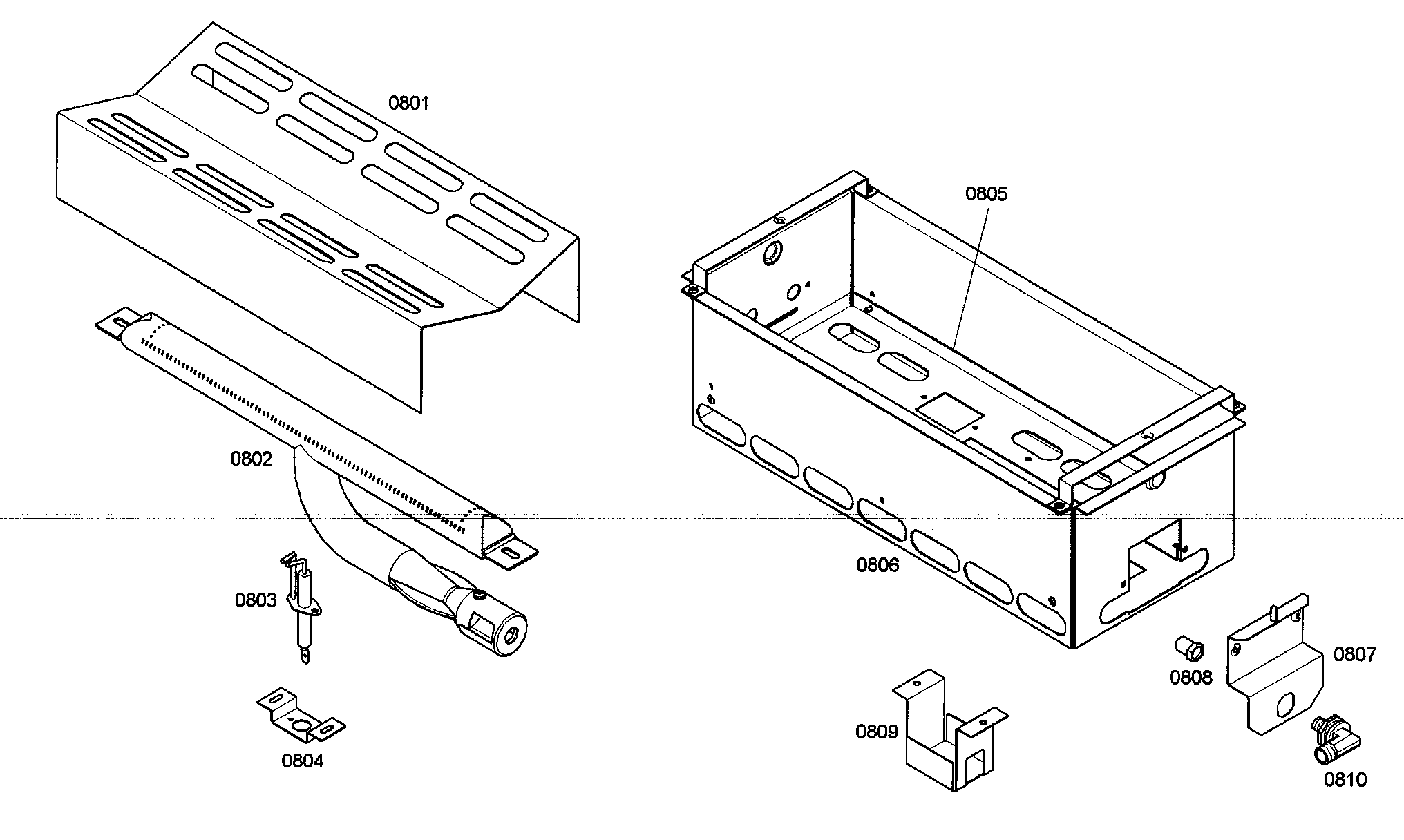

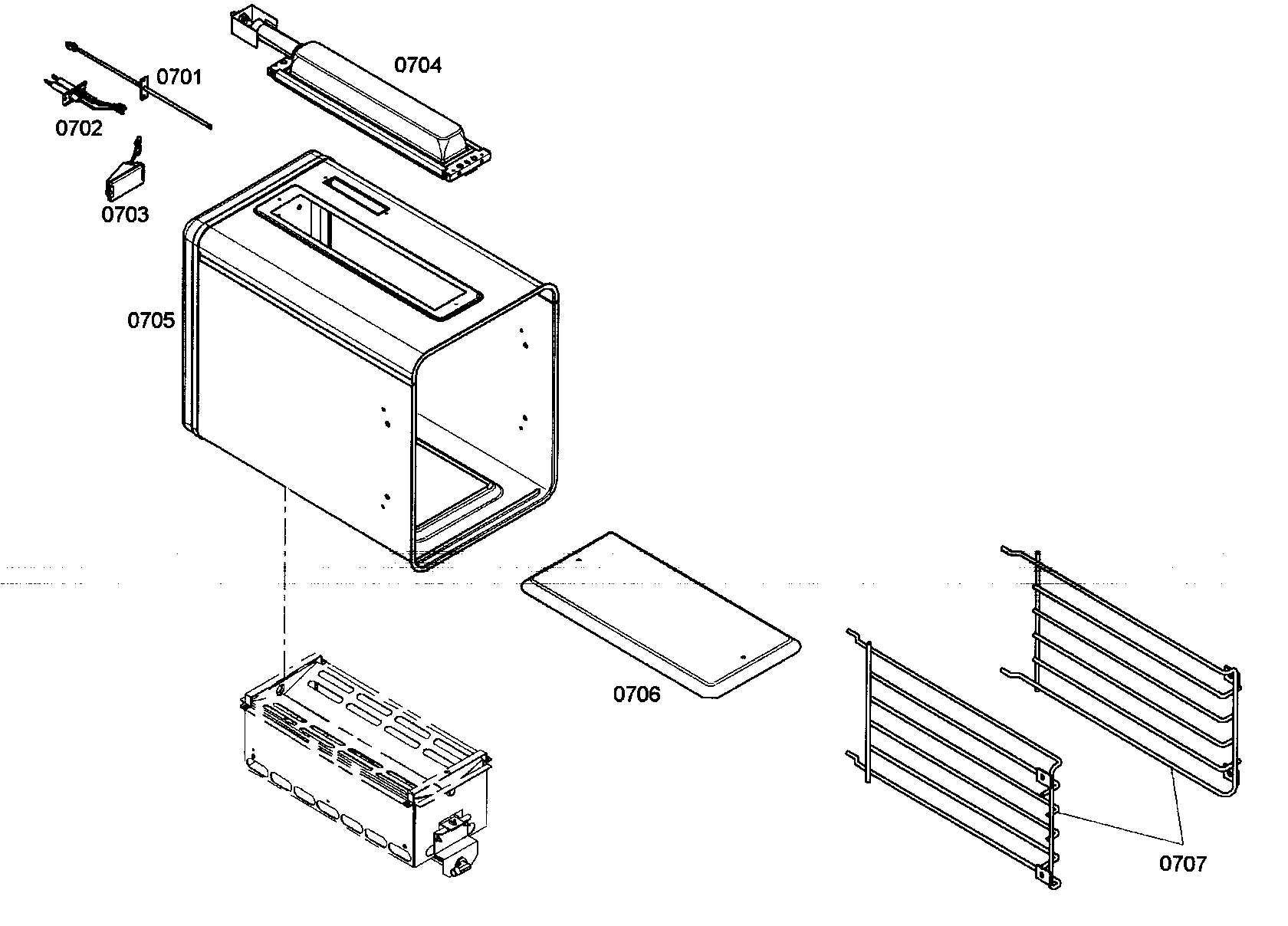

QtyLeft oven 2 diagram
Thermador Bracket
Part #425432Replaced by #00425432

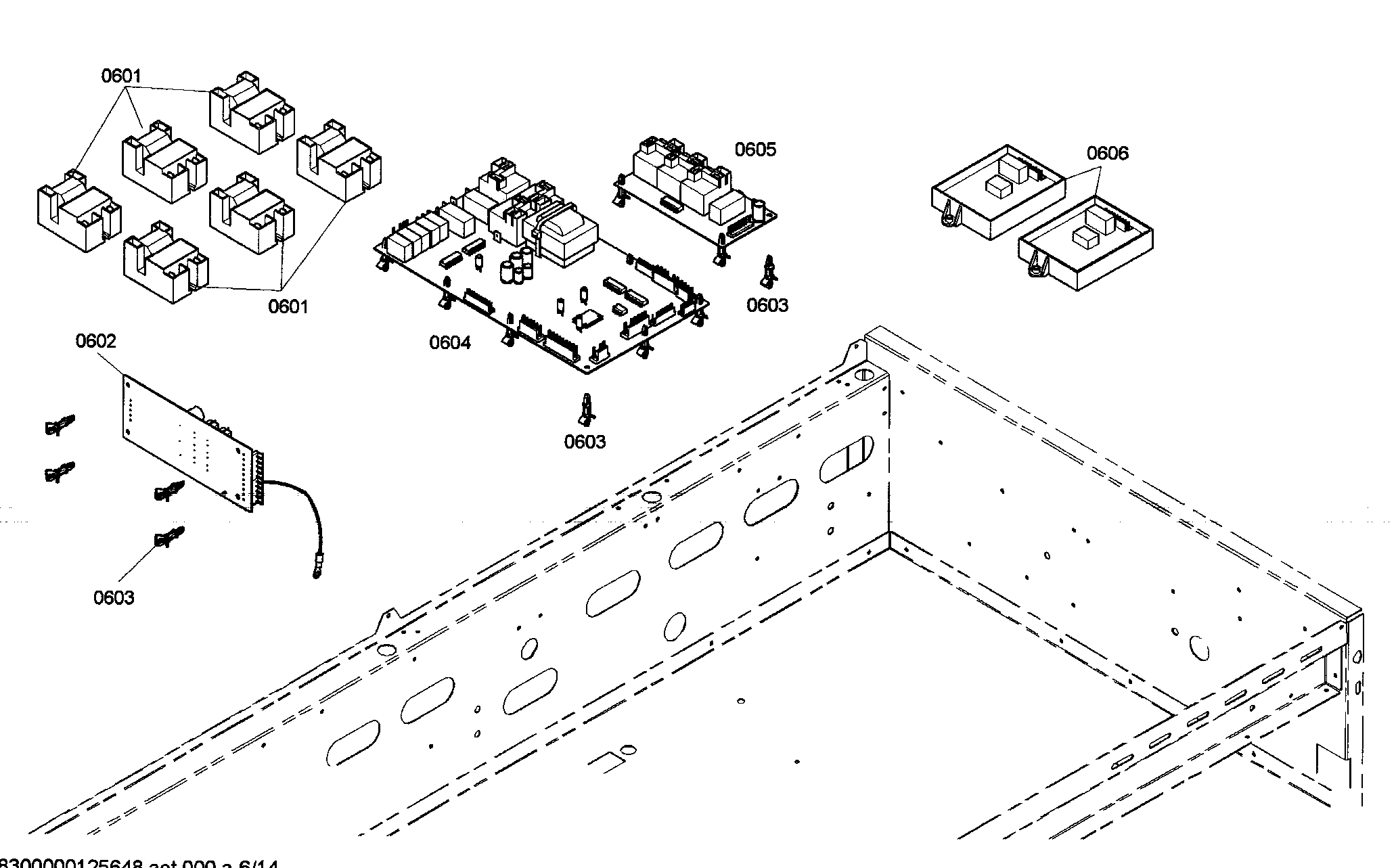

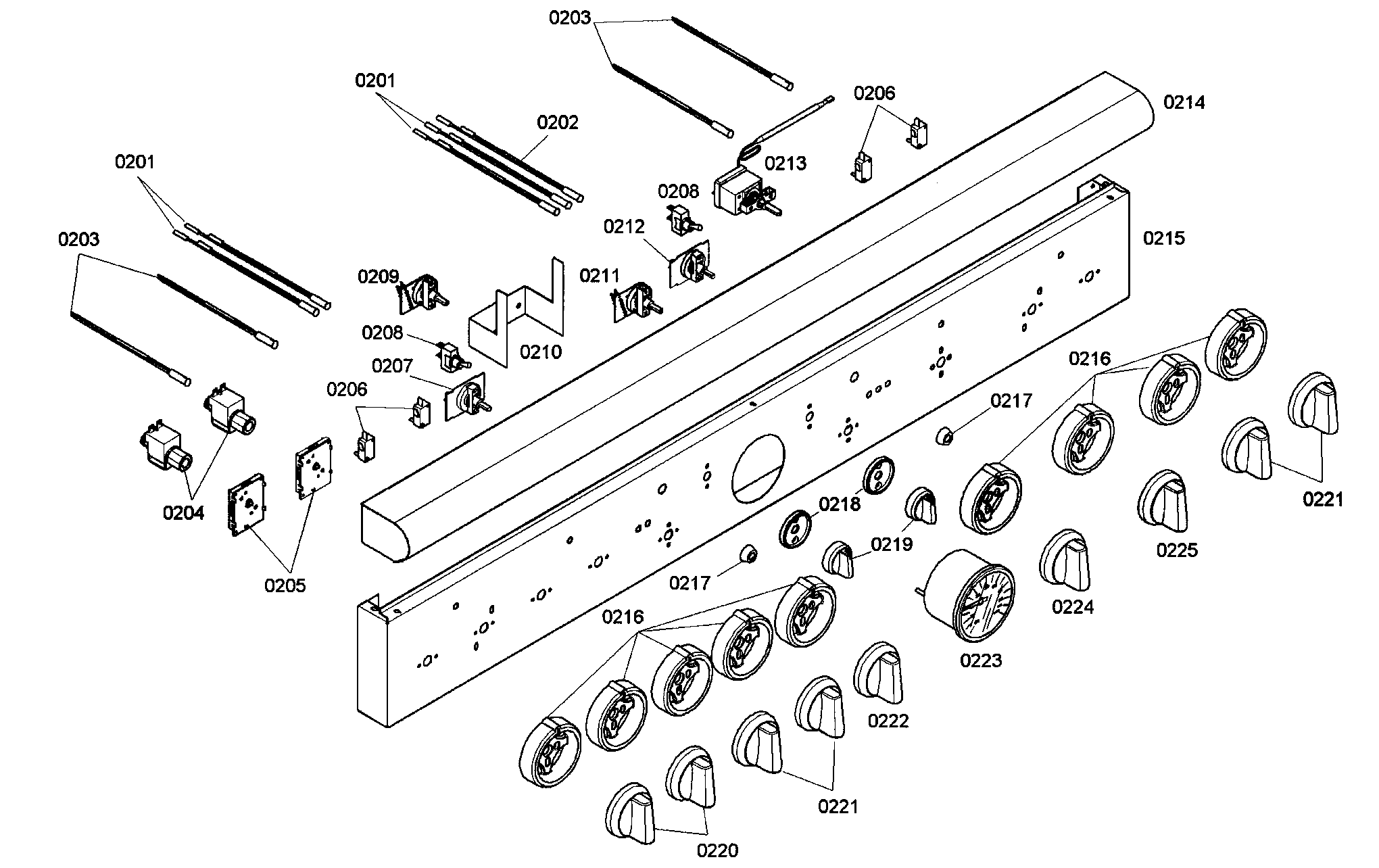

Manufacturer substitutionThis part replaces 425432. Substitute parts can look different from the original.In Stock$26.00QtyControl panel diagram
Thermador Valve
Part #423093Replaced by #00423093

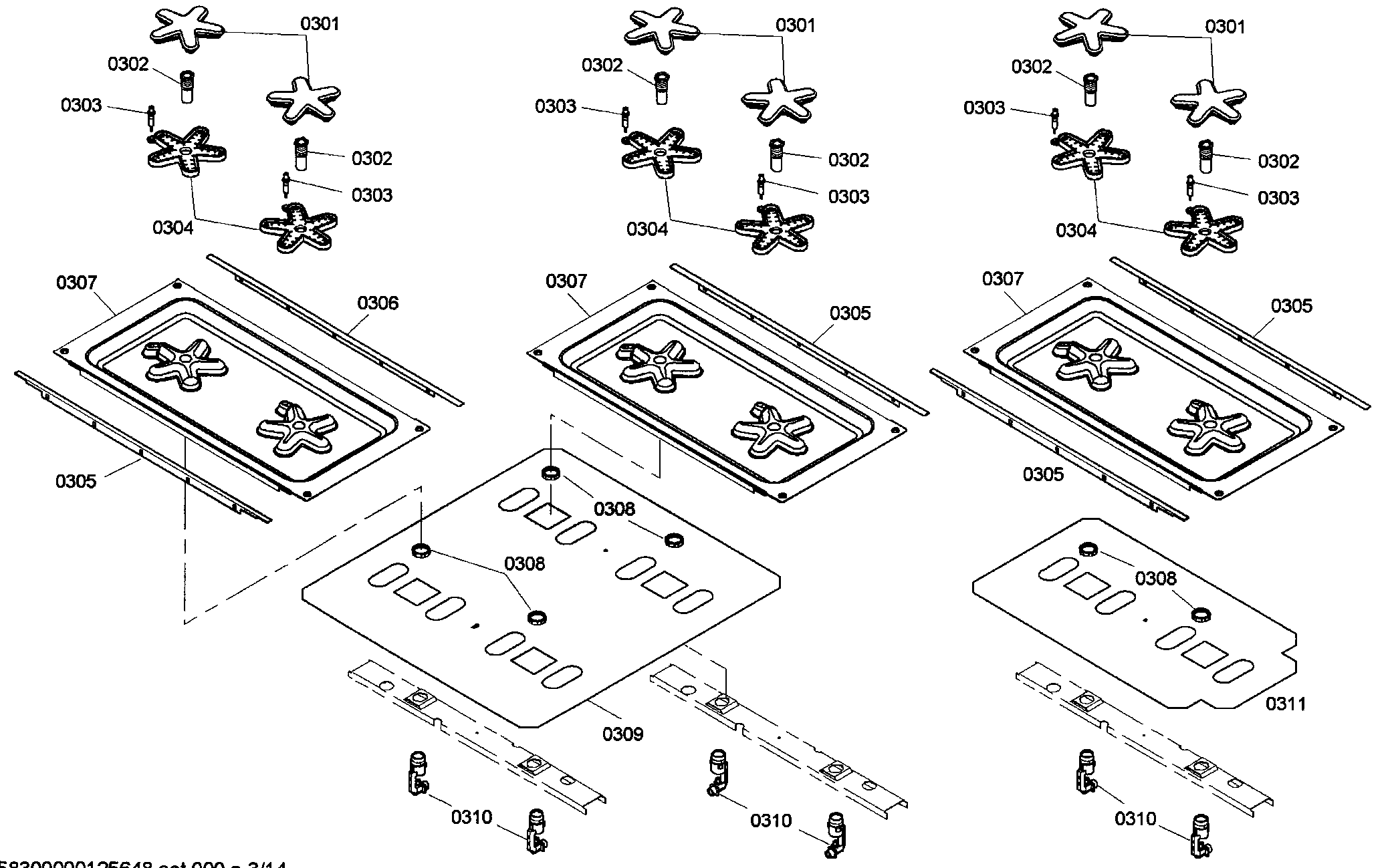

Manufacturer substitutionThis part replaces 423093. Substitute parts can look different from the original.In Stock$186.916% OFF Phone Price : $198.91QtyBurner assy diagram
Thermador Nut
Part #188978Replaced by #00188978

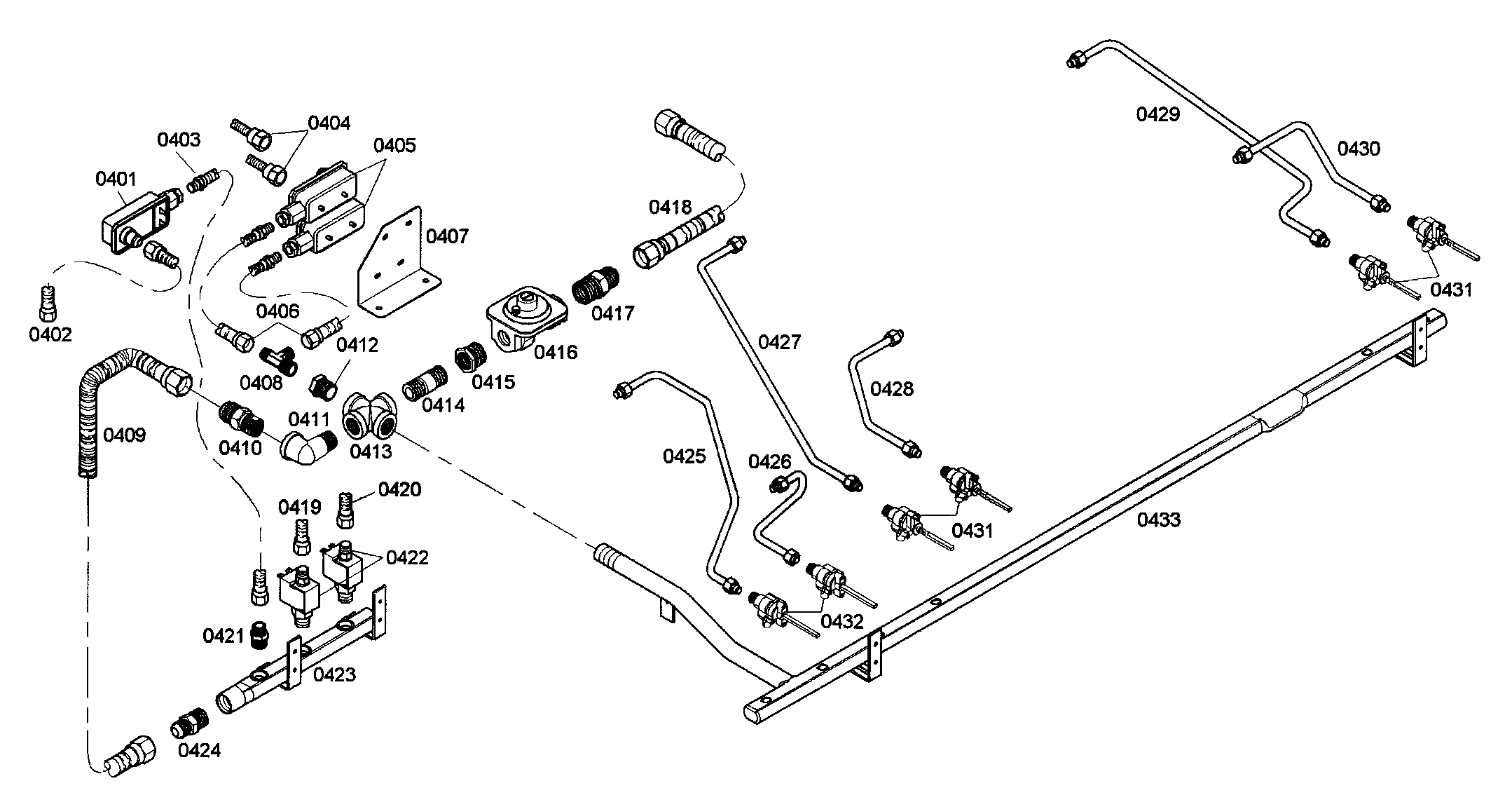

Manufacturer substitutionThis part replaces 188978. Substitute parts can look different from the original.In Stock$22.9221% OFF Phone Price : $28.92QtyGas supply diagram
Thermador Tube
Part #498908Replaced by #00498908

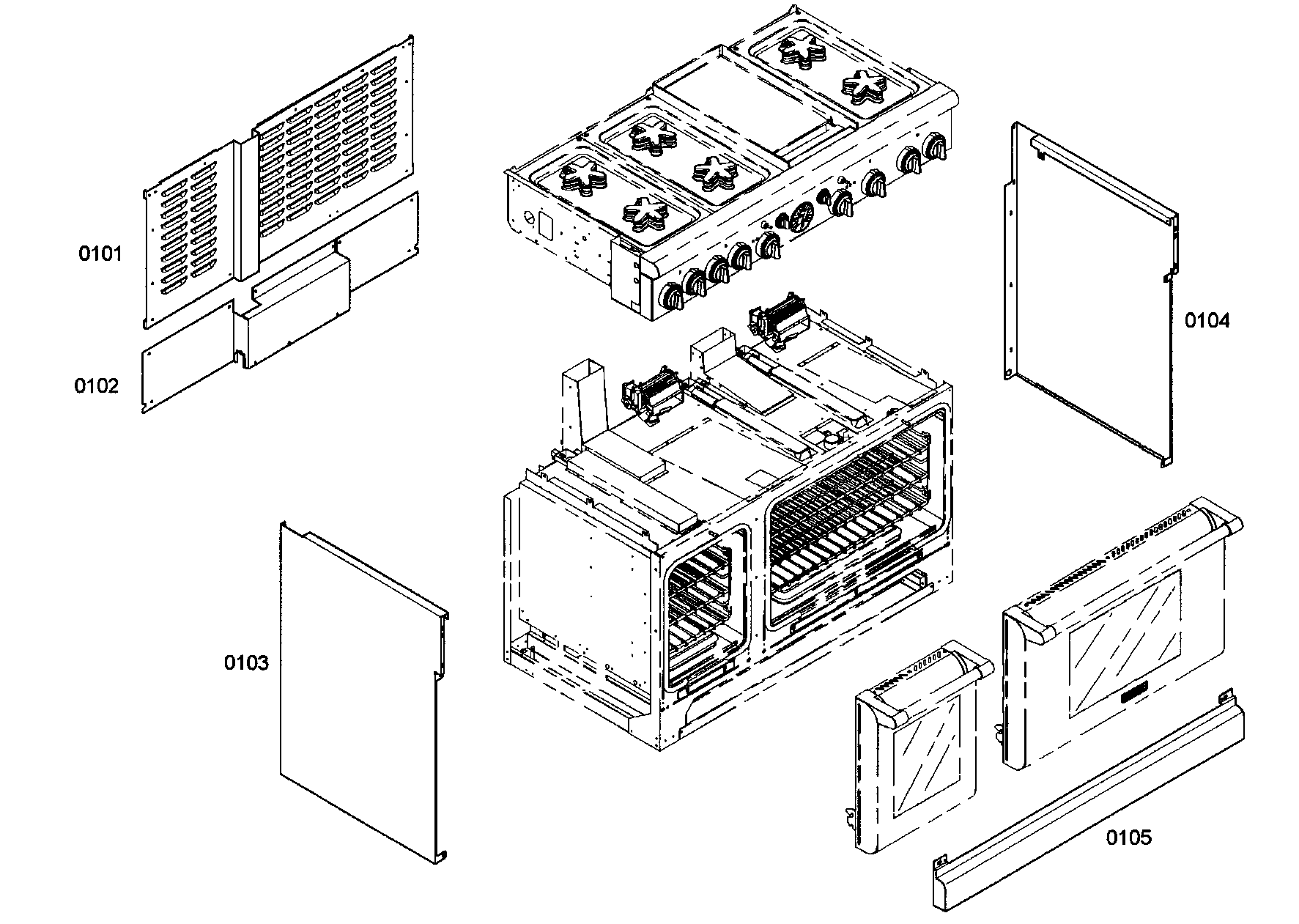

Manufacturer substitutionThis part replaces 498908. Substitute parts can look different from the original.In Stock$110.88QtyOutside parts diagram
Thermador Cover
Part #474782Replaced by #00474782
Manufacturer substitutionThis part replaces 474782. Substitute parts can look different from the original.In Stock$308.31QtyControl panel diagram
Thermador Knob
Part #609109Replaced by #00617885
Manufacturer substitutionThis part replaces 609109. Substitute parts can look different from the original.In Stock$113.8910% OFF Phone Price : $125.89QtyRight oven 1 diagram
Thermador Cover
Part #489183Replaced by #00479238

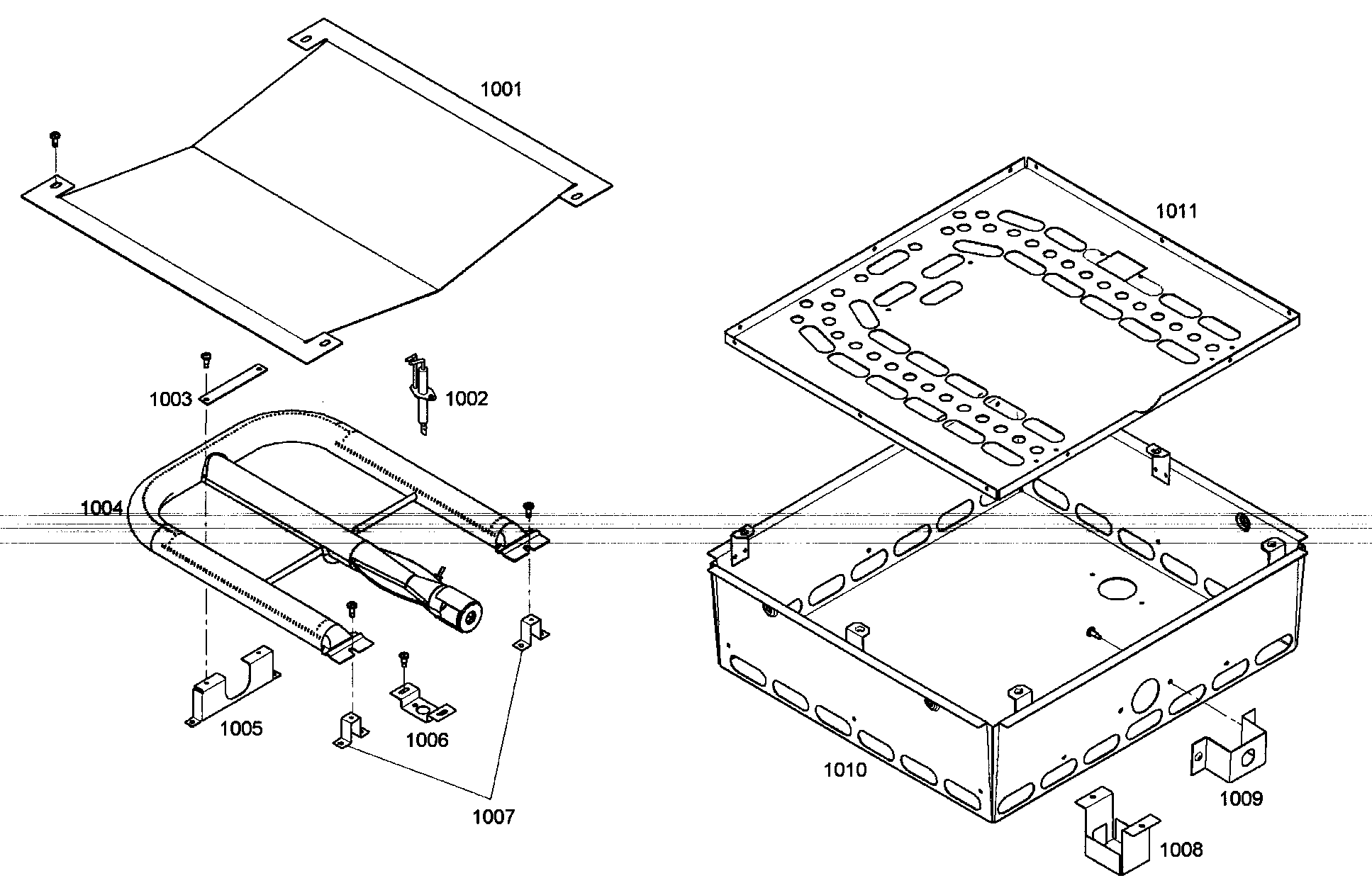

Manufacturer substitutionThis part replaces 489183. Substitute parts can look different from the original.In Stock$104.24QtyRight oven 2 diagram
Thermador Panel
Part #473539Replaced by #00473539
Manufacturer substitutionThis part replaces 473539. Substitute parts can look different from the original.In Stock$347.75Qty
