Side-By-Side Refrigerator

Model # GSE25GGHBCBB Official GE refrigerator

Here are the diagrams and repair parts for Official GE GSE25GGHBCBB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

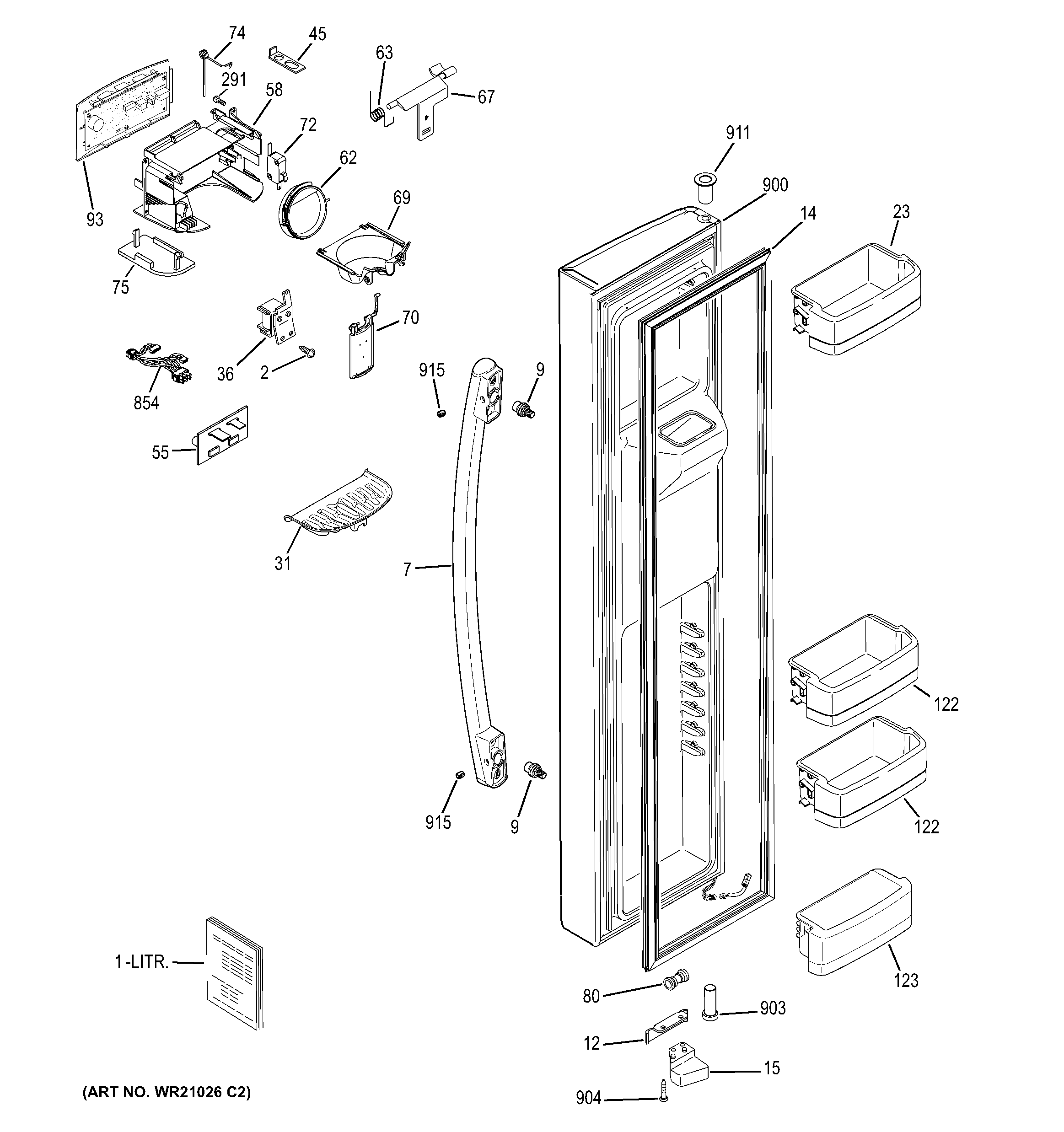

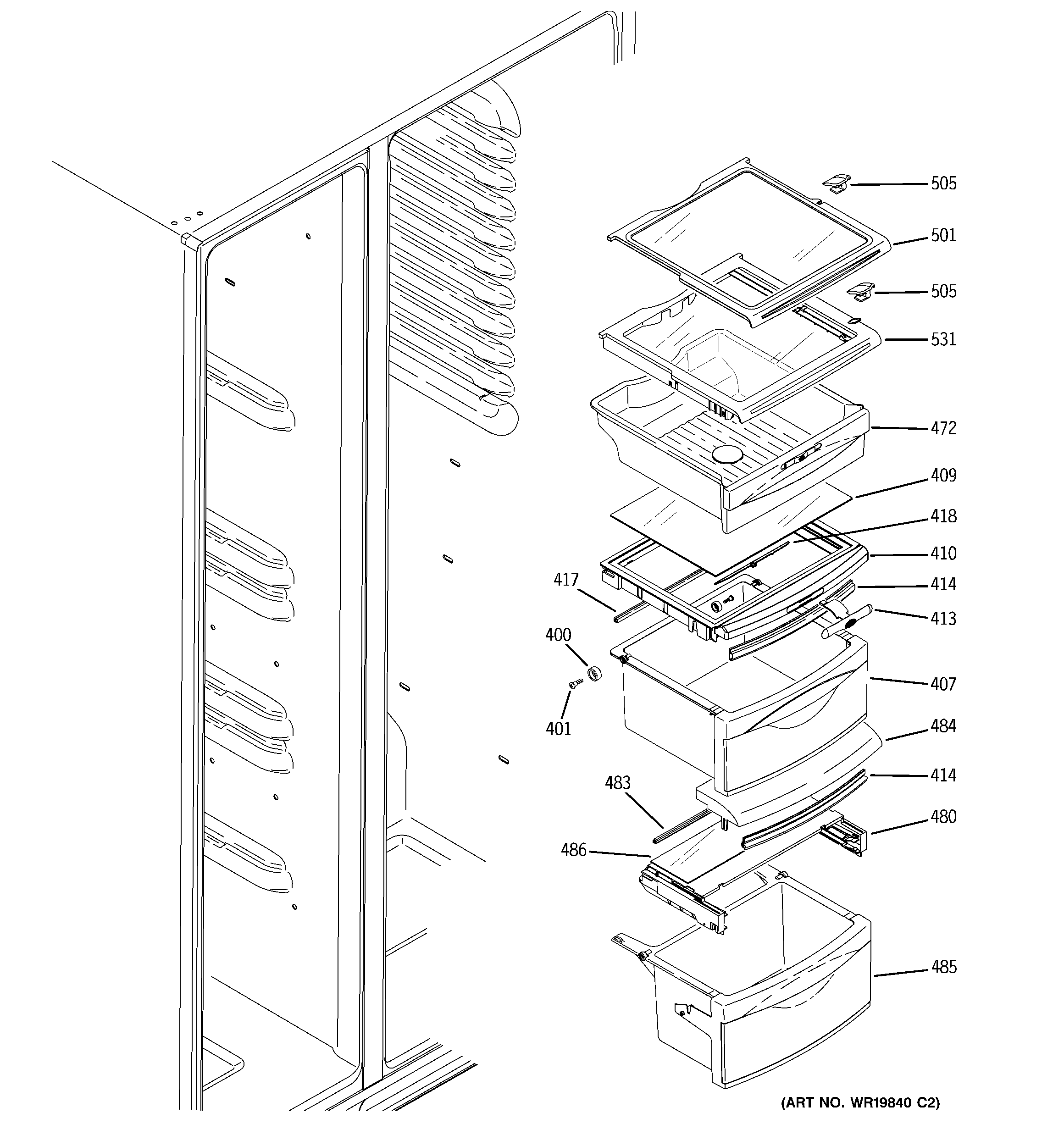

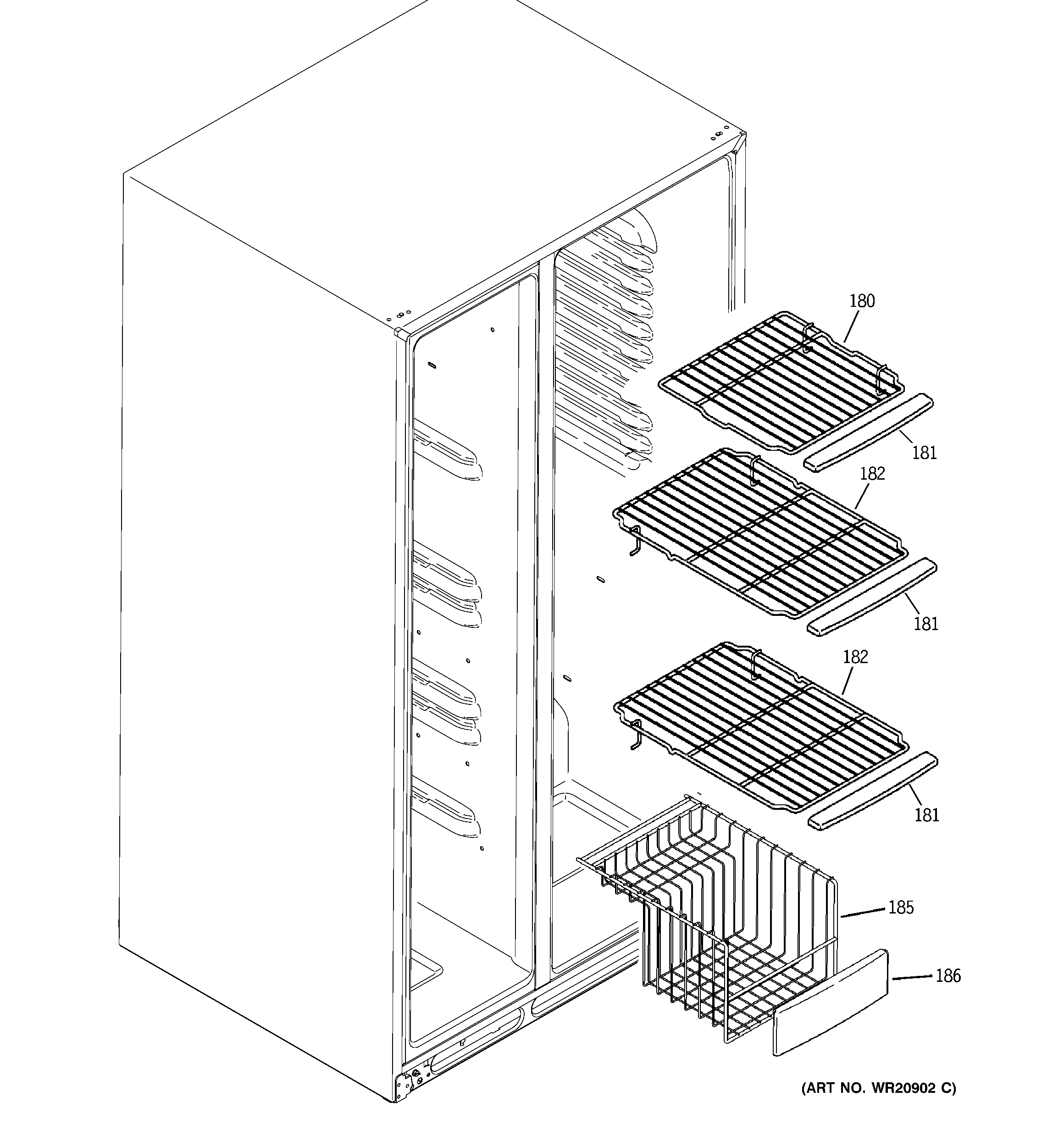

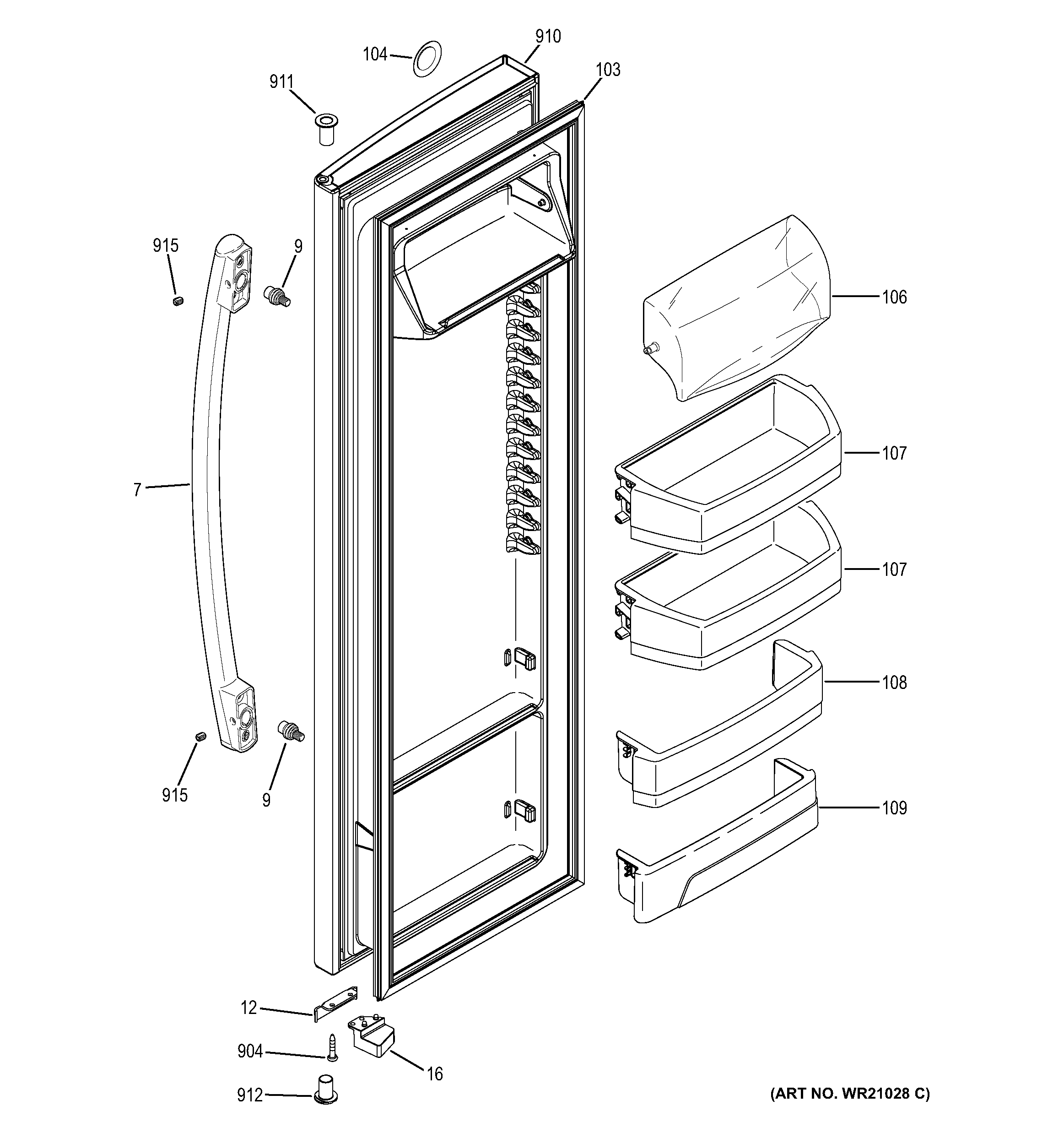

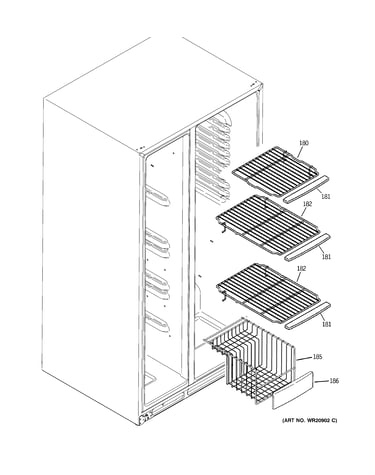

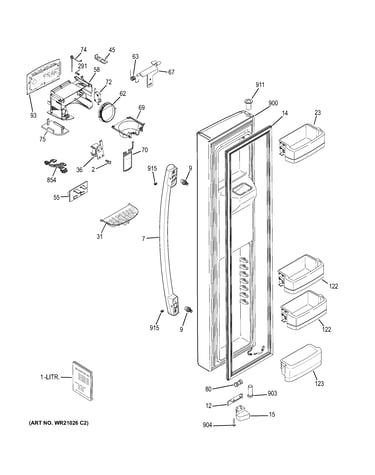

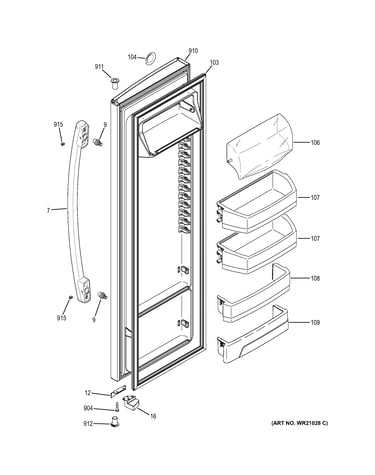

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |

Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10938
#233

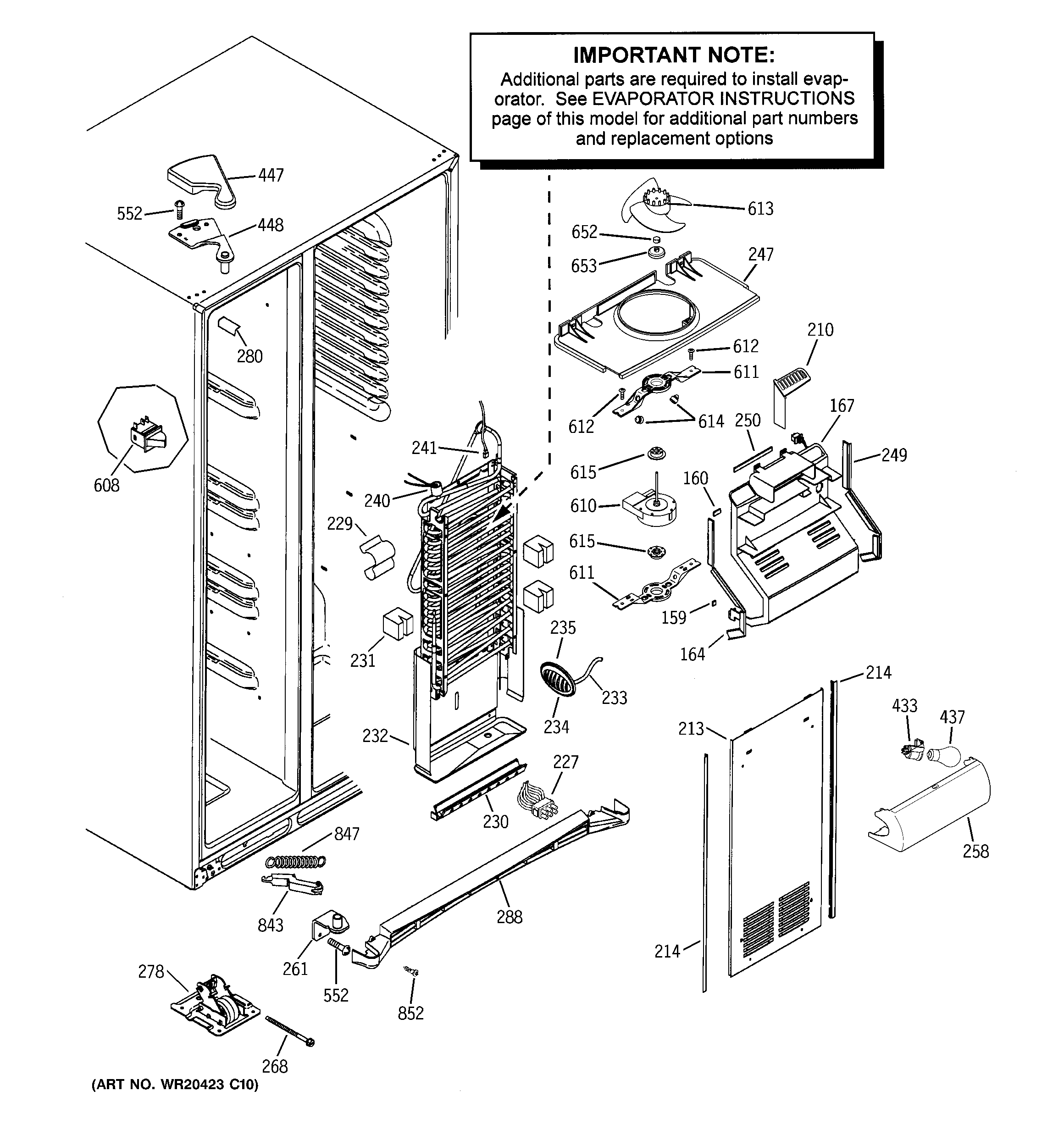

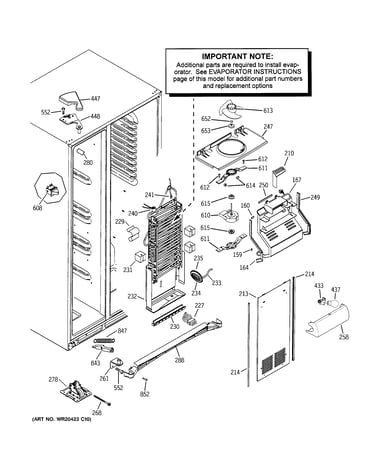

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10938

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10938. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10937
#237

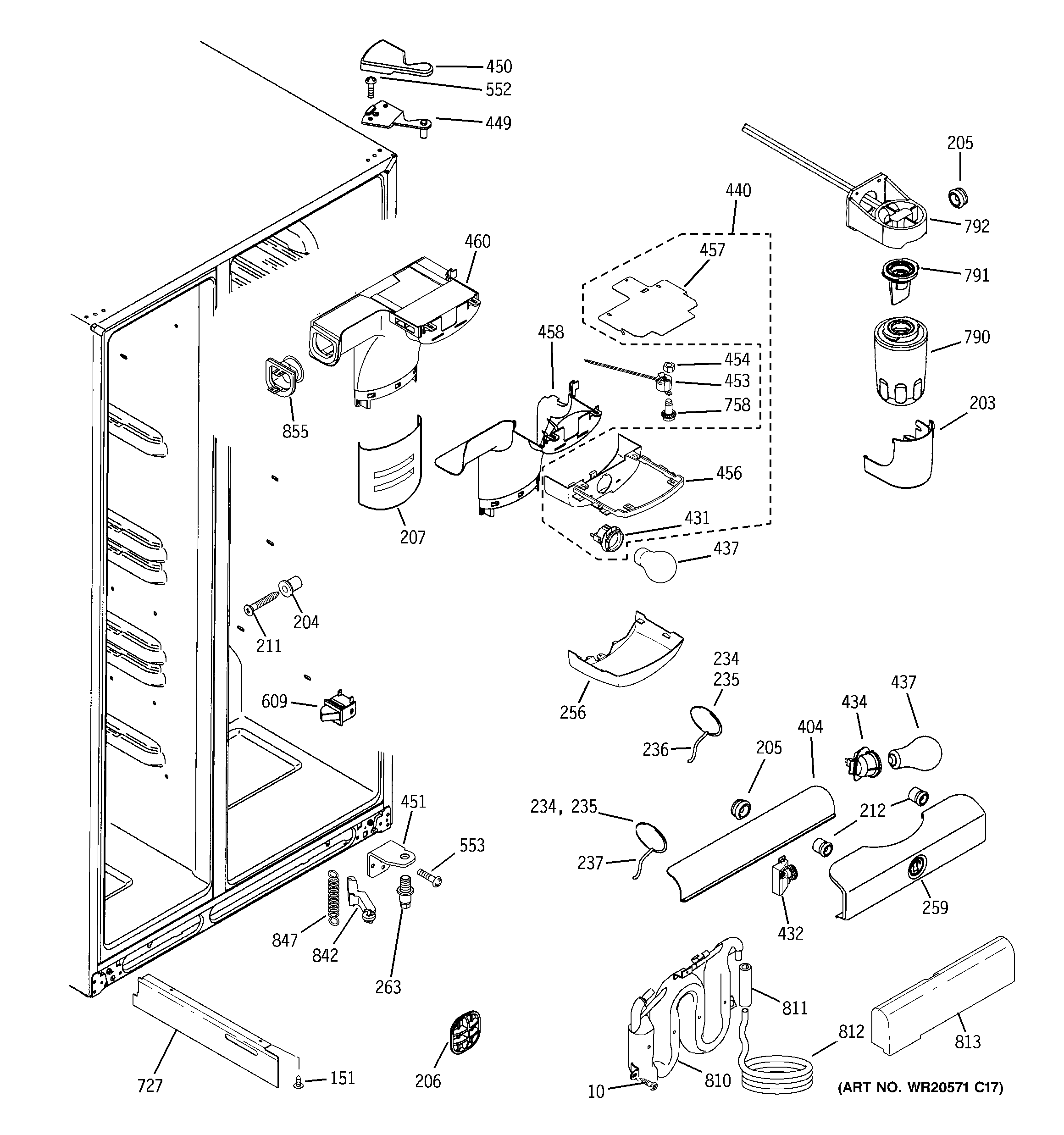

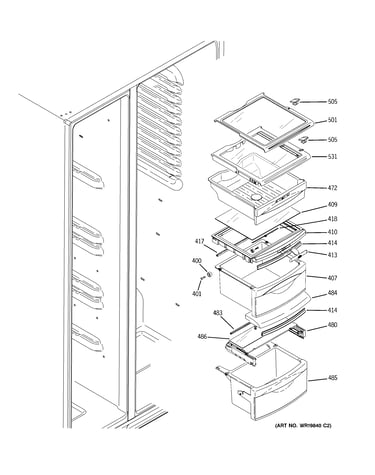

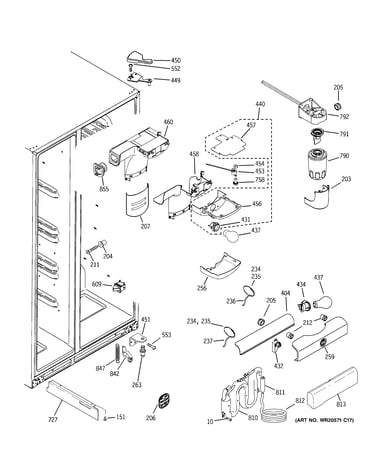

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10937

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10937. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10939
#236

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10939

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10939. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$93.82
6% OFF Phone Price : $99.82
In Stock
Electronic I WR30X10061
#820

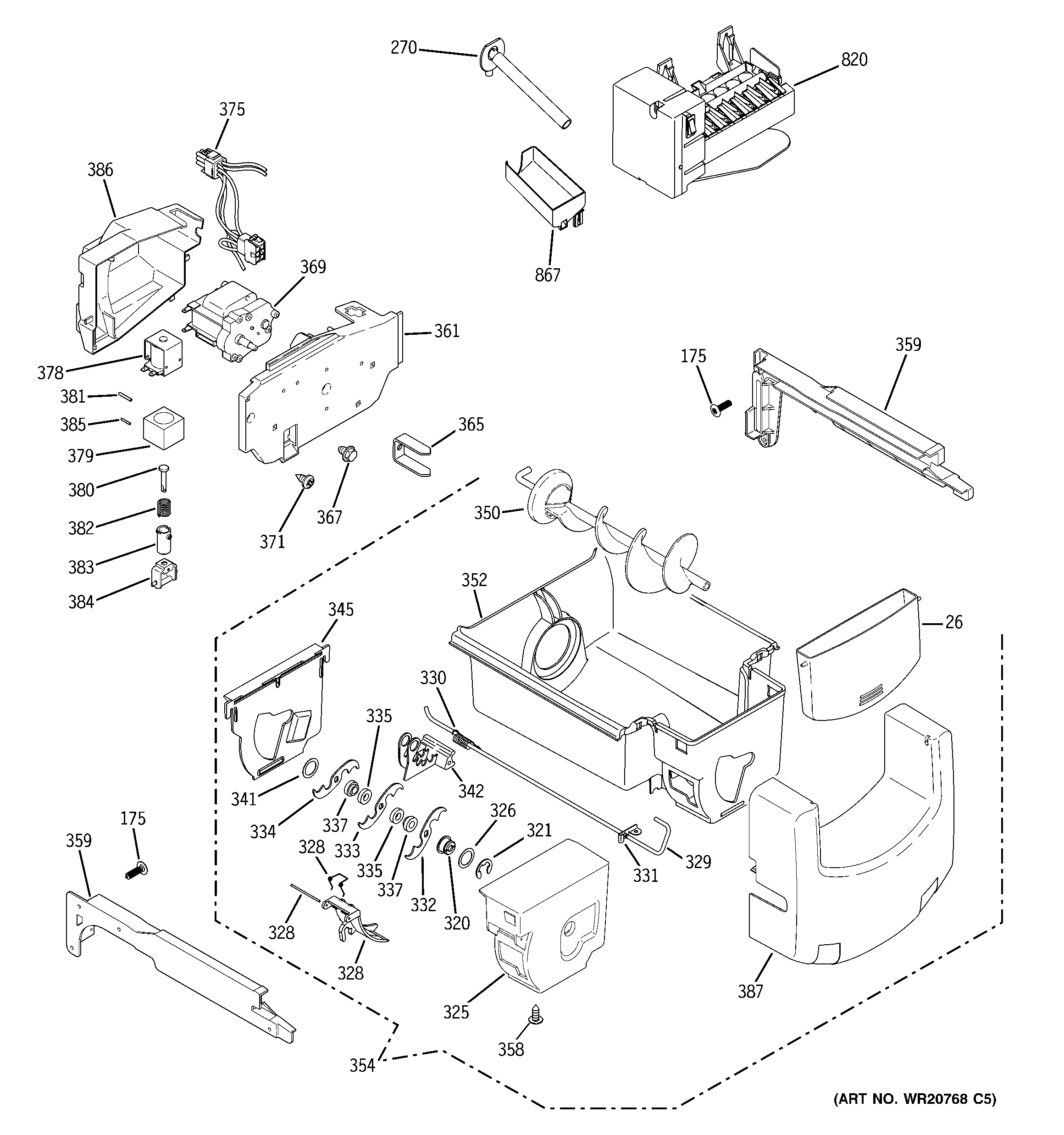

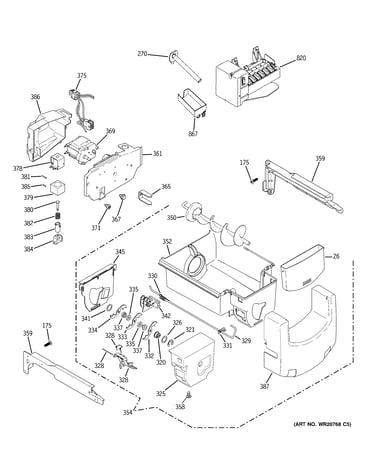

Ice maker & dispenser diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
BEST SELLER
$186.44
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

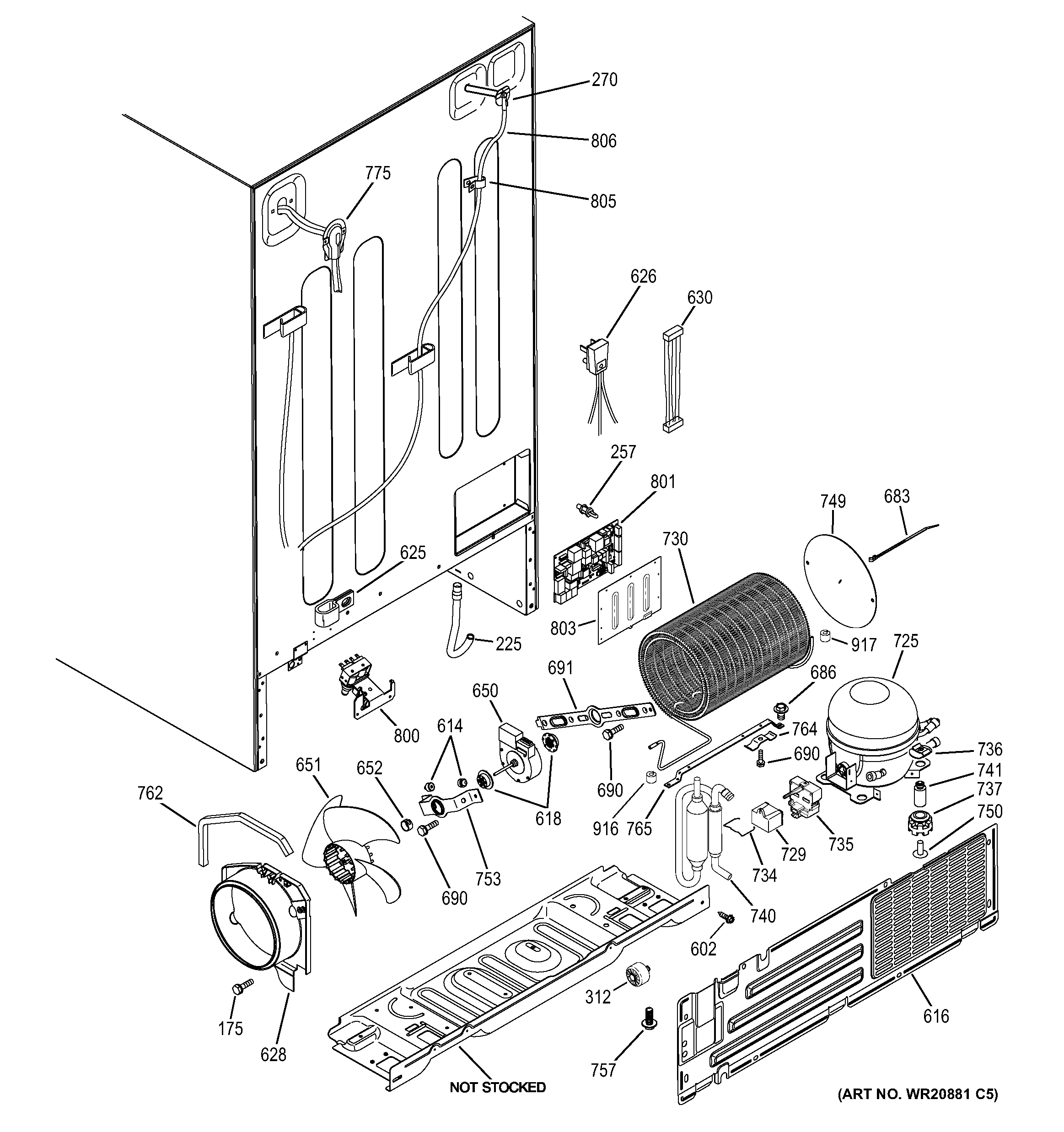

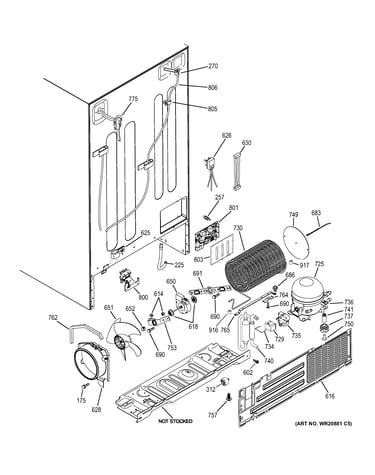

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16
12% OFF Phone Price : $17.16
In Stock
Refrigerator Water Valve WR57X10040
#800

Machine compartment diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$64.94
9% OFF Was : $71.36
In Stock
Combo Device WR08X10111
#735

Machine compartment diagram

Combo device

Part #WR08X10111

Replaced by #WR07X10131

?
Manufacturer substitution
This part replaces WR08X10111. Substitute parts can look different from the original.
BEST SELLER
$39.05
13% OFF Phone Price : $45.05
In Stock
