Whirlpool WTW8500DC4 washer Parts
Here are the diagrams and repair parts for Whirlpool WTW8500DC4 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for WTW8500DC4 Washer

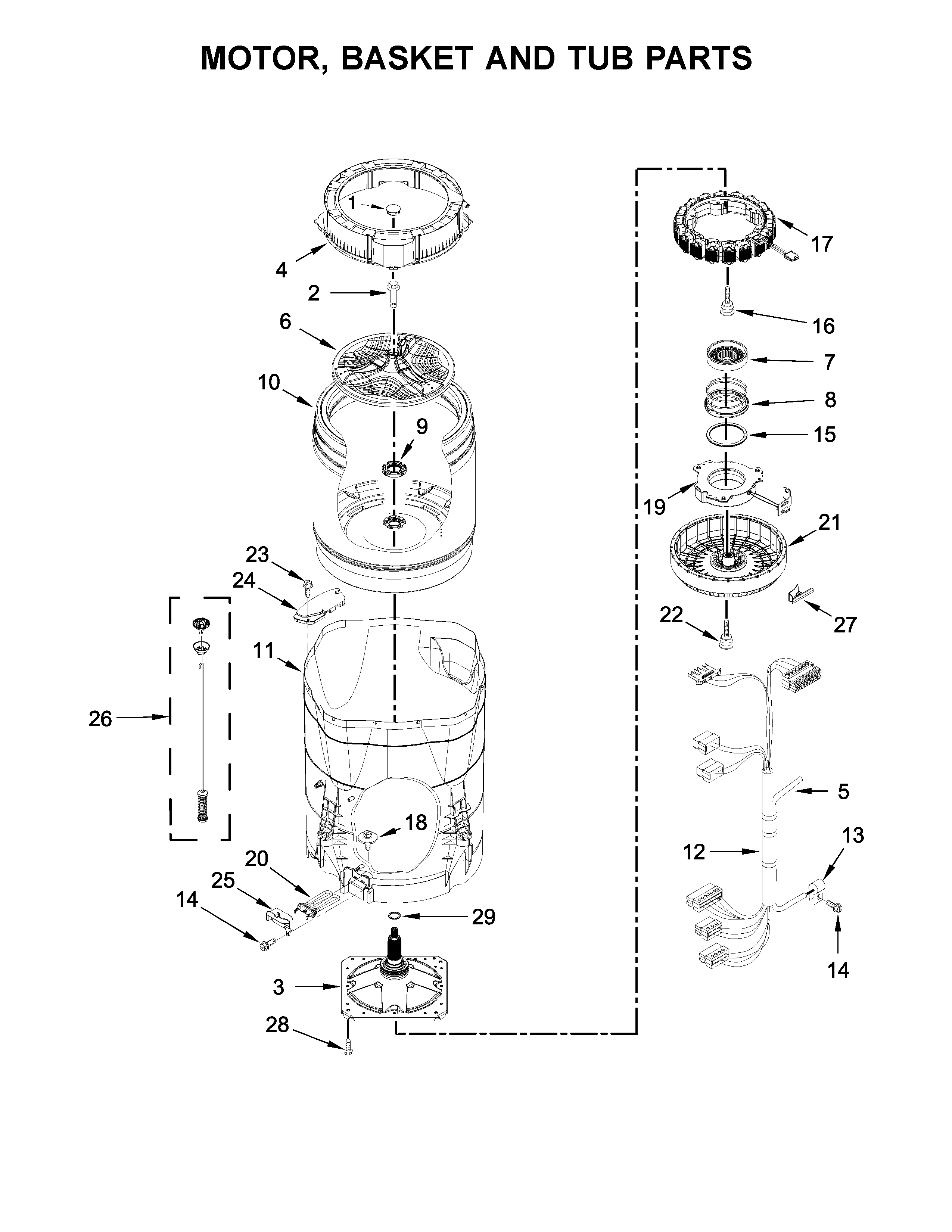

Motor, basket and tub parts diagram
Spring Support
Part #W10006494Replaced by #W10734521
Manufacturer substitutionThis part replaces W10006494. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25
Qty
Motor, basket and tub parts diagram
Slider
Part #W10447975Replaced by #W10734521
Manufacturer substitutionThis part replaces W10447975. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25QtyMotor, basket and tub parts diagram
30mm Spiral
Part #W10275082Replaced by #W10734521

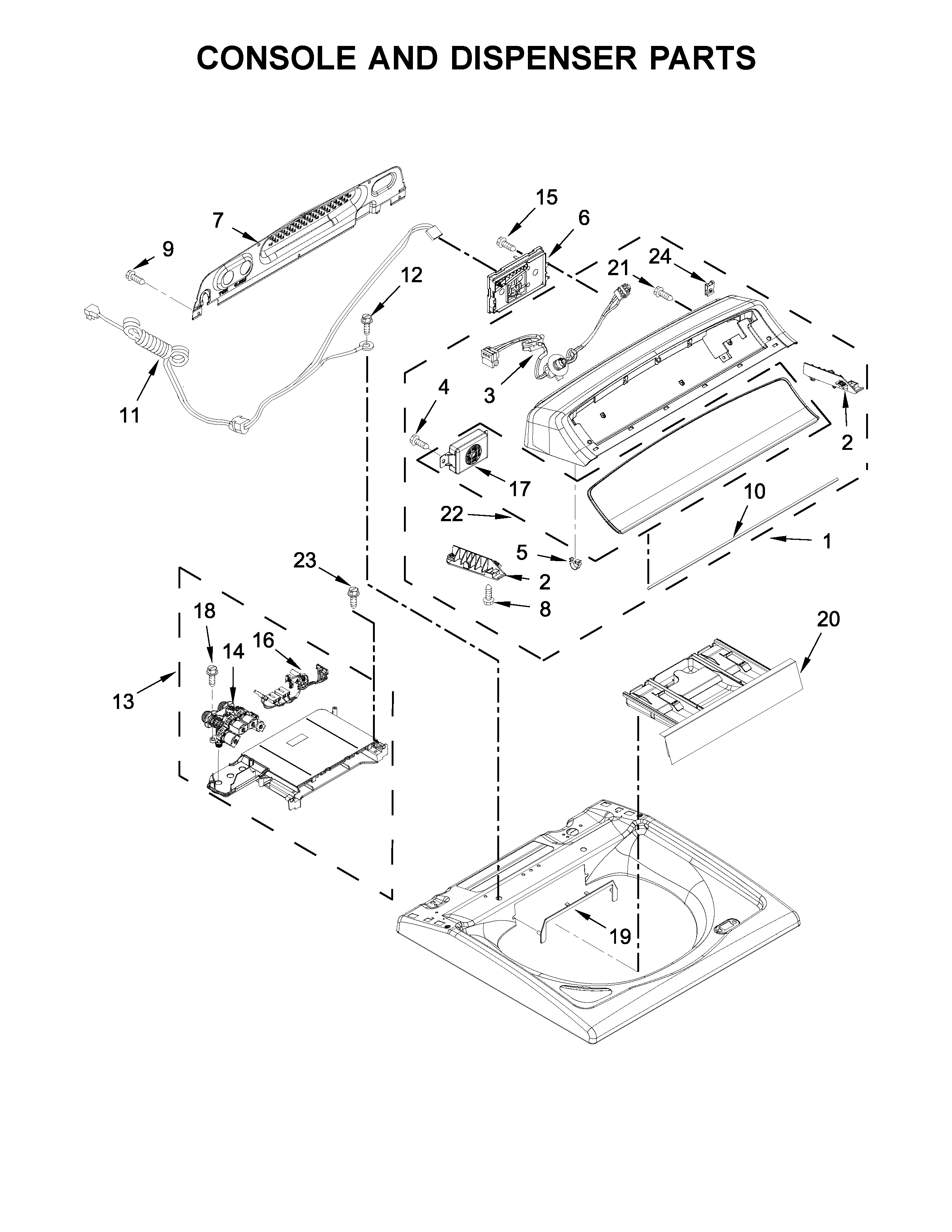

Manufacturer substitutionThis part replaces W10275082. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25QtyConsole and dispenser parts diagram
Washer Water Inlet Valve
Part #W11096267Replaced by #W11165546
Manufacturer substitutionThis part replaces W11096267. Substitute parts can look different from the original.In Stock$62.699% OFF Phone Price : $68.69QtyMotor, basket and tub parts diagram
Drive Assembly
Part #W10868473Replaced by #W11393685

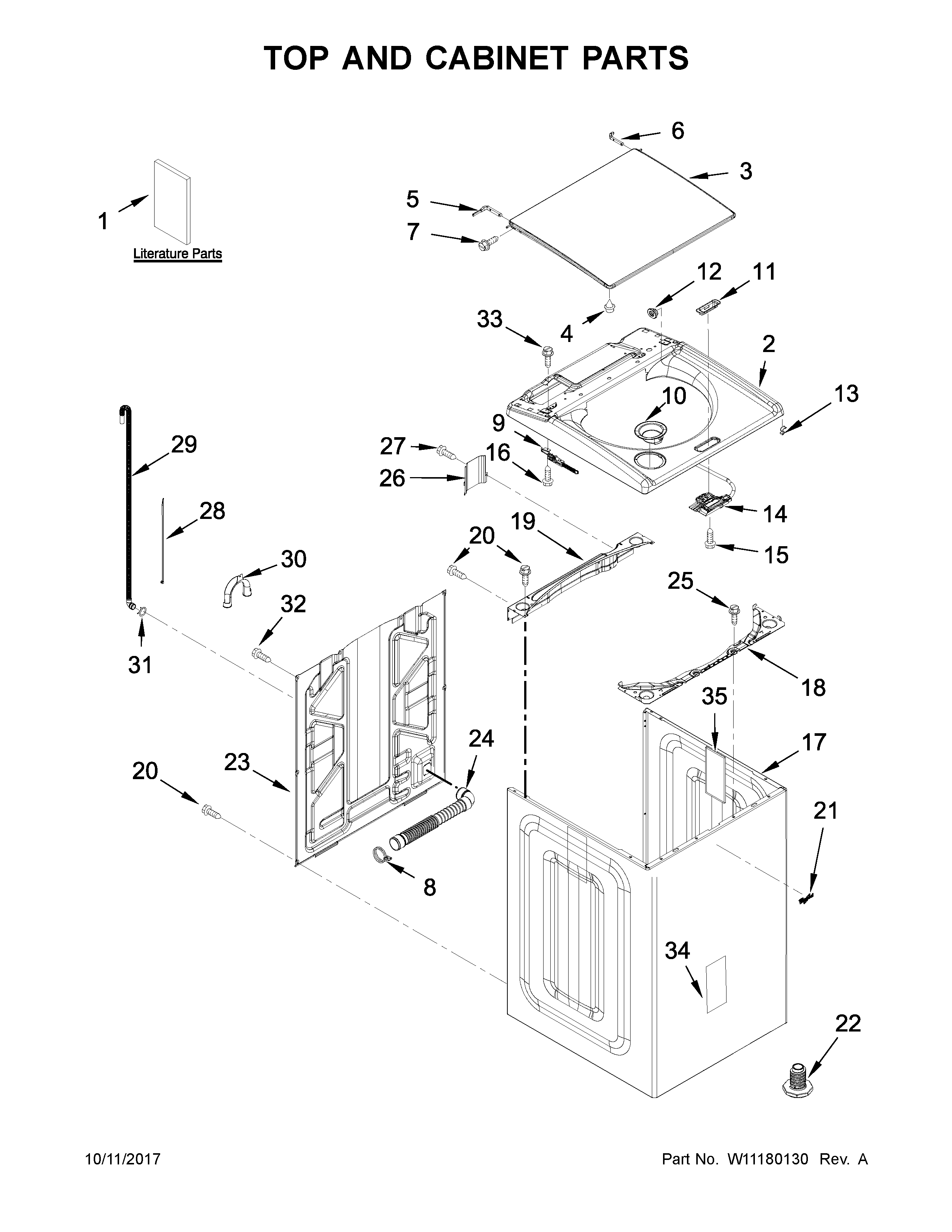

Manufacturer substitutionThis part replaces W10868473. Substitute parts can look different from the original.In Stock$189.576% OFF Phone Price : $201.57QtyTop and cabinet parts diagram
Washer Lid Lock Assembly
Part #W10787878Replaced by #W10810403
Manufacturer substitutionThis part replaces W10787878. Substitute parts can look different from the original.In Stock$87.896% OFF Phone Price : $93.89QtyMotor, basket and tub parts diagram
Clutch Assembly
Part #W10817398Replaced by #W10754448
Manufacturer substitutionThis part replaces W10817398. Substitute parts can look different from the original.In Stock$105.3310% OFF Phone Price : $117.33QtyMotor, basket and tub parts diagram
Washer Washplate Screw
Part #W10625252Replaced by #W10752187

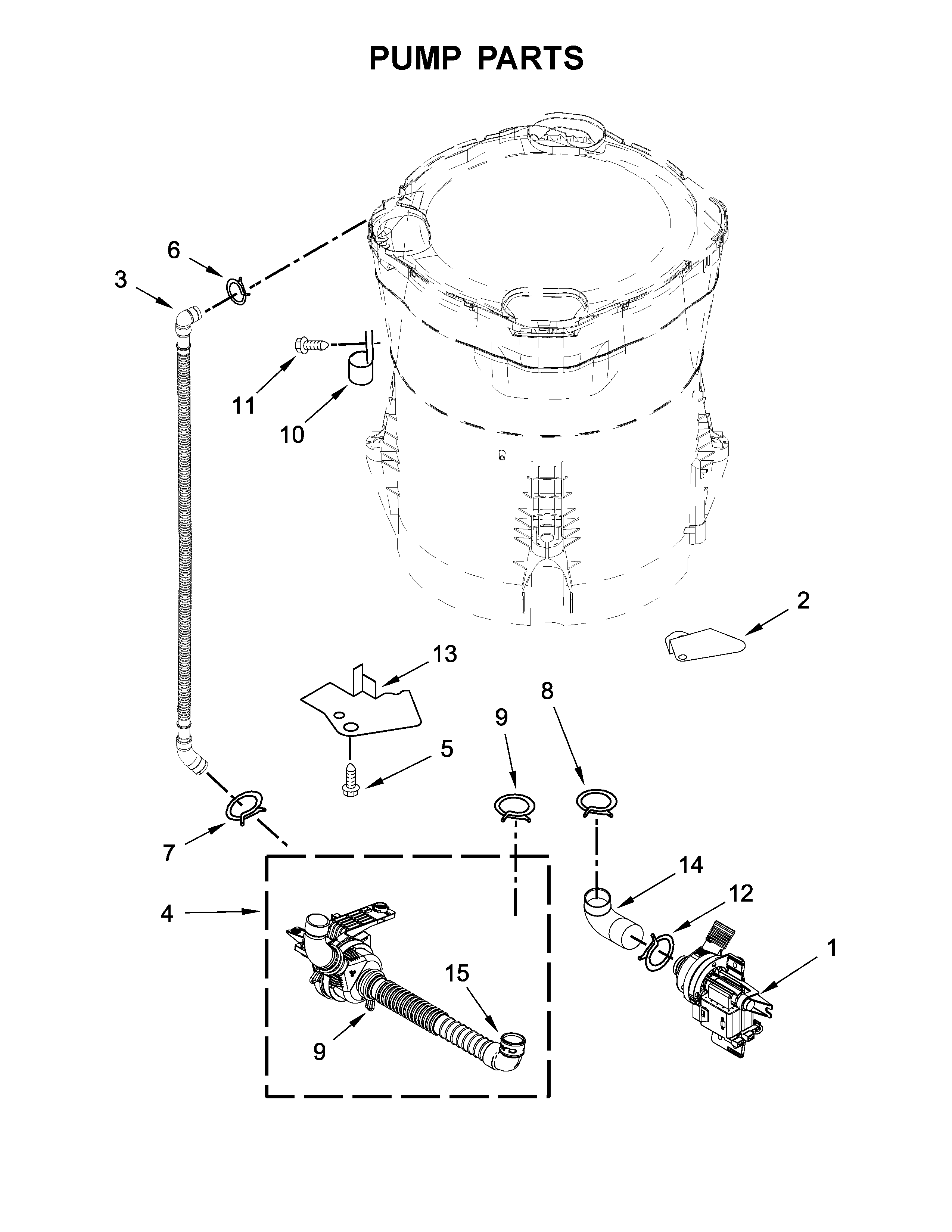

Manufacturer substitutionThis part replaces W10625252. Substitute parts can look different from the original.This item is not returnableIn Stock$4.0520% OFF Phone Price : $5.05QtyPump parts diagram
Washer Drain Pump
Part #W10727777Replaced by #W10876600
Manufacturer substitutionThis part replaces W10727777. Substitute parts can look different from the original.In Stock$100.6511% OFF Phone Price : $112.65QtyMotor, basket and tub parts diagram
Damper Assembly
Part #W11033601Replaced by #W11130356
Manufacturer substitutionThis part replaces W11033601. Substitute parts can look different from the original.In Stock$97.3011% OFF Phone Price : $109.30Qty
