Craftsman
Gas Walk-Behind Mower

Model # 917373580 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917373580 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Pipe Fitting 132010
#31

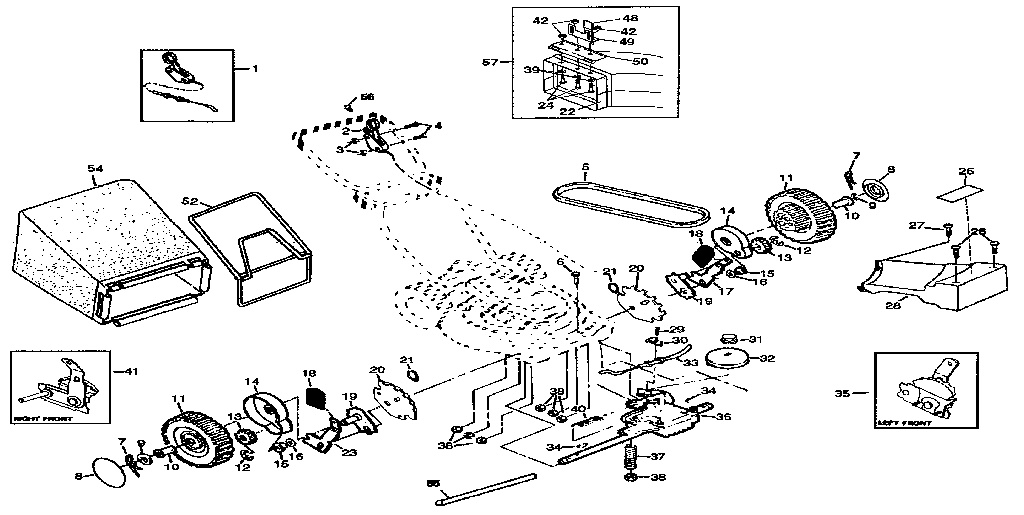

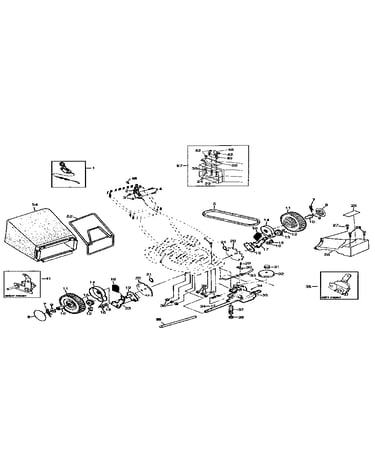

Drive assembly diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
Lawn & Garden Equipment Screw 851084
#50

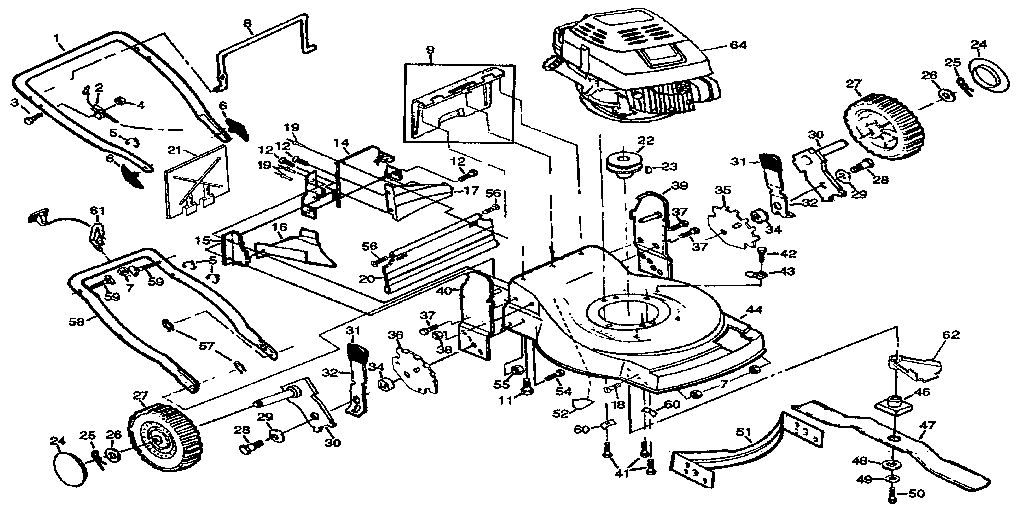

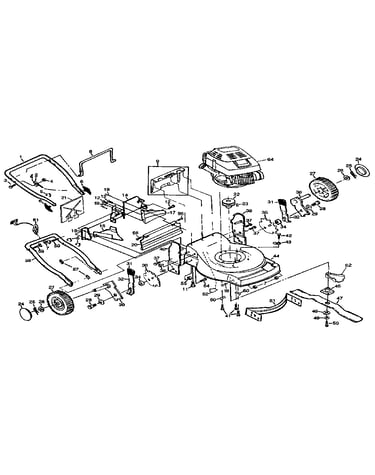

Main frame diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Handle Bolt 131959
#59

Main frame diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89
26% OFF Phone Price : $3.89
Back Order
Lock Nut 751592
#55

Main frame diagram

Lock nut

Part #751592

Replaced by #73930600

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Keps Nut STD541431
#38

Main frame diagram

Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
Back Order
Lawn Mower Blade Adapter 851514
#46

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$13.96
13% OFF Phone Price : $15.96
In Stock
Lawn & Garden Equipment Washer 52784
#39

Drive assembly diagram

Lawn & garden equipment washer

Part #52784

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Screw 850998
#41

Main frame diagram

Screw

Part #850998

Replaced by #150406

?
Manufacturer substitution
This part replaces 850998. Substitute parts can look different from the original.
This item is not returnable
$4.89
17% OFF Phone Price : $5.89
In Stock
Bolt 72070505
#54

Main frame diagram

Bolt

Part #72070505

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 63688
#6

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
