Model # WFMC3301UC/11 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC3301UC-11 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

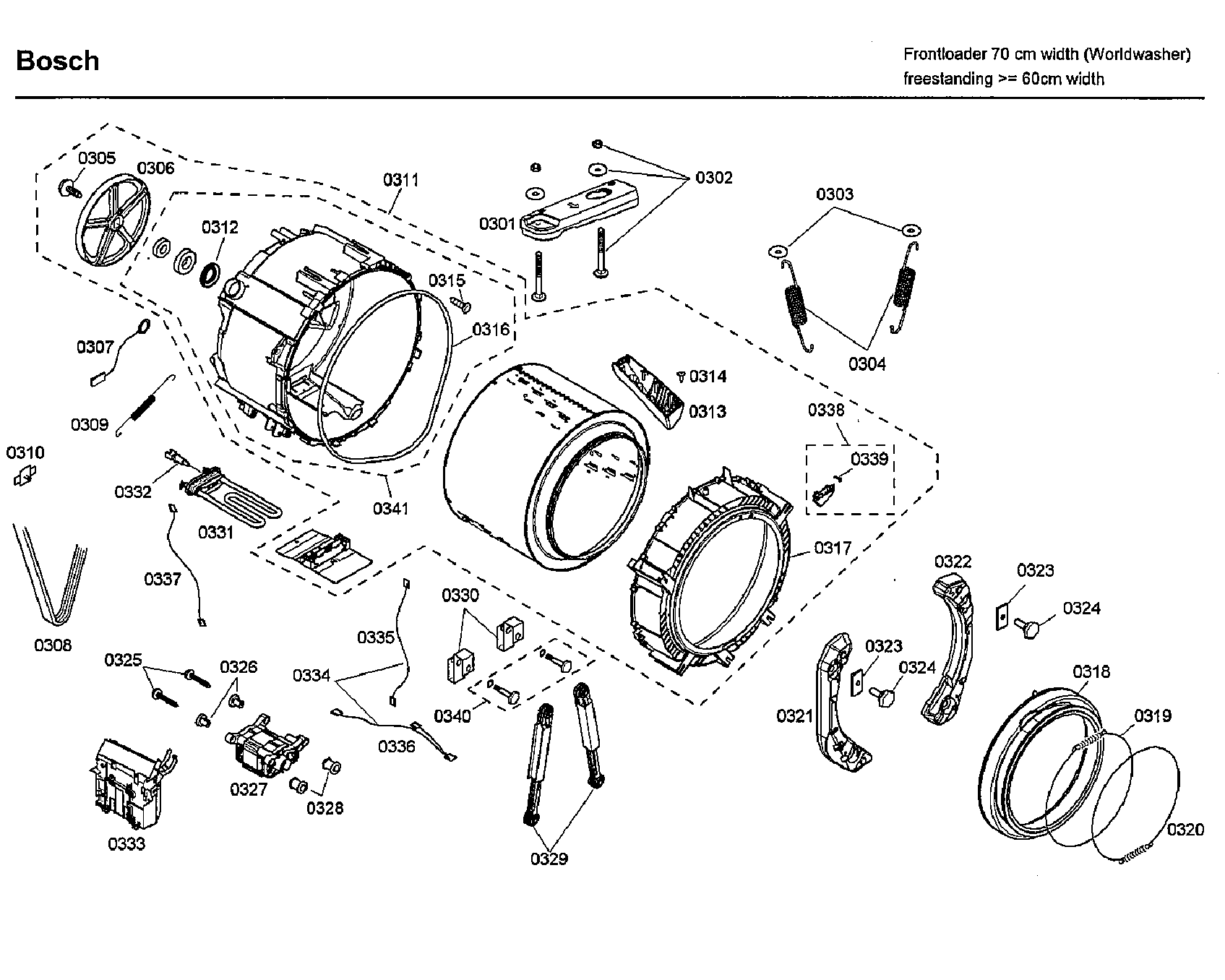

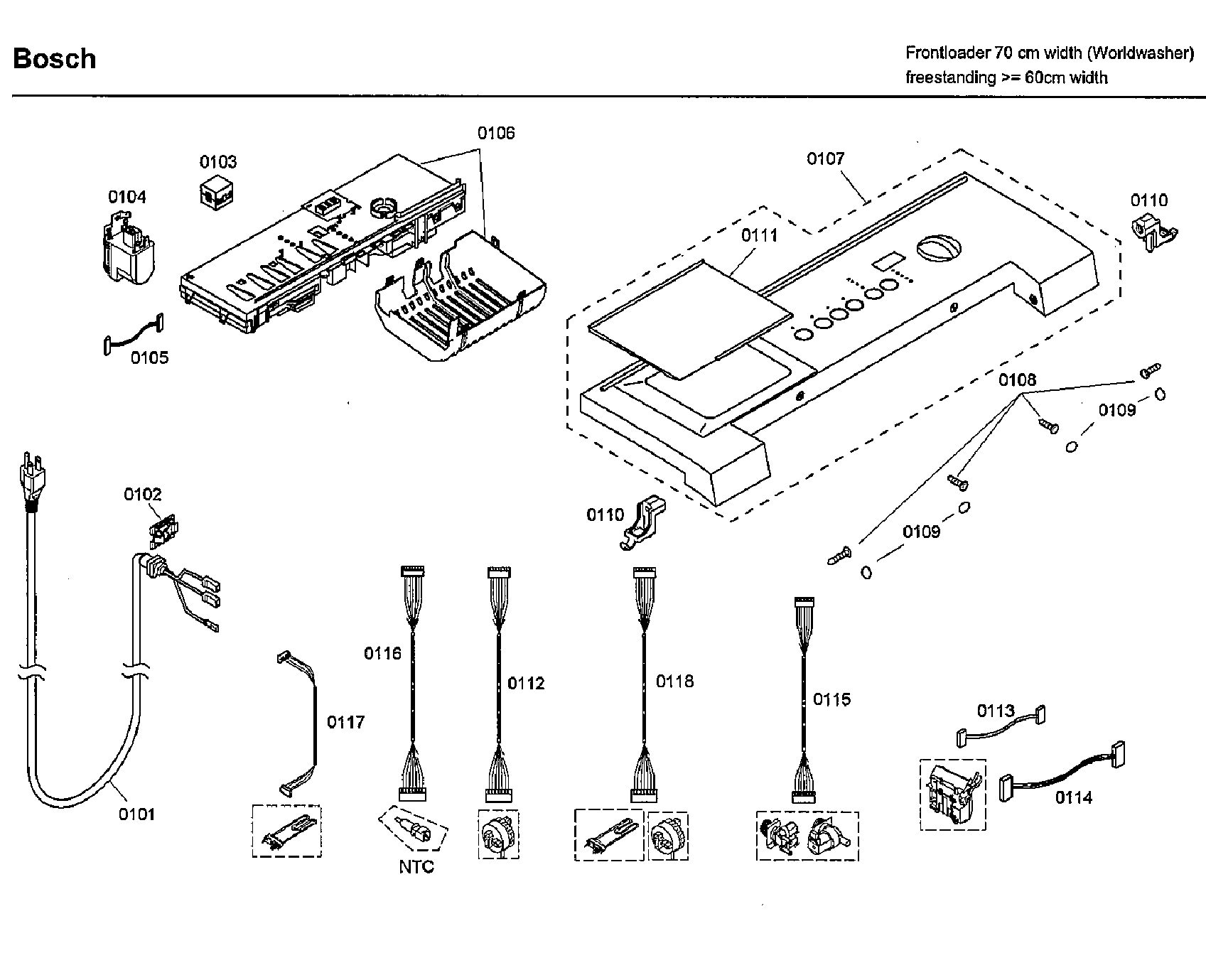

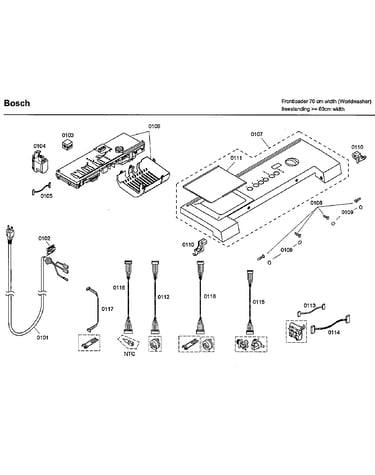

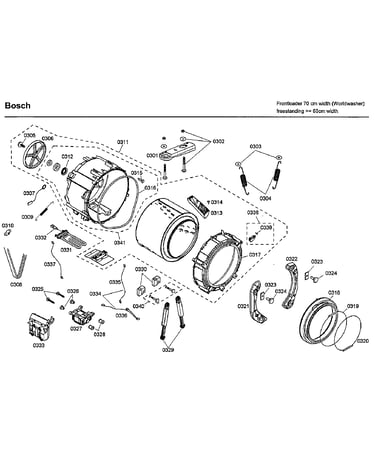

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Washer Hot Water Inlet Hose (replaces 422245) 00422245
#407

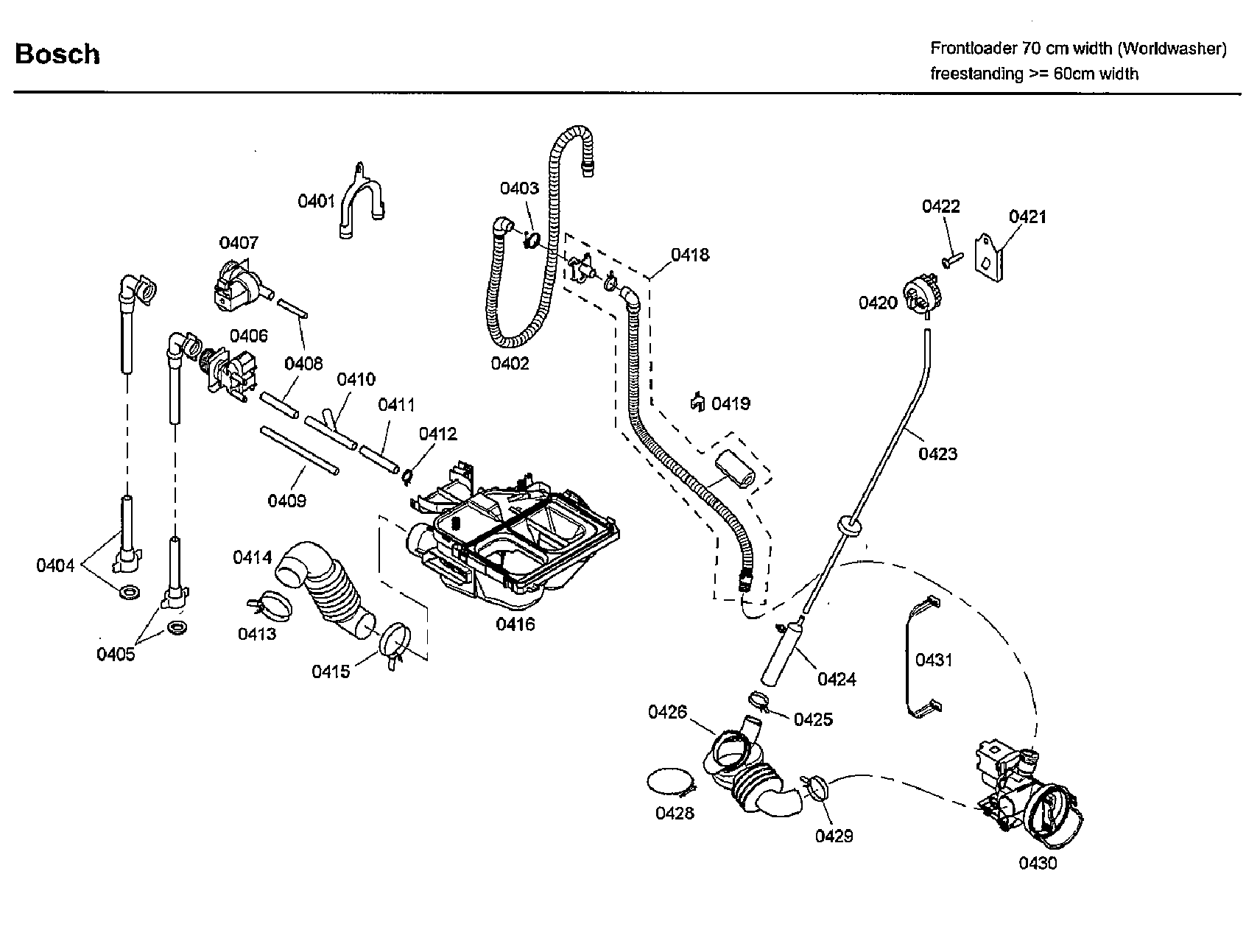

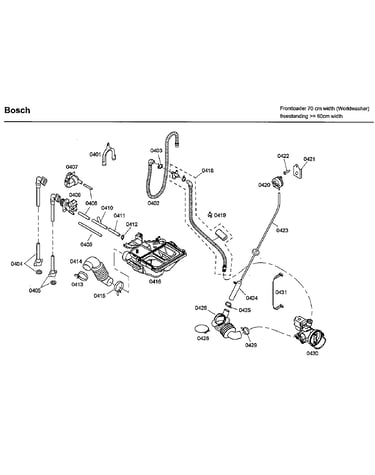

Pump diagram

Washer hot water inlet hose (replaces 422245)

Part #00422245

$38.99 |
11% OFF Phone Price : $43.99
In Stock
Washer Door Hinge Bushing 00422204
#221

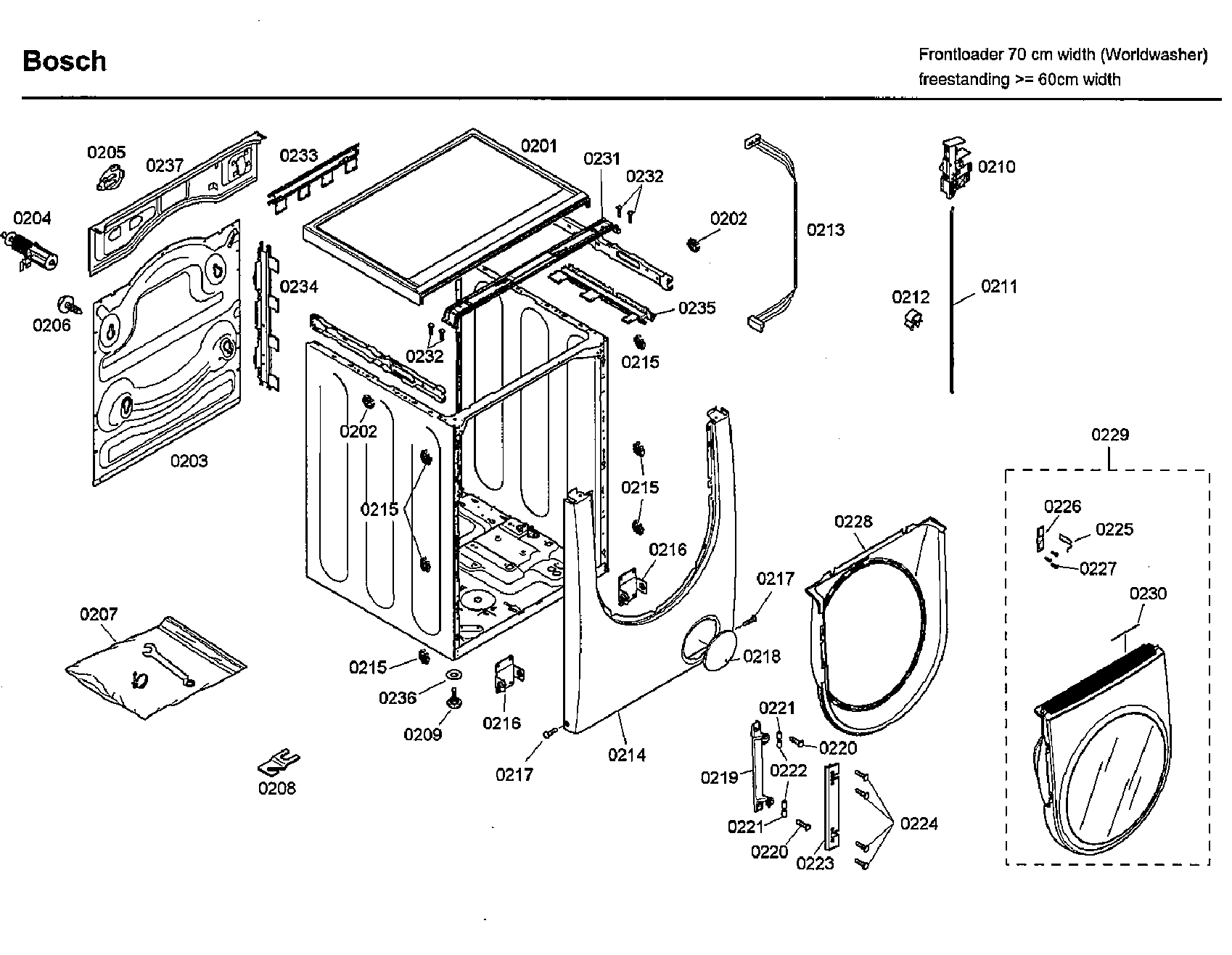

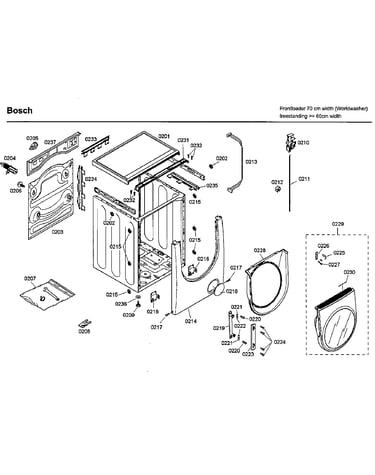

Cabinet/door diagram

Washer door hinge bushing

Part #00422204

This item is not returnable
$6.63
In Stock
Washer Water-level Pressure Switch 00491681
#420

Pump diagram

Washer water-level pressure switch

Part #00491681

$67.79 |
7% OFF Phone Price : $72.79
In Stock
Washer Cold Water Inlet Valve (replaces 422244) 00422244
#406

Pump diagram

Washer cold water inlet valve (replaces 422244)

Part #00422244

$59.49 |
8% OFF Phone Price : $64.49
In Stock
Washing Machine Flat Washer, 10 X 20.5-mm 00605059
#236

Cabinet/door diagram

Washing machine flat washer, 10 x 20.5-mm

Part #00605059

This item is not returnable
$2.26
In Stock
Washer Leveling Leg 00610643
#209

Cabinet/door diagram

Washer leveling leg

Part #00610643

This item is not returnable
$14.26
In Stock
Washer Door Hinge 00644665
#219

Cabinet/door diagram

Washer door hinge

Part #00644665

$32.67
In Stock
Washer Door Hinge Cover Plate 00491626
#223

Cabinet/door diagram

Washer door hinge cover plate

Part #00491626

This item is not returnable
$26.82
In Stock
Ring 00421488
#413

Pump diagram

Ring

Part #00421488

$8.40
In Stock
Instructions Set 00436508
Instructions set

Part #00436508

$53.64
In Stock
