LG LFXS26596S/02 refrigerator Parts

On the LG LFXS26596S bottom-mount refrigerator, the most common “problem” is usually a symptom (not one single defect): warm temperatures, frost buildup, no ice, or water leaks. We use the troubleshooting guidance in the LFXS26596S owner's manual to narrow the cause before replacing parts.

Most common issues we see (and what they often point to)

• Fridge warm, freezer cold: blocked air vents, frost restricting airflow, or an evaporator fan/air-duct issue.
• Frost or ice buildup: defrost system trouble or a drain restriction.

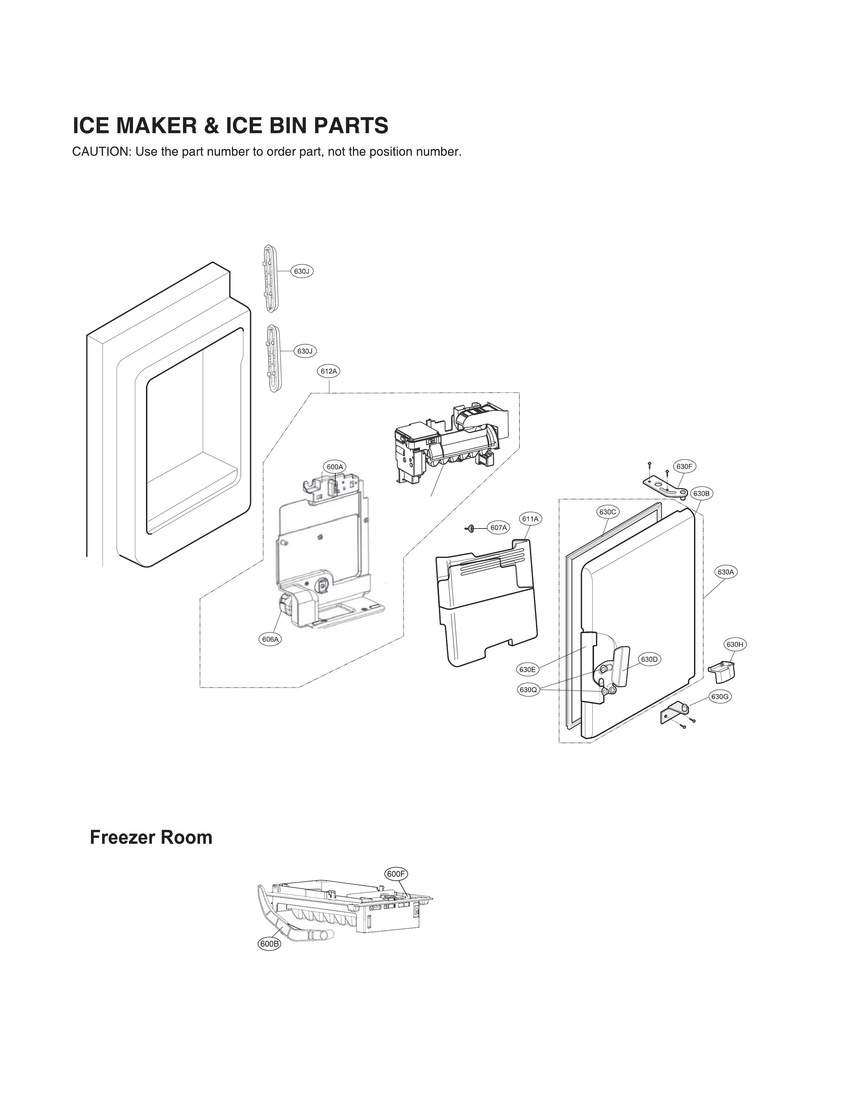

• No ice or slow ice: water supply/pressure issue, clogged filter, or an icemaker/ice-room issue.
• Runs a lot or seems louder: condenser area needs cleaning, condenser fan issue, or frequent door openings.
• Water leaking or puddles: drain path restriction or a water line/valve issue.

Quick checks for LFXS26596S before you buy parts

1. Confirm it is not in Display (Demo) Mode; “OFF” on the control panel indicates cooling is disabled.
2. Verify target temps: 37°F refrigerator and 0°F freezer.
3. Make sure air vents are not blocked by food packages.
4. Clean condenser cover and vents (do not remove sealed panels).
5. If water or ice is slow, replace the water filter and flush the system.

Parts that commonly relate to these symptoms (model-compatible examples)

Symptom	Likely area	Example model-compatible part
Frost buildup, warm temps	Defrost system	Refrigerator defrost heater MEE63545708
Odors in fresh food section	Air filtration	LG refrigerator air filter ADQ73214408
No ice or slow fill	Water supply to icemaker/dispenser	Refrigerator water inlet valve MJX61892901

Why it matters

Many “LG bottom freezer problems” come down to airflow, defrost, or water supply. Catching a blocked vent, dirty condenser area, or restricted drain early helps prevent temperature swings, ice buildup, and extra strain on the compressor.

Last updated: January 2026

On the LG LFXS26596S, a leak from the bottom is most often caused by defrost water not draining (so it overflows and later melts) or a slow leak in the water supply circuit for the dispenser or icemaker. Use the LFXS26596S owner's manual for model-specific access and safety steps.

Quick checks (start here)

• Look for a sheet of ice or standing water on the freezer floor.

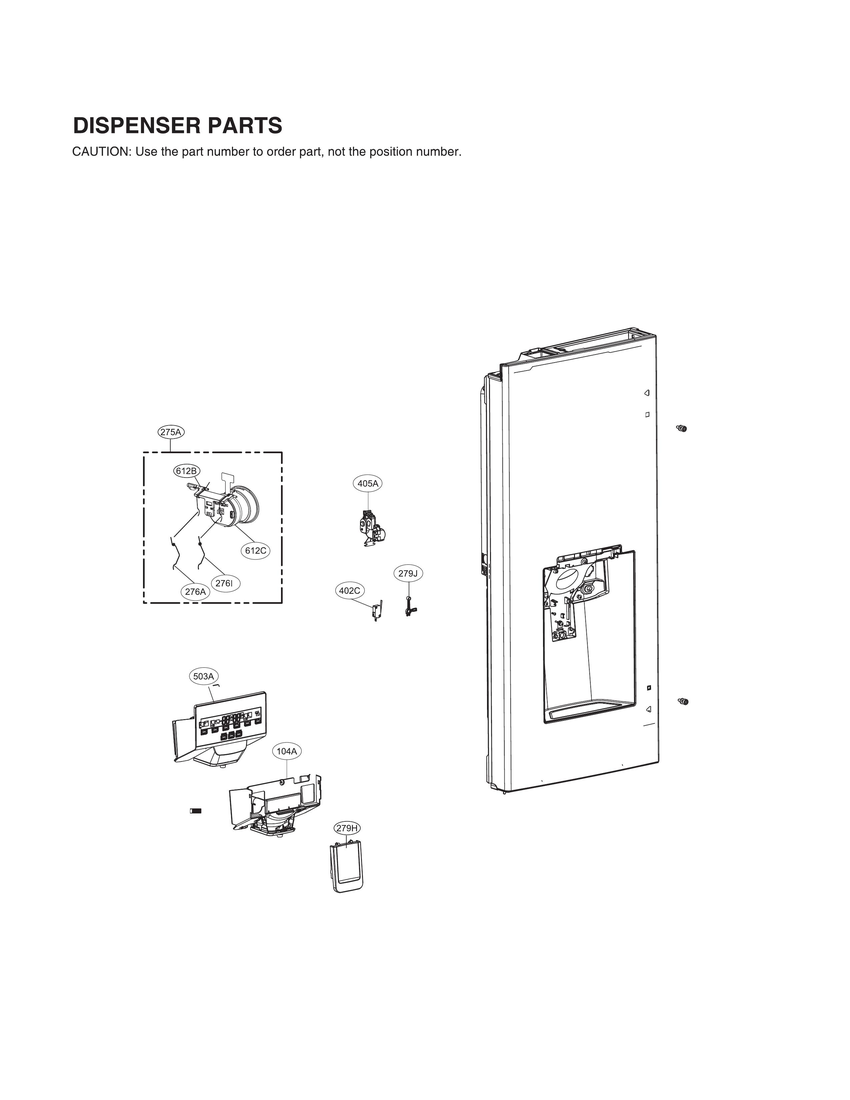

• Check for dripping right after dispensing water or ice.
• Inspect the water filter area for moisture around the cover.
• Pull the refrigerator forward and check the rear lower area near the water line connection.
• Confirm doors close fully; warm air can increase frost and drain icing.

Most common causes and what to do

1) Frozen or clogged defrost drain

During defrost, water should flow through the drain to the pan underneath. If the drain is blocked or frozen, water backs up, freezes, then melts and leaks out.

If you suspect the drain path is damaged or disconnected, inspect the external drain component: refrigerator drain tube 5251JA3003D.

2) Water filter not seated or leaking

This model uses an internal water filter that typically gets replaced about every 6 months. If it is not fully seated or the O-rings are damaged, it can drip and track down to the base.

• Compatible filter: LG lt1000p refrigerator water filter ADQ74793501
• Step-by-step help: how to change the water filter in an LG refrigerator

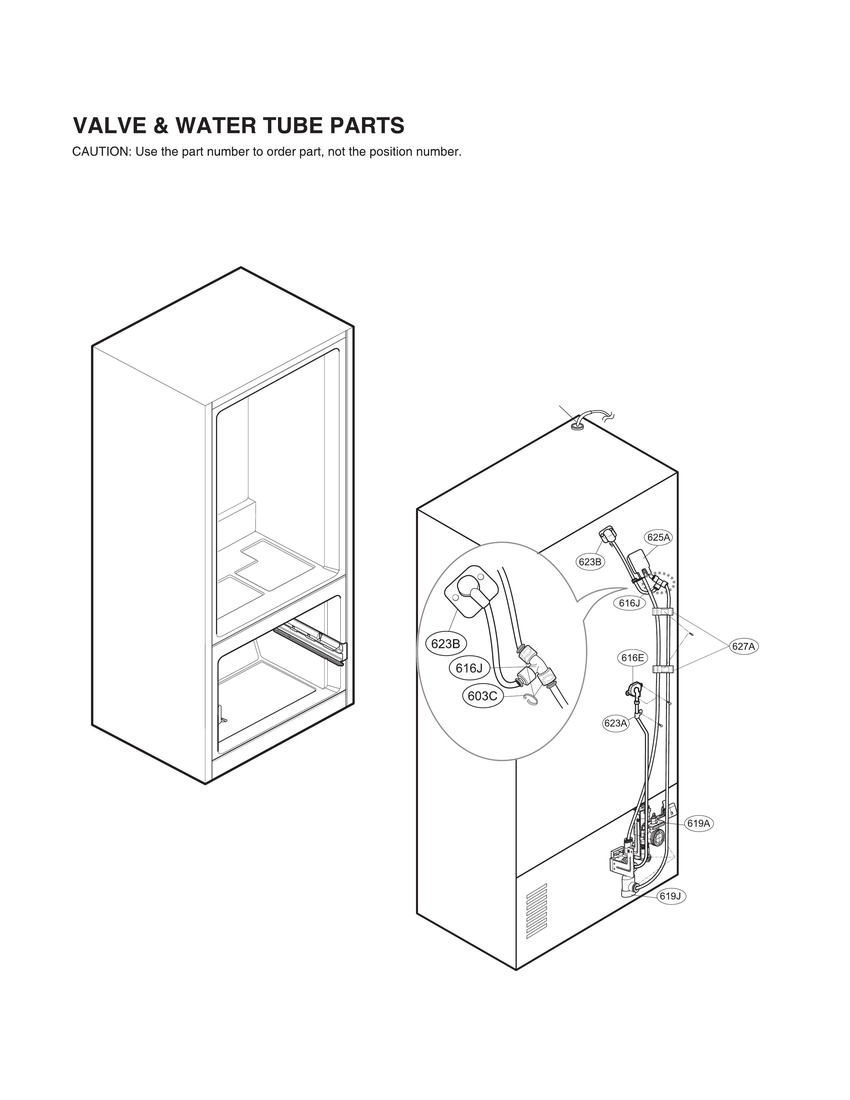

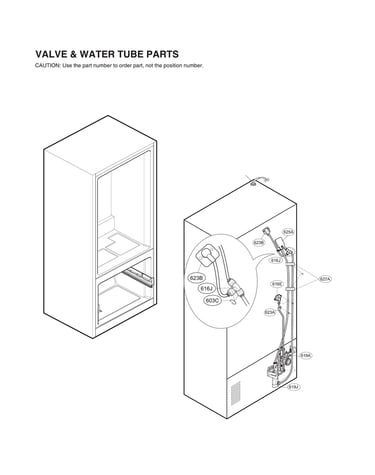

3) Supply line or inlet valve seep

A loose fitting, kinked tubing, or a seeping inlet valve can drip into the lower cabinet area.

Symptom-to-cause guide

What you see	Most likely cause	What to do next
Ice sheet on freezer floor	Defrost drain frozen/clogged	Defrost, clear drain path
Water near filter cover	Filter not seated/O-ring issue	Reseat or replace filter
Water behind fridge	Supply line/valve leak	Tighten fittings, inspect tubing

Why it matters

Bottom leaks can cause hidden ice buildup, odors, and floor damage. Fixing the root cause early also helps the icemaker and dispenser work reliably.

Last updated: January 2026

Your LG refrigerator’s model number is printed on the appliance identification label; on LFXS26596S units, you can typically find that label inside the fresh food compartment on a side wall or near the ceiling. Use the exact model number from that label when ordering parts.

Where to look on the refrigerator

Check these common label locations first:

• Inside the refrigerator section on the left or right interior wall
• On the ceiling area inside the fresh food compartment
• Behind the crisper drawers (look on the side wall once drawers are removed)
• Along the door frame (hinge side) when the door is open
• On the back exterior panel (less common, but worth a quick look)

What to write down (and why)

Record both the model and serial information exactly as shown.

Label item	What it’s used for	Example format
Model number	Ensures diagrams and parts match your exact build	LFXS26596S
Serial number	Helps identify production run details for service	Letters and numbers
Suffix/version	Distinguishes variations (if shown)	/02 or similar

Tips to avoid ordering the wrong part

These quick checks prevent mismatches when you’re selecting items like a water inlet valve, control board, or door gasket.

• Match every character, including any suffix such as “/02” if it appears on the label
• Use the model label, not the marketing name (for example, “French door”)
• If the label is hard to read, take a clear photo and zoom in
• When ordering, compare the part description to your refrigerator’s configuration (dispenser, ice maker, door style)

Why it matters

LG refrigerators often have multiple versions within the same model family; using the exact model from the ID label ensures the correct fit and electrical compatibility for replacement parts.

For additional label and identification details, use the owner's manual.

Last updated: March 2026
