Model # WPGT9350C0PL Official GE washer

Here are the diagrams and repair parts for Official GE WPGT9350C0PL washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Washer Suspension Rod And Spring Assembly WH16X10056
#69

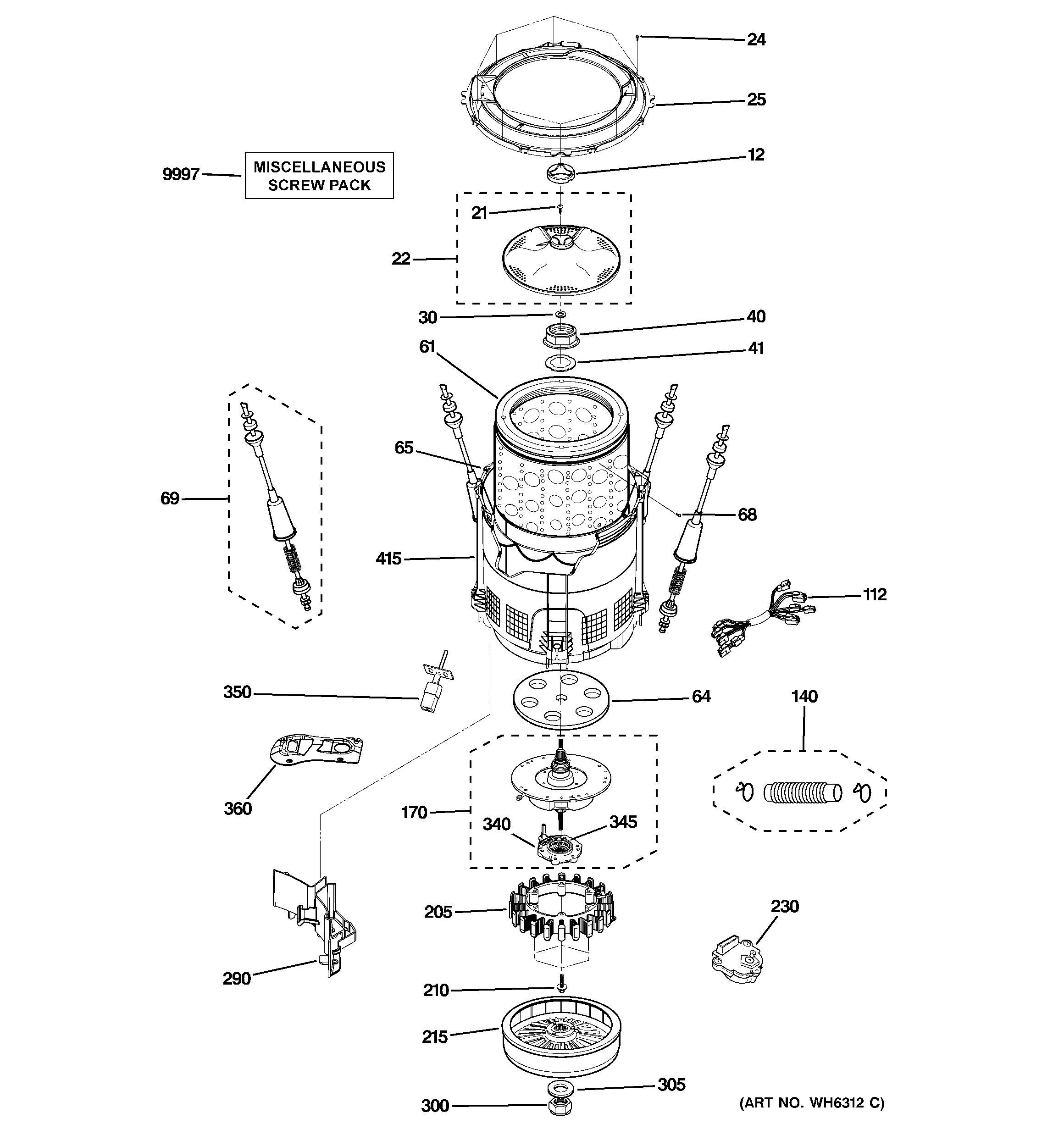

Tub, suspension & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10056

$60.05 |
8% OFF Phone Price : $65.05
In Stock
Washer Drain Pump WH23X10020
#80

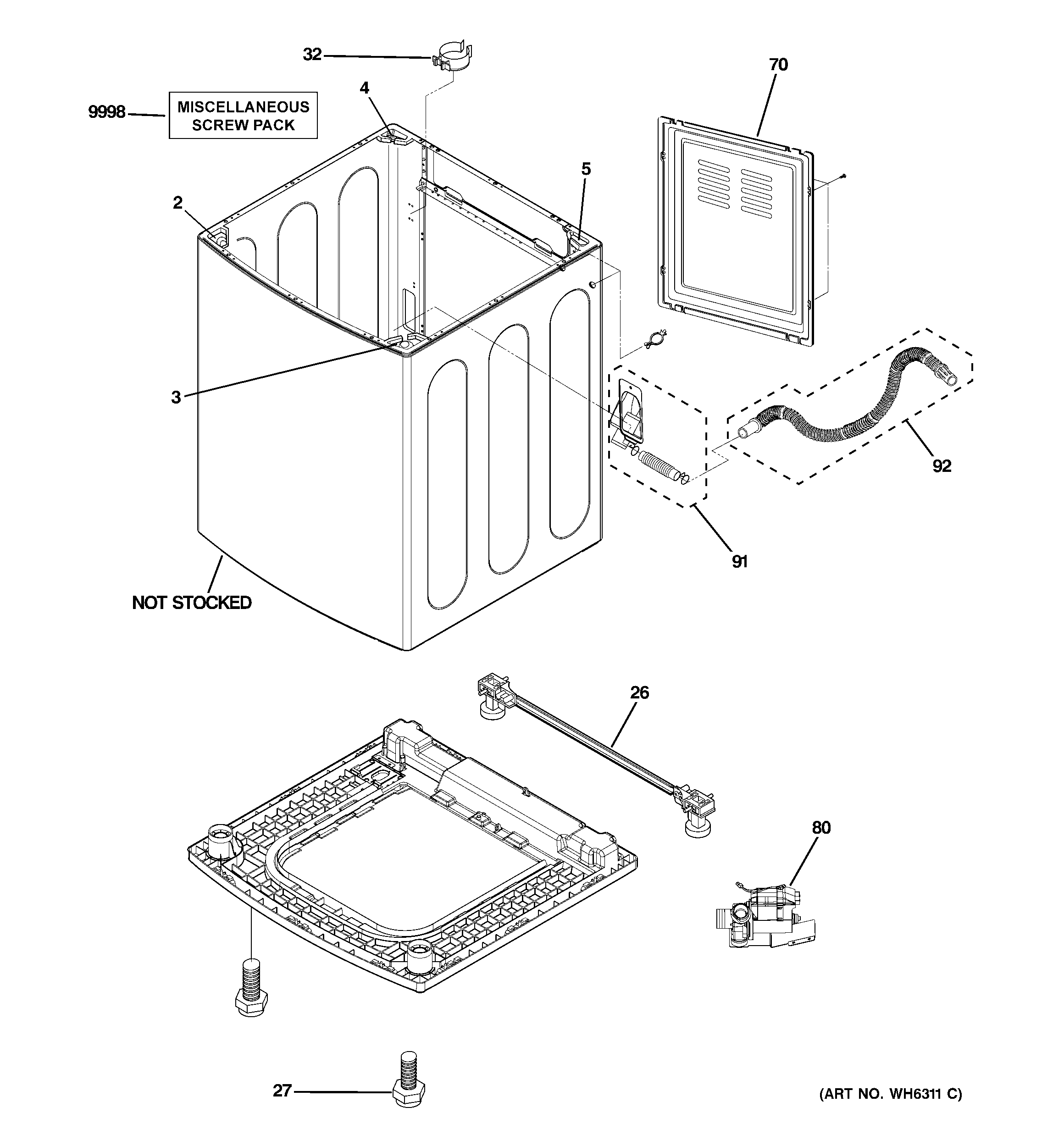

Cabinet diagram

Washer drain pump

Part #WH23X10020

$158.76 |
6% OFF Phone Price : $168.76
In Stock
Washer Drain Hose WH41X10083
#140

Tub, suspension & drive components diagram

Washer drain hose

Part #WH41X10083

$48.47 |
9% OFF Phone Price : $53.47
In Stock
Washer Motor Rotor Assembly WH39X10005
#215

Tub, suspension & drive components diagram

Washer motor rotor assembly

Part #WH39X10005

Replaced by #WH49X25041

?
Manufacturer substitution
This part replaces WH39X10005. Substitute parts can look different from the original.
$298.13 |
$10.00 OFF Phone Price : $308.13
In Stock
Washer Drive Motor WH39X10004
#205

Tub, suspension & drive components diagram

Washer drive motor

Part #WH39X10004

Replaced by #WH49X25041

?
Manufacturer substitution
This part replaces WH39X10004. Substitute parts can look different from the original.
$298.13 |
$10.00 OFF Phone Price : $308.13
In Stock
Tub Assembly WH45X10056
#65

Tub, suspension & drive components diagram

Tub assembly

Part #WH45X10056

$437.40
In Stock
Washer Shifter Assembly WH01X10210
#340

Tub, suspension & drive components diagram

Washer shifter assembly

Part #WH01X10210

$93.33
In Stock
Cap Insert WH47X10016
#153

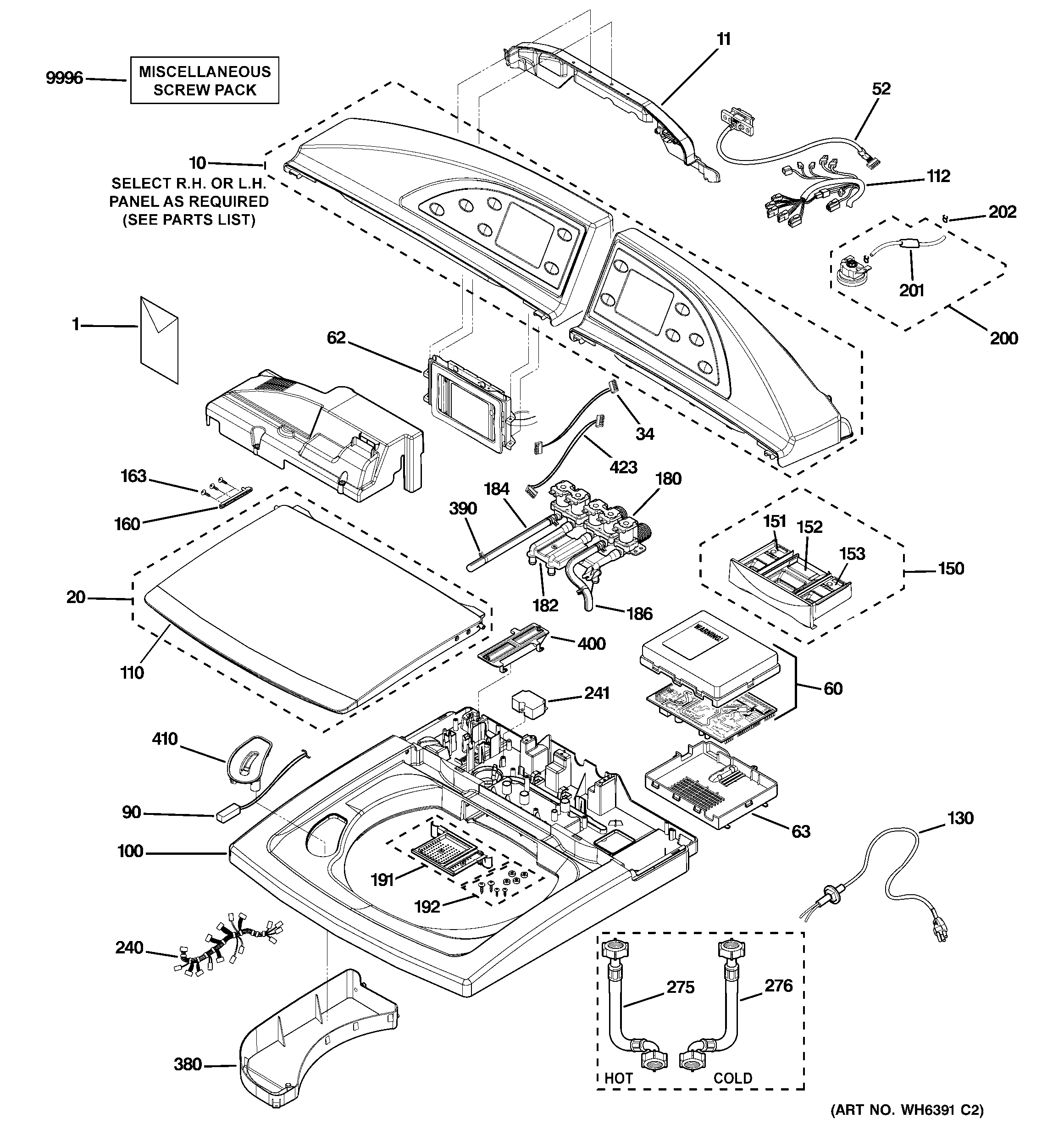

Controls, backsplash & top panel diagram

Cap insert

Part #WH47X10016

$14.79
In Stock
Bolt WH02X10149
#210

Tub, suspension & drive components diagram

Bolt

Part #WH02X10149

This item is not returnable
$5.00
In Stock
Leg Asm - Re WH02X10144
#26

Cabinet diagram

Leg asm - re

Part #WH02X10144

$101.29
In Stock
