Whirlpool RM765PXBB1 27" electric built-in self-cleaning oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool RM765PXBB1 27" electric built-in self-cleaning oven with microwave, as well as links to manuals and error code tables, if available.

Whirlpool RM765PXBB1 27" electric built-in self-cleaning oven with microwave
By Schematic
By Part

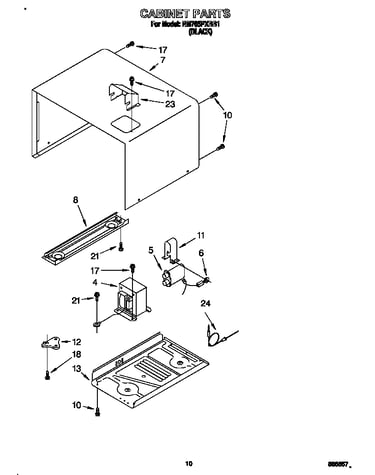

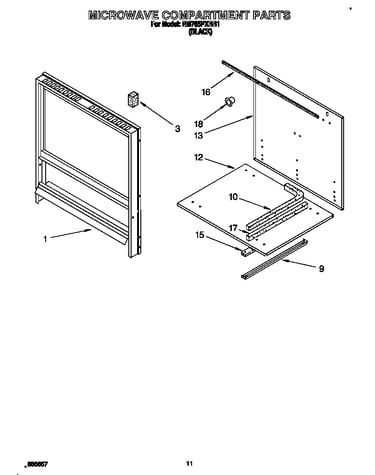

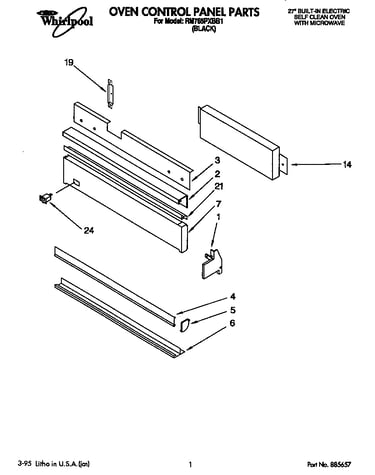

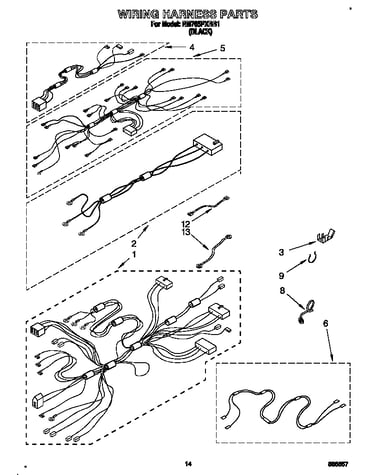

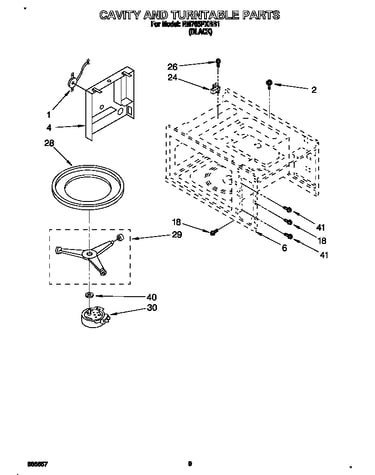

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM765PXBB1 Ranges

  • Appliance Silicone Sealant for Whirlpool RM765PXBB1 - Part WP482338

    #NI

    All parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $33.32
    15% OFF Phone Price : $39.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for Whirlpool RM765PXBB1 - Part WPA3073101

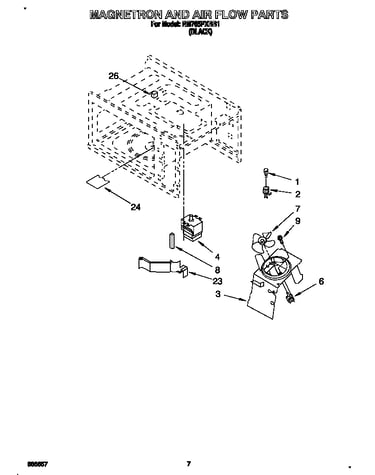

    Magnetron and air flow diagram

    Oven Light

    Part #4174873

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 4174873. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Whirlpool RM765PXBB1 - Part WP660579

    Unit diagram

    Range Broil Element

    Part #660579

    Replaced by #WP660579

    Info Icon
    Manufacturer substitution
    This part replaces 660579. Substitute parts can look different from the original.
    In Stock
    $78.38
    7% OFF Phone Price : $84.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RM765PXBB1 - Part WP3177991

    Range Screw

    Part #3177991

    Replaced by #WP3177991

    Info Icon
    Manufacturer substitution
    This part replaces 3177991. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for Whirlpool RM765PXBB1 - Part WP8203546

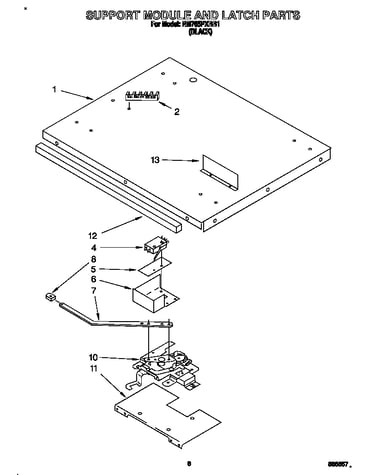

    Support module and latch diagram

    Terminal Block

    Part #258076

    Replaced by #WP8203546

    Info Icon
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.93
    22% OFF Phone Price : $26.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Whirlpool RM765PXBB1 - Part W11233072

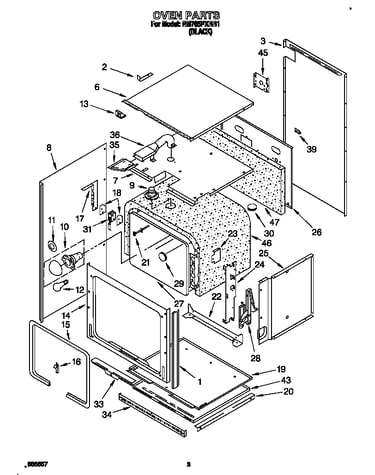

    Oven diagram

    Screw

    Part #4159450

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 4159450. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens Gasket for Whirlpool RM765PXBB1 - Part WP3184533

    Oven diagram

    Gaskt-lite

    Part #3184533

    Replaced by #WP3184533

    Info Icon
    Manufacturer substitution
    This part replaces 3184533. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for Whirlpool RM765PXBB1 - Part 4392027

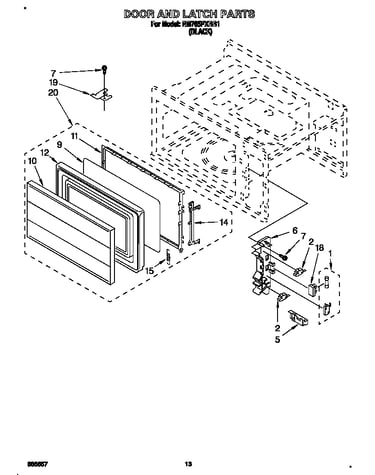

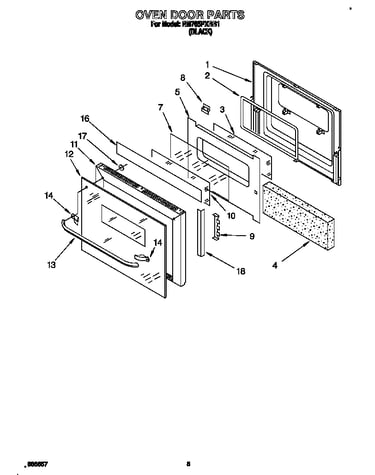

    Door and latch diagram

    Switch

    Part #4365522

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4365522. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Whirlpool RM765PXBB1 - Part W11233072

    Door and latch diagram

    Screw

    Part #4174784

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 4174784. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 6-oz (citrine White) for Whirlpool RM765PXBB1 - Part 261900

    #NI

    All parts diagram

    Appliance Touch-up Paint, 6-oz (citrine White)

    Part #261900
    In Stock
    $34.36
    15% OFF Phone Price : $40.36Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$39.58
Minus Item
Qty
Plus Item

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

View all

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Read more

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Read more

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Read more

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Read more

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Read more

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Read more

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Read more

Most common repair guides to help fix your ranges

These step-by-step repair guides will help you safely fix what’s broken on your range.

View all
How to replace a range oven door switch

How to replace a range oven door switch

The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …

Read more

Repair time and Difficulty

 30 minutes or less
How to replace a range oven door lock assembly

How to replace a range oven door lock assembly

Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…

Read more

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your ranges

Use the advice and tips in these articles and videos to get the most out of your range.

View all
4 things you're doing wrong with your oven

4 things you're doing wrong with your oven

You might be surprised by these 4 tips for using your oven better.…

Read more
How to correct an oven's temperature setting

How to correct an oven's temperature setting

If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…

Read more
Quiz: Are you abusing your appliances?

Quiz: Are you abusing your appliances?

Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…

Read more
