GE JBP23GV1 electric range Parts

For your GE JBP23GV1 electric range, the right part number comes from matching the exact model number (JBP23GV1) to the part shown in the correct diagram section, then confirming the part’s ID and manufacturer part number before ordering.

Step-by-step: how we match the correct part

• Find the model tag and confirm it reads JBP23GV1 (letters and numbers must match exactly).
• Identify the system you’re repairing (oven, cooktop, control panel, door, lighting).

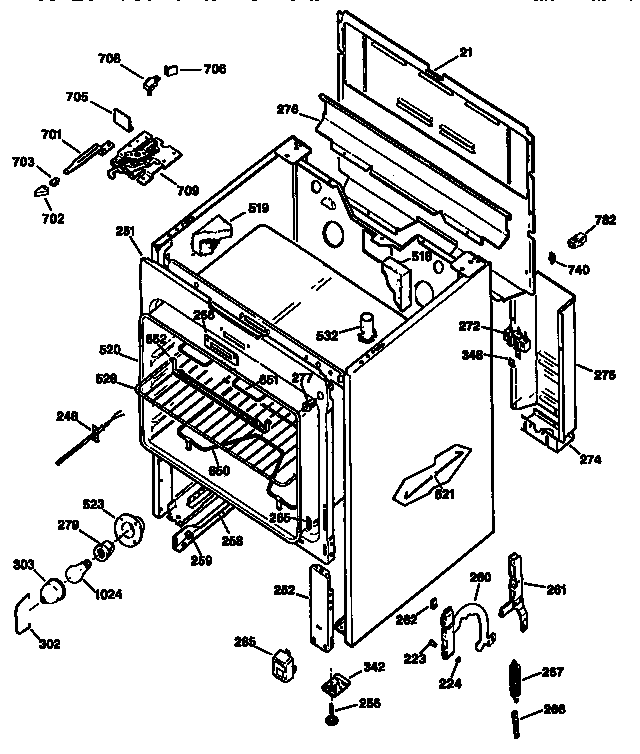

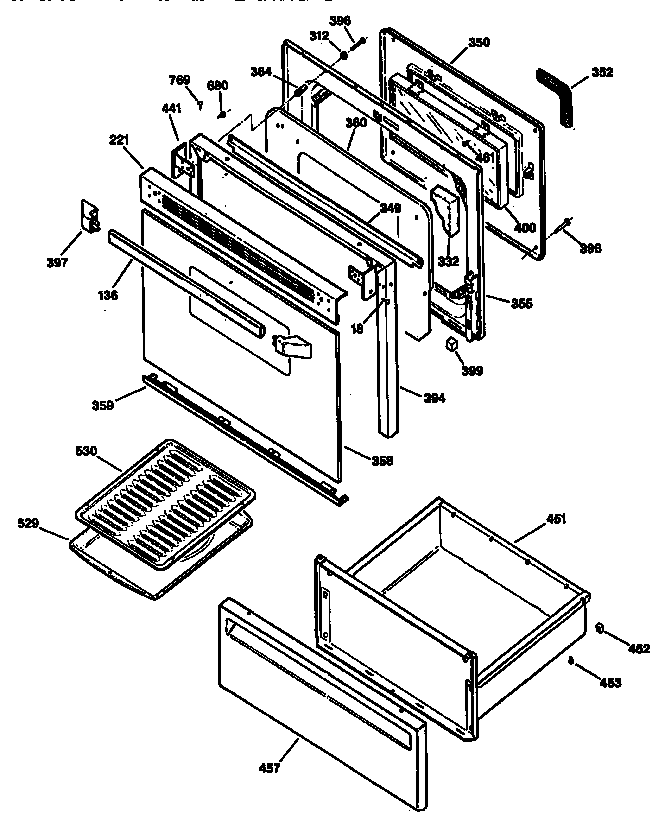

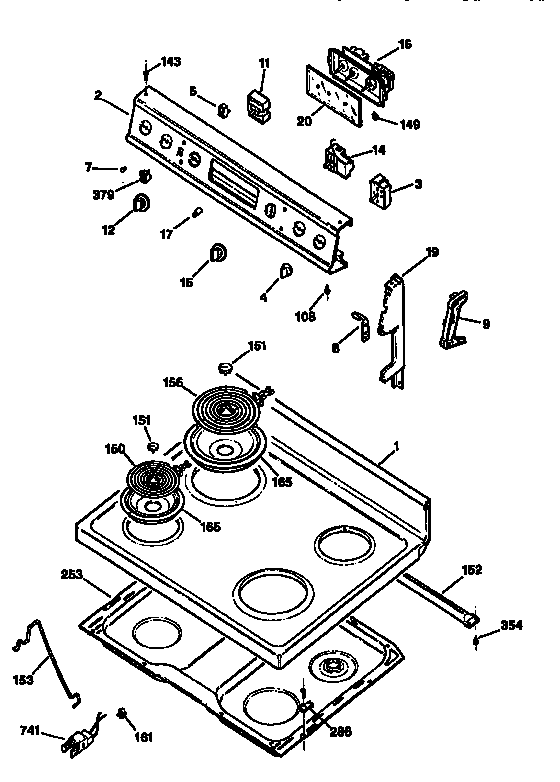

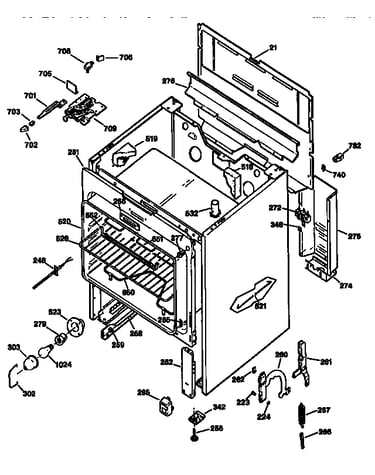

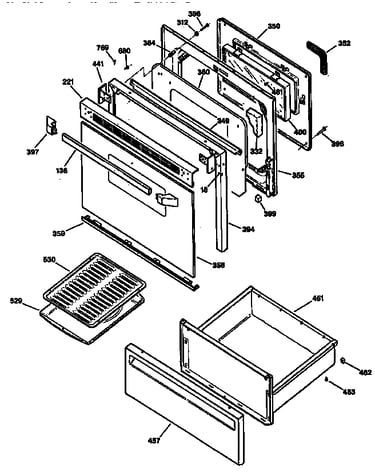

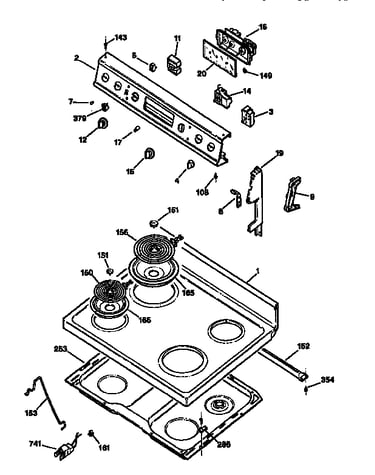

• Use the model-specific parts list and diagrams to locate the part callout.
• Confirm the part ID and manufacturer part number for that callout.
• Compare your old part to the listing (mounting points, terminals, size, finish).
• If your range has a serial number, keep it handy; GE sometimes has production changes.

Examples of what “right part number” looks like

Here are a few common JBP23GV1 parts and how they’re identified.

What you’re replacing	Part name (ID)	Manufacturer part number
Oven light bulb	Range oven light bulb (40A15)	WX12X1510
Bake heating element	Range bake element (WB44X5082)	WB44X5082
Broil heating element	Broil unit F (WB44X173)	WB44X0185
Anti-tip safety bracket	Brkt antitip (WB02T10415)	WB02X7876

If you’re replacing the oven light, using the exact listing for the bulb avoids wattage and base-style mix-ups; see range oven light bulb 40A15.

Quick checks before you order

• Model number match: JBP23GV1, not a similar-looking GE model.
• Part type match: bake element vs broil element vs surface element.
• Electrical fit: terminal style and connector orientation.
• Physical fit: length, bracket locations, and screw holes.

Why it matters

GE ranges often share similar-looking parts across model families, but small differences (terminal ends, element shape, lens style, handle trim) can prevent proper fit or safe operation. Matching by model number plus diagram callout is the fastest way to get the correct compatible part.

Last updated: February 2026

For a GE JBP23GV1 electric range, replacing the oven control board typically runs $200 to $600+ total. The board itself is usually $150 to $400, and professional labor commonly adds $150 to $250, depending on local rates and whether any wiring or connectors are heat-damaged.

Cost breakdown (typical)

• Control board part: $150 to $400
• Service call and labor: $150 to $250
• Possible add-ons: $0 to $150 (wiring repair, terminal ends, mounting hardware)
• DIY vs. pro: DIY often saves labor but still requires safe electrical handling

Scenario	What you pay for	Typical total
DIY board swap	Board only (plus small supplies)	$150 to $450
Pro replacement	Board + labor/service call	$300 to $650+
Board plus wiring repair	Board + labor + electrical repair	$400 to $800+

What changes the price the most

• Exact board used on your JBP23GV1: GE ranges can have multiple board versions by serial range.
• Symptoms that point beyond the board: If the oven is dead, intermittently resets, or shows error codes, the board may not be the only issue.
• Electrical connection condition: A loose or overheated power connection can damage components and increase repair time.

Before you buy a control board

• Reset power at the breaker for 1 minute, then retry bake and broil.
• Check for obvious heat damage at the power connection area; if you see melting or scorching, address that first.
• Confirm the heating system is healthy: A failed element can mimic a control problem.
  • For bake heat issues, inspect the range bake element WB44X5082.
  • For broil heat issues, inspect the broil unit f WB44X173.
• If you’re seeing an error code, match it to the code definition first using GE freestanding range error codes.

Why it matters

A control board is one of the highest-cost electronic parts on an electric range. Verifying basics (power supply, bake/broil elements, and error codes) helps prevent paying for a board when the real problem is a failed element or a wiring connection.

Last updated: February 2026

To order parts for your GE JBP23GV1 electric range, we recommend using your complete model number and serial number to match the correct replacement part, then ordering the exact part you need (for example, an oven light bulb or bake element) to avoid fit and wiring issues.

What we need from you before you order

Having these details ready helps us identify the right GE range parts the first time:

• Model number: JBP23GV1
• Serial number (from the rating plate)
• The part name and where it installs (oven, cooktop, control panel)
• Symptoms (for troubleshooting-based part selection)
• Photos of the old part and wire terminals (helpful for elements and switches)

Common parts customers order for this model

If you are replacing a frequent-wear item, these are common examples for the JBP23GV1:

• Range oven light bulb 40A15 (interior oven light)
• Range bake element WB44X5082 (oven bakes unevenly or not at all)
• Broil unit f WB44X173 (no broil heat)
• Range terminal block WB17X5095 (burnt power connection at cord)

In-warranty or out-of-stock parts

For in-warranty coverage, check your warranty documentation for the correct process. For out-of-stock parts, use the parts list for model JBP23GV1 to choose the exact replacement and check availability; if you need help identifying the right part, contact Sears PartsDirect support.

Quick part-selection guide (so you order the right item)

If your range problem is	Most likely part area	Example part for JBP23GV1
Oven light is out	Bulb or socket	Range oven light bulb 40A15 or receptacle WB08T10026
Bake not heating	Bake circuit	Range bake element WB44X5082
Broil not heating	Broil circuit	Broil unit f WB44X173

Why it matters

Ordering by the exact model number (JBP23GV1) prevents mismatched terminals, incorrect wattage, and fit problems that can cause poor heating performance or repeat failures.

Last updated: February 2026

On the GE JBP23GV1 electric range, the most commonly replaced parts are high-heat and high-touch items: bake and broil elements, surface burner controls, oven light parts, drip pans, and oven racks. These wear first because they handle constant heat cycles, spills, and daily handling.

Most common replacements (and what they fix)

• Bake element: oven will not heat, slow preheat, uneven baking (see range bake element WB44X5082)
• Broil element: no broil, weak top browning (see broil unit f WB44X173)
• Surface burner control switch: burner stuck on high, will not regulate heat, will not turn on (see infinite control switch WB21X36771)
• Oven light bulb or socket: light out or flickering (see range oven light bulb 40A15 and receptacle WB08T10026)
• Drip pans and racks: rust, pitting, hard-to-clean spills (see bowl brnr 6" WB31T10014 and range oven rack WB48X5099)

Quick symptom-to-part guide

Symptom	Part to check first	What we typically see
Oven will not bake	Bake element	Blistering, cracks, no heat
Broil does not work	Broil element	No top heat, uneven browning
Burner will not control temp	Infinite switch	Heat jumps, stays high, or will not turn on
Oven light will not work	Bulb, then socket	Bulb dark, socket contacts burned

Why it matters

Replacing the correct wear part restores safe, predictable cooking. A weak bake element or failing infinite switch causes undercooking, overheating, and inconsistent results even when the range powers on normally.

Helpful DIY references

• Use oven wont heat troubleshooting electric range problems video to narrow down bake vs. broil vs. power supply issues.
• If you are seeing a fault code on the display, check GE freestanding range error codes for common GE range code meanings.

Last updated: February 2026

On a GE electric range like model JBP23GV1, the model number is typically on a rating label around the oven door area (often on the frame behind the door) or on the storage drawer frame. Check these spots first before removing any panels.

Most common places to check

• Open the oven door and look along the front frame (left or right side) where the door closes
• Check the lower front frame near the door hinges
• Pull out the storage drawer and look on the frame around the drawer opening
• Look on the back panel of the range (rear of the unit)
• If your range has a broiler drawer, check the frame around that opening

Quick “where to look” guide

Range style	Most likely label location	What you will see
Freestanding electric range	Oven door frame (behind the door)	Model and serial number on a sticker/plate
Range with storage drawer	Drawer frame/opening	Model and serial number on a sticker
Older units	Back panel	Metal plate or sticker

Why it matters

We use the exact model number to match the correct GE parts and diagrams. Even small model variations can change fitment for items like a range bake element WB44X5082 or a range terminal block WB17X5095.

Tips to avoid mix-ups

• Write the model number exactly as shown (letters and numbers)
• Take a clear photo of the label before it wears or smudges
• If the label is hard to read, gently wipe it with a damp cloth and dry it right away

Last updated: February 2026

If your GE JBP23GV1 electric range oven is not heating, the most common causes are a failed bake element or broil element, a power supply issue (missing one leg of 240V), or a burned wire/terminal connection. Start with a quick visual check for element damage and confirm the range is getting full power.

Quick checks we recommend first

• Make sure the range is set to Bake (not Broil) and the temperature is set correctly.
• Check the house breaker: many electric ranges use a double-pole breaker; one side can trip and leave the oven with partial power.
• Look for a burnt smell, arcing marks, or a loose cord connection at the back of the range.
• If the oven light works but the oven will not heat, that still does not confirm proper 240V power.
• If the broil works but bake does not (or vice versa), suspect the non-working element.

Most likely part failures (and what you will notice)

Symptom	Most likely cause	Common next step
Bake does not heat; broil still heats	Failed bake element	Replace range bake element WB44X5082
Broil does not heat; bake still heats	Failed broil element	Replace broil unit f WB44X173
Neither bake nor broil heats	Power supply issue, terminal block/wiring problem	Inspect cord/terminal connections; test supply
Oven heats sometimes, then stops	Loose/burned connection, failing control, or switch	Inspect wiring and connections for heat damage

Why heating elements fail

A bake or broil element can fail internally and stop heating even if it looks mostly normal. Other times you will see obvious signs such as blisters, cracks, or a hole in the element sheath.

Safety and troubleshooting tips

• Disconnect power at the breaker before removing panels or touching wiring.
• If you see melted wires or a scorched connection, address the connection issue before installing a new element.
• After replacing an element, run a short bake cycle and watch for normal heat-up behavior.

Helpful DIY guidance

For step-by-step diagnosis ideas (symptoms, tests, and what to check next), use our oven wont heat troubleshooting electric range problems video.

Why it matters

An oven that will not heat is often a simple element replacement, but a partial power condition or overheated connection can keep new parts from working correctly and can cause repeat failures.

Last updated: February 2026
