Steele
Air Compressor

Model # SP-CE358TM Official Steele air compressor

Here are the diagrams and repair parts for Official Steele SP-CE358TM air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Washer SPCE358TMSPT28335
#35

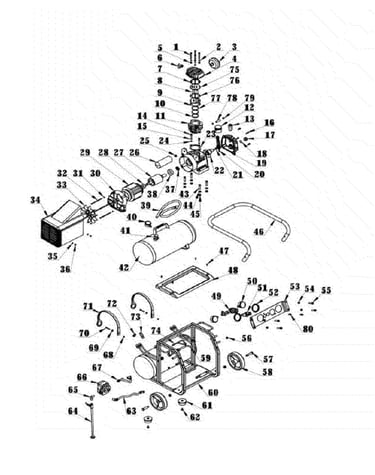

Compressor diagram

Washer

Part #SPCE358TMSPT28335

The manufacturer no longer makes this part, and there's no substitute part

Safety Valve SPCE358TMSPT28373
#73

Compressor diagram

Safety valve

Part #SPCE358TMSPT28373

The manufacturer no longer makes this part, and there's no substitute part

Wheel SPCE358TMSPT28358
#58

Compressor diagram

Wheel

Part #SPCE358TMSPT28358

The manufacturer no longer makes this part, and there's no substitute part

Nut SPCE358TMSPT28356
#56

Compressor diagram

Nut

Part #SPCE358TMSPT28356

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt SPCE358TMSPT28357
#57

Compressor diagram

Head bolt

Part #SPCE358TMSPT28357

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt SPCE358TMSPT28336
#36

Compressor diagram

Head bolt

Part #SPCE358TMSPT28336

The manufacturer no longer makes this part, and there's no substitute part

Air Cock SPCE358TMSPT28351
#51

Compressor diagram

Air cock

Part #SPCE358TMSPT28351

The manufacturer no longer makes this part, and there's no substitute part

Cylinder,nsp SPCE358TMSPT28311
#11

Compressor diagram

Cylinder,nsp

Part #SPCE358TMSPT28311

The manufacturer no longer makes this part, and there's no substitute part

Rubber Foot SPCE358TMSPT28361
#61

Compressor diagram

Rubber foot

Part #SPCE358TMSPT28361

The manufacturer no longer makes this part, and there's no substitute part

Tray SPCE358TMSPT28348
#48

Compressor diagram

Tray

Part #SPCE358TMSPT28348

The manufacturer no longer makes this part, and there's no substitute part
