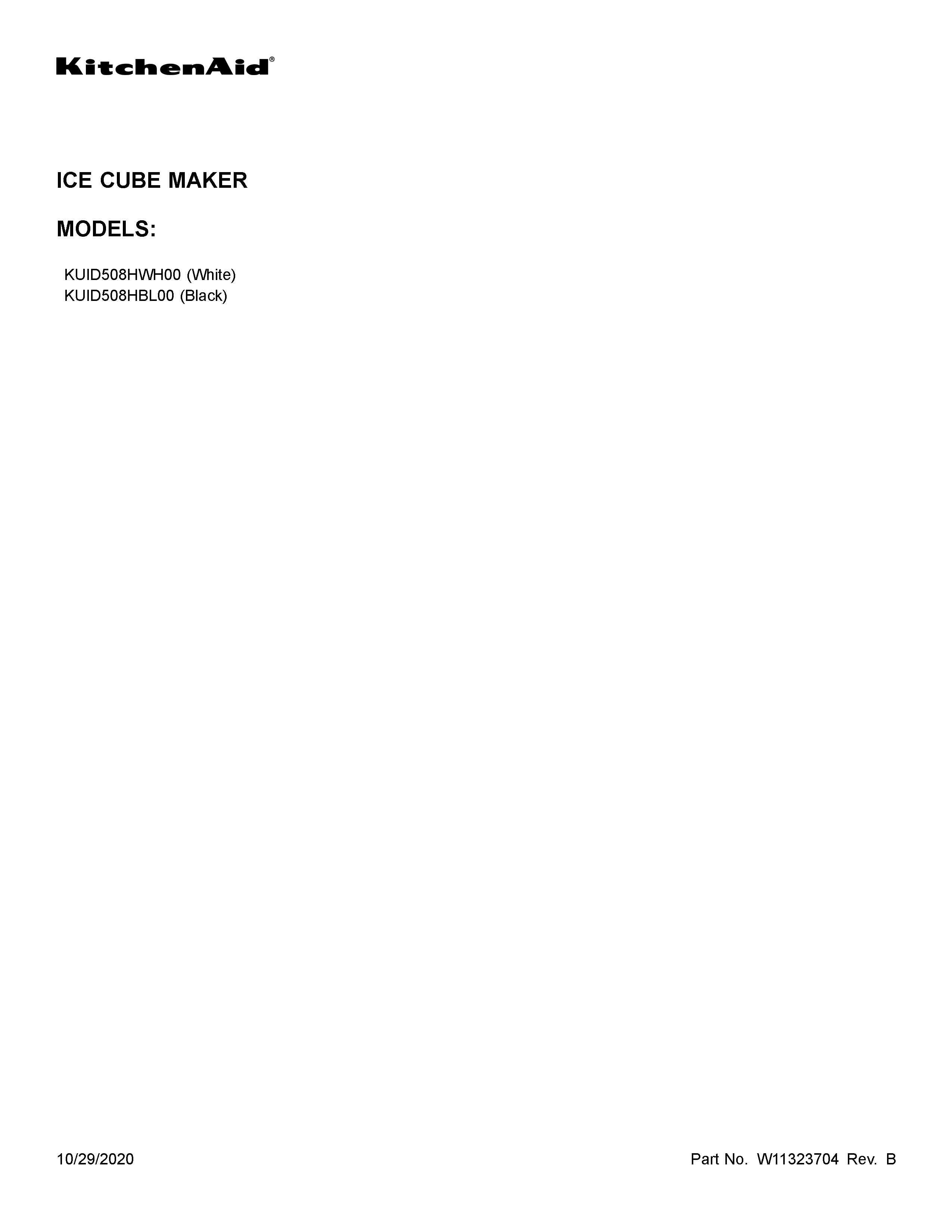

KitchenAid KUID508HWH00 freestanding icemaker

KitchenAid KUID508HWH00 freestanding icemaker Parts

Here are the diagrams and repair parts for KitchenAid KUID508HWH00 freestanding icemaker, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KUID508HWH00 FREESTANDING ICEMAKER

  • Whirlpool Ice Maker Bin Temperature Sensor for KitchenAid KUID508HWH00 - Part WPW10511923

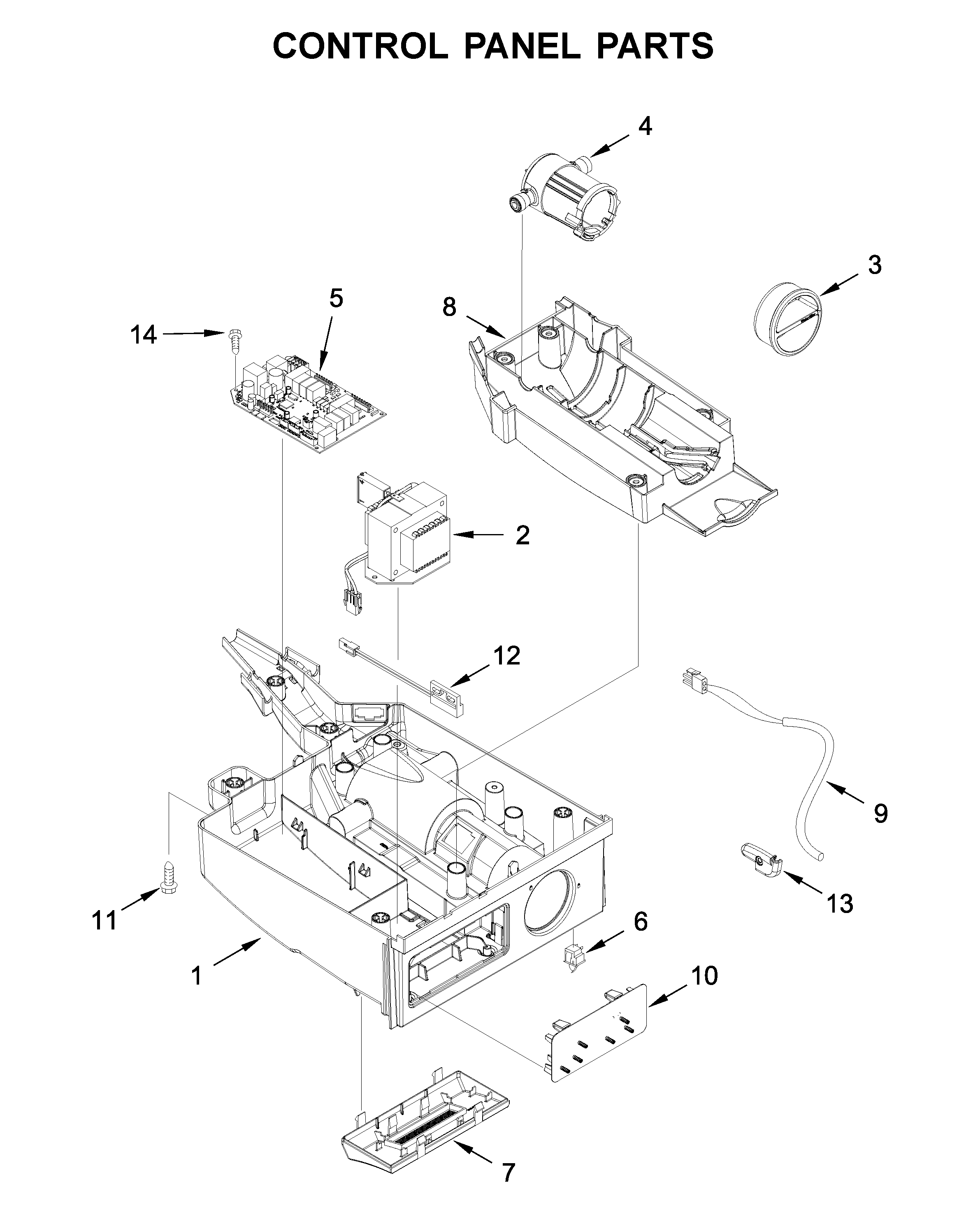

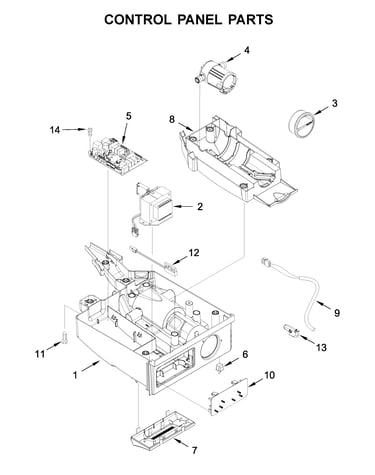

    Control panel parts diagram

    Thermistor

    Part #W10511923

    Replaced by #WPW10511923

    Info Icon
    Manufacturer substitution
    This part replaces W10511923. Substitute parts can look different from the original.
    In Stock
    $60.11
    9% OFF Phone Price : $66.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Recirculation Pump for KitchenAid KUID508HWH00 - Part W11542867

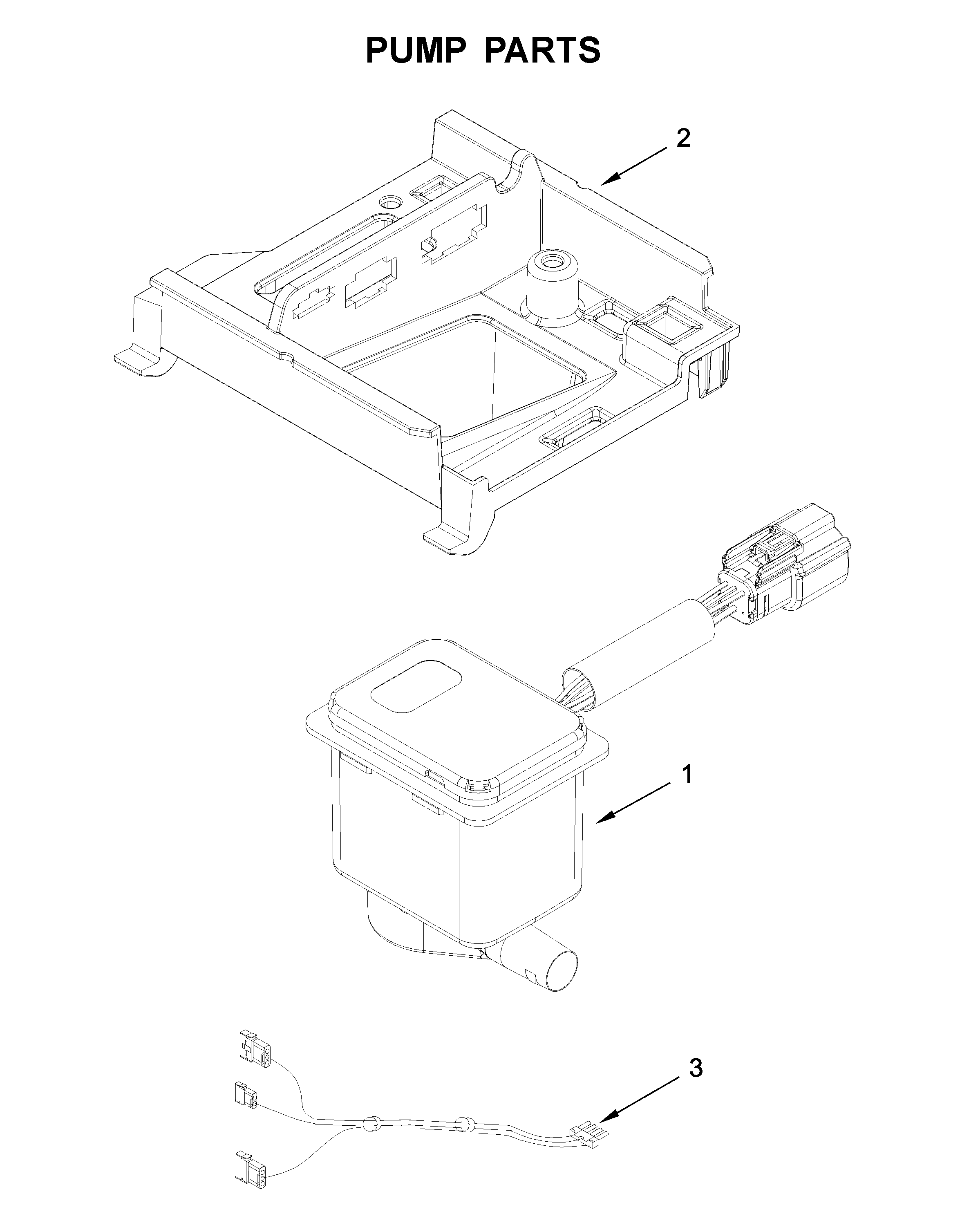

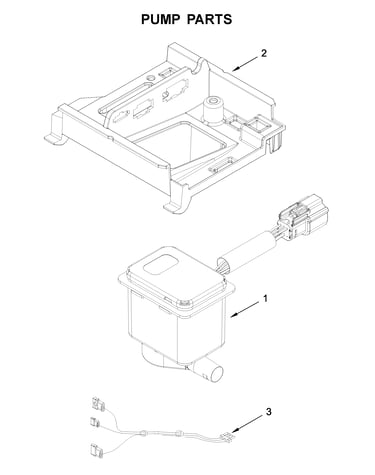

    Pump parts diagram

    Pump, Recirculating (includes Sensor)

    Part #W11176264

    Replaced by #W11542867

    Info Icon
    Manufacturer substitution
    This part replaces W11176264. Substitute parts can look different from the original.
    In Stock
    $193.84
    6% OFF Phone Price : $205.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Water Inlet Valve for KitchenAid KUID508HWH00 - Part W10897719

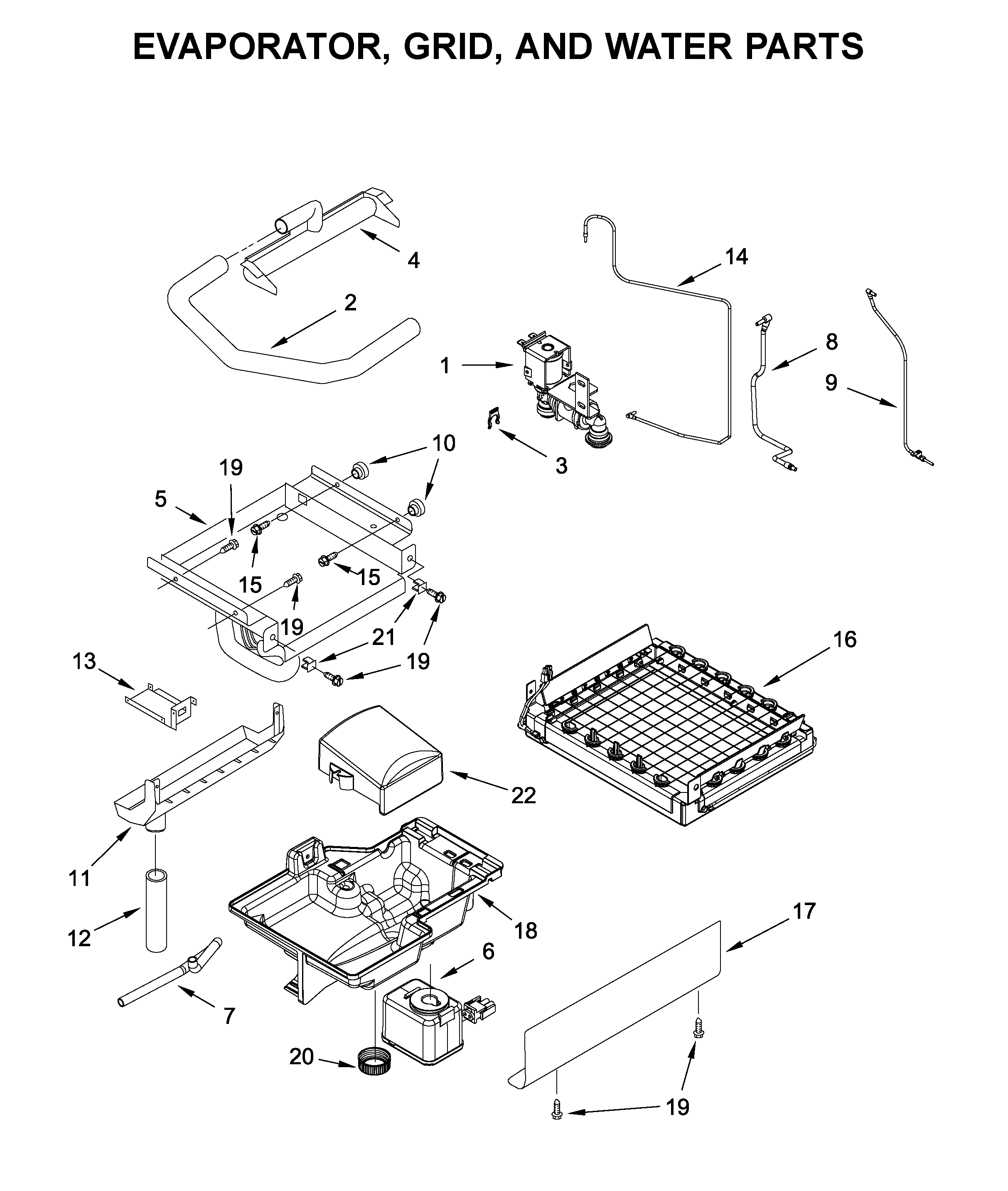

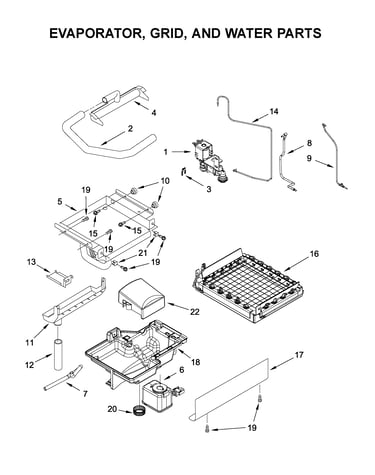

    Evaporator, grid, and water parts diagram

    Valve

    Part #W10870921

    Replaced by #W10897719

    Info Icon
    Manufacturer substitution
    This part replaces W10870921. Substitute parts can look different from the original.
    In Stock
    $145.55
    8% OFF Phone Price : $157.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for KitchenAid KUID508HWH00 - Part W11573574

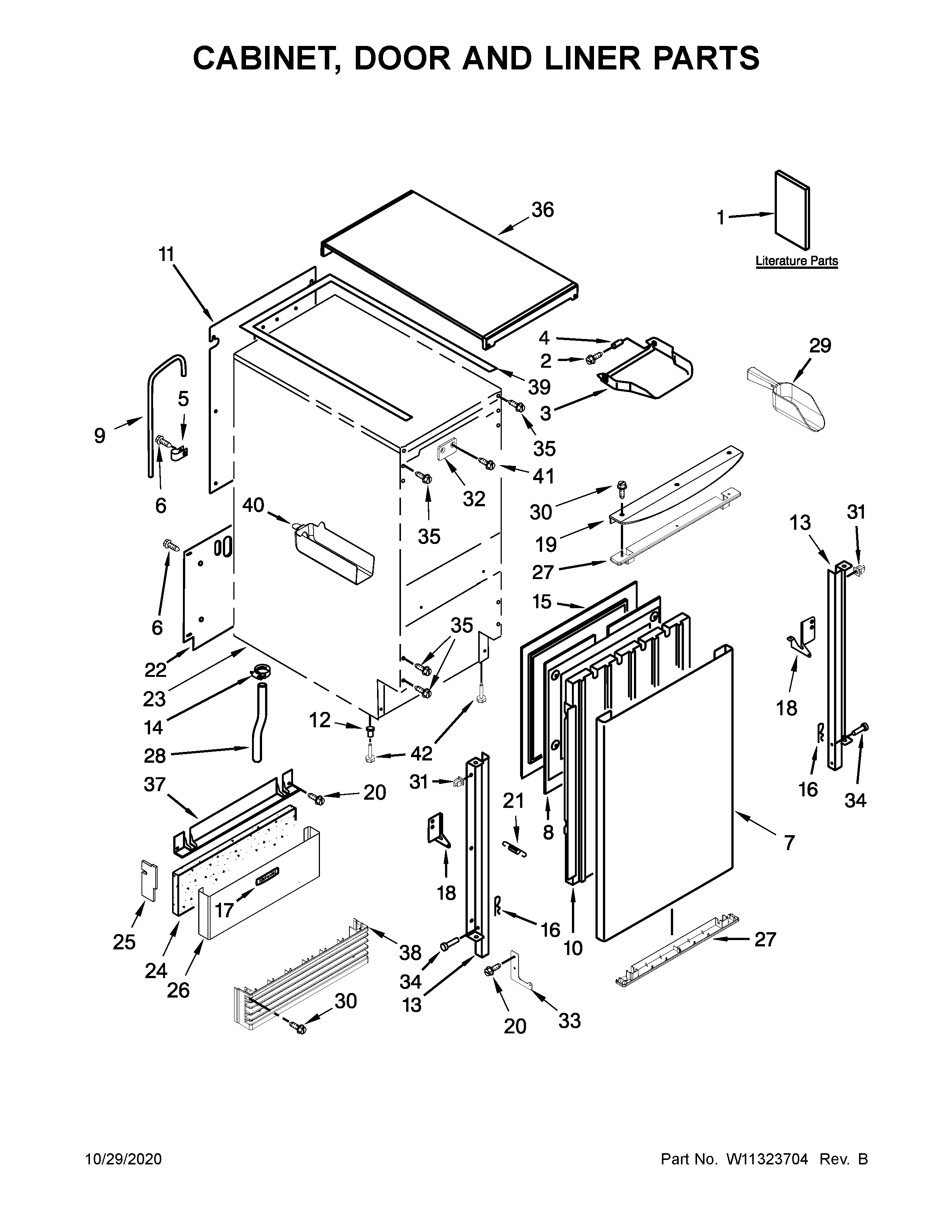

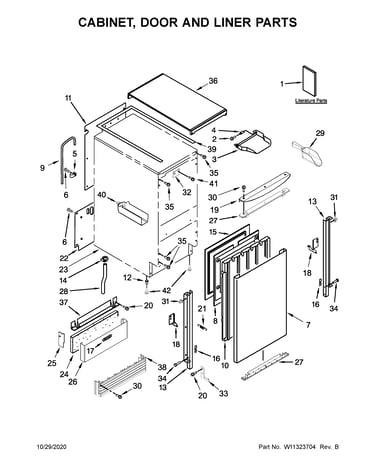

    Cabinet, door and liner parts diagram

    Screw

    Part #357640

    Replaced by #W11573574

    Info Icon
    Manufacturer substitution
    This part replaces 357640. Substitute parts can look different from the original.
    In Stock
    $48.64
    Minus Item
    Qty
    Plus Item

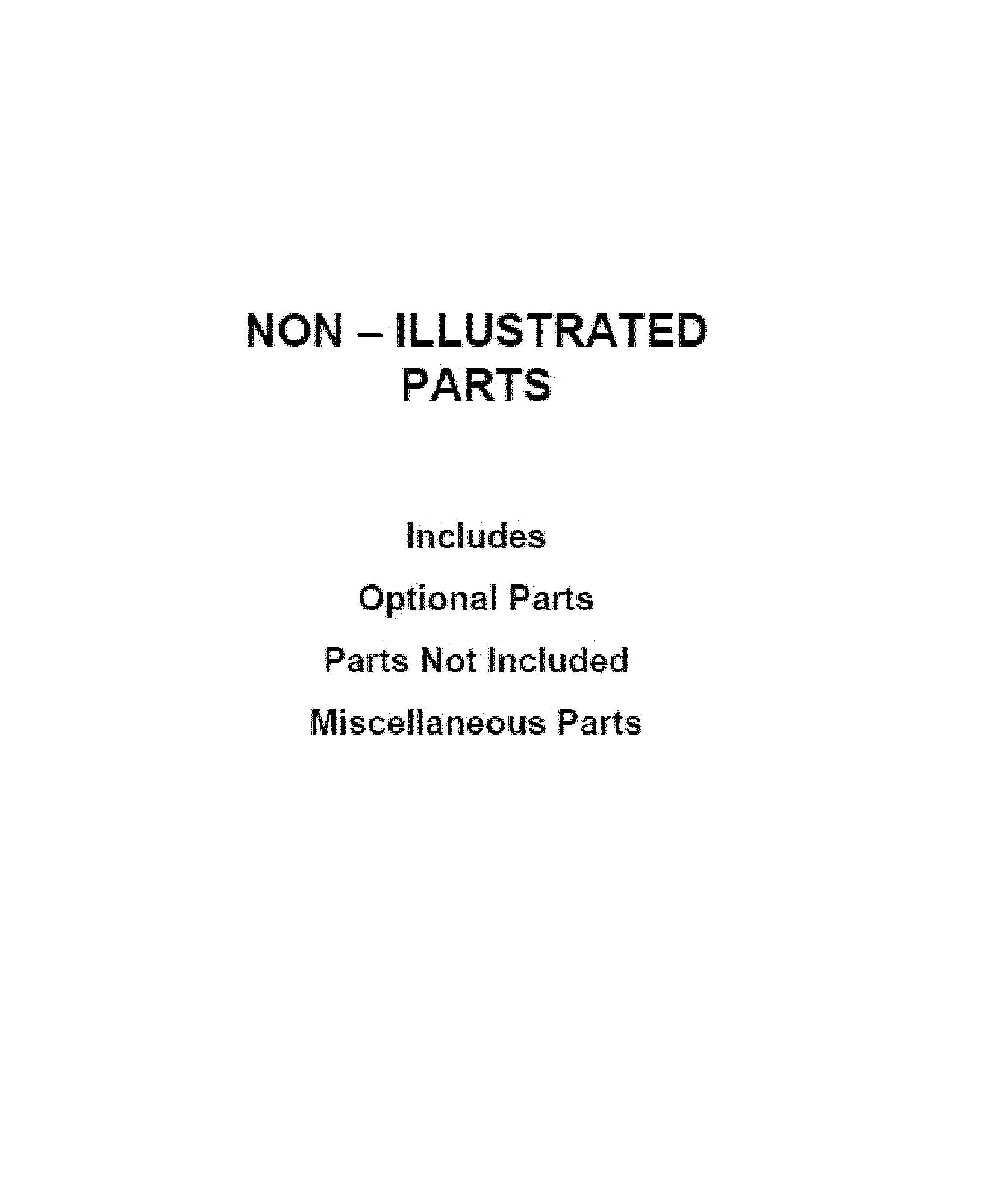

  • Danby Appliance Touch-up Paint, 0.6-oz (white) for KitchenAid KUID508HWH00 - Part 72017

    Optional parts diagram

    Danby Appliance Touch-up Paint, 0.6-oz (white)

    Part #72017
    In Stock
    $8.46
    11% OFF Phone Price : $9.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Ice Maker Drain Pump for KitchenAid KUID508HWH00 - Part W11542868

    Evaporator, grid, and water parts diagram

    Ice Maker Drain Pump

    Part #W10489125

    Replaced by #W11542868

    Info Icon
    Manufacturer substitution
    This part replaces W10489125. Substitute parts can look different from the original.
    In Stock
    $75.41
    7% OFF Phone Price : $81.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Condensate Drain Pump Assembly for KitchenAid KUID508HWH00 - Part W11539855

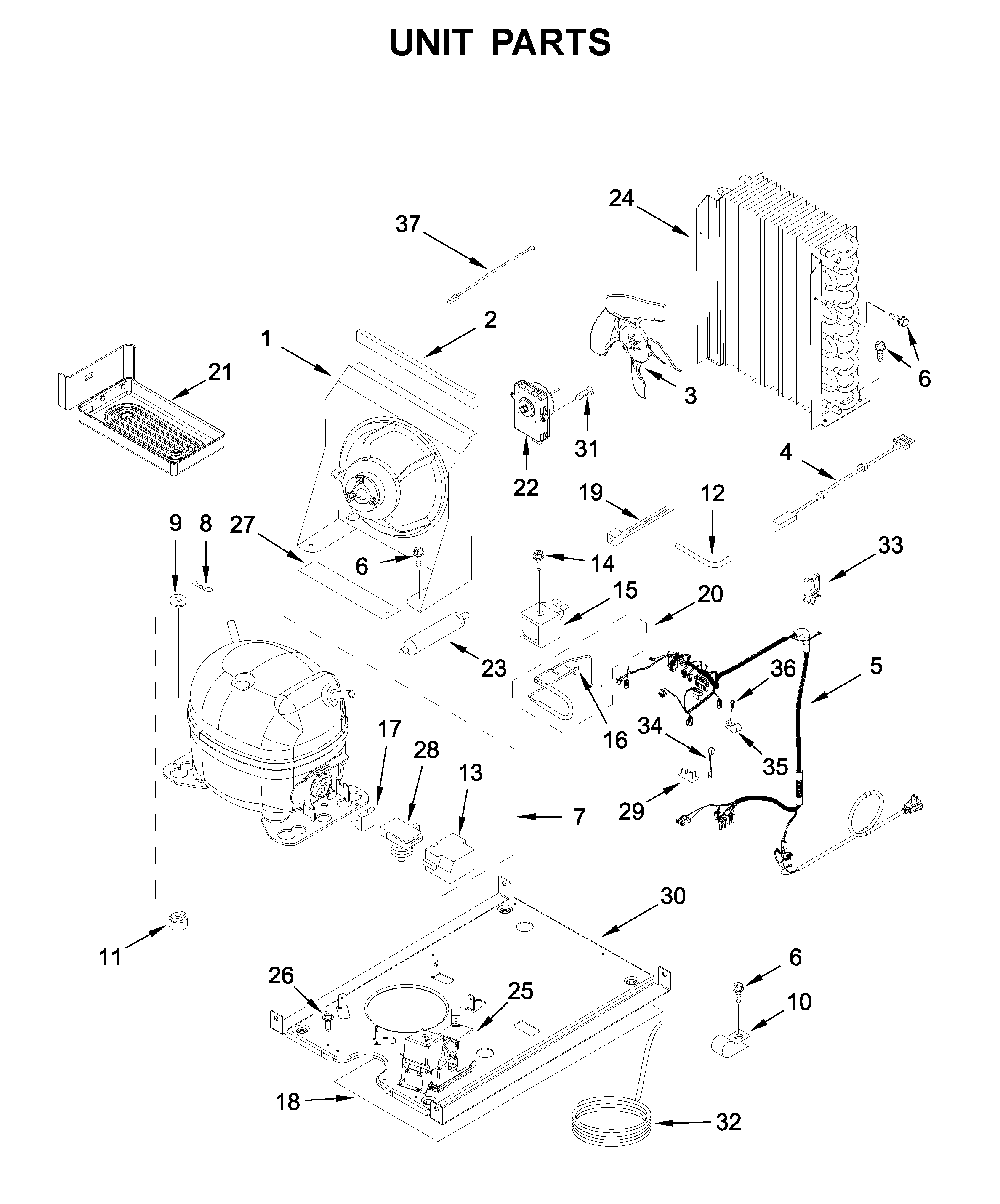

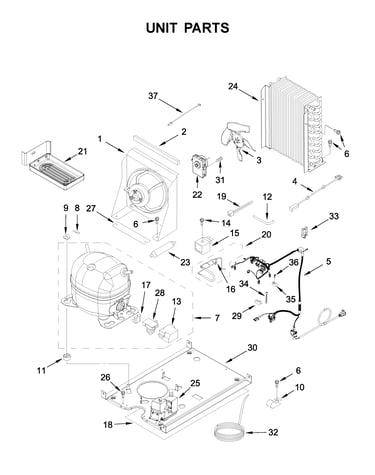

    Unit parts diagram

    Pump Assembly

    Part #W10702856

    Replaced by #W11539855

    Info Icon
    Manufacturer substitution
    This part replaces W10702856. Substitute parts can look different from the original.
    In Stock
    $387.24
    $12.00 OFF Phone Price : $399.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for KitchenAid KUID508HWH00 - Part W11291138

    Control panel parts diagram

    Switch- Rock

    Part #W10847852

    Replaced by #W11291138

    Info Icon
    Manufacturer substitution
    This part replaces W10847852. Substitute parts can look different from the original.
    In Stock
    $29.59
    17% OFF Phone Price : $35.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Silicone Lubricant for KitchenAid KUID508HWH00 - Part WP542638

    Optional parts diagram

    Appliance Silicone Lubricant

    Part #542638

    Replaced by #WP542638

    Info Icon
    Manufacturer substitution
    This part replaces 542638. Substitute parts can look different from the original.
    In Stock
    $37.39
    14% OFF Phone Price : $43.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Filter Housing for KitchenAid KUID508HWH00 - Part W11266112

    Control panel parts diagram

    Housing Assembly

    Part #W11168063

    Replaced by #W11266112

    Info Icon
    Manufacturer substitution
    This part replaces W11168063. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $103.63
    10% OFF Phone Price : $115.63Info Icon
    Minus Item
    Qty
    Plus Item
