Frigidaire
Upright Freezer

Model #FFU20F9CW1 Official Frigidaire freezer

Here are the diagrams and repair parts for Frigidaire FFU20F9CW1 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 134 parts

    Freezer Door Key#5

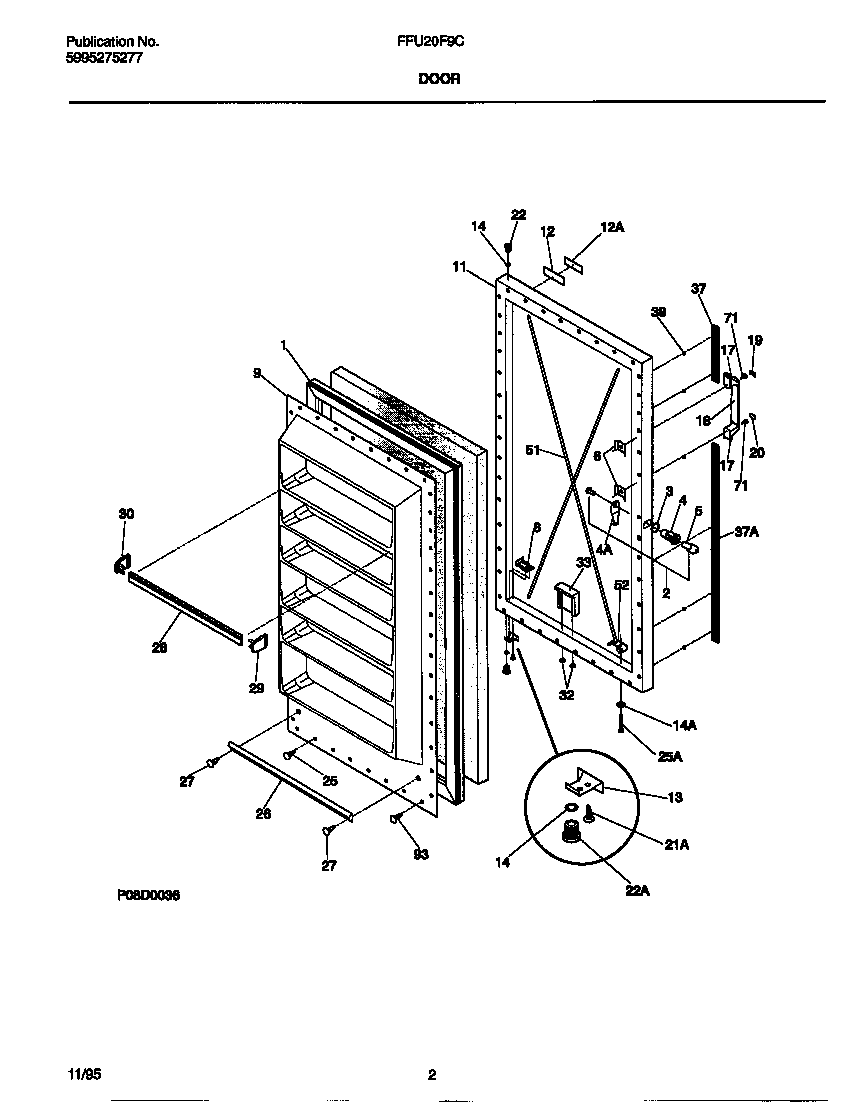

    Door Diagram

    Key

    Part #216388700
    Replaced by #297147700
    ?
    Manufacturer substitution
    This part replaces 216388700. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.36 |
    17% OFF
    MSRP: $7.70
    Upright Freezer Defrost Timer#23

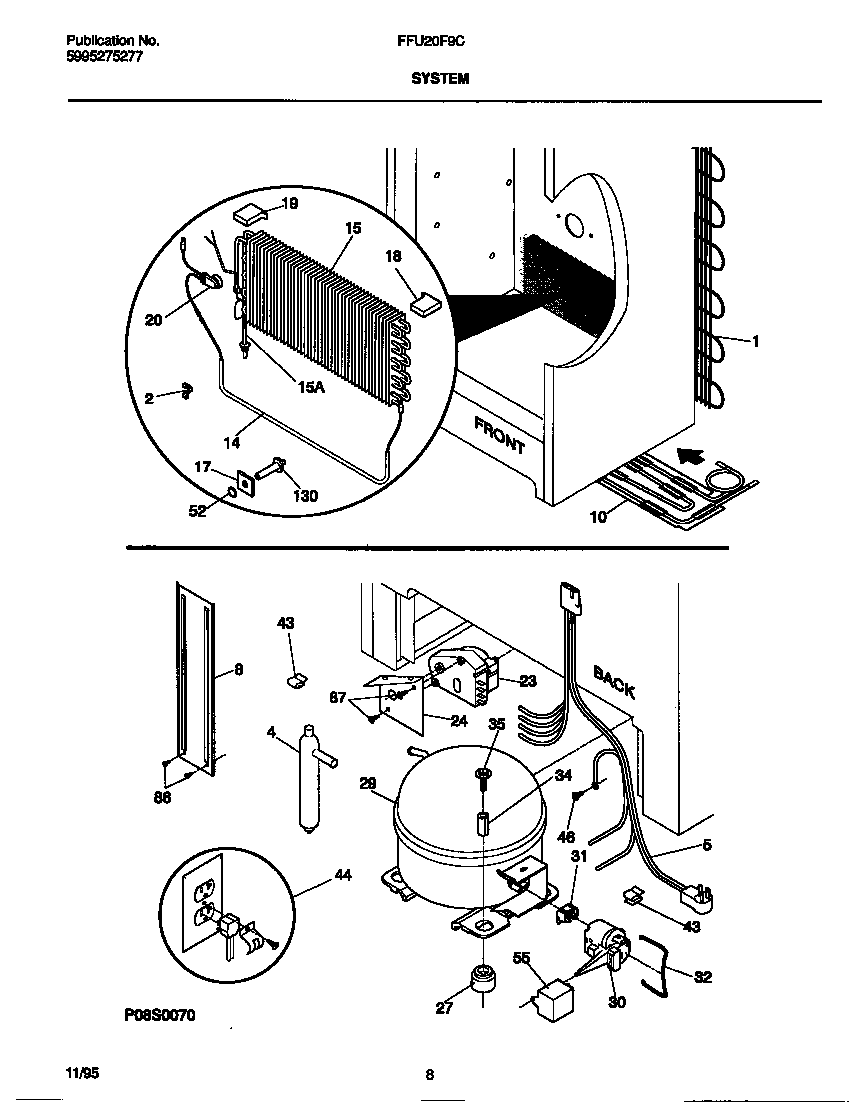

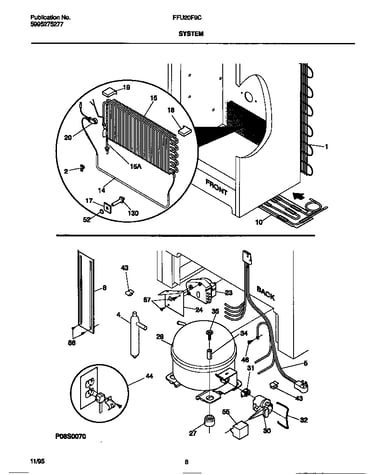

    System Diagram

    Upright freezer defrost timer

    Part #5308037967

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Run Capacitor#55

    System Diagram

    Capacitor

    Part #216236200
    Replaced by #5304464438
    ?
    Manufacturer substitution
    This part replaces 216236200. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $43.55 |
    13% OFF
    Phone Price: $49.90
    Freezer Light Bulb#15

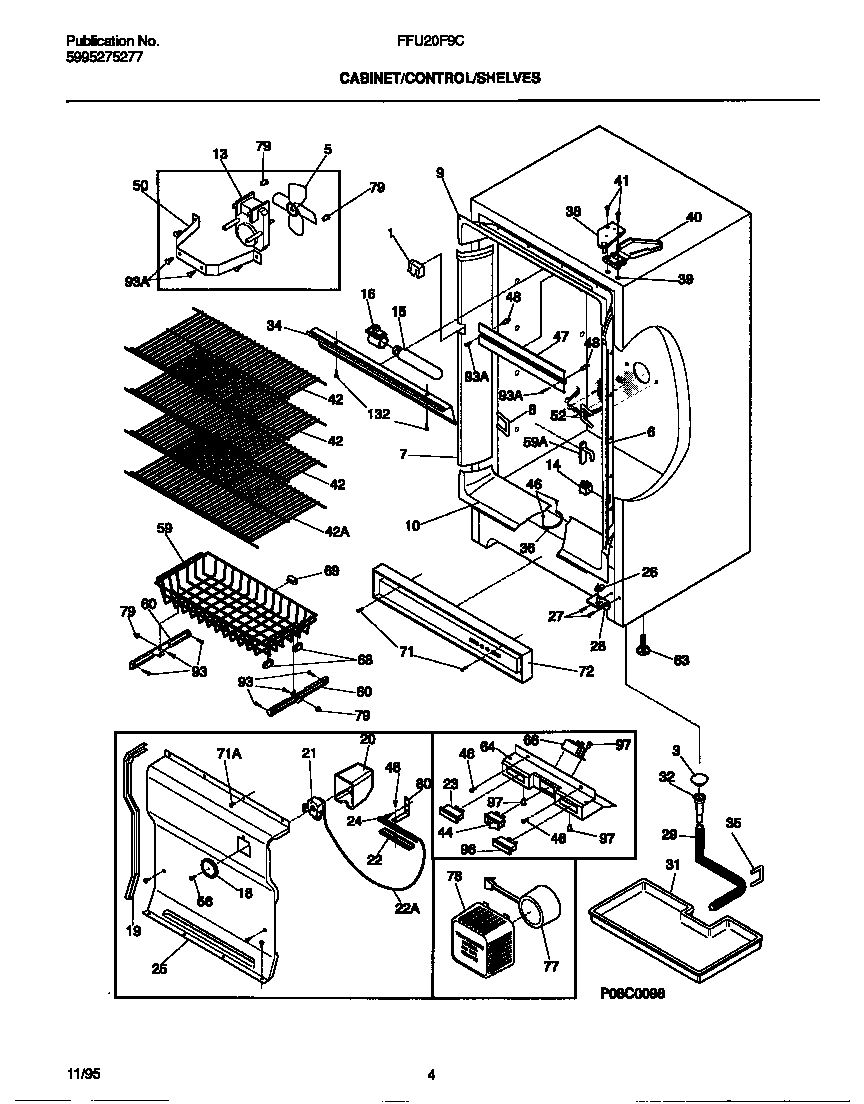

    Cabinet/control/shelves Diagram

    Lamp bulb

    Part #216222700
    Replaced by #216846400
    ?
    Manufacturer substitution
    This part replaces 216222700. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.05 |
    34% OFF
    MSRP: $53.00
    Freezer Evaporator Fan Motor Assembly#13

    Cabinet/control/shelves Diagram

    Evaporator motor

    Part #216346100
    Replaced by #5304442620
    ?
    Manufacturer substitution
    This part replaces 216346100. Substitute parts can look different from the original.
    In Stock
    $174.82 |
    27% OFF
    MSRP: $240.00
    Freezer Door Shelf Rail End Cap#30

    Door Diagram

    In Stock
    $47.09 |
    10% OFF
    Phone Price: $52.09
    Freezer Drain Tube#29

    Cabinet/control/shelves Diagram

    Freezer drain tube

    Part #216313501
    Replaced by #5304512272
    ?
    Manufacturer substitution
    This part replaces 216313501. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.29 |
    11% OFF
    Phone Price: $18.29
    Freezer Basket Slide Rail#60

    Cabinet/control/shelves Diagram

    Slide

    Part #5303212693
    Replaced by #297013500
    ?
    Manufacturer substitution
    This part replaces 5303212693. Substitute parts can look different from the original.
    In Stock
    $31.69 |
    14% OFF
    Phone Price: $36.69
    Freezer Defrost Heater#14

    System Diagram

    Freezer defrost heater

    Part #216254600
    In Stock
    $195.43 |
    5% OFF
    Phone Price: $205.43
    Refrigerator and Freezer Compressor Kit#29

    System Diagram

    Compressor

    Part #5303925356
    Replaced by #5304475102
    ?
    Manufacturer substitution
    This part replaces 5303925356. Substitute parts can look different from the original.
    In Stock
    $234.27 |
    10% OFF
    MSRP: $260.00

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
