GE GCU23LGYCFSS refrigerator - y series Parts
Here are the diagrams and repair parts for GE GCU23LGYCFSS refrigerator - y series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

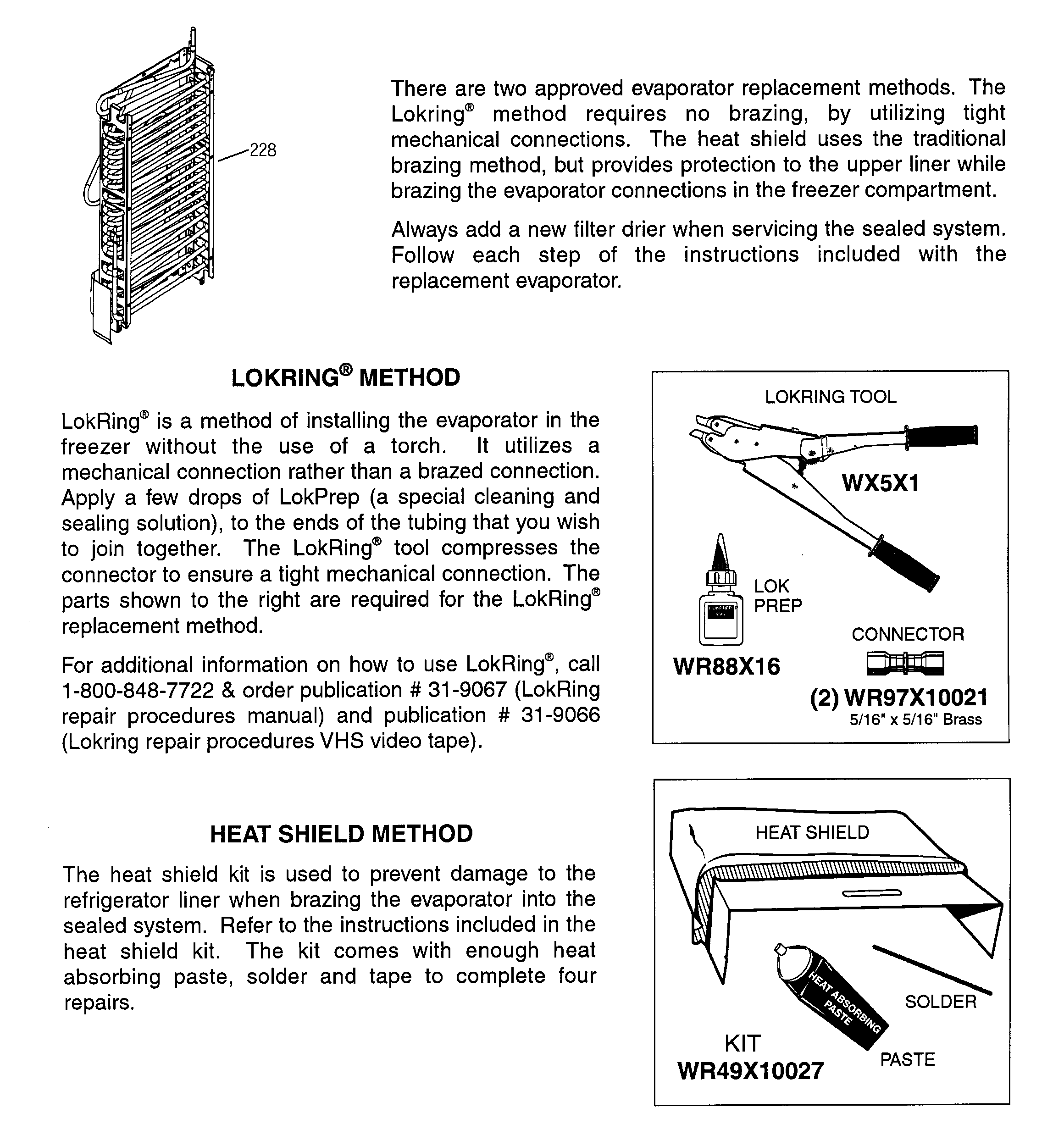

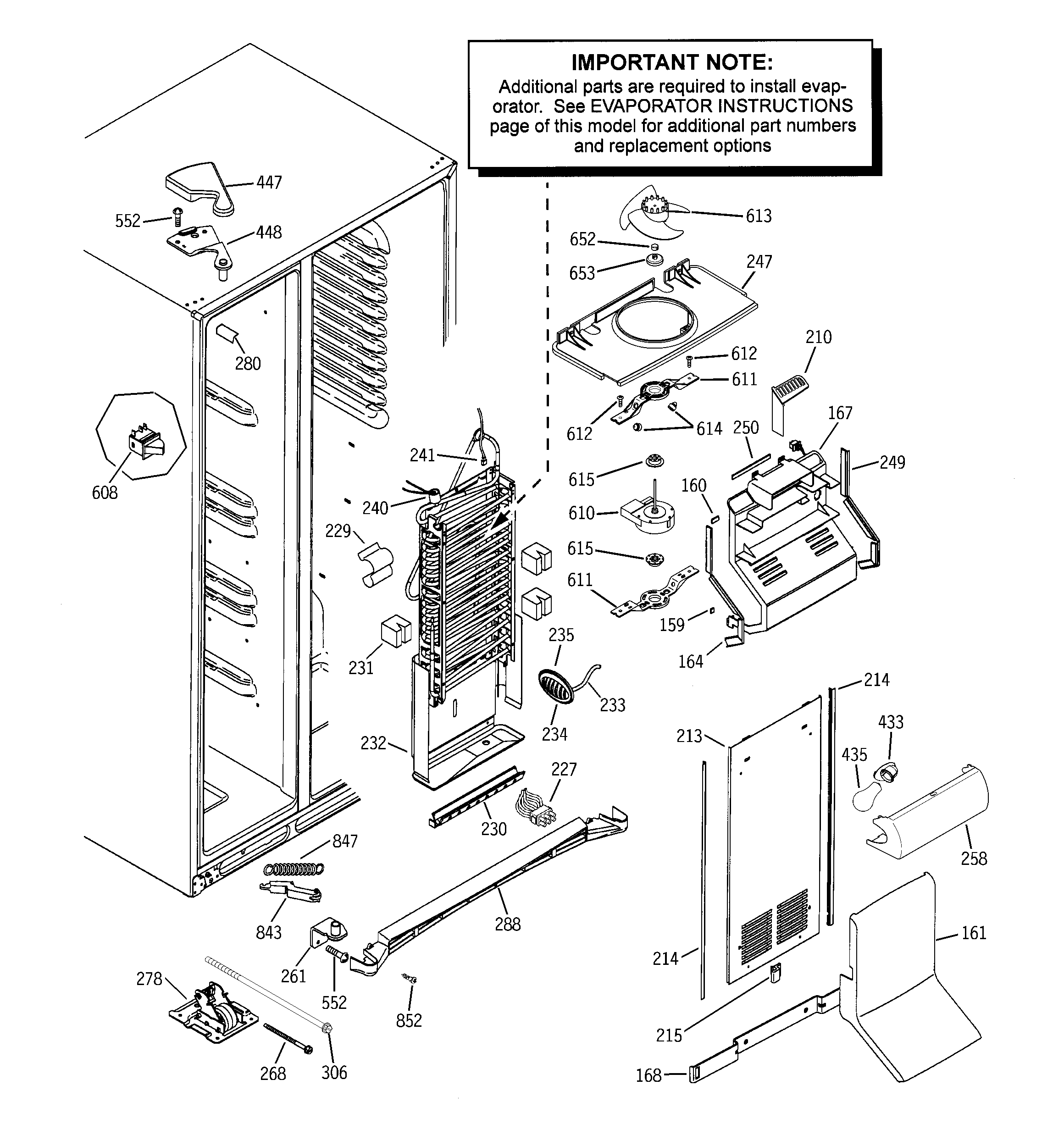

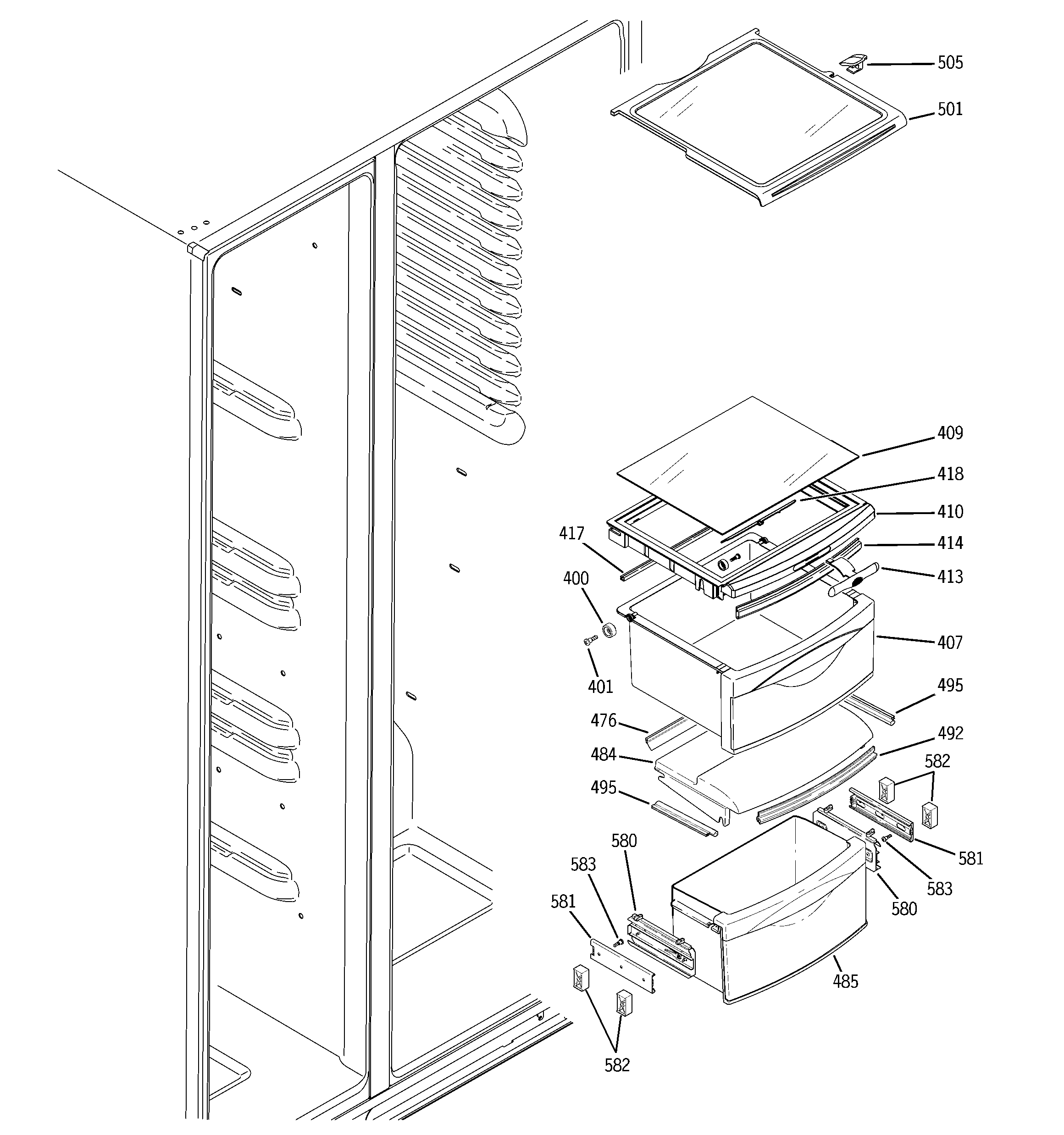

SELECT DIAGRAM
Browse Parts for GCU23LGYCFSS Refrigerators

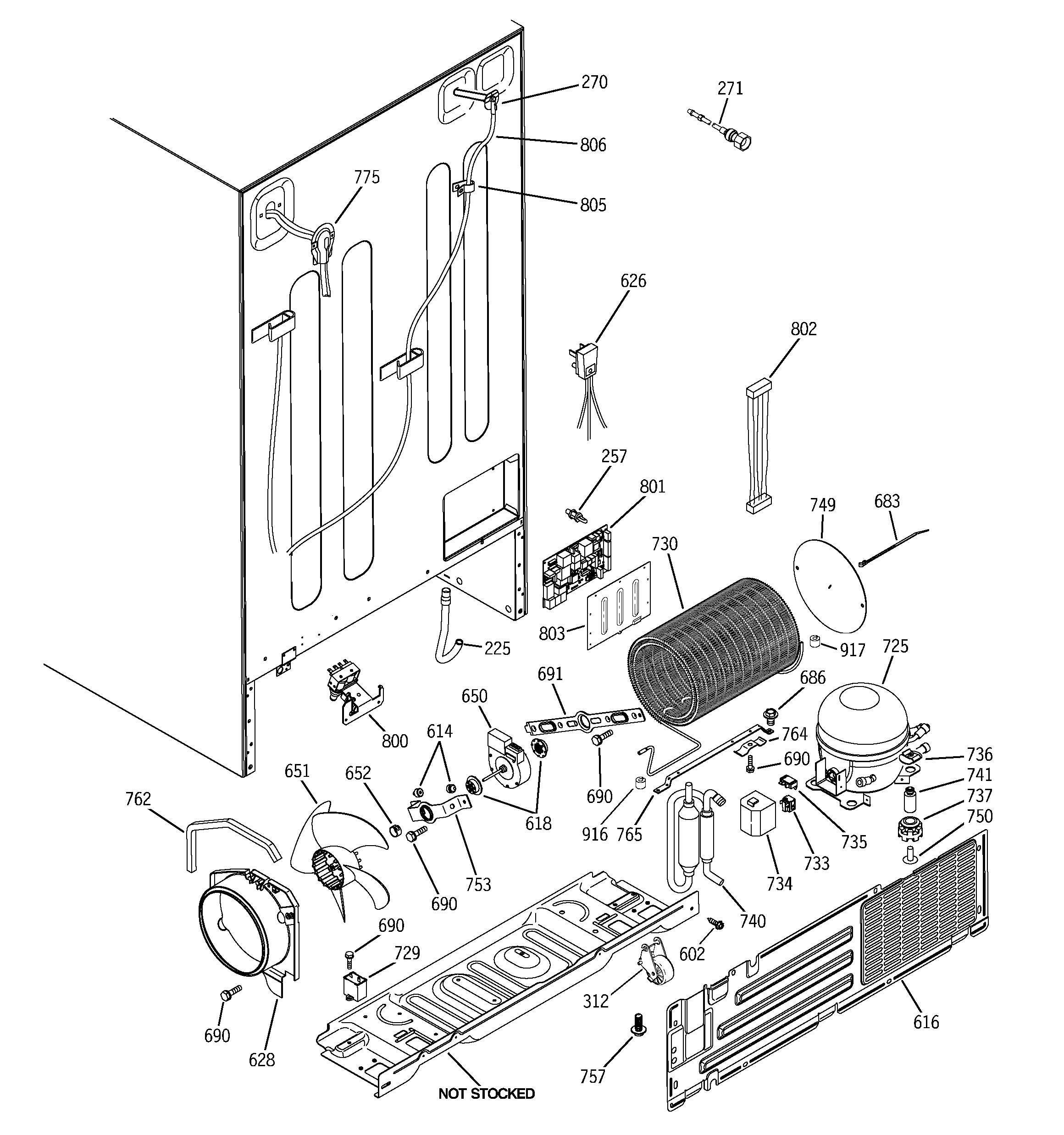

Sealed system & mother board diagram
Ge Profile Refrigerator Electronic Control Board Post
In Stock$8.3811% OFF Phone Price : $9.38
Qty

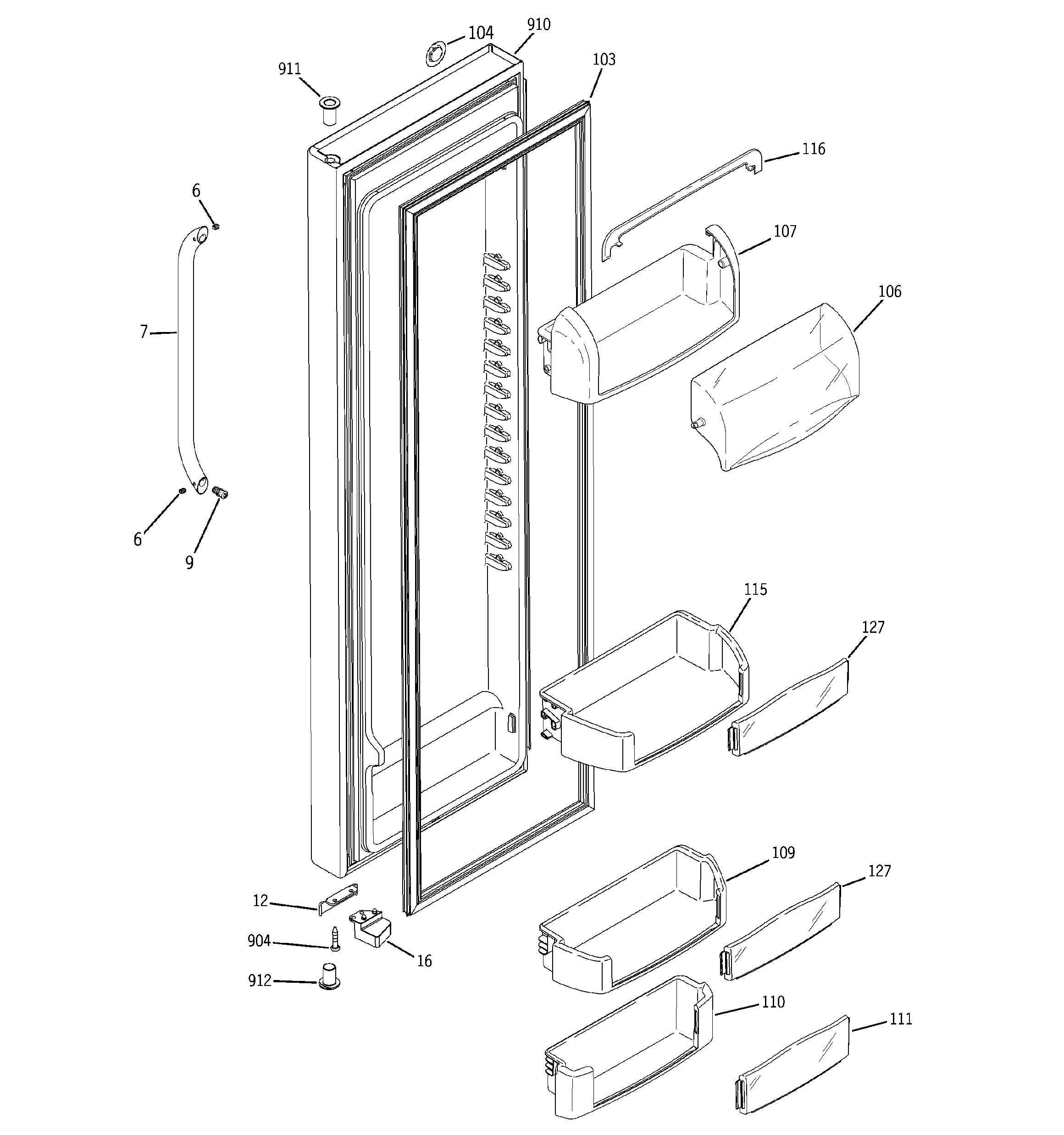

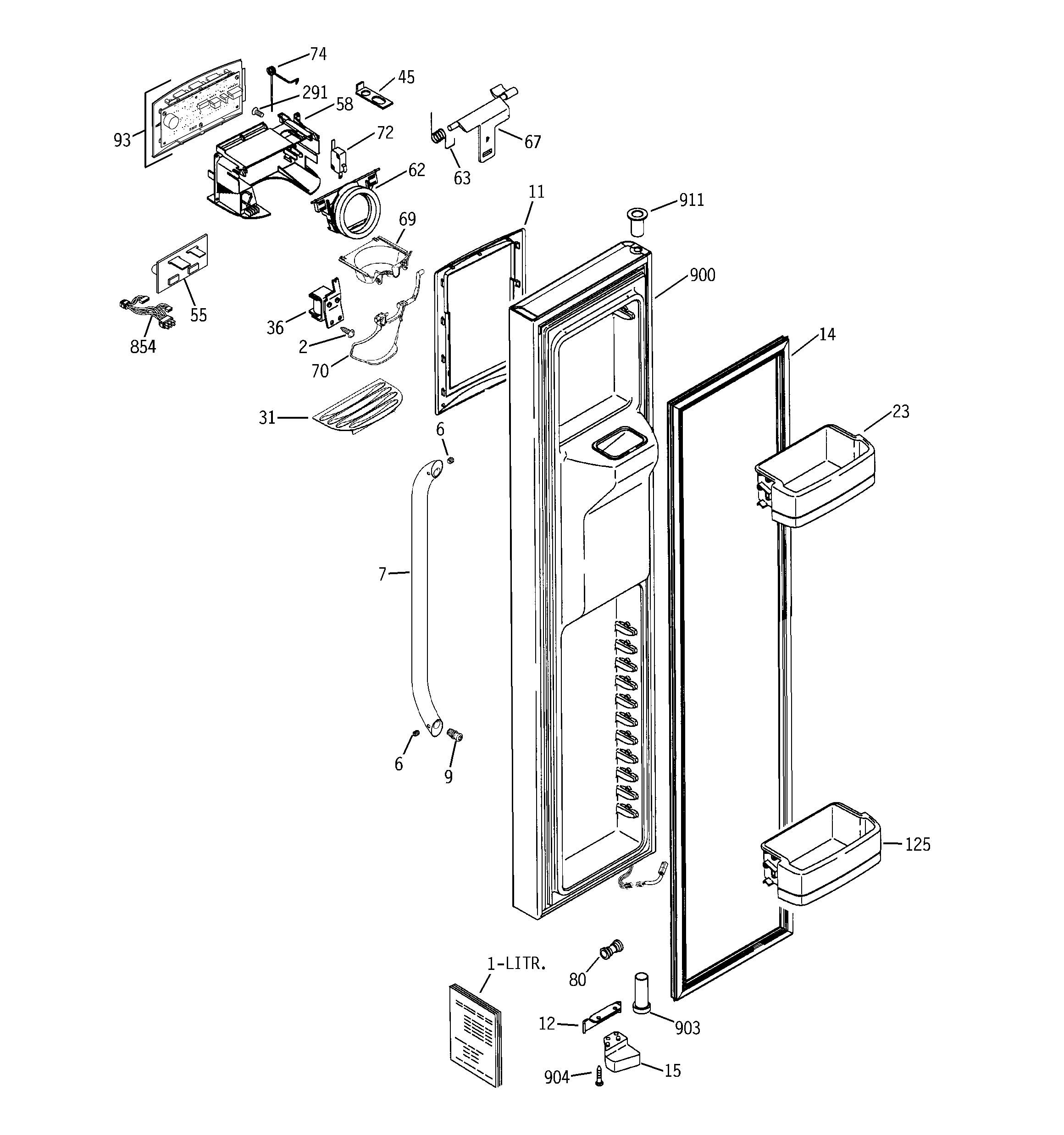

Freezer door diagram
Refrigerator Dispenser Housing Shield
Part #WR17X12771This item is not returnableIn Stock$31.0616% OFF Phone Price : $37.06QtyFresh food door diagram
Refrigerator Dairy Bin Cover
In Stock$49.3926% OFF Was : $66.45QtyFresh food section diagram
Refrigerator Air Diverter
Part #WR17X12667Replaced by #WR17X11609
Manufacturer substitutionThis part replaces WR17X12667. Substitute parts can look different from the original.In Stock$39.3413% OFF Phone Price : $45.34QtyFreezer door diagram
Refrigerator Retainer
Part #WR02X8818Replaced by #WR2X8818

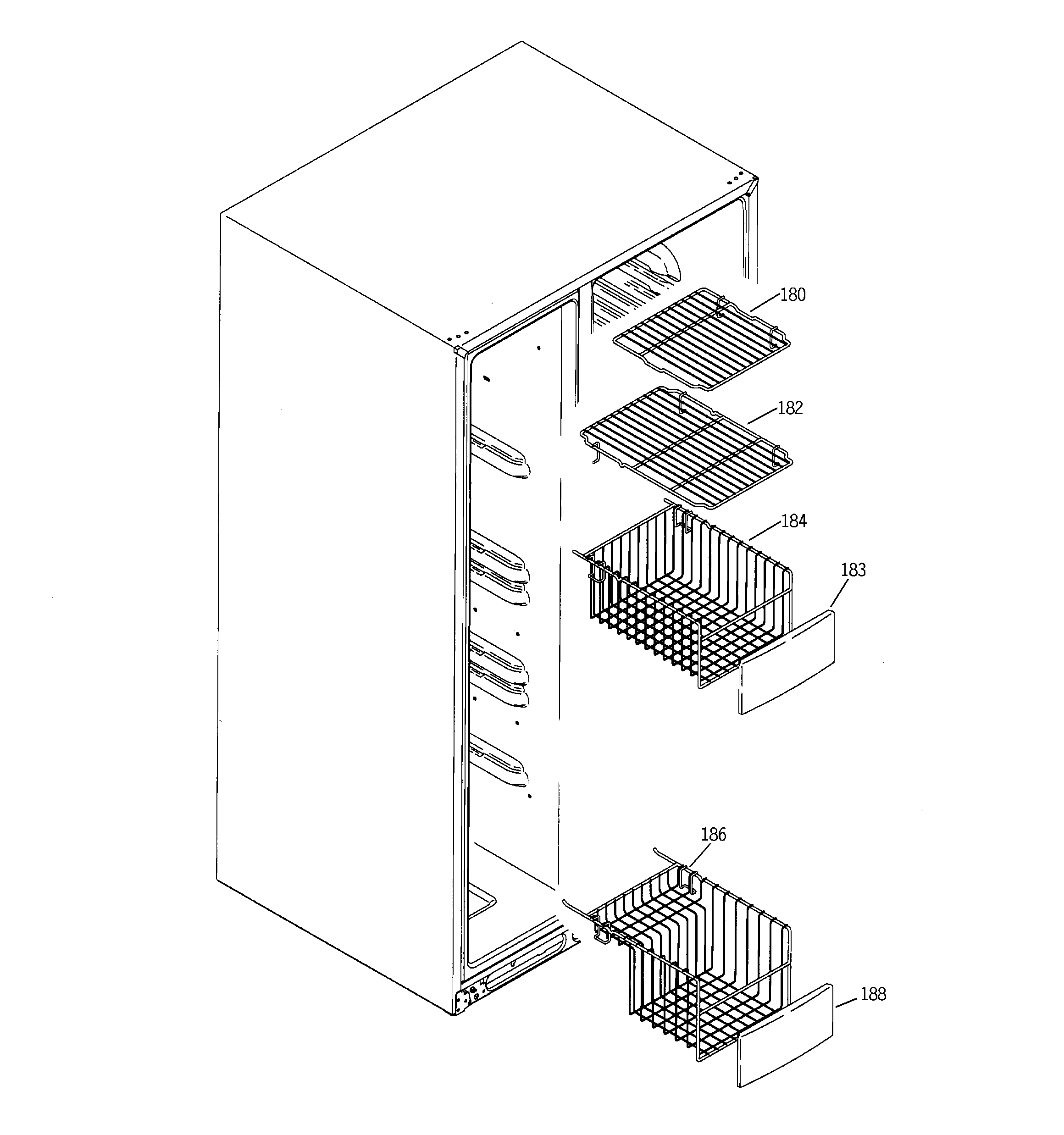

Manufacturer substitutionThis part replaces WR02X8818. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyFreezer shelves diagram
Refrigerator Fixed Shelf
Part #WR71X10933Replaced by #WR71X10527
Manufacturer substitutionThis part replaces WR71X10933. Substitute parts can look different from the original.In Stock$72.638% OFF Phone Price : $78.63QtyFreezer door diagram
Scr 8-10 Pl
Part #WR01X10221Replaced by #WR01X10649
Manufacturer substitutionThis part replaces WR01X10221. Substitute parts can look different from the original.This item is not returnableIn Stock$8.6610% OFF Phone Price : $9.66QtySealed system & mother board diagram
Grommet
Part #WR02X10099Replaced by #WR02X22869

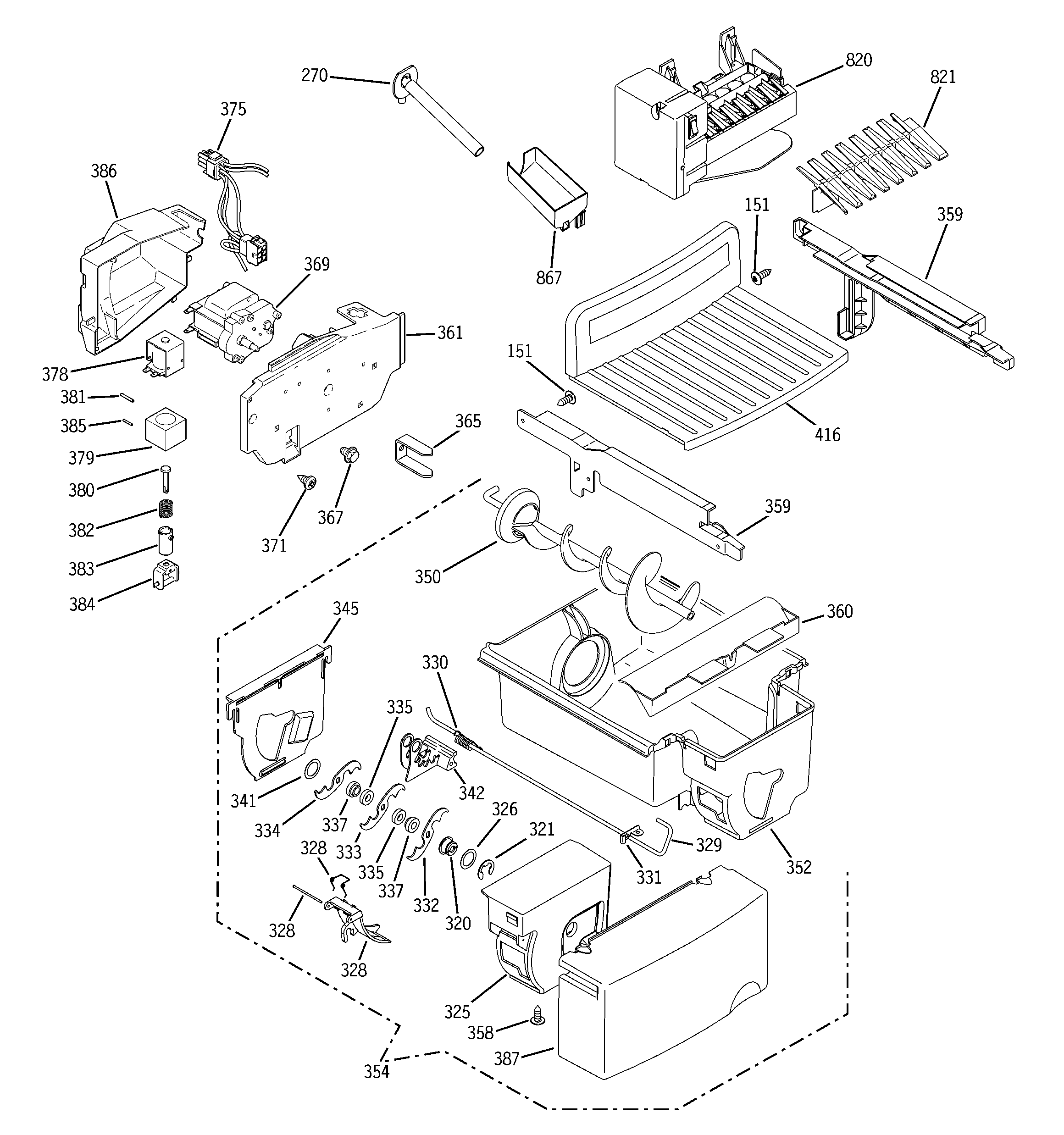

Manufacturer substitutionThis part replaces WR02X10099. Substitute parts can look different from the original.This item is not returnableIn Stock$9.809% OFF Phone Price : $10.80QtyIce maker & dispenser diagram
Crusher Housing
Part #WR17X10717Replaced by #WR17X11505
Manufacturer substitutionThis part replaces WR17X10717. Substitute parts can look different from the original.In Stock$38.7418% OFF Was : $47.45QtySealed system & mother board diagram
Cover Relay
In Stock$34.52Qty
