GE GDP645SYN5FS dishwasher Parts

The most common problems we see on GE dishwashers like model GDP645SYN5FS are not draining, not starting, and poor cleaning. These issues usually trace back to a clogged drain path, a door-latch/controls problem, or restricted spray and water flow.

• Water left in the bottom (won’t drain): food debris in the drain path, a failing drain pump, or a kinked/blocked drain hose
• Won’t start or stops mid-cycle: door not latching fully, a latch switch issue, or an electronic control problem
• Not cleaning well: clogged spray arm holes, low water fill, or a wash pump performance issue
• Leaks: worn tub gasket or door sealing surfaces not closing evenly
• Odd fill or wash behavior: water level sensing problems

• Cancel/drain the cycle, then check for standing water and remove any visible debris.
• Inspect the drain hose routing under the sink for kinks and clogs.
• Clean spray arm holes and confirm the arms spin freely (no tall items blocking them).
• Make sure the door closes firmly and the latch engages every time.
• Run a cleaning cycle and keep the filter area clear (routine maintenance prevents repeat clogs).

If your GE dishwasher is showing an error code or beeping pattern, match it to the code list first; it often points directly to a drain, fill, heating, or control issue. Use GE electronic dishwasher error codes to narrow the next step.

Drain, fill, and wash-flow problems can cascade: a partial clog can cause poor cleaning, longer cycles, and even leaks from over-foaming or improper draining. Catching the root cause early helps protect the wash pump, drain pump, and control board.

Last updated: February 2026

A GE dishwasher typically lasts 10 to 12 years with normal household use. For your GE GDP645SYN5FS, consistent cleaning, correct detergent use, and fixing small leaks or drain issues early are the biggest factors that help you reach (or beat) that average.

• Water quality: hard water speeds up mineral buildup on spray arms and the heating system.
• Cleaning and maintenance: keeping the sump area clean reduces strain on the pump.
• Loading habits: overloading blocks spray and forces longer, hotter cycles.
• Heat and drying use: frequent high-heat cycles add wear to heating components.
• Small leaks: even minor door or tub seal leaks can lead to bigger failures.

• Rinse heavy food off dishes; avoid letting bones, seeds, and labels enter the tub.
• Clean the spray arm holes if you see poor wash coverage.
• Run hot water at the sink before starting a cycle to improve fill temperature.
• Check for slow draining and clear the drain path early.
• Watch for moisture at the bottom of the door and address sealing issues.

Knowing the typical 10 to 12 year lifespan helps you decide when a repair is a smart investment. If your GDP645SYN5FS is under that range, replacing a common part (like a drain pump, inlet valve, or heating element) often restores performance and extends service life.

Last updated: February 2026

In a GE dishwasher like model GDP645SYN5FS, the most commonly replaced parts are the wash and drain components, door sealing and latching parts, and key water-heating and fill parts. These items wear from normal use, mineral buildup, clogs, and repeated heat cycles.

• Spray arms: poor cleaning, food debris left behind, weak spray patterns
• Heating system: poor drying, cool water, longer cycles

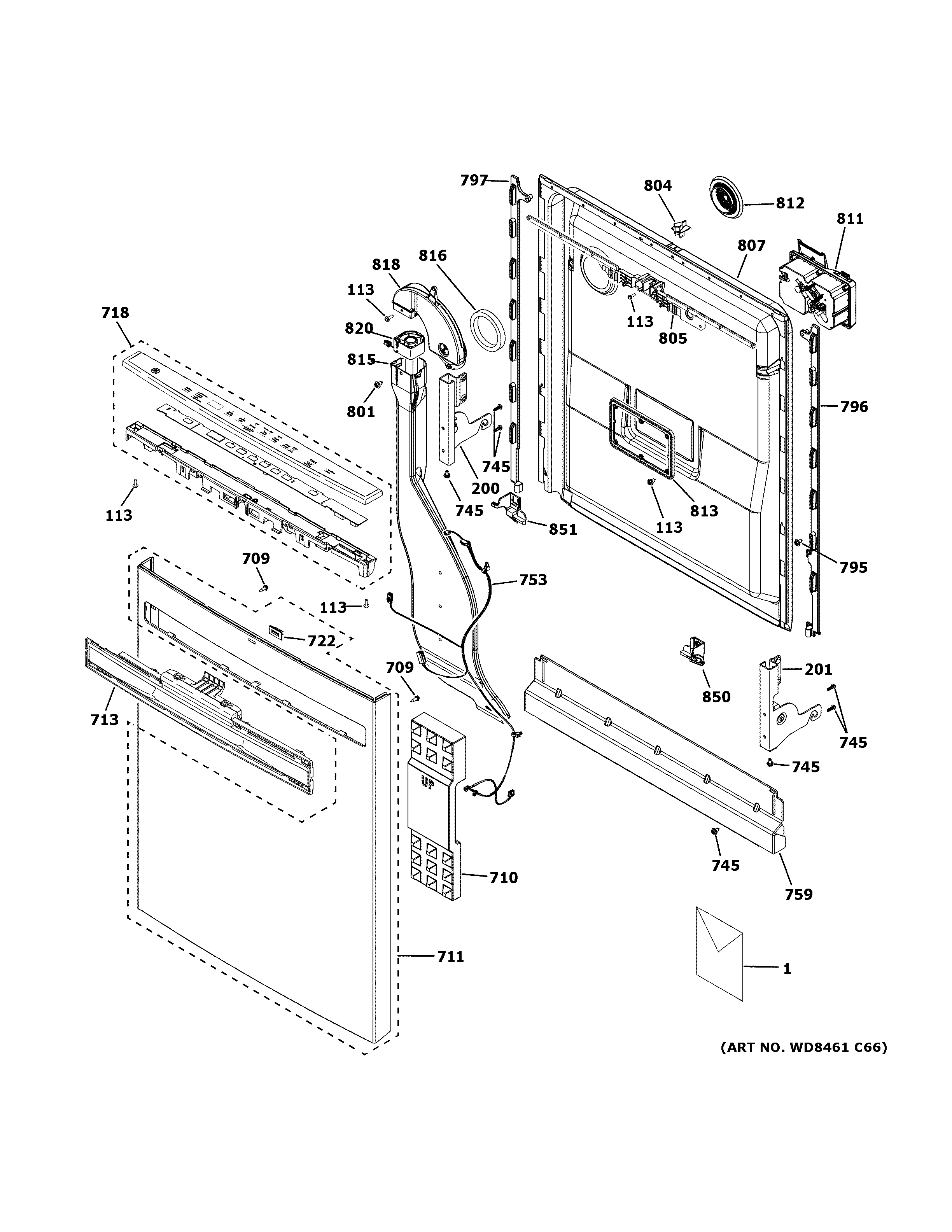

• Door latch and seals: won’t start, leaks at the door
• Fill and drain parts: not filling, not draining, standing water
• Pumps and sump seals: loud grinding, leaks underneath, weak wash action
• Electronics: dead unit, random stopping, error codes

These are examples of high-wear parts we often see replaced on this model family:

• Clean the filter area and check for broken glass or labels blocking the sump.
• Spin spray arms by hand; clear clogged jets with hot water and a soft brush.
• Confirm the sink drain and garbage disposer inlet are clear (new disposer plugs are a common cause of no-drain).
• Verify the door closes firmly; a misloaded rack can prevent latching.
• If you see an error code, match it to the fault first using GE dishwasher error codes.

Replacing the correct part the first time prevents repeat leaks, poor cleaning, and unnecessary control board swaps. Symptoms like “not cleaning” often come from a clogged spray arm or restricted wash path, not a failed motor.

Last updated: February 2026

Yes, for the GE GDP645SYN5FS dishwasher, we can replace many common parts ourselves if we’re comfortable with basic hand tools and safe shutoffs. Simple mechanical items (spray arms, hoses, gaskets, latches) are usually DIY-friendly; control and wiring repairs take more care.

These repairs are usually straightforward because they involve accessible fasteners and minimal wiring:

• Replace a clogged or cracked dishwasher drain hose WD24X10062
• Swap a worn door latch using GE dishwasher door latch lock WD21X10490
• Fix many leaks by replacing the dishwasher tub gasket WD08X23477
• Restore wash coverage by replacing a damaged dishwasher spray arm, lower WD22X33499
• Address “won’t fill” symptoms by replacing the dishwasher water inlet valve WD15X26078

These jobs often require more disassembly, careful reassembly, and attention to wiring and seals:

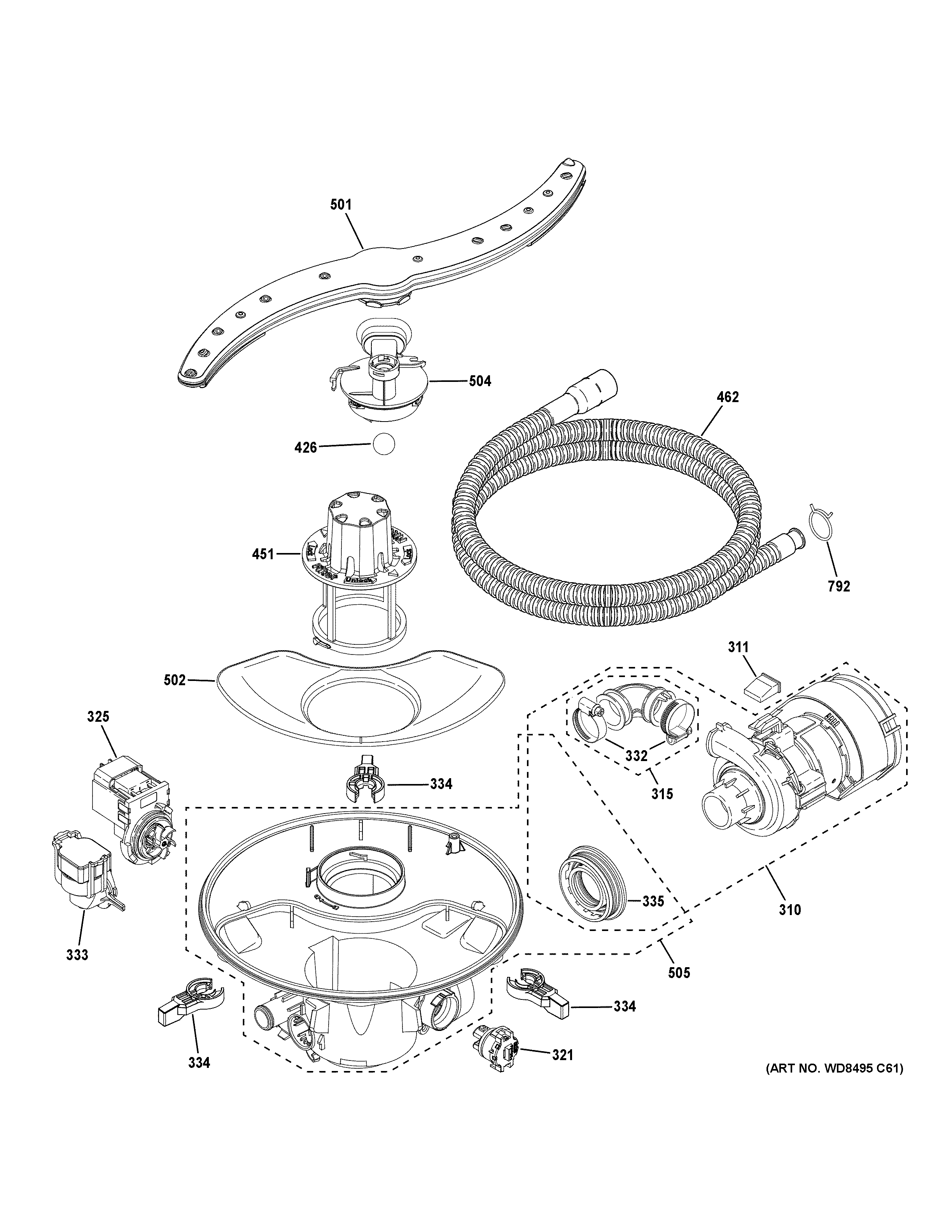

• Drain problems tied to the pump: dishwasher drain pump WD19X25461
• Poor circulation or loud wash motor issues: wash pump main asm WD19X25700
• Heating and drying complaints: heating element WD05X35098
• Electrical diagnosis and board replacement: configured machine control board WD21X30998
• Harness and fuse troubleshooting: dishwasher wire harness and thermal fuse WD21X27402

• Turn off power at the breaker (dishwashers are hard-wired or plugged in under the sink).
• Shut off the dishwasher water supply valve.
• Protect the floor; keep towels and a shallow pan ready for residual water.
• Take photos of wire connections and hose routing before removal.
• Run a short test cycle and check for leaks after reassembly.

DIY replacement can restore cleaning, draining, and drying performance quickly, but the best results come from matching the symptom to the correct part (for example, a drain issue can be a hose restriction, a pump problem, or a control issue). For code-based troubleshooting, use GE electronic dishwasher error codes.

Last updated: February 2026
