Model # 358796110 Official Craftsman 22.2-cc gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 358796110 22.2-cc gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Lawn & Garden Equipment Engine Air Filter 696923
#4

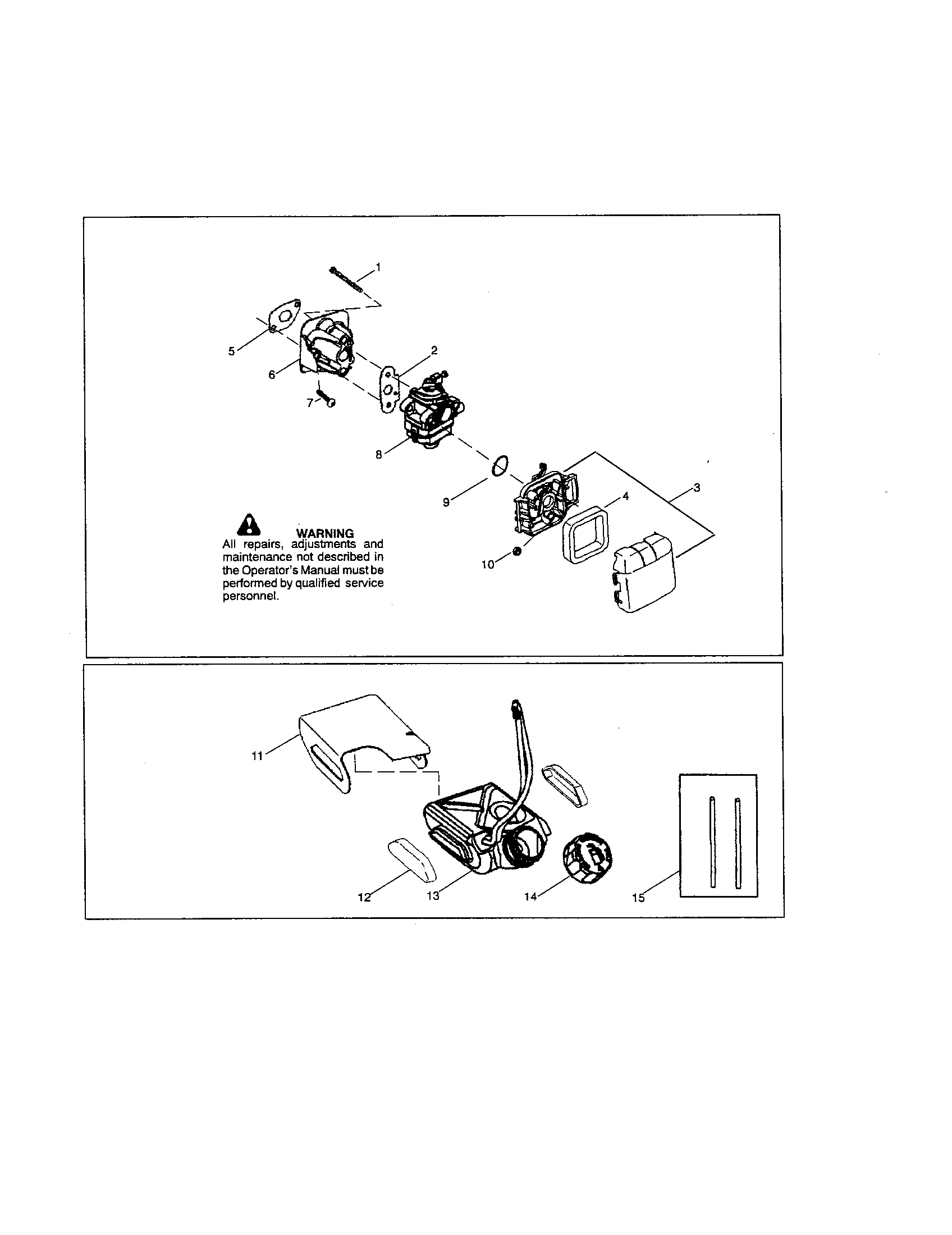

Carburetor/fuel tank/air cleaner diagram

Lawn & garden equipment engine air filter

Part #696923

This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Lawn & Garden Equipment Screw 530015934
#3

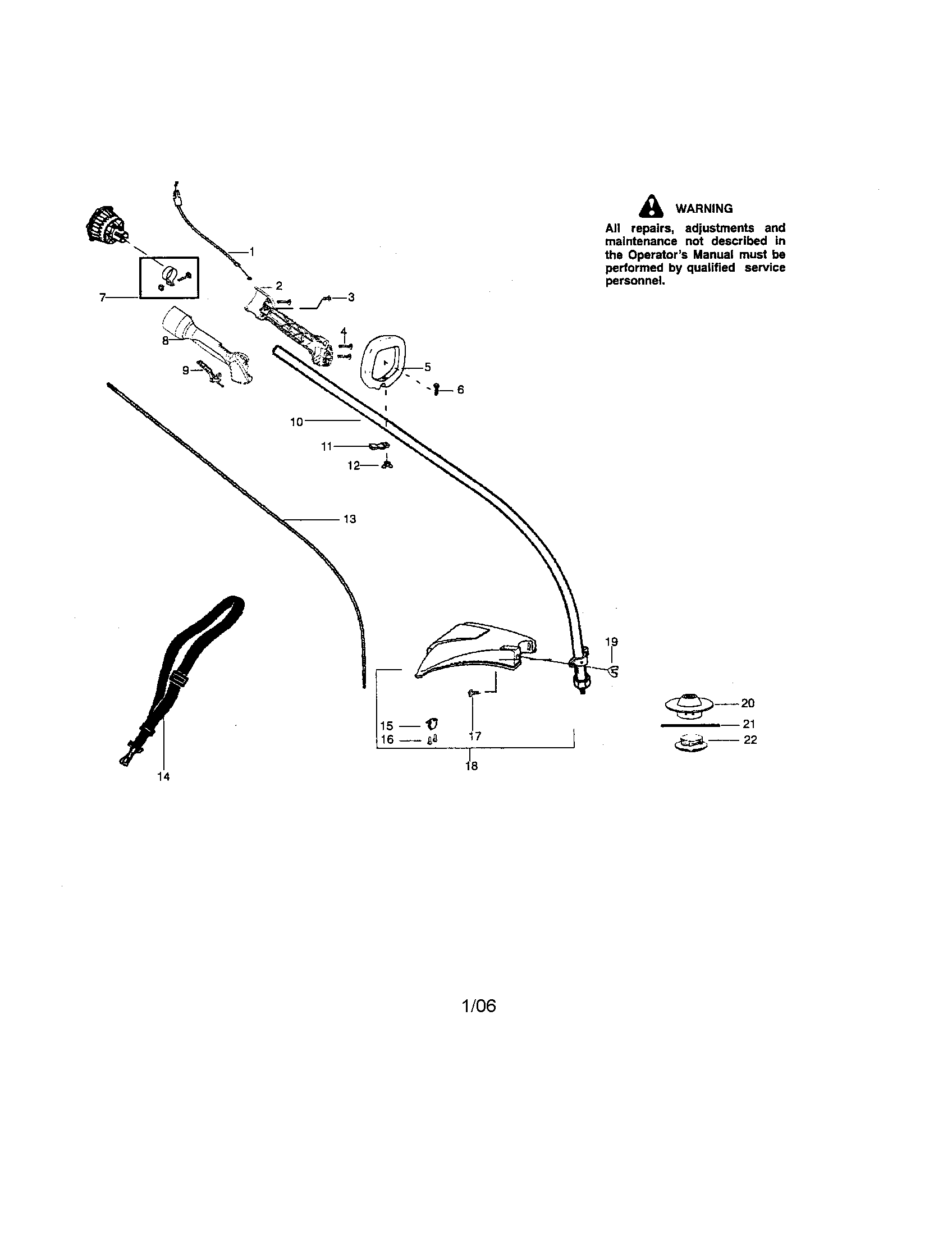

Driveshaft/handle/shield diagram

Lawn & garden equipment screw

Part #530015934

This item is not returnable
$2.99
In Stock
Line Trimmer Recoil Starter Pulley Kit (replaces 697431) 791499
#21

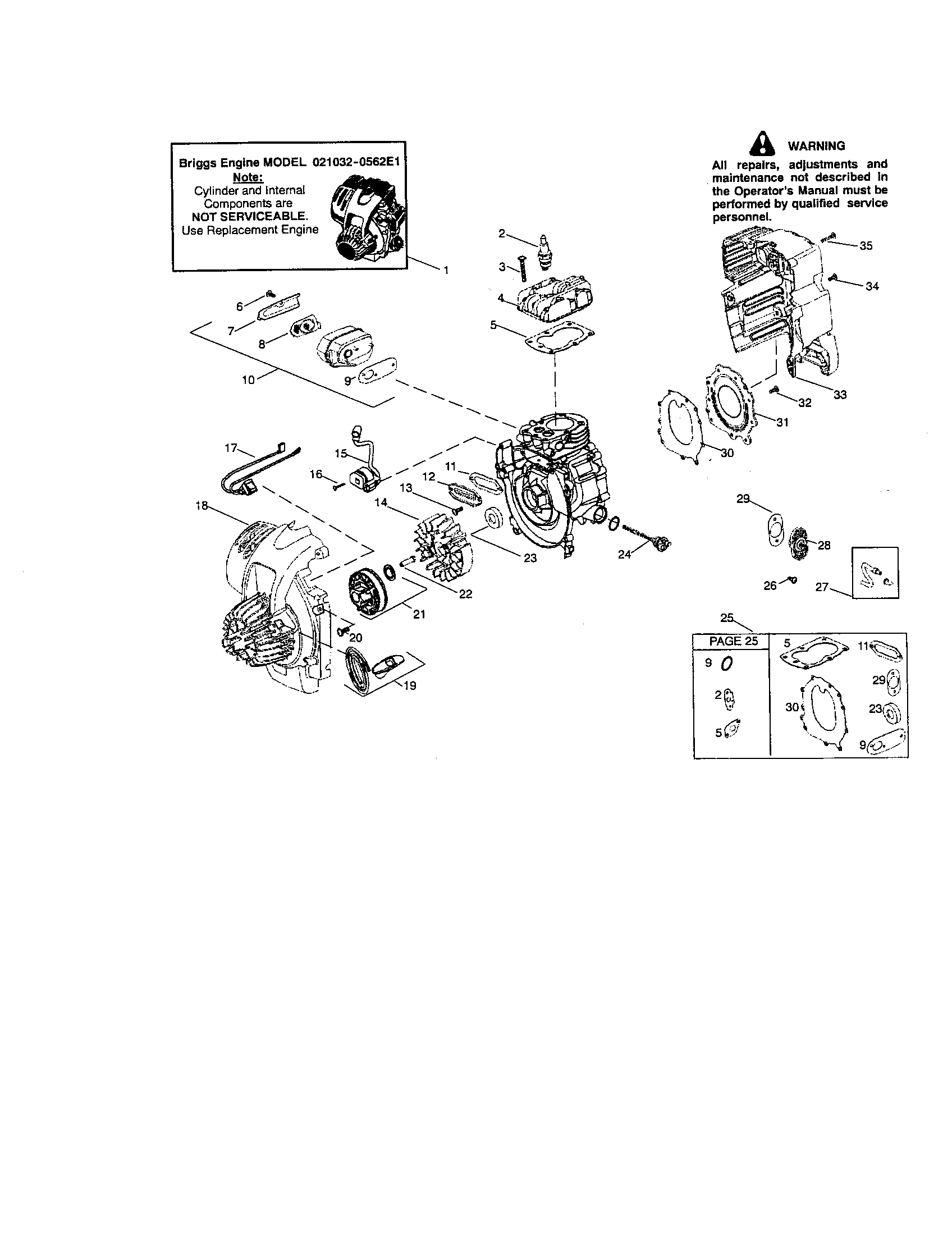

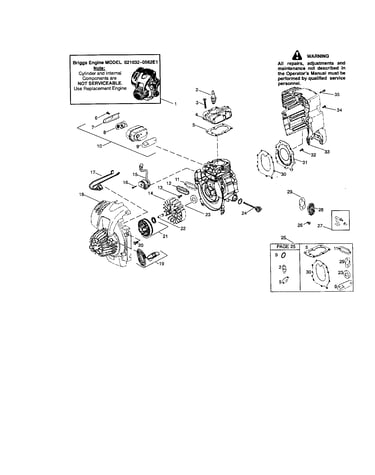

Crankcase/muffler/gasket set diagram

Line trimmer recoil starter pulley kit (replaces 697431)

Part #791499

This item is not returnable
$28.49 |
15% OFF Phone Price : $33.49
In Stock
Lawn & Garden Equipment Hex Nut 690800
#10

Carburetor/fuel tank/air cleaner diagram

Lawn & garden equipment hex nut

Part #690800

This item is not returnable
$5.59 |
15% OFF Phone Price : $6.59
In Stock
Wing Nut Plate 530016152
Wing nut plate

Part #530016152

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016152. Substitute parts can look different from the original.
This item is not returnable
$3.76
In Stock
Lawn & Garden Equipment Engine Cover Valve 696849
#12

Crankcase/muffler/gasket set diagram

Lawn & garden equipment engine cover valve

Part #696849

$25.17
In Stock
Lawn & Garden Equipment Engine Fuel Tank Insulator 696872
#12

Carburetor/fuel tank/air cleaner diagram

Lawn & garden equipment engine fuel tank insulator

Part #696872

$22.00
In Stock
Screw 697040
#6

Crankcase/muffler/gasket set diagram

Screw

Part #697040

This item is not returnable
$7.14
In Stock
Tube 696871
#27

Crankcase/muffler/gasket set diagram

Tube

Part #696871

$42.22
In Stock
Lawn & Garden Equipment Engine Spark Arrestor 697038
#8

Crankcase/muffler/gasket set diagram

Lawn & garden equipment engine spark arrestor

Part #697038

$26.22
In Stock
