Kenmore 25311541102 freezer

Kenmore 25311541102 freezer Parts

Here are the diagrams and repair parts for Kenmore 25311541102 freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 25311541102 Freestanding Freezers

  • Refrigerator Filter Dryer for Kenmore 25311541102 - Part 5303305677

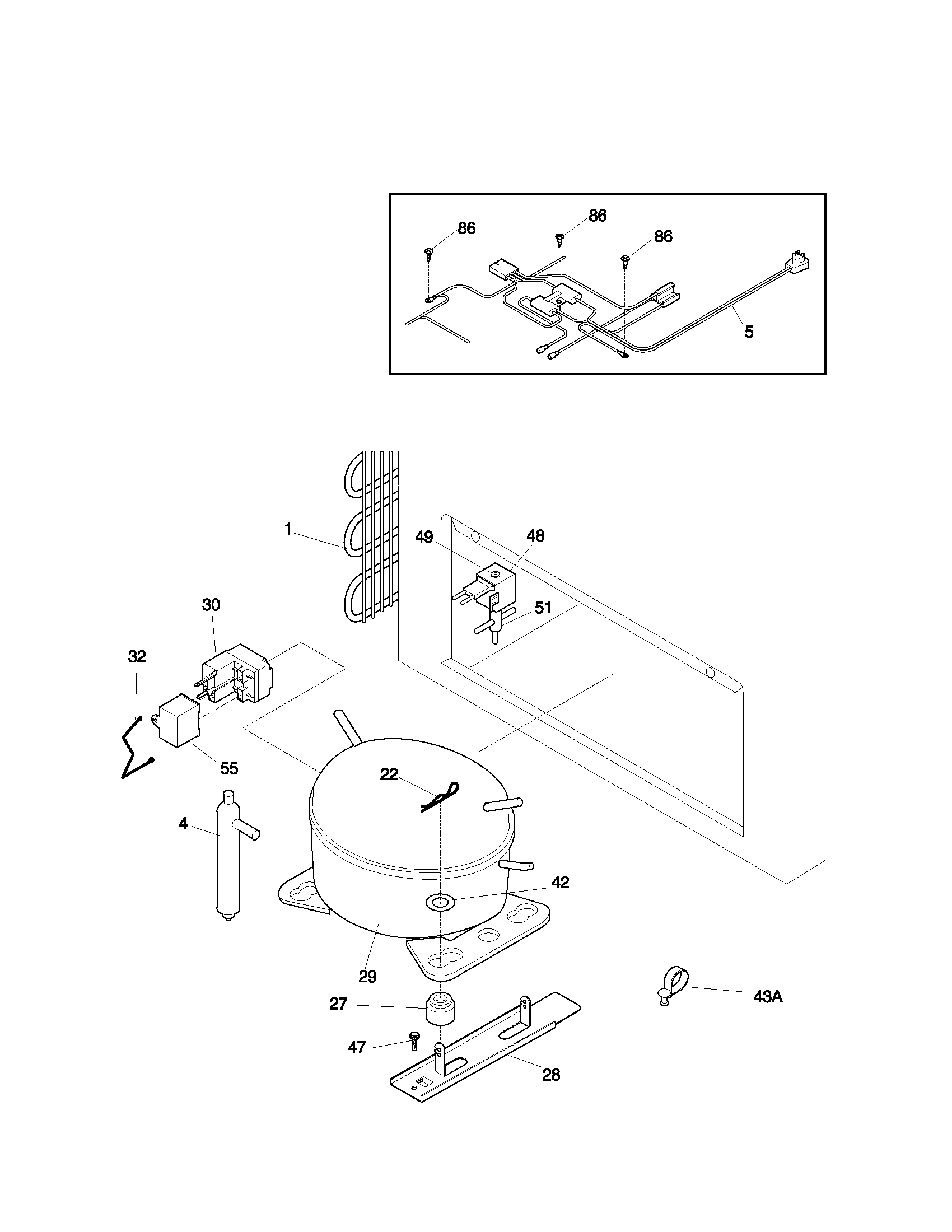

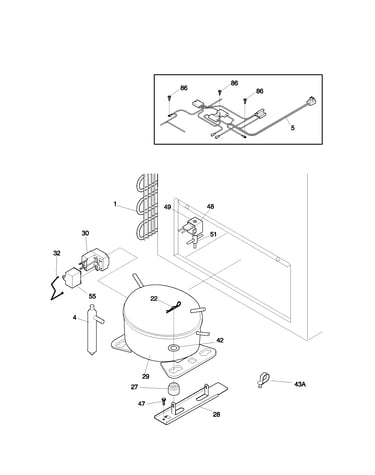

    System diagram

    Filter Drier

    Part #216634500

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    In Stock
    $26.12
    19% OFF Phone Price : $32.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Gibson Freezer Door Key for Kenmore 25311541102 - Part 297147700

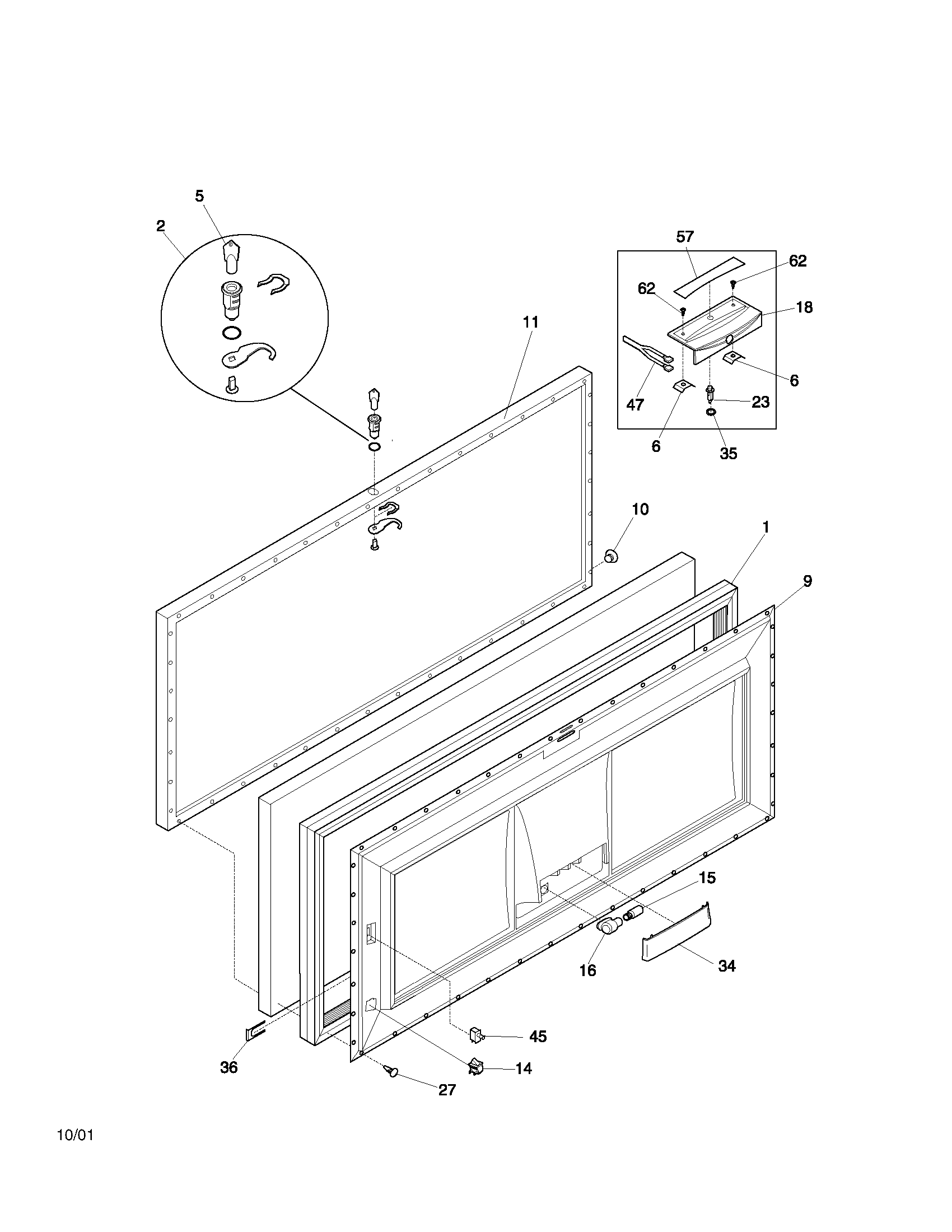

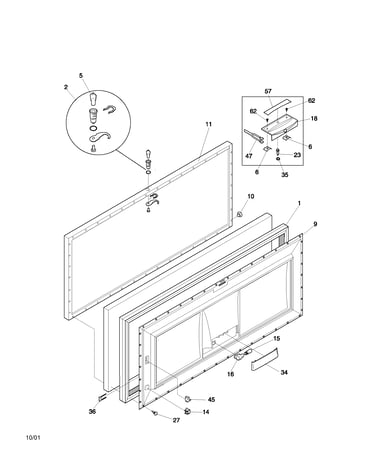

    Door diagram

    Freezer Door Key

    Part #216702900

    Replaced by #297147700

    Info Icon
    Manufacturer substitution
    This part replaces 216702900. Substitute parts can look different from the original.
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Refrigerator Light Bulb for Kenmore 25311541102 - Part 5304517886

    Door diagram

    Light Bulb

    Part #216608600

    Replaced by #5304517886

    Info Icon
    Manufacturer substitution
    This part replaces 216608600. Substitute parts can look different from the original.
    In Stock
    $56.35
    10% OFF Phone Price : $62.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Switch for Kenmore 25311541102 - Part 216822900

    Door diagram

    Freezer Door Switch

    In Stock
    $57.42
    9% OFF Phone Price : $63.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Run Capacitor for Kenmore 25311541102 - Part 218909912

    System diagram

    Capacitor

    Part #216787800

    Replaced by #218909912

    Info Icon
    Manufacturer substitution
    This part replaces 216787800. Substitute parts can look different from the original.
    In Stock
    $65.08
    8% OFF Phone Price : $71.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Electronic Control Board for Kenmore 25311541102 - Part 5304491584

    System diagram

    Freezer Electronic Control Board

    Part #216649313

    Replaced by #5304491584

    Info Icon
    Manufacturer substitution
    This part replaces 216649313. Substitute parts can look different from the original.
    In Stock
    $70.35
    8% OFF Phone Price : $76.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Socket for Kenmore 25311541102 - Part 297139501

    Door diagram

    Light Socket

    Part #216817600

    Replaced by #297139501

    Info Icon
    Manufacturer substitution
    This part replaces 216817600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.13
    21% OFF Phone Price : $29.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigeration Appliance Self-tapping Screw, #10-16 X 1/2-in for Kenmore 25311541102 - Part 216629601

    Hinge Screw

    Part #216629600

    Replaced by #216629601

    Info Icon
    Manufacturer substitution
    This part replaces 216629600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.66
    14% OFF Phone Price : $14.66Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Hinge for Kenmore 25311541102 - Part 297321900

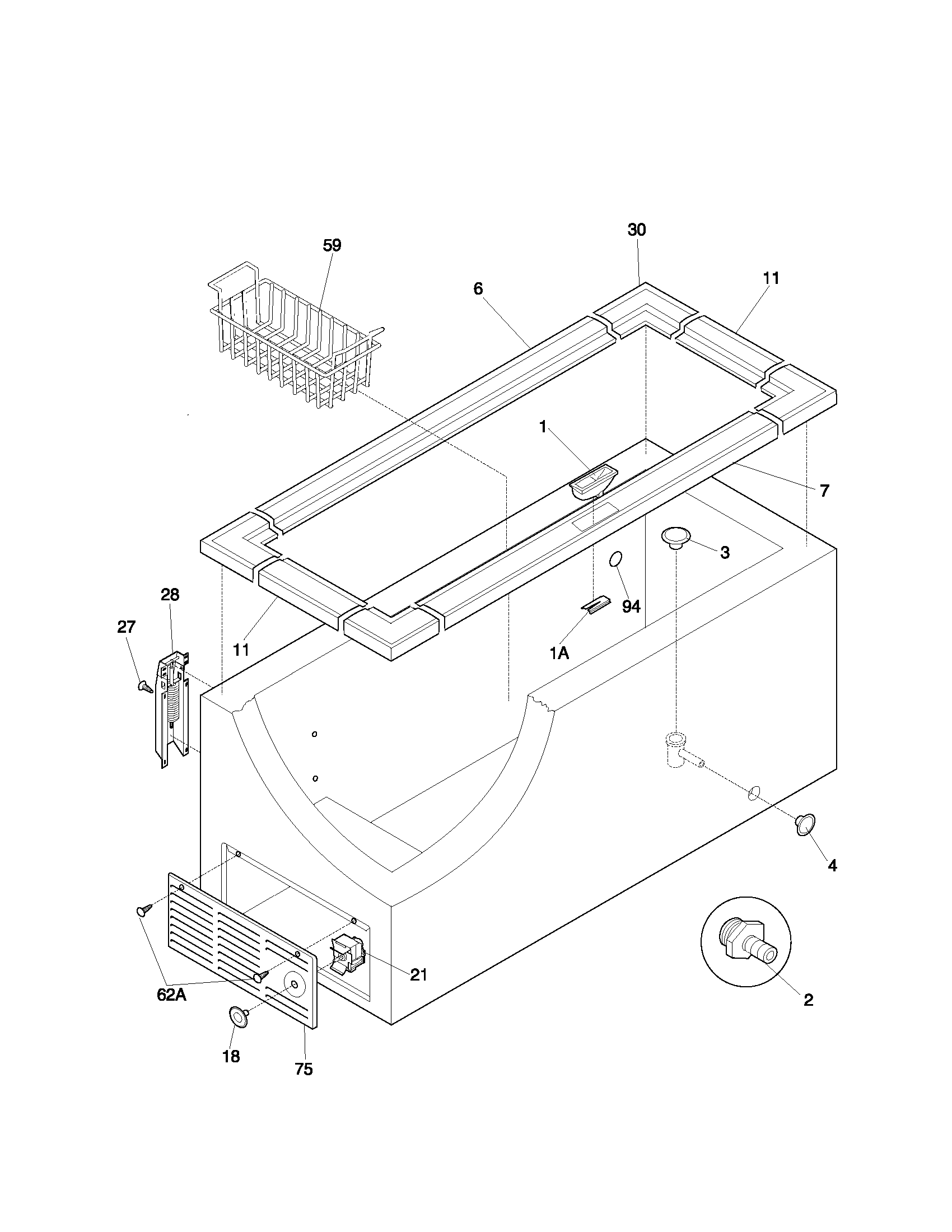

    Cabinet diagram

    Hinge (white)

    Part #216035200

    Replaced by #297321900

    Info Icon
    Manufacturer substitution
    This part replaces 216035200. Substitute parts can look different from the original.
    In Stock
    $52.31
    32% OFF Was : $77.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Retainer Clip for Kenmore 25311541102 - Part 5304497418

    System diagram

    Refrigerator Run Capacitor Mounting Clip

    Part #216649200

    Replaced by #5304497418

    Info Icon
    Manufacturer substitution
    This part replaces 216649200. Substitute parts can look different from the original.
    In Stock
    $33.92
    Minus Item
    Qty
    Plus Item

Kenmore Freezer 25311541102 FAQs

A Kenmore chest freezer like model 25311541102 typically lasts 10 to 15 years. You can often extend service life by keeping airflow around the cabinet, avoiding overloading during freeze-down, and maintaining a steady temperature setting as outlined in the 25311541102 owner's manual.

Typical lifespan and what affects it

Most chest freezers reach the 10 to 15 year range because the sealed refrigeration system and compressor do the bulk of the work. Lifespan is usually shortened by heat, poor ventilation, and heavy warm-food loading.

  • Keep the freezer in a well-ventilated area so heat can dissipate
  • Let the freezer cool for about 4 hours before loading unfrozen food
  • Freeze only a moderate amount at once (a common guideline is about 3 lb per cubic foot at a time)
  • Avoid frequent lid openings; it forces longer run times
  • Clean the interior with mild detergent; avoid abrasives
Maintenance checklist (simple, high impact)
Task How often Why it helps
Confirm temperature is stable Monthly Reduces compressor stress and food spoilage risk
Clean interior surfaces As needed Prevents odors and moisture issues
Keep lid sealing well Monthly Prevents warm air leaks and frost buildup
Plan for outages (keep lid closed) As needed Protects food and reduces recovery strain
Why it matters

A freezer that runs longer than necessary uses more electricity and puts extra wear on the compressor and controls. Following the cool-down and loading guidance in the manual helps the freezer reach and hold safe storage temperatures with less strain.

Last updated: January 2026

To estimate the cubic feet of your Kenmore chest freezer model 25311541102, we measure the usable inside space (length × width × depth in inches) and divide by 1,728 to convert cubic inches to cubic feet. For model-specific guidance, use the 25311541102 owner's manual.

How to measure and calculate cubic feet
  1. Empty the freezer enough to measure the interior walls accurately.
  2. Measure the inside dimensions in inches:
    • Length (left to right)
    • Width (front to back)
    • Depth/height (bottom to the underside of the lid)
  3. Multiply the three numbers.
  4. Divide by 1,728.
  • Measure the interior, not the exterior cabinet.
  • Measure to the flat interior surfaces (ignore small curves and liners).
  • If there is a hump or interior step, measure the main box and the hump separately, then add the two volumes.
  • Round to one decimal place for a practical estimate.
Quick formula and example
Item What to do Example
Interior volume (cubic inches) L × W × D 40 × 20 × 30 = 24,000
Convert to cubic feet Divide by 1,728 24,000 ÷ 1,728 = 13.9 cu ft
Why it matters (food loading and performance)

Your freezer’s capacity helps you plan safe loading. Our guidance for this style of freezer is to freeze up to 3 pounds of fresh food per cubic foot at one time, and allow about 4 hours for the freezer to cool down completely before loading unfrozen food. Those limits scale directly with cubic feet.

Related tips for chest freezers
  • Keep airflow around the cabinet; allow about 3 inches of space on all sides.
  • Keep the lid sealing well; a worn gasket can waste energy and reduce capacity in real use.
  • If the lid does not close evenly, level the freezer using shims under the foot pads.

Last updated: January 2026

A deep freeze (chest freezer) typically costs about $200 to $3,000, with many household-size models landing around the mid-hundreds of dollars. For Kenmore model 25311541102, the freezer’s purchase price varies by retailer, size, and features; use the 25311541102 owner's manual to confirm features that can affect cost.

What drives the price up or down
  • Capacity (cubic feet): larger storage usually costs more
  • Temperature control type: basic dial vs. electronic control
  • Energy efficiency: more efficient models can cost more upfront
  • Garage-ready or wide ambient range: better performance in hot/cold spaces can add cost
  • Extras: interior light, lock/key, baskets, or power-on indicators
Typical price bands (what you’ll see most often)
Price range What it usually includes Best for
$199 to $399 Smaller capacity, basic controls Apartments, overflow storage
$400 to $800 Mid-size capacity, common features Most households
$800 to $2,998 Large capacity, premium features Bulk buyers, hunters, large families
Why it matters

Price is only part of the total cost. A chest freezer that is installed with proper airflow and used correctly can run more efficiently and protect food better. For example, our Kenmore guidance calls for about 3 inches of clearance on all sides for air circulation and recommends avoiding extension cords; both help the freezer run reliably and avoid performance issues.

Cost-related tips we recommend
  • Plan for clearance space and a grounded outlet before you buy
  • Let the freezer cool for about 4 hours before loading unfrozen food
  • Keep the lid seal in good shape; a worn gasket can increase run time
  • If your unit has a lock, keep a spare key available (replacement is freezer door key 297147700)

Last updated: January 2026

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Repair guides for chest freezers

How to replace a freezer compressor start relay

How to replace a freezer compressor start relay

The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…

Repair time and Difficulty

 15 minutes or less
How to replace a freezer temperature control thermostat

How to replace a freezer temperature control thermostat

The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…

Repair time and Difficulty

 15 minutes or less
How to replace a freezer lid gasket

How to replace a freezer lid gasket

The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…

Repair time and Difficulty

 30 minutes or less
