Model # TGF324BHWE Official Tappan gas range

Here are the diagrams and repair parts for Official Tappan TGF324BHWE gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |

Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

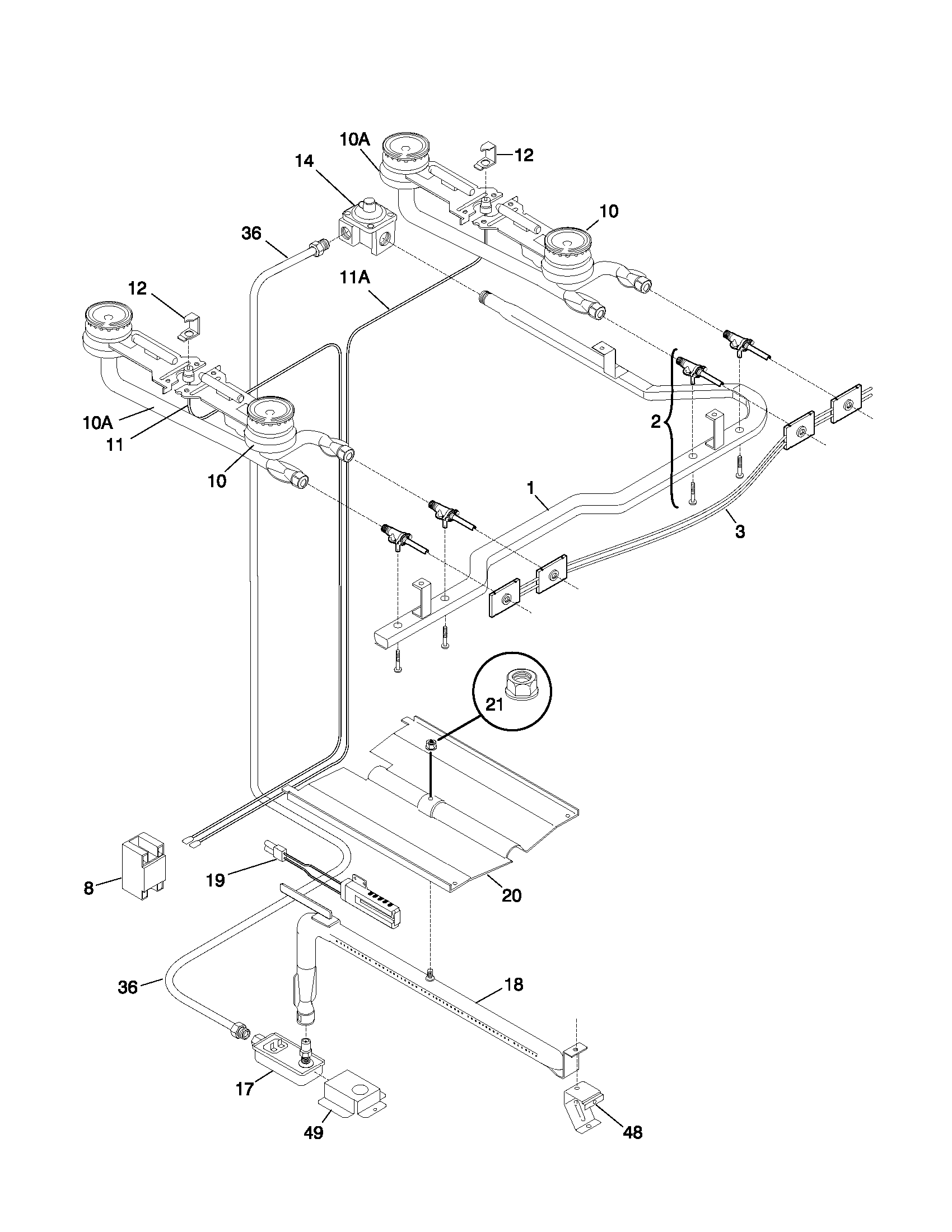

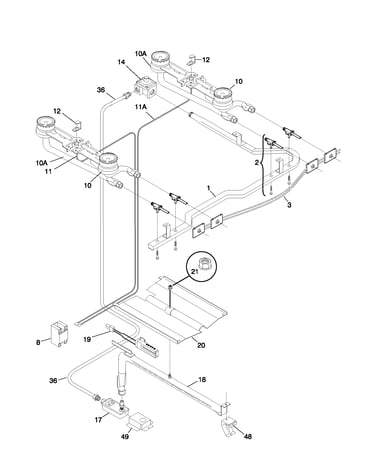

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$33.24
24% OFF MSRP : $44.00
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#NI

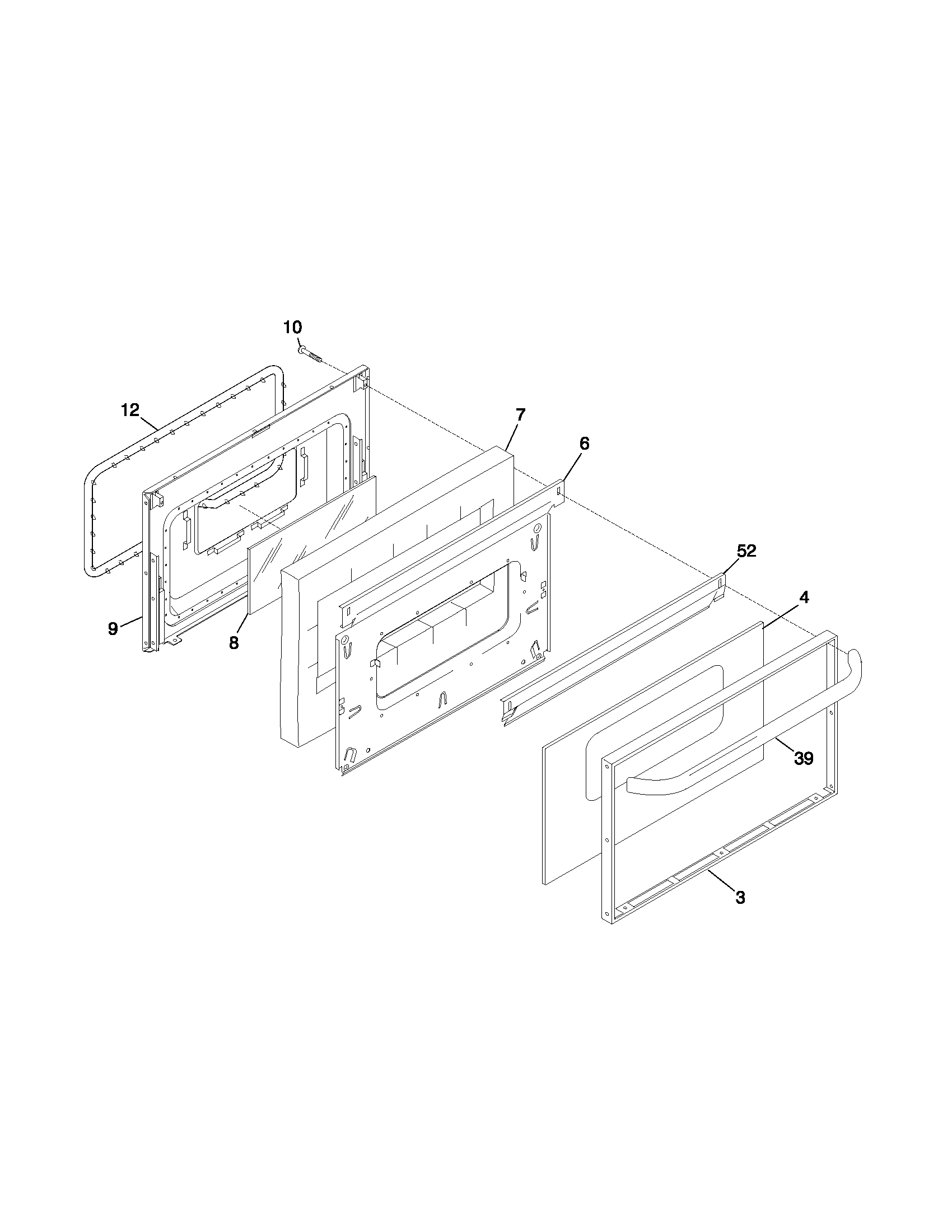

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32
14% OFF Phone Price : $14.32
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

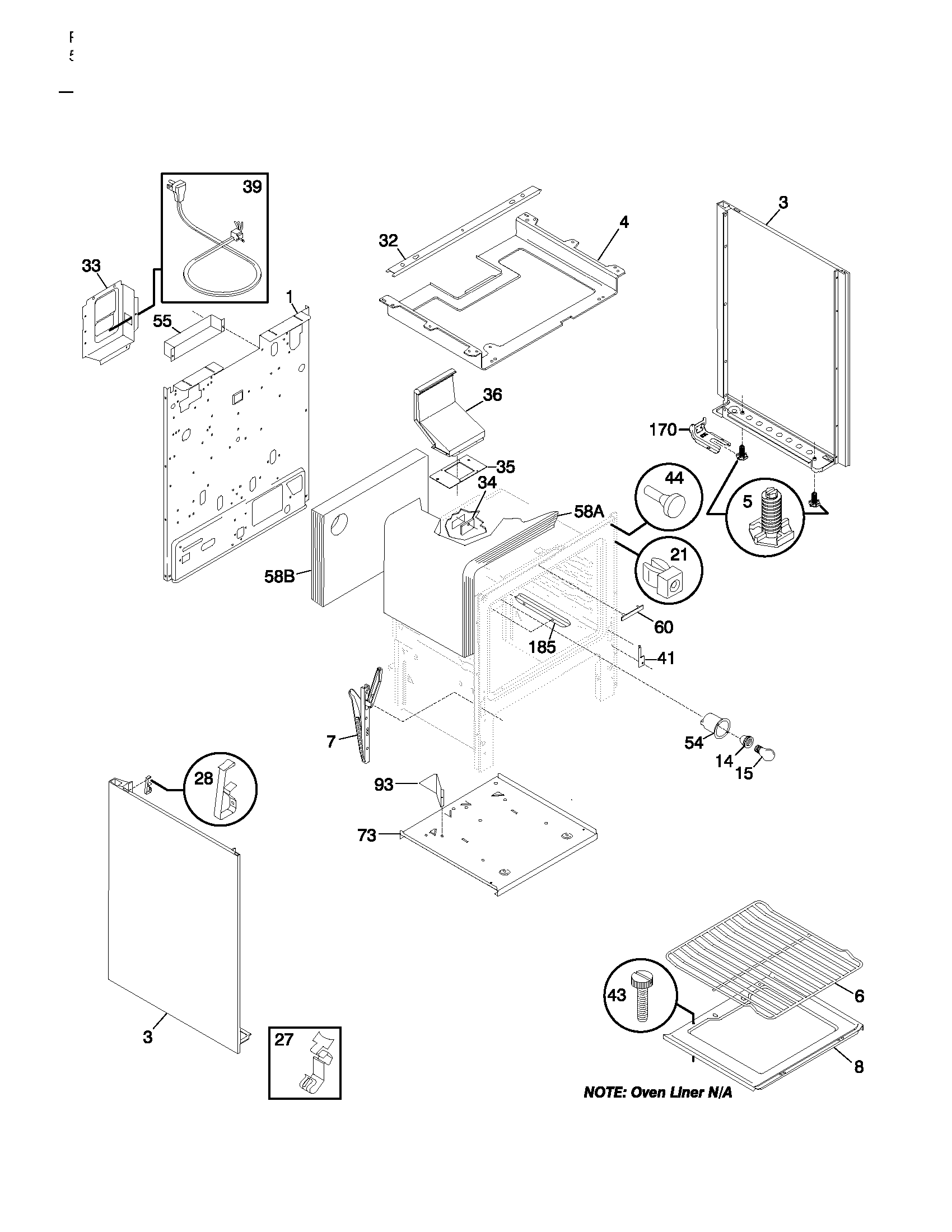

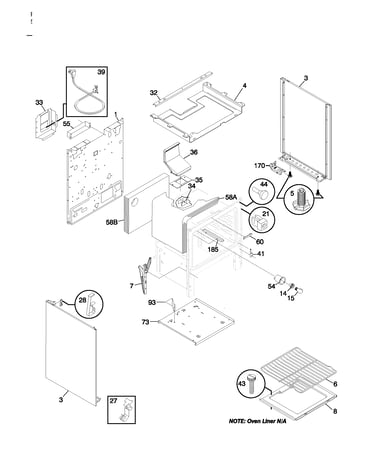

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01
11% OFF Phone Price : $47.01
In Stock
Range Anti-tip Bracket 316107200
#170

Body diagram

Range anti-tip bracket

Part #316107200

Replaced by #316112005

?
Manufacturer substitution
This part replaces 316107200. Substitute parts can look different from the original.
BEST SELLER
$11.56
15% OFF Phone Price : $13.56
In Stock
Kit-anti Tip 5303935180
#170

Body diagram

Kit-anti tip

Part #5303935180

Replaced by #316112005

?
Manufacturer substitution
This part replaces 5303935180. Substitute parts can look different from the original.
BEST SELLER
$11.56
15% OFF Phone Price : $13.56
In Stock
Range Oven Control Thermostat 316032404
#12

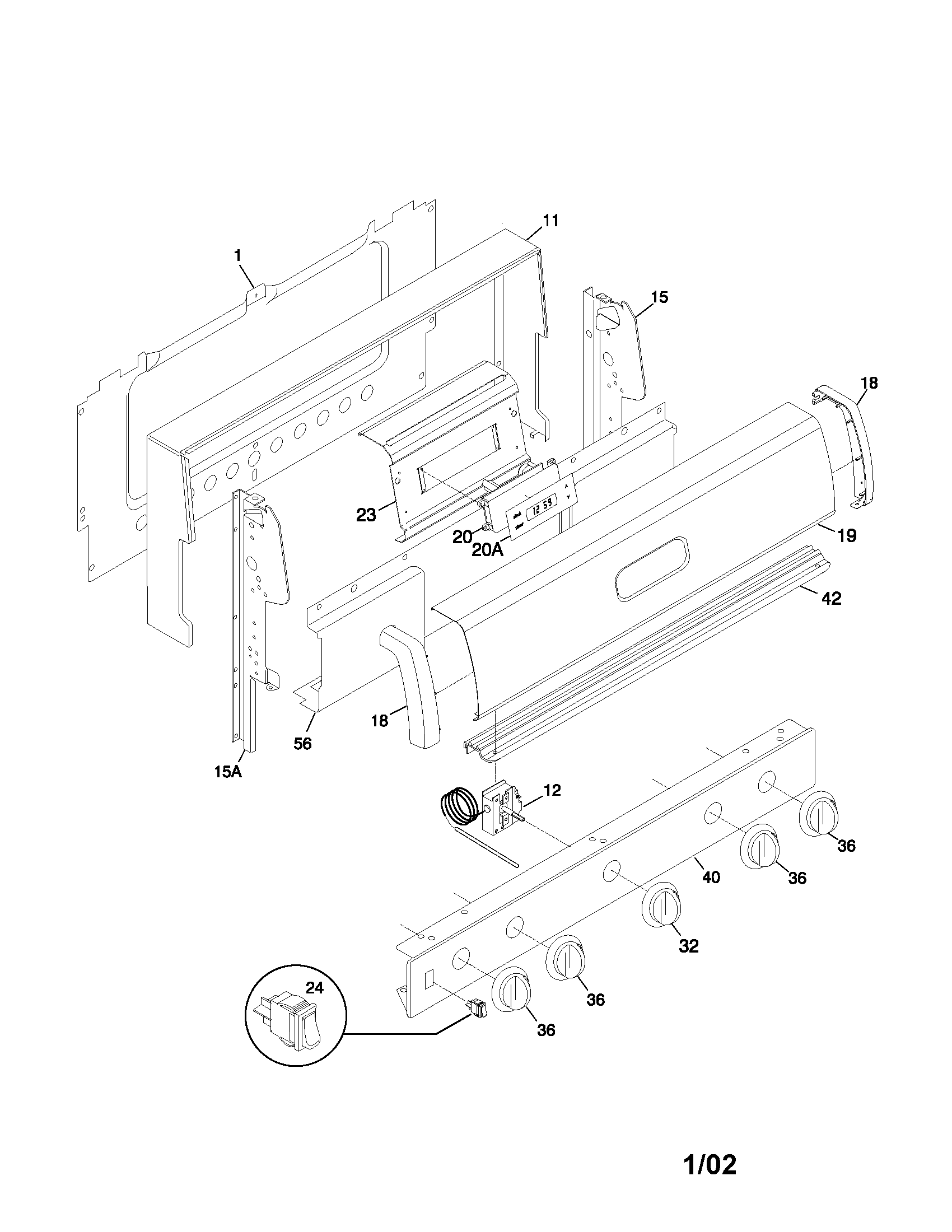

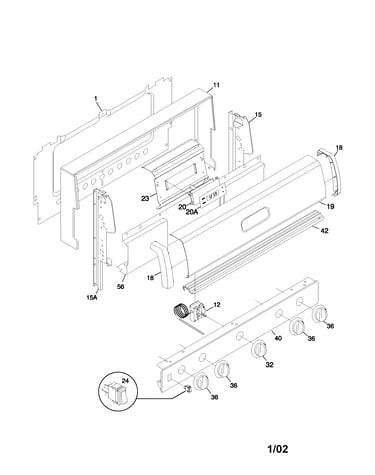

Backguard diagram

Range oven control thermostat

Part #316032404

Replaced by #316032411

?
Manufacturer substitution
This part replaces 316032404. Substitute parts can look different from the original.
$95.19
10% OFF Phone Price : $105.19
In Stock
Range Broil Pan 316081900
#9

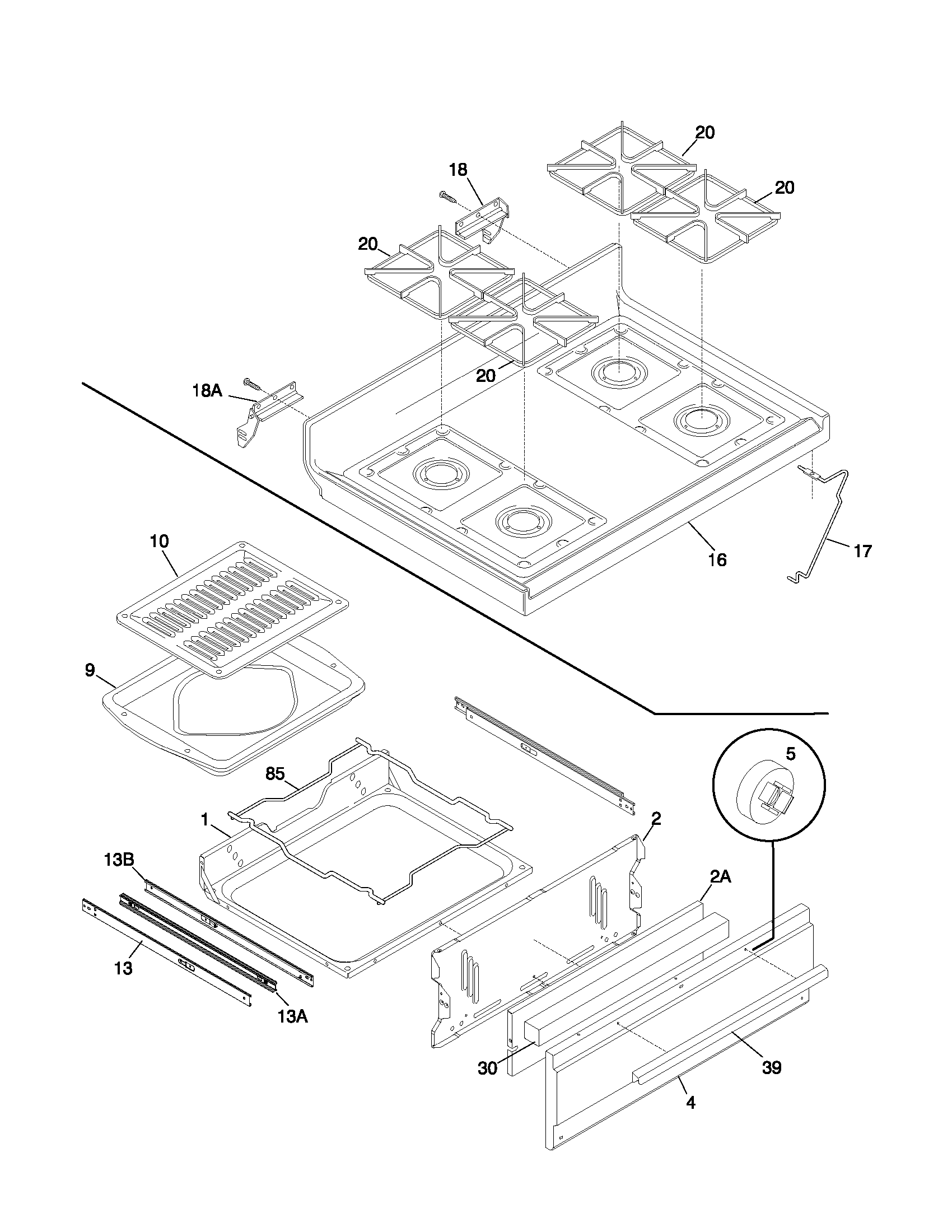

Top/drawer diagram

Range broil pan

Part #316081900

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316081900. Substitute parts can look different from the original.
$59.77
8% OFF Phone Price : $64.77
In Stock
Range Broil Pan Insert 316082000
#10

Top/drawer diagram

Range broil pan insert

Part #316082000

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316082000. Substitute parts can look different from the original.
$59.77
8% OFF Phone Price : $64.77
In Stock
Blk Dr Hndl 316248300
#39

Door diagram

Blk dr hndl

Part #316248300

Replaced by #5304529996

?
Manufacturer substitution
This part replaces 316248300. Substitute parts can look different from the original.
$94.76
5% OFF Phone Price : $99.76
In Stock
Range Pressure Regulator Bracket Screw 316021104
#NI

Burner diagram

Range pressure regulator bracket screw

Part #316021104

This item is not returnable
In Stock
