Model # FAH08EM1T1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH08EM1T1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

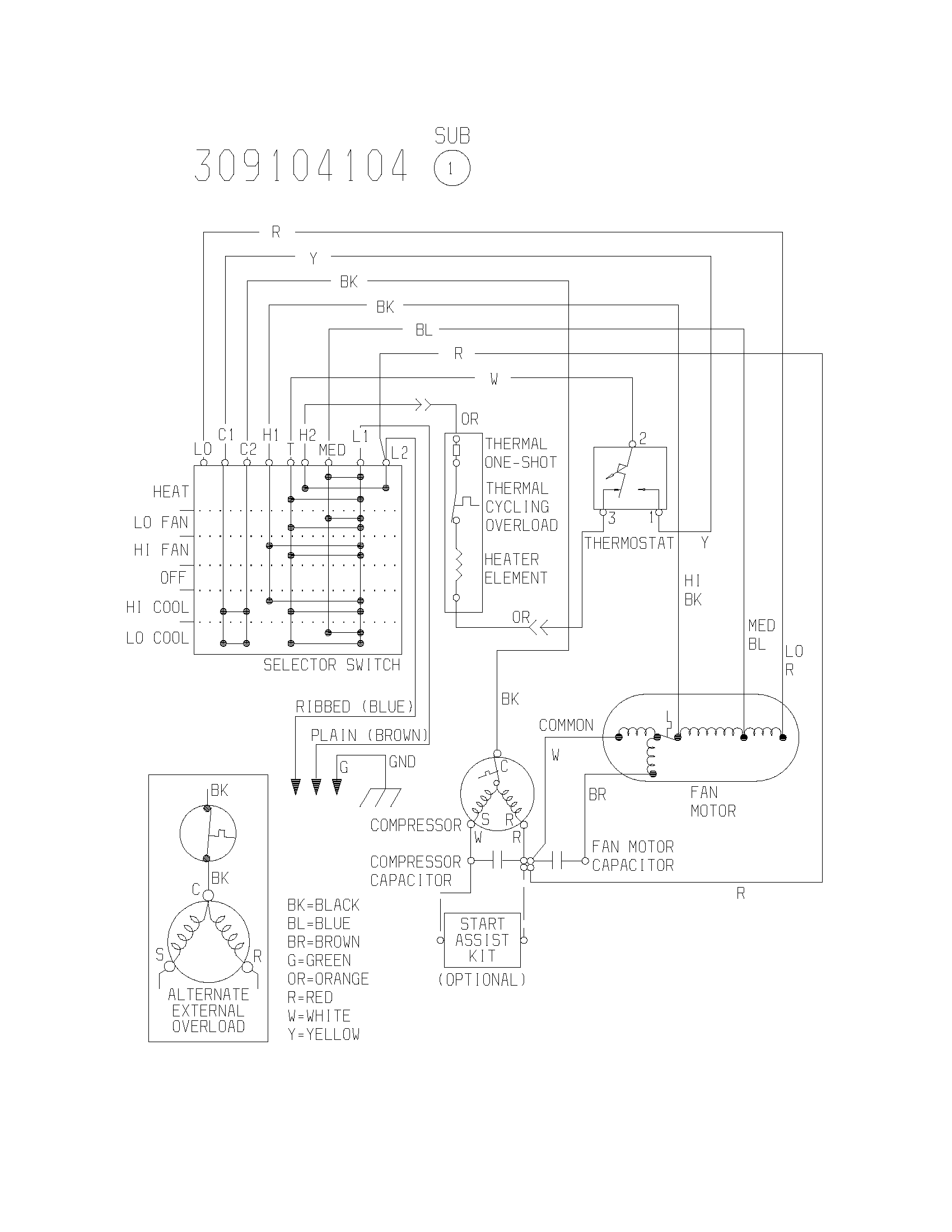

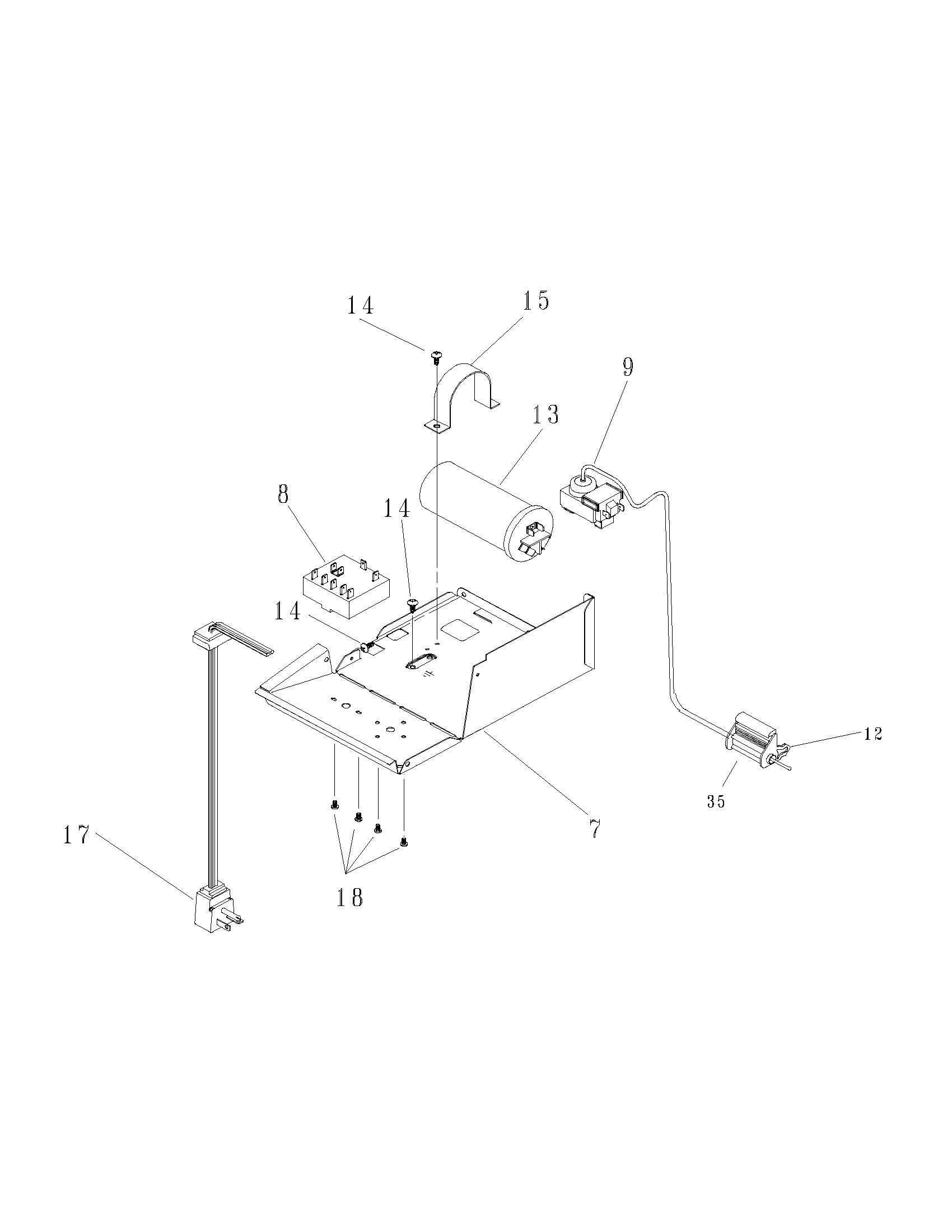

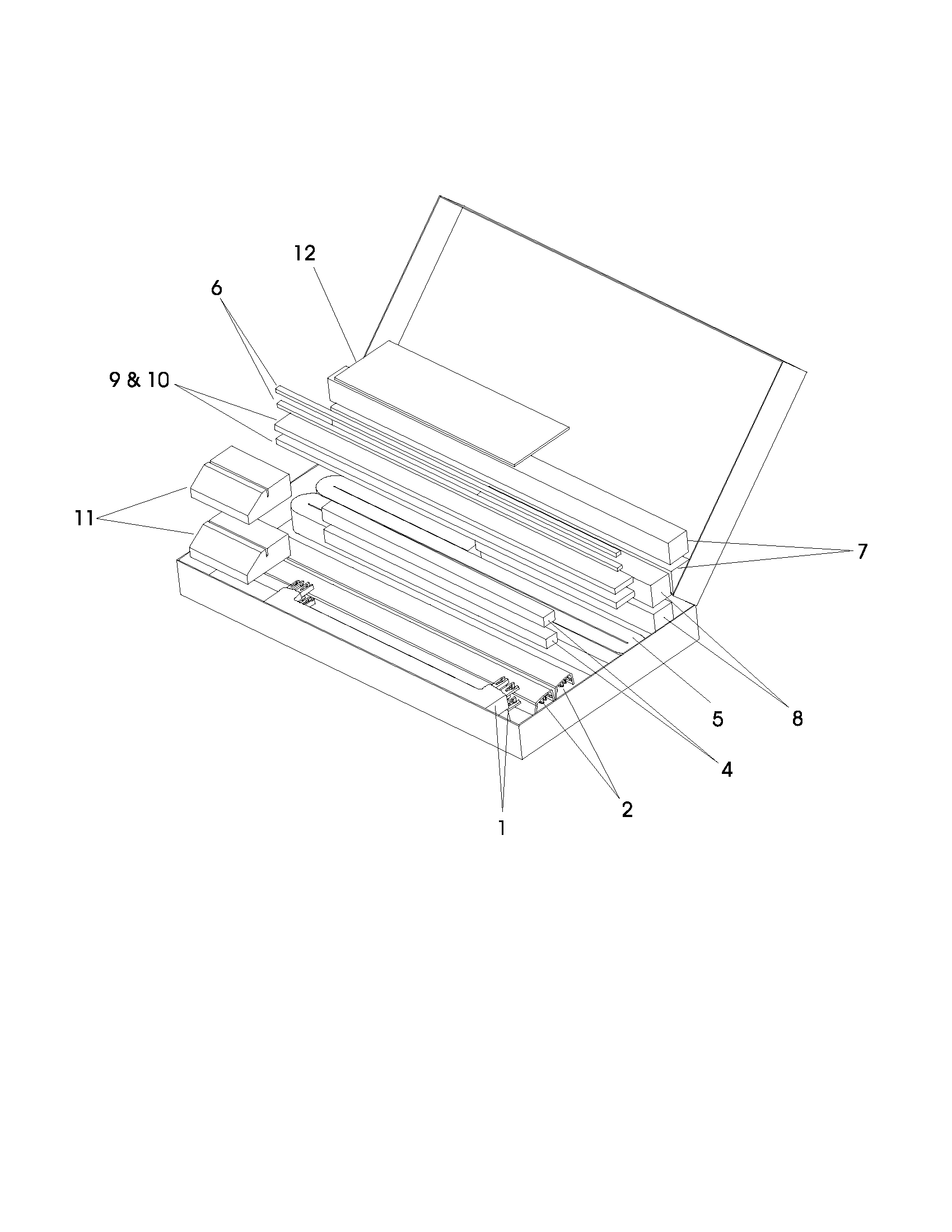

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Room Air Conditioner Filter Dryer 5300265301
#17

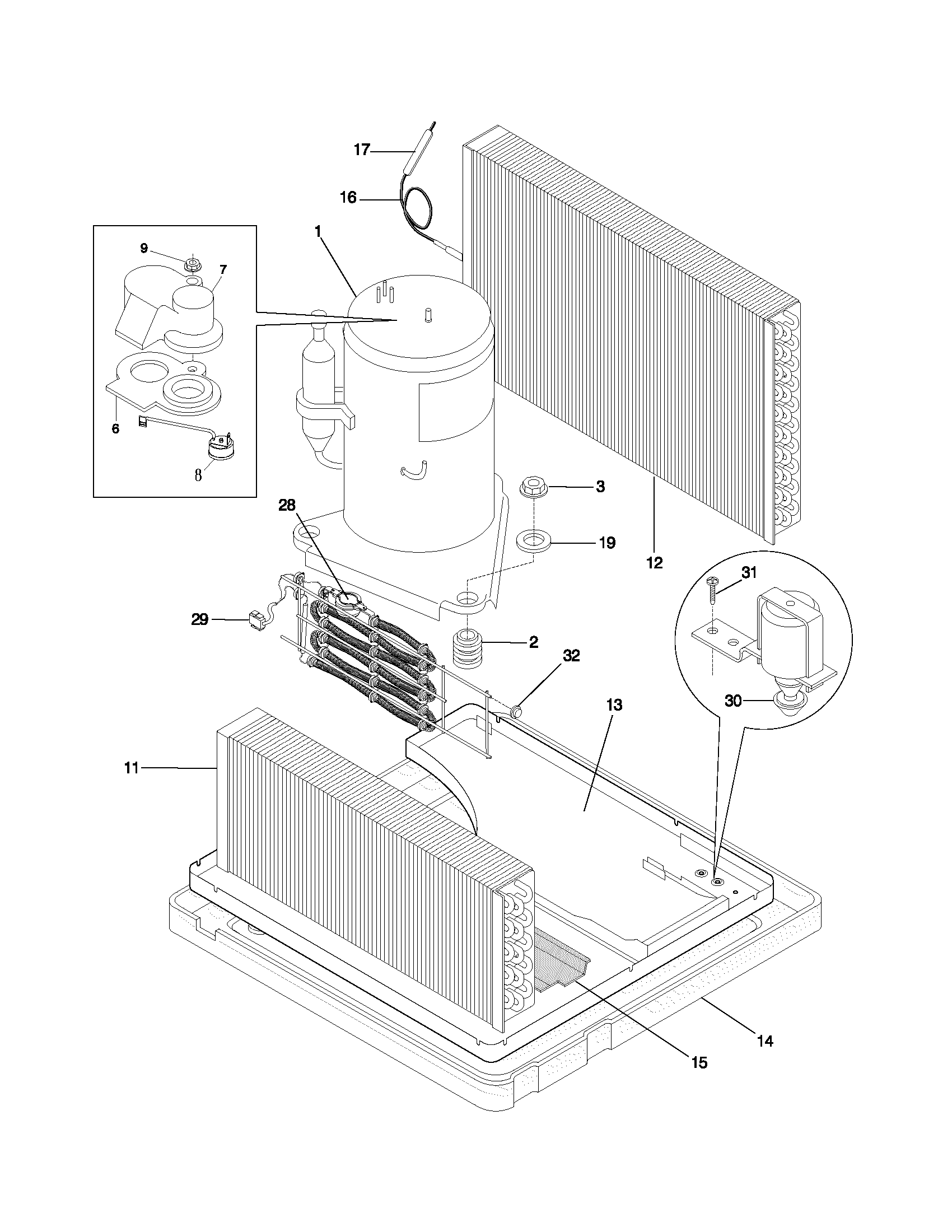

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
#NI

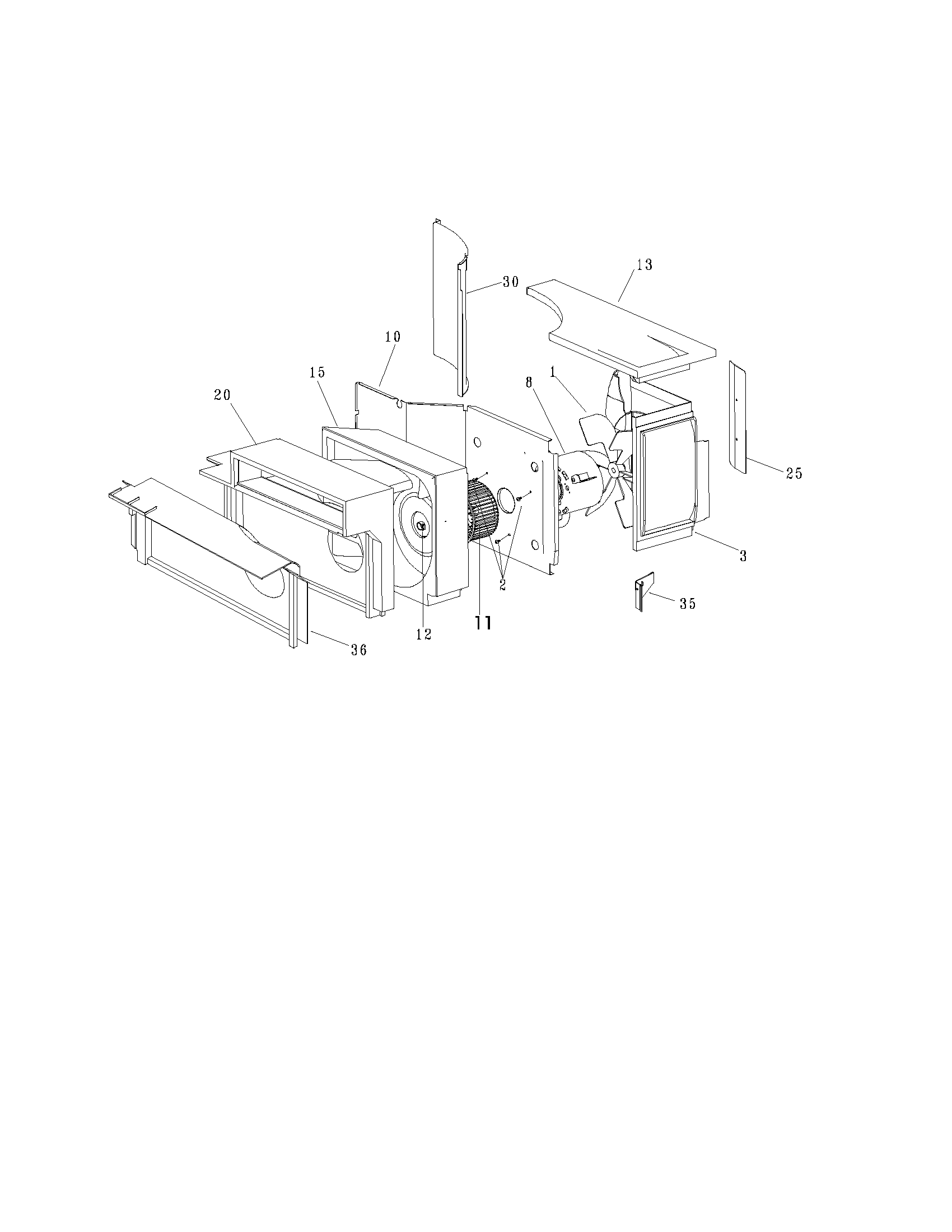

Air handling parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Scroll-18.5 309622802
#15

Air handling parts diagram

Scroll-18.5

Part #309622802

The manufacturer no longer makes this part, and there's no substitute part

Overload 5303317553
#8

Compressor parts diagram

Overload

Part #5303317553

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Mount Retainer Nut 5308006948
#3

Compressor parts diagram

Room air conditioner compressor mount retainer nut

Part #5308006948

The manufacturer no longer makes this part, and there's no substitute part

Control 309631806
#43

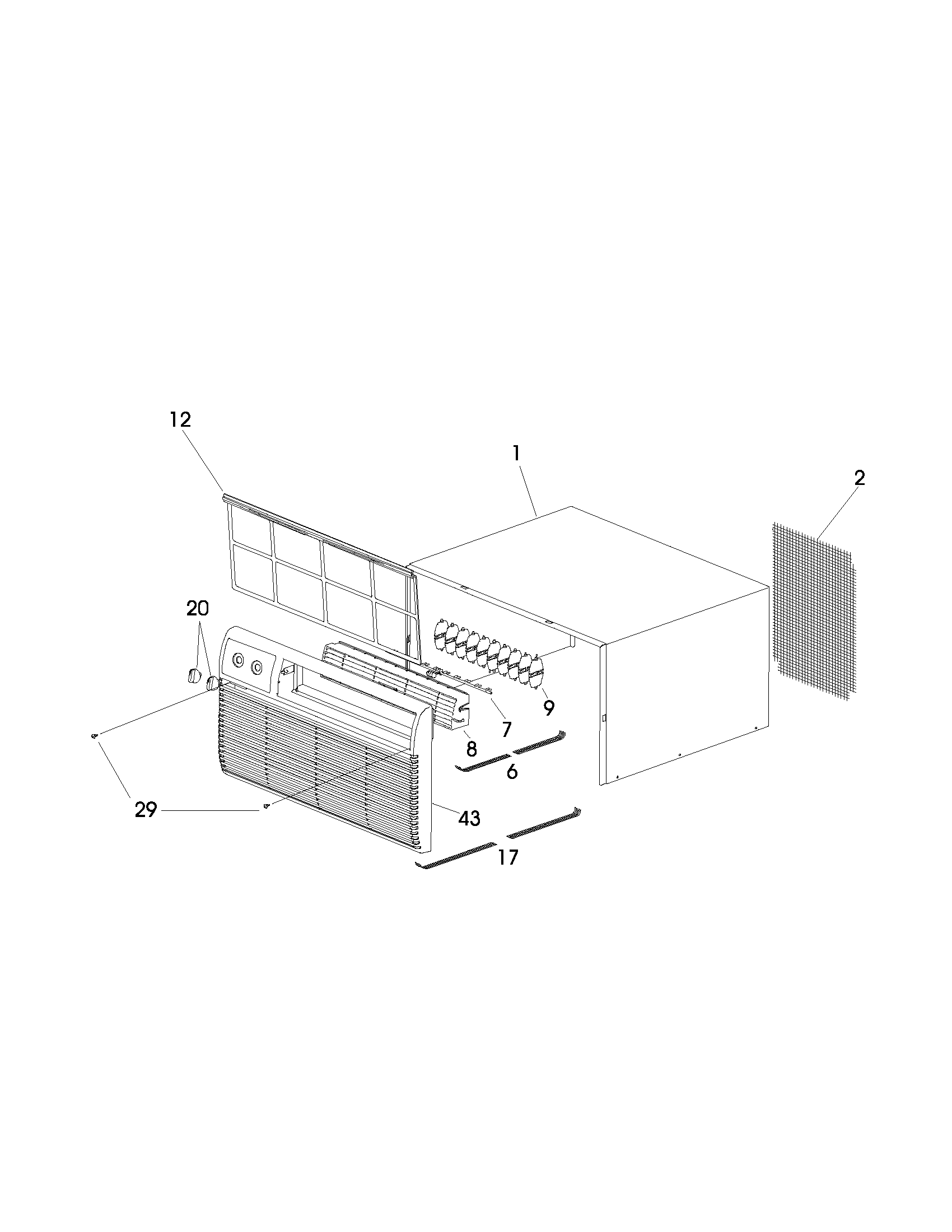

Cabinet front and wrapper diagram

Control

Part #309631806

The manufacturer no longer makes this part, and there's no substitute part

Condenser 309641901
#12

Compressor parts diagram

Condenser

Part #309641901

The manufacturer no longer makes this part, and there's no substitute part
