Model #HBN5650UC/08 Official Bosch electric built-in oven
Here are the diagrams and repair parts for Bosch HBN5650UC-08 electric built-in oven, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

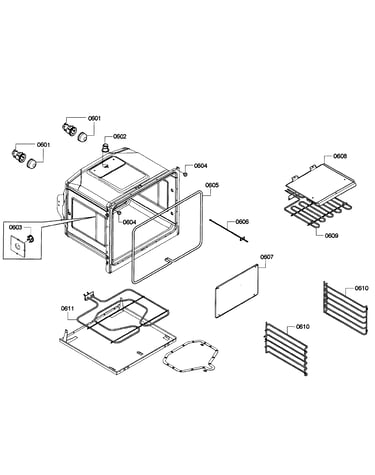

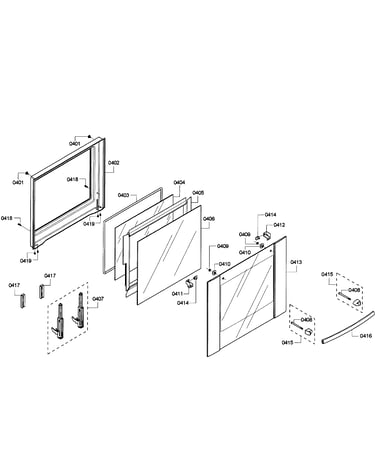

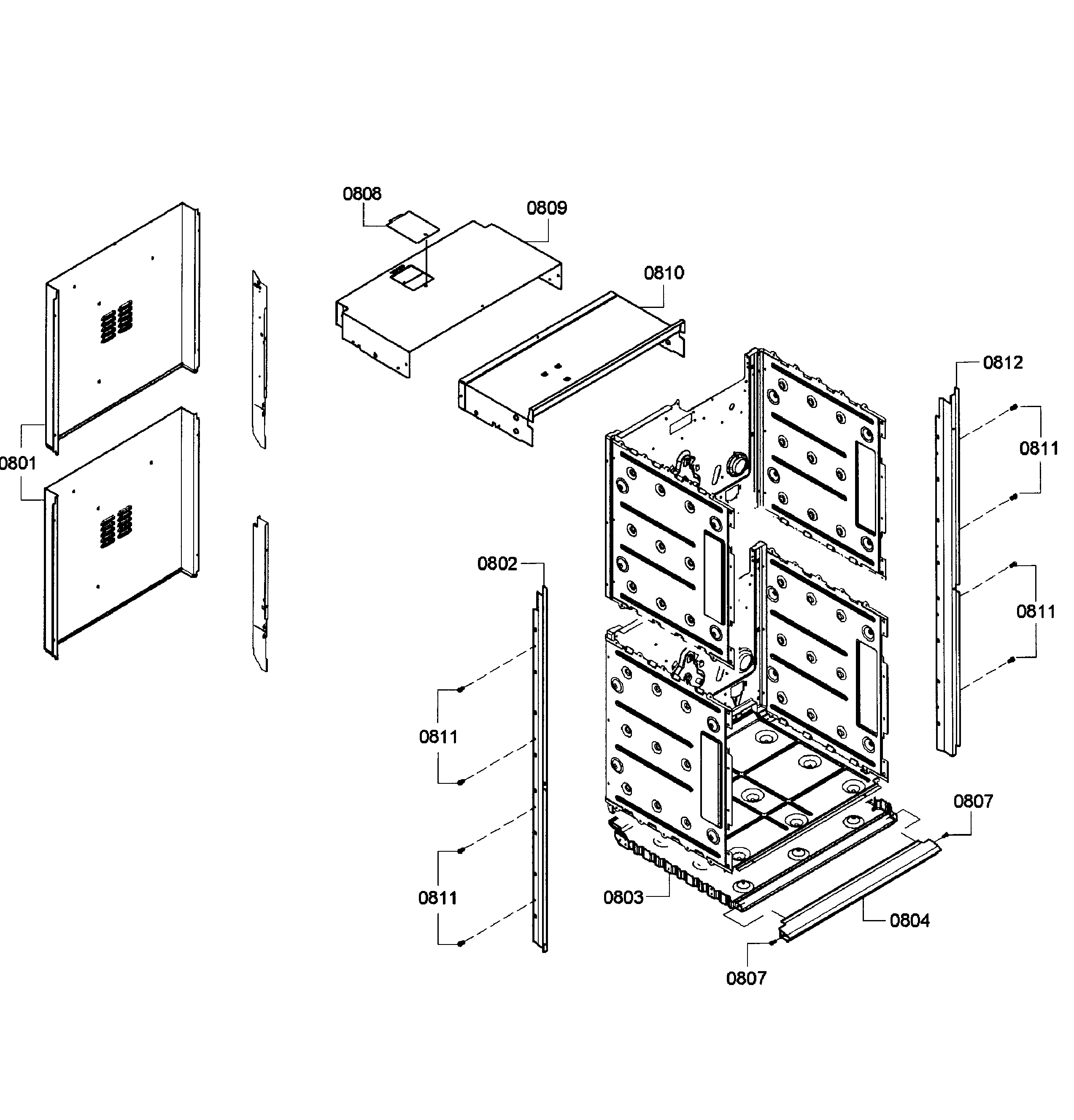

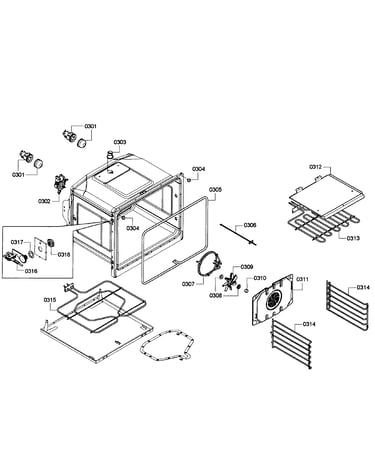

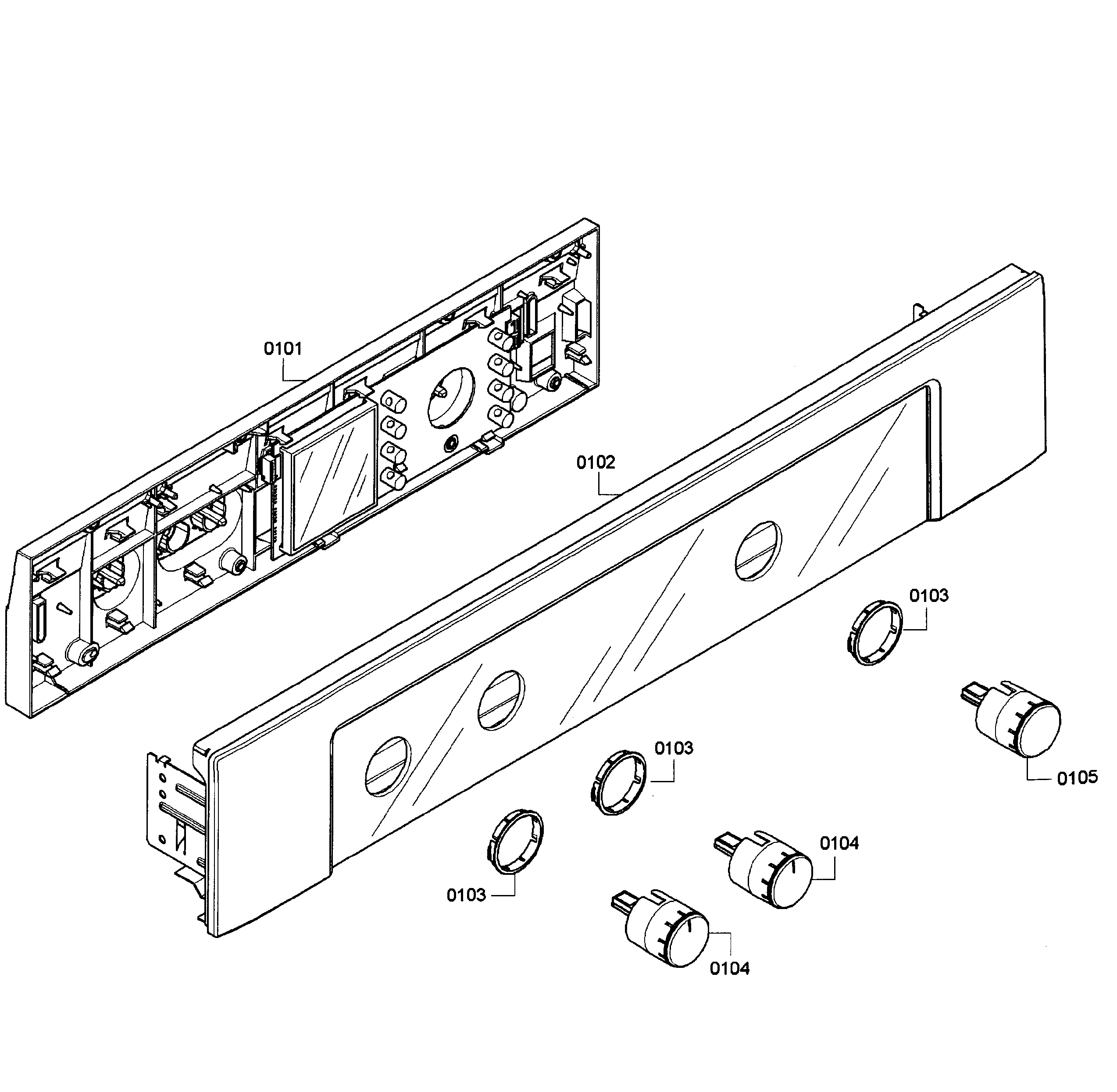

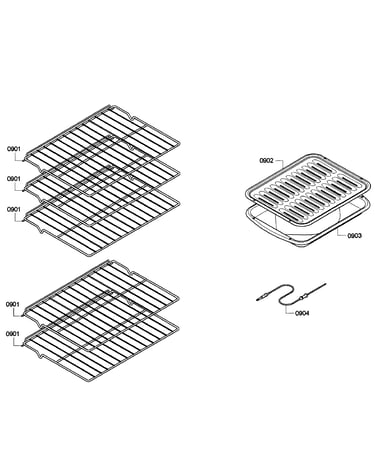

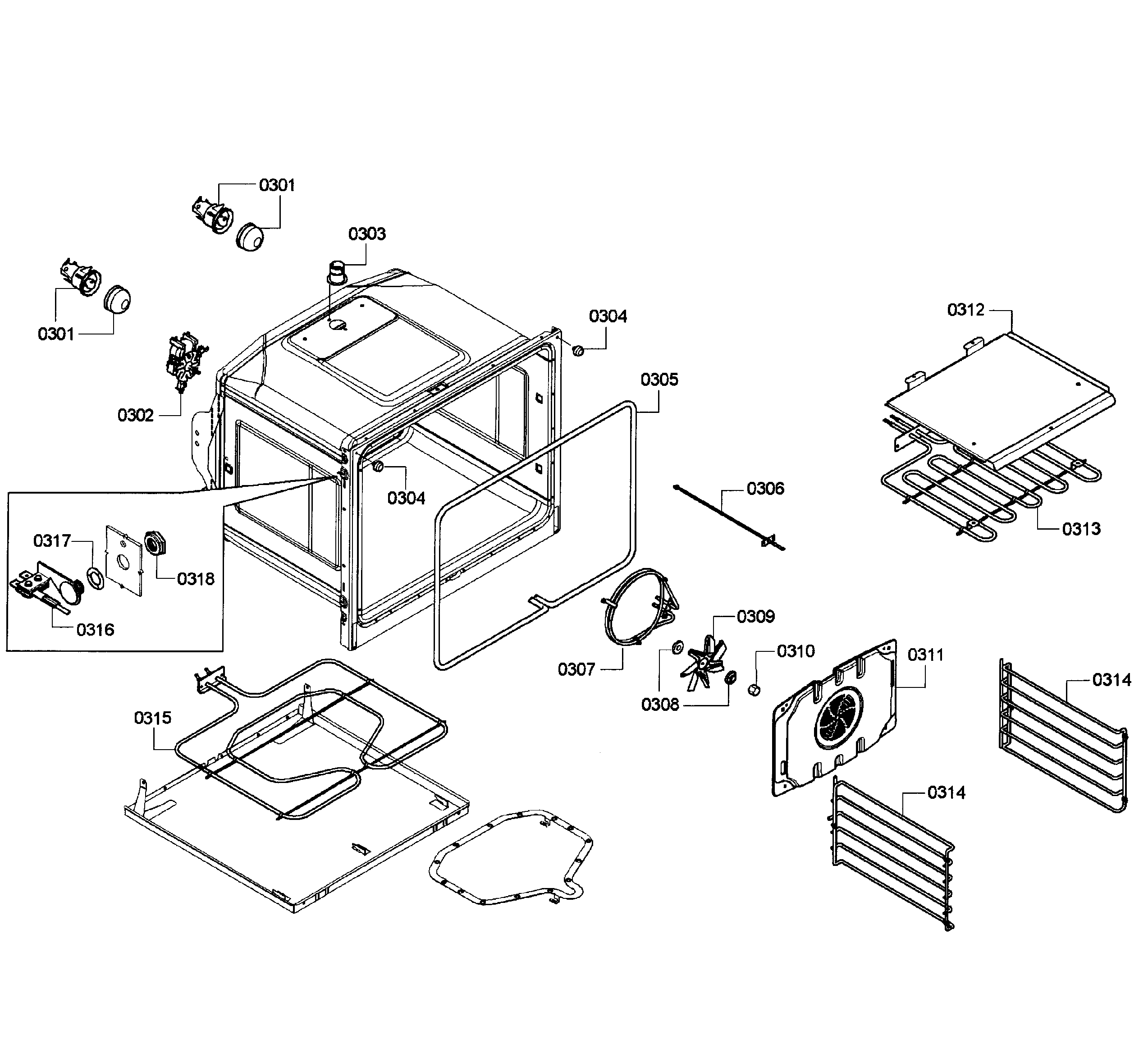

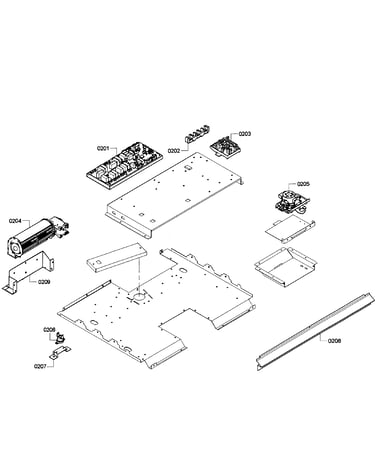

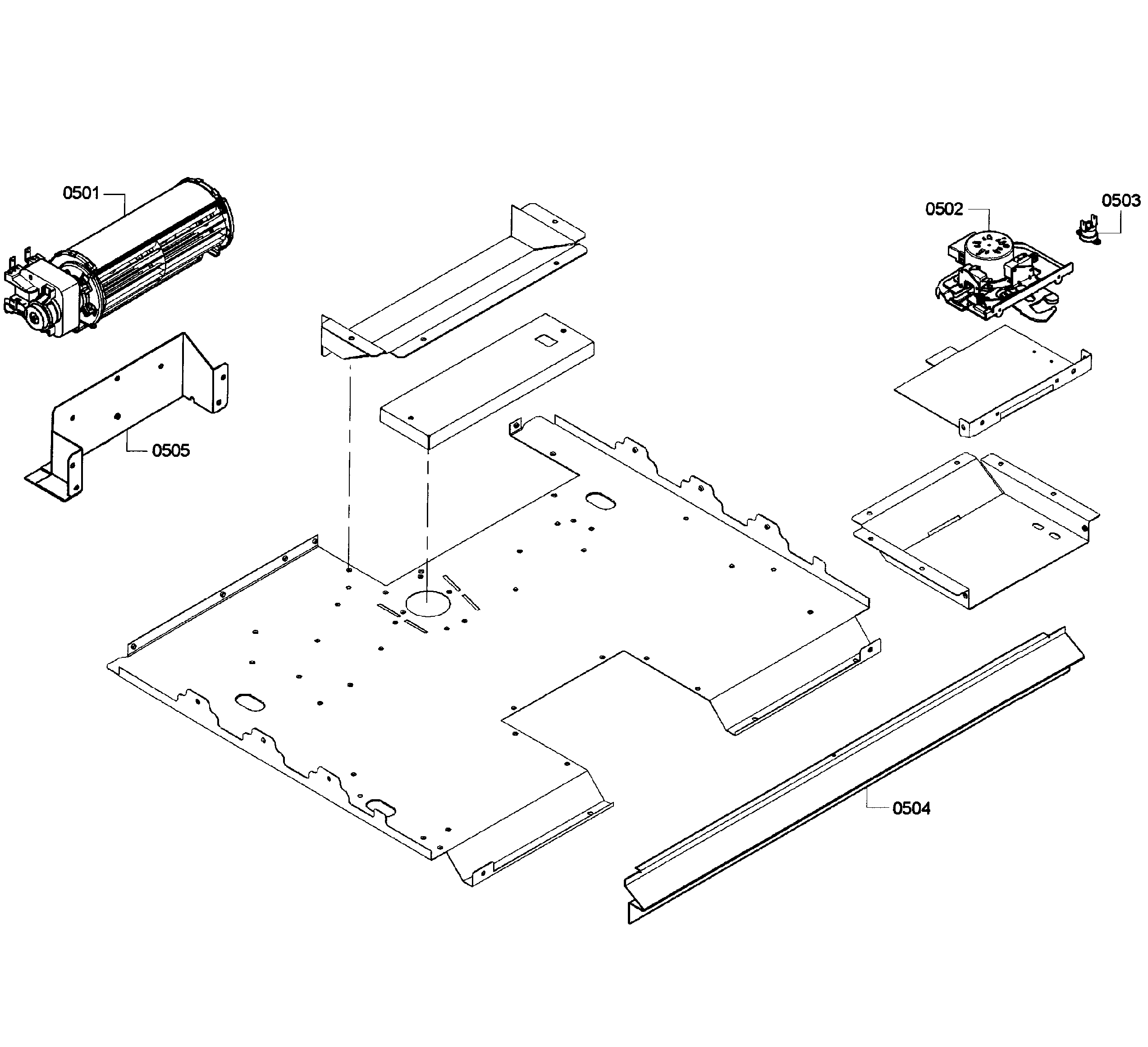

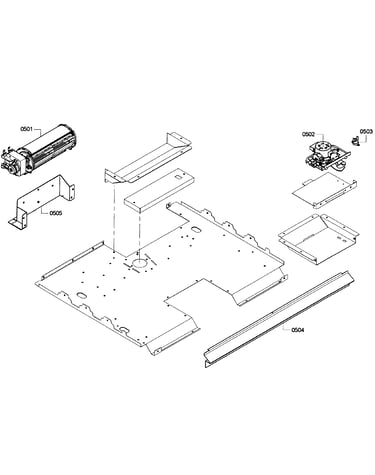

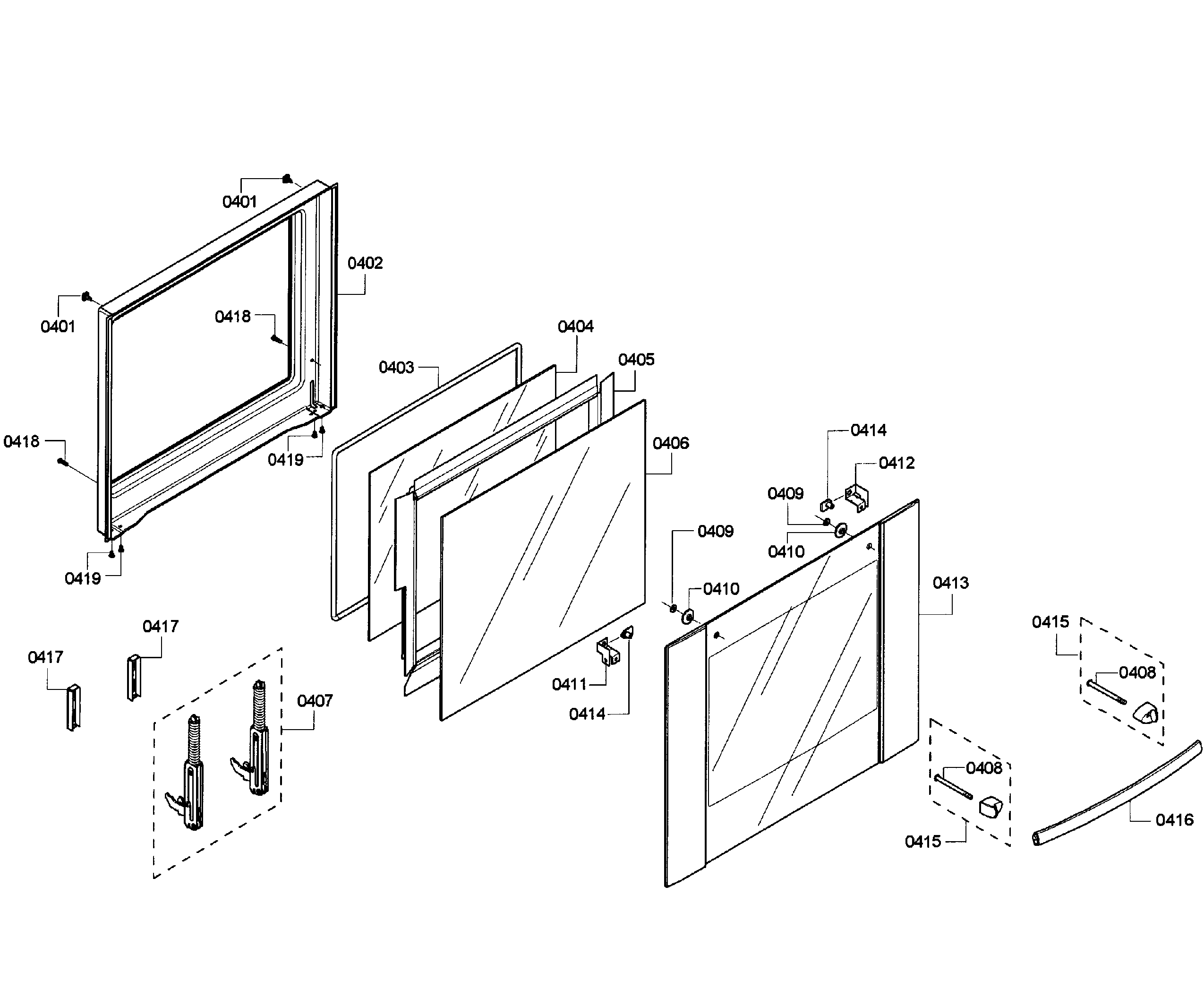

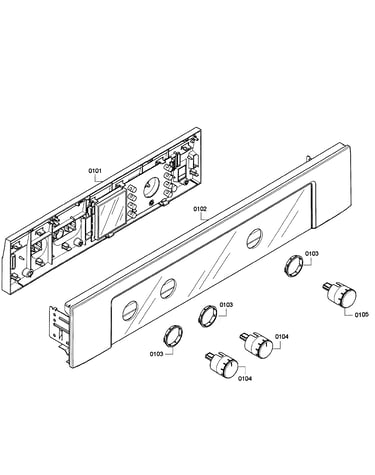

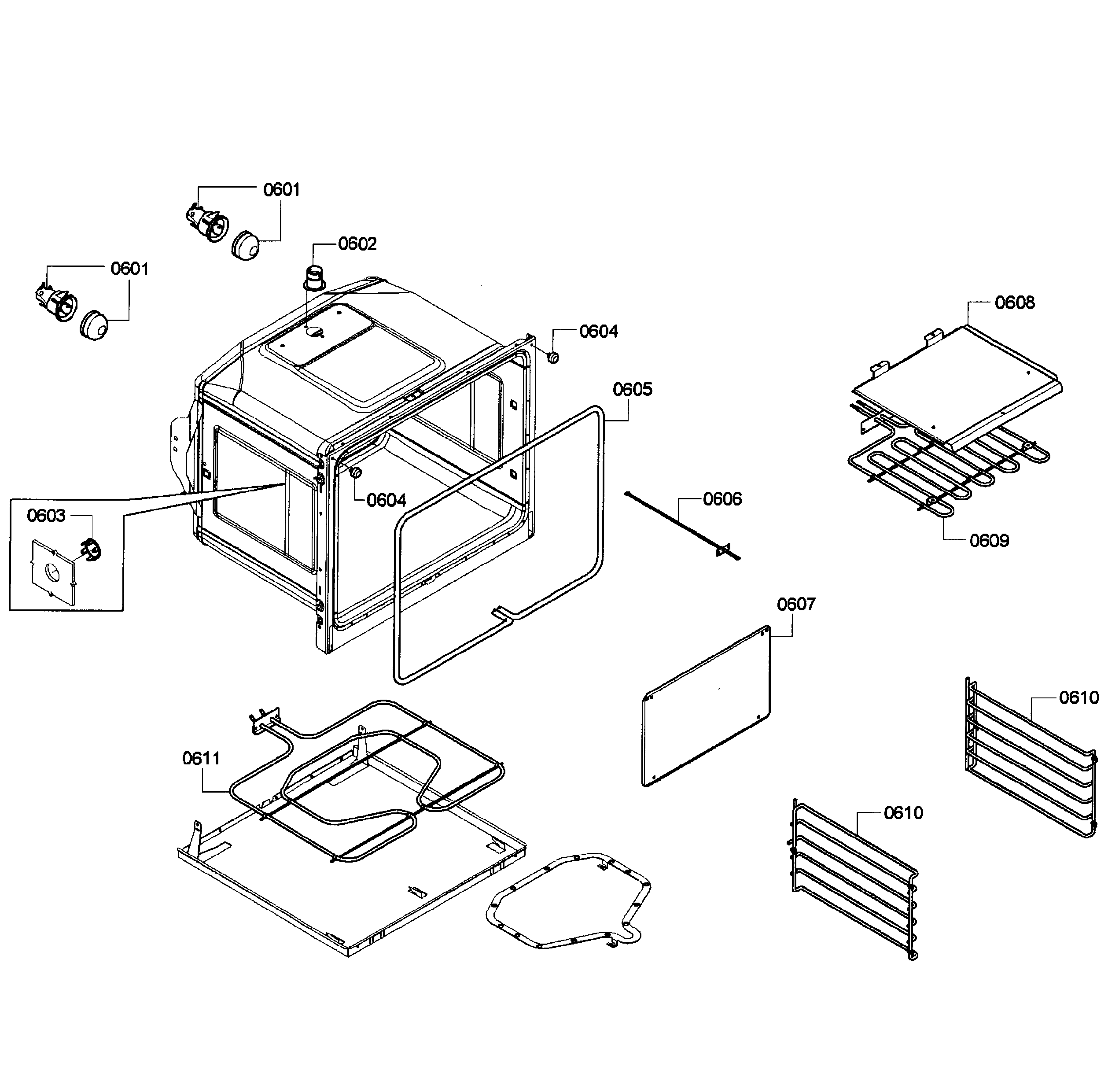

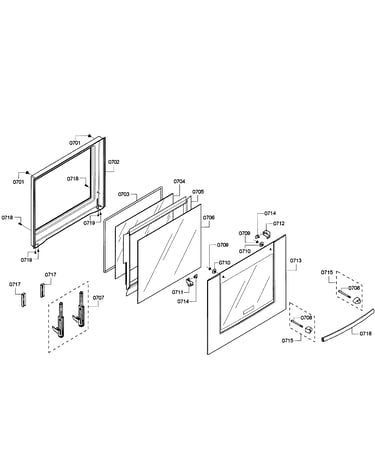

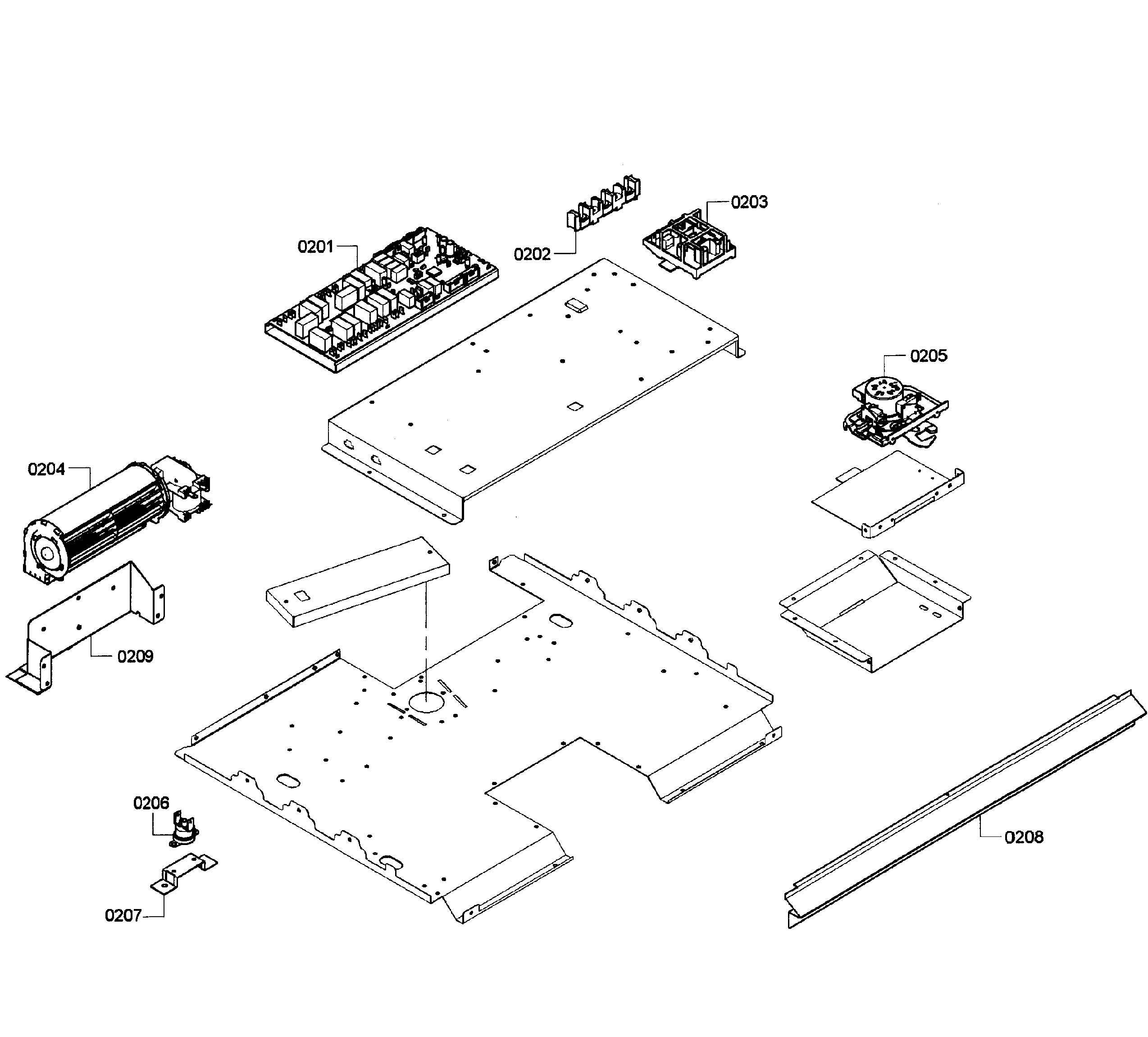

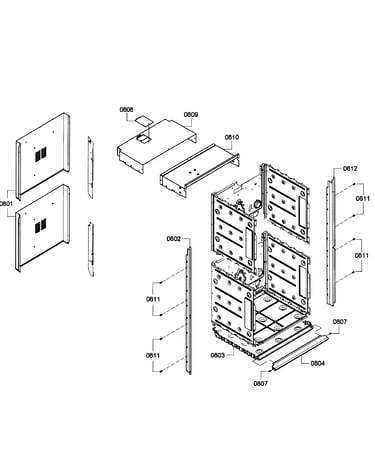

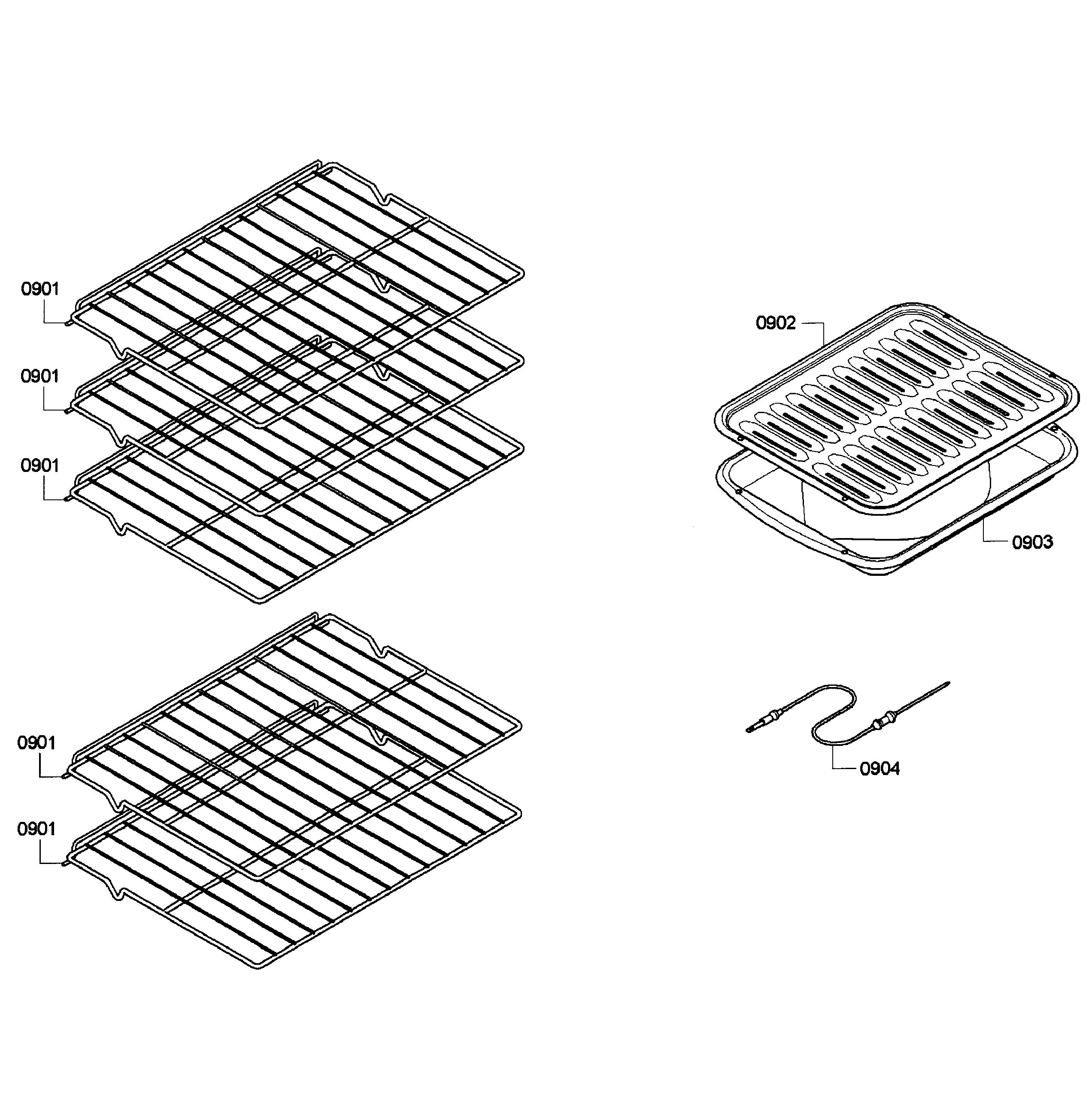

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 92 parts
See All Related Diagrams
Sensor
Control module
Meat probe
See All Related Diagrams
Catalyzer
Oven harness
Terminal box
Wall oven selector switch knob
Receptacle
See All Related Diagrams
Glass panel
See All Related Diagrams
Clip
Symptoms common to all wall oven
Repair guides common to all wall oven
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions.
Get your oven temperature under your control by replacing a faulty oven control thermostat.
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the fuse.
