GE GDT605PSM4SS dishwasher Parts

Here are the diagrams and repair parts for GE GDT605PSM4SS dishwasher, as well as links to manuals and error code tables, if available.

GE GDT605PSM4SS dishwasher
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GDT605PSM4SS DISHWASHER

  • Spray Arm for GE GDT605PSM4SS - Part WD22X33499

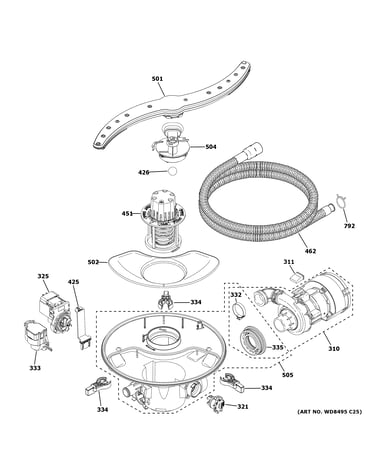

    Motor, sump & filter assembly diagram

    Dishwasher Spray Arm, Lower

    Part #WD22X26621

    Replaced by #WD22X33499

    Info Icon
    Manufacturer substitution
    This part replaces WD22X26621. Substitute parts can look different from the original.
    In Stock
    $20.88
    22% OFF Phone Price : $26.88Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Dishwasher Pressure Sensor for GE GDT605PSM4SS - Part WD21X25468

    Motor, sump & filter assembly diagram

    G.e. Dishwasher Pressure Sensor

    In Stock
    $35.47
    14% OFF Phone Price : $41.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Pump for GE GDT605PSM4SS - Part WD19X25461

    Motor, sump & filter assembly diagram

    Dishwasher Drain Pump

    In Stock
    $51.17
    10% OFF Phone Price : $57.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Ge Dishwasher Circulation Pump Assembly for GE GDT605PSM4SS - Part WD19X25700

    Motor, sump & filter assembly diagram

    Wash Pump Main Asm

    Part #WD19X25460

    Replaced by #WD19X25700

    Info Icon
    Manufacturer substitution
    This part replaces WD19X25460. Substitute parts can look different from the original.
    In Stock
    $168.61
    7% OFF Phone Price : $180.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Heating Element for GE GDT605PSM4SS - Part WD05X35098

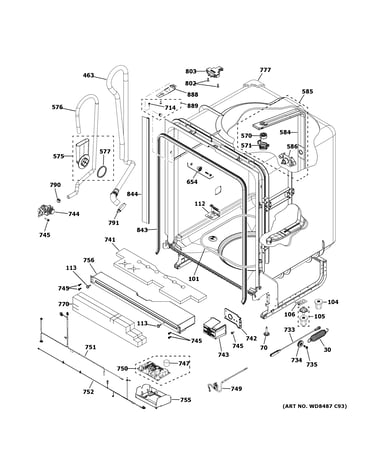

    Body parts diagram

    Dishwasher Heating Element

    Part #WD05X24385

    Replaced by #WD05X35098

    Info Icon
    Manufacturer substitution
    This part replaces WD05X24385. Substitute parts can look different from the original.
    In Stock
    $105.45
    10% OFF Phone Price : $117.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Mid Spray Arm for GE GDT605PSM4SS - Part WD22X33498

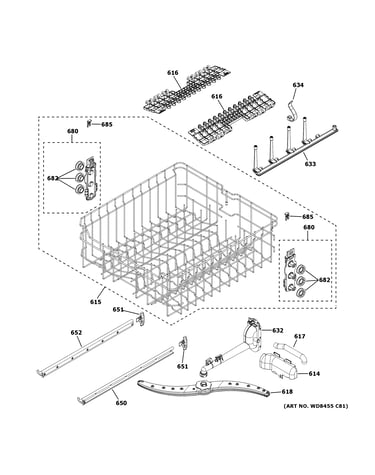

    Upper rack assembly diagram

    Dishwasher Spray Arm, Middle

    Part #WD22X26622

    Replaced by #WD22X33498

    Info Icon
    Manufacturer substitution
    This part replaces WD22X26622. Substitute parts can look different from the original.
    In Stock
    $31.69
    16% OFF Phone Price : $37.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Tub Gasket for GE GDT605PSM4SS - Part WD08X23476

    Body parts diagram

    Dishwasher Tub Gasket

    Part #WD08X22094

    Replaced by #WD08X23476

    Info Icon
    Manufacturer substitution
    This part replaces WD08X22094. Substitute parts can look different from the original.
    In Stock
    $33.12
    15% OFF Phone Price : $39.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Water Inlet Valve for GE GDT605PSM4SS - Part WD15X26078

    Body parts diagram

    Dishwasher Water Inlet Valve

    In Stock
    $26.36
    19% OFF Phone Price : $32.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Detergent Dispenser for GE GDT605PSM4SS - Part WD12X32798

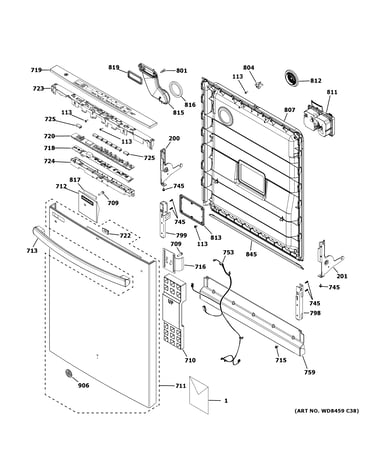

    Escutcheon & door assembly diagram

    Dishwasher Detergent Dispenser

    Part #WD12X24058

    Replaced by #WD12X32798

    Info Icon
    Manufacturer substitution
    This part replaces WD12X24058. Substitute parts can look different from the original.
    In Stock
    $33.32
    15% OFF Phone Price : $39.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Tub Corner Baffle for GE GDT605PSM4SS - Part WD08X21894

    Escutcheon & door assembly diagram

    Dishwasher Tub Corner Baffle

    In Stock
    $33.34
    15% OFF Phone Price : $39.34Info Icon
    Minus Item
    Qty
    Plus Item

GE DISHWASHER GDT605PSM4SS FAQs

For the GE GDT605PSM4SS dishwasher, the quickest “hard reset” is a power reset: turn the dishwasher’s power OFF at the breaker (or wall switch, if used), wait about 1 minute, then restore power and start a new cycle. You can also cancel a stuck cycle by holding Start for 3 seconds.

Fast reset options (most common)
  • Cancel and drain (control reset): Press and hold Start for 3 seconds, then close the door; the dishwasher drains and the cycle light turns off.
  • Power reset (hard reset): Turn power OFF at the breaker (or dishwasher wall switch), wait 60 seconds, then turn power back ON.
  • Restart the cycle: Select a cycle, press Start, then close the door within the time window shown in the GDT605PSM4SS owner’s manual.
Step-by-step: cancel and restart
  1. Press and hold Start for 3 seconds.
  2. Close the door to let the unit drain.
  3. When draining stops, open the door and confirm the tub is empty.
  4. Choose your cycle and options.
  5. Press Start and close the door promptly to begin.
If it still won’t run after a reset
  • Check the house breaker or fuse and restore power.
  • Make sure any nearby wall switch that feeds the dishwasher is ON.
  • Confirm the door is fully latched.
  • If the control panel is locked, unlock it using the steps in the GDT605PSM4SS owner’s manual.
  • Look for a displayed fault or beeps; use GE electronic dishwasher error codes to interpret what the dishwasher is reporting.
Quick comparison
What you’re trying to fix Best reset to try What you should see
Stuck cycle, needs to stop Hold Start 3 seconds Drains, cycle light turns off
Unresponsive controls Breaker OFF 60 seconds Powers back up normally
Paused mid-cycle Press Start then close door Cycle resumes
Why it matters

Resetting the GE GDT605PSM4SS clears a stalled cycle or a minor control glitch, and cancel-and-drain prevents standing water that can cause odors and poor cleaning.

Last updated: January 2026

A GE dishwasher typically lasts about 10 years on average. For your GE GDT605PSM4SS, regular cleaning, correct detergent use, and fixing small issues early are the biggest factors that help you reach (or beat) that lifespan; see the GDT605PSM4SS owner's manual for care steps.

Typical life expectancy (what to expect)

Most residential dishwashers fall into a similar range, but usage and maintenance make a big difference.

Usage pattern Typical lifespan What usually shortens life
Light (few loads/week) 10 to 12 years Long periods of non-use, mineral buildup
Average (1 load/day) About 10 years Clogged filters, poor drying ventilation
Heavy (2+ loads/day) 7 to 10 years Pump wear, heater stress, frequent hard-water scale
How to help your dishwasher last longer

We recommend these habits for the GDT605PSM4SS and most GE dishwashers:

  • Clean the interior and key wash areas on a routine schedule (spray arms, sump area, door seals).
  • Use the right amount and type of detergent for your water hardness; too much detergent in soft water can cause etching.
  • Use a quality rinse aid to improve drying and reduce film buildup.
  • Run hot water at the sink before starting a cycle so the dishwasher fills with hotter water sooner.
  • Avoid overloading; keep spray arms spinning freely and don’t block the detergent dispenser.
  • Address draining, filling, or unusual-noise symptoms quickly to prevent pump and motor damage.
Signs your dishwasher is nearing end of life

If you see these repeatedly, repair costs can start to outweigh the value of keeping the unit:

  • Persistent leaking from the door area or underneath
  • Poor cleaning even after cleaning and maintenance
  • Frequent no-drain or no-fill problems
  • Burning smell, repeated tripped breaker, or heater-related issues
  • Loud grinding or buzzing that returns after clearing debris
Why it matters

A dishwasher near the end of its service life often uses more water and energy due to longer cycles and reduced wash efficiency. Keeping the wash system clean and using detergent correctly helps protect high-wear components like the circulation pump, drain pump, and heating system.

Related troubleshooting help

Last updated: January 2026

The most common GE dishwasher problem is poor cleaning or wash performance, usually caused by loading issues, detergent problems (wrong type or dispenser blocked), or water conditions. On the GE GDT605PSM4SS, start by following the GDT605PSM4SS owner's manual loading and detergent guidance.

Most common causes we see (and what to check first)
  • Detergent and suds issues: Use only automatic dishwasher detergent; hand dish soap creates suds and poor washing.
  • Detergent cup blocked: Large plates or tall items can prevent the dispenser from opening or flushing out.
  • Loading problems: Overloading or nesting dishes blocks spray arm coverage.
  • Water temperature too hot: Water entering above 150°F (66°C) can contribute to etching and poor results.
  • Rinse agent spills: Spilled rinse aid can create excess suds and reduce performance.
Quick troubleshooting steps for GDT605PSM4SS
  1. Reload so nothing blocks the detergent dispenser door.
  2. Switch to a high-quality automatic dishwasher detergent (tablet/packet, powder, gel, or liquid made for dishwashers).
  3. If you see suds in the tub, cancel/drain the cycle and let suds dissipate; then restart.
  4. Confirm the 3rd rack (if equipped) is fully pushed in before closing the door.
  5. If symptoms include beeping, flashing lights, or a displayed code, check GE electronic dishwasher error codes.
Symptom-to-cause guide
Symptom Most likely cause Best first action
Dishes not clean Loading blocks spray, weak detergent, dispenser blocked Reload, change detergent, clear dispenser
Detergent left in cup Dishware blocking cup Reposition tall/large items
Suds/foam in tub Wrong detergent or rinse agent spill Use correct detergent; wipe spills
White film or etching Water conditions or very hot inlet water Adjust detergent use; check water temp
Why it matters

Most “dishwasher problems” are actually wash chemistry and water flow issues. Correct loading and using the right detergent prevents repeat cycles, protects glassware, and reduces residue buildup that can lead to draining or odor complaints.

For step-by-step loading diagrams and detergent cup details, use the GDT605PSM4SS owner's manual.

Last updated: January 2026
