Kenmore 6289117910 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289117910 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

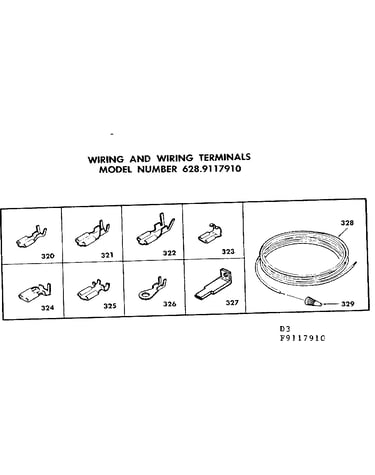

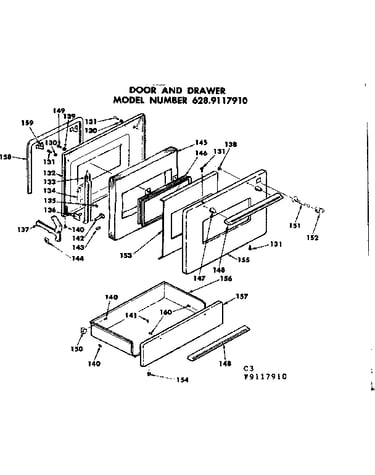

Browse Parts for 6289117910 Ranges

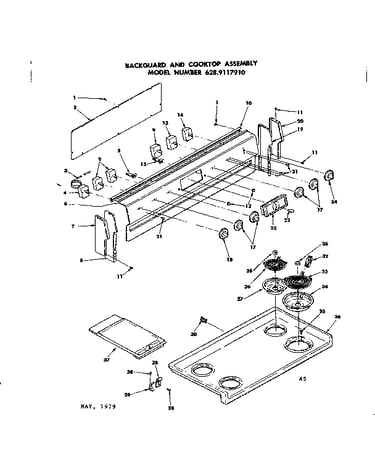

Backguard and cooktop assembly diagram
Pan
Part #1307595Replaced by #316048414
Manufacturer substitutionThis part replaces 1307595. Substitute parts can look different from the original.In Stock$10.7416% OFF Phone Price : $12.74
Qty

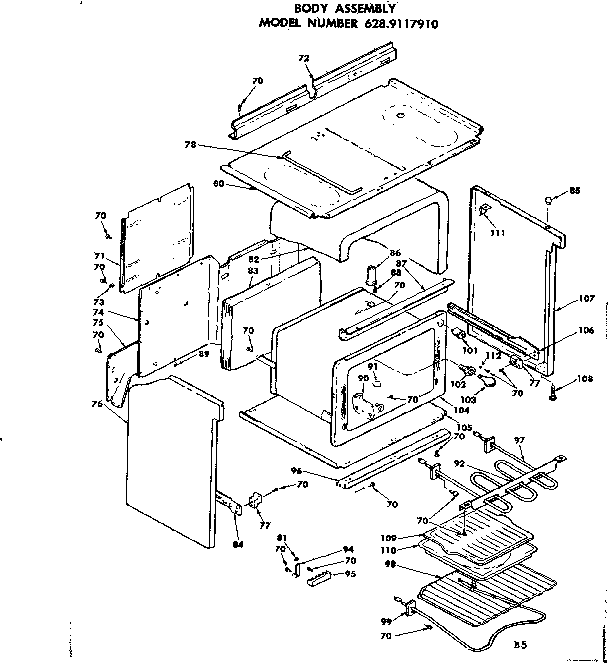

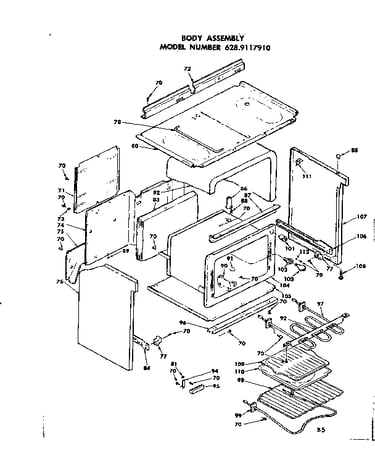

Body assembly diagram
Bake Unit
Part #1312853Replaced by #5303051519
Manufacturer substitutionThis part replaces 1312853. Substitute parts can look different from the original.In Stock$31.9316% OFF Phone Price : $37.93QtyRange Screw
Part #1164479This item is not returnableIn Stock$3.3023% OFF Phone Price : $4.30QtyOptional porcelain pan and ring 8067110 diagram
Range Drip Pan, Small
In Stock$46.60QtyBackguard and cooktop assembly diagram
Clock-60c
Part #1318979Replaced by #5305335801
Manufacturer substitutionThis part replaces 1318979. Substitute parts can look different from the original.In Stock$216.20QtyBackguard and cooktop assembly diagram
Hinge Pin
Part #1315631Replaced by #5301315631
Manufacturer substitutionThis part replaces 1315631. Substitute parts can look different from the original.In Stock$49.93QtyBody assembly diagram
Washer
Part #STD551025Replaced by #STD551025
Manufacturer substitutionThis part replaces STD551025. Substitute parts can look different from the original.In Stock$36.61QtyBody assembly diagram
Bracket
Part #1311369Replaced by #3051552
Manufacturer substitutionThis part replaces 1311369. Substitute parts can look different from the original.In Stock$29.02QtyBody assembly diagram
Drawer Rail
Part #1315219Replaced by #3051652
Manufacturer substitutionThis part replaces 1315219. Substitute parts can look different from the original.In Stock$35.59QtyBackguard and cooktop assembly diagram
Pilot Light
Part #1309641Replaced by #5301167858
Manufacturer substitutionThis part replaces 1309641. Substitute parts can look different from the original.In Stock$133.06Qty
