Jenn-Air JF36NXFXDE01 bottom-mount refrigerator Parts

Most Jenn-Air refrigerators, including the Jenn-Air JF36NXFXDE01 bottom-mount refrigerator, typically last 15 years with normal household use and basic maintenance. Consistent airflow, clean water filtration, and stable temperatures help the sealed system and compressor run longer.

Typical lifespan and what affects it

A refrigerator’s service life is mostly driven by how hard the cooling system has to work and how well the doors seal.

• Door seal condition: air leaks force longer run times
• Condenser airflow: dust and restricted ventilation raise compressor heat
• Temperature settings: overly cold settings increase run time and frost risk
• Water quality and filter changes: helps protect the ice maker and dispenser circuit
• Usage patterns: frequent door openings and warm food loads add stress

Maintenance schedule we recommend

Use your owner's manual for model-specific care steps and access instructions.

Task	How often	Why it matters
Replace water filter	Every 6 months	Maintains water flow and ice quality; reduces strain on water system
Replace air filter (if equipped)	Every 6 months	Helps control odors and keeps airflow fresher
Clean condenser area and vents	Every 6 to 12 months	Lowers compressor temperature and energy use
Check door closing and alignment	Monthly	Prevents warm air leaks and frost buildup

Parts that support long life (common wear items)

If your JF36NXFXDE01 has a water dispenser or ice maker, staying current on filters is one of the easiest ways to prevent nuisance problems.

• Refrigerator filter EDR3RXD1 (water and ice filtration)
• Refrigerator air filter W10311524 (odor control and fresh-air circulation)
• Keep an eye on cooling performance; a noisy or stalled fan can point to the refrigerator evaporator fan motor W11396715

Why it matters

A refrigerator that is running longer than normal often shows up as warm spots, excess frost, or higher energy use. Addressing airflow, seals, and filtration early helps protect major components like the compressor and reduces the chance of food temperature swings.

Last updated: February 2026

Yes. With your Jenn-Air JF36NXFXDE01 bottom-mount refrigerator, we see many common parts that are realistic DIY replacements (filters, door switch, fan motor, ice maker). For sealed-system or high-voltage electrical repairs, we recommend using a qualified technician for safety and reliability.

Good DIY replacements on JF36NXFXDE01

These jobs typically use basic hand tools and careful handling:

• Replace the water filter: refrigerator filter EDR3RXD1
• Replace the air filter: refrigerator air filter W10311524

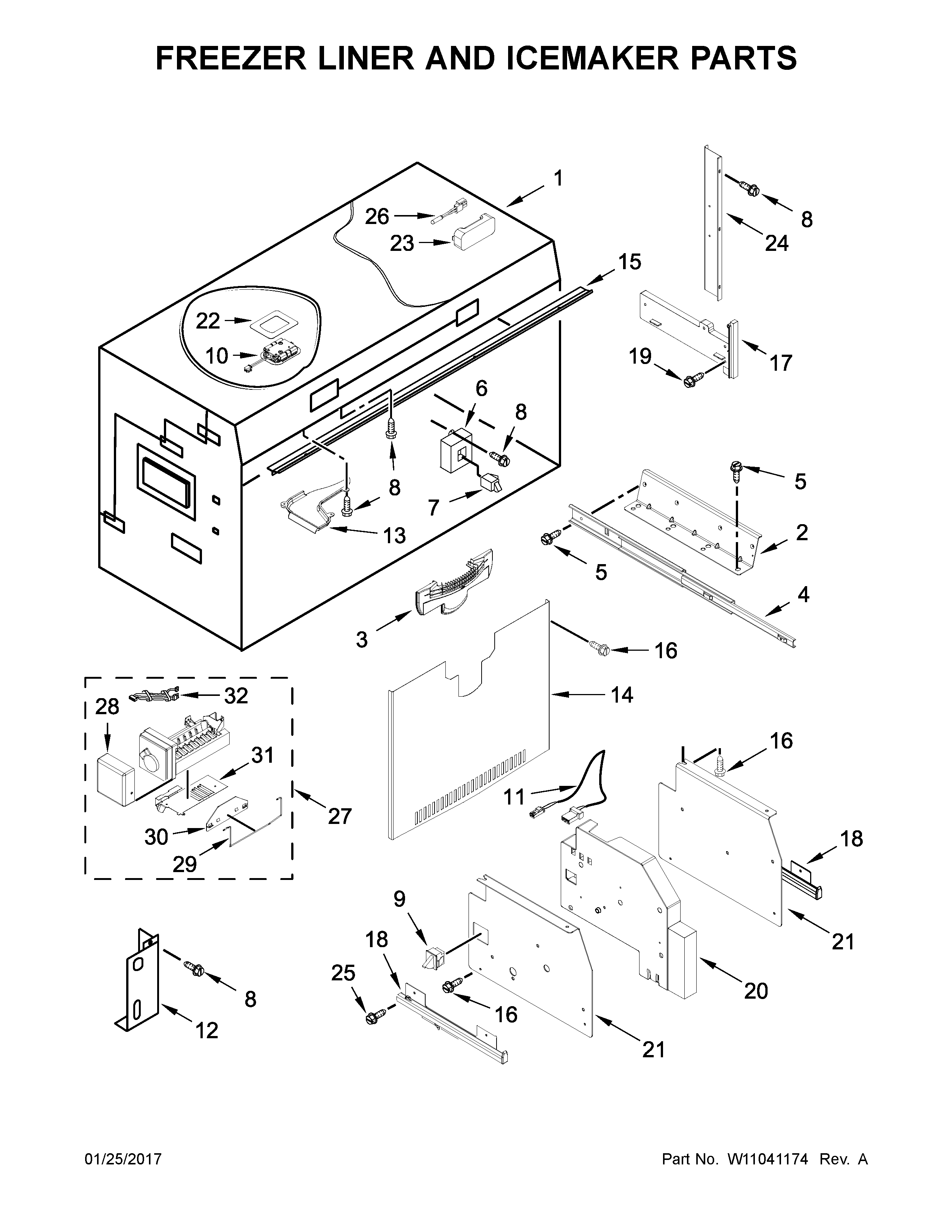

• Replace a failed ice maker: refrigerator ice maker assembly W11397192
• Replace a noisy evaporator fan: refrigerator evaporator fan motor W11396715
• Replace an interior light module: single led 2 W11683242
• Replace a door light switch: refrigerator switch W11289496

Repairs we do not treat as DIY

These repairs can involve refrigerant handling, specialized tools, or advanced diagnostics:

• Compressor or sealed-system work (compressor, drier, refrigerant lines)
• Control board or complex wiring troubleshooting
• Persistent cooling failures after basic checks

DIY vs. pro at a glance

Repair type	Typical DIY difficulty	Why
Filters (water, air)	Easy	Quick access, minimal disassembly
Ice maker, fan motor, door switch	Medium	Requires panels, connectors, careful reassembly
Compressor, sealed system	Pro	Specialized tools and procedures

Steps that make DIY repairs go smoother

• Unplug the refrigerator before removing panels or touching wiring.
• Take photos of wire connectors and screw locations as you disassemble.
• Keep screws grouped by area (door, freezer drawer, rear panel).
• After reassembly, confirm doors close fully and gaskets seal evenly.
• Use the owner's manual for model-specific access points, filter reset steps, and safety notes.

Why it matters

Choosing the right DIY repair saves time and prevents repeat problems. Filters and modular components (like an ice maker or evaporator fan motor) are designed to be replaced; sealed-system components are not.

Last updated: February 2026

Common problems we see with the Jenn-Air JF36NXFXDE01 bottom-mount refrigerator include not cooling well, water leaks, ice maker or dispenser issues, doors not sealing, and unusual fan noise. Many of these trace back to airflow, filtration, door alignment, or a failed cooling component; start with the basics in the owner's manual.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser area, evaporator fan issue, thermistor problem, or sealed-system failure
• Water leaking or puddles: clogged/iced drain, misrouted drain tube, or water line connection seepage
• Ice maker not working: low water flow, air in the line, frozen fill tube, or ice maker assembly failure
• Water dispenser slow or not dispensing: clogged water filter, air trapped in the line, or inlet valve issue
• Door not closing or poor seal: cabinet not level, bins/shelves interfering, gasket not sealing, hinge alignment
• Noisy operation: evaporator fan, condenser fan, or vibration from the cabinet/lines

Quick checks we recommend first (fast, no parts)

• Confirm controls are set correctly and allow 24 hours after any temperature change.
• Make sure vents inside the fresh food and freezer sections are not blocked by food packages.
• Check door closure: look for items preventing the door from fully shutting; verify the cabinet is level.
• Clean dust from the condenser area (unplug first).
• If you have dispenser issues, replace the water filter and purge air from the line.

Parts that commonly solve these problems on JF36NXFXDE01

Symptom	Common part to check/replace	What it affects
Slow water, bad taste/odor, dispenser issues	Refrigerator filter EDR3RXD1	Water flow and filtration
Food odors in fresh food section	Refrigerator air filter W10311524	Air circulation and odor control
Warm temps, erratic temps	Refrigerator thermistor W11724692	Temperature sensing
Warm fridge/freezer, fan noise	Refrigerator evaporator fan motor W11396715	Cold-air movement
Hot cabinet sides, poor cooling, noise	Refrigerator condenser fan W11127829	Heat removal at condenser
No ice production	Refrigerator ice maker assembly W11397192	Ice harvest and fill cycle

Why it matters

Catching airflow, filter, and door-seal problems early helps the compressor run less, keeps temperatures stable, and prevents secondary issues like frost buildup, leaks, and spoiled food.

Last updated: February 2026

The most commonly replaced refrigerator parts are the ones that affect cooling, sealing, and water or ice functions. For your Jenn-Air JF36NXFXDE01 bottom-mount refrigerator, filters, fans, sensors, and ice maker components are frequent replacements; confirm locations and procedures in the owner's manual.

Common parts that get replaced most often

These parts wear out, clog, or fail more often than sealed-system components:

• Water filter (clogs, slow water flow, bad taste or odor)
• Air filter (odor control declines over time)
• Evaporator fan motor (warm fridge, noisy fan, uneven temps)
• Condenser fan (poor cooling, hot cabinet sides, compressor running a lot)
• Thermistor (temperature swings, incorrect readings)
• Ice maker assembly (no ice, small cubes, jammed harvest)
• Door switch (lights not working correctly, fan behavior changes when door opens)

Model-relevant examples (parts available for JF36NXFXDE01)

If you are shopping for common maintenance and cooling parts, these are examples we see replaced often on this model:

What it affects	Example part on this model	Typical symptom
Water quality and flow	Refrigerator filter EDR3RXD1	Slow dispenser, odd taste/odor
Odor control	Refrigerator air filter W10311524	Food odors linger
Air circulation	Refrigerator evaporator fan motor W11396715	Warm spots, fan noise
Temperature sensing	Refrigerator thermistor W11724692	Temps drift, cycling issues
Ice production	Refrigerator ice maker assembly W11397192	No ice, irregular cubes

How we recommend prioritizing a replacement

Start with the simplest, most common fixes before moving to electrical diagnosis.

• Replace the water filter and air filter on schedule
• Listen for fan noise changes (rattling, squealing, intermittent running)
• Check for frost buildup that can block airflow
• Verify doors close and seal fully (gasket contact all the way around)
• If ice or water is affected, confirm the household water supply is fully on

Why it matters

These parts directly control airflow, temperature feedback, and water and ice performance. Replacing a clogged filter or failing fan early helps protect food temperatures and reduces long run times that can stress the compressor.

Last updated: February 2026
