Craftsman
Wet/Dry Vacuum

Model # 113179700 Official Craftsman 32-gallon home-n-shop vacuum

Here are the diagrams and repair parts for Official Craftsman 113179700 32-gallon home-n-shop vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Nozzle 20557-01
#22

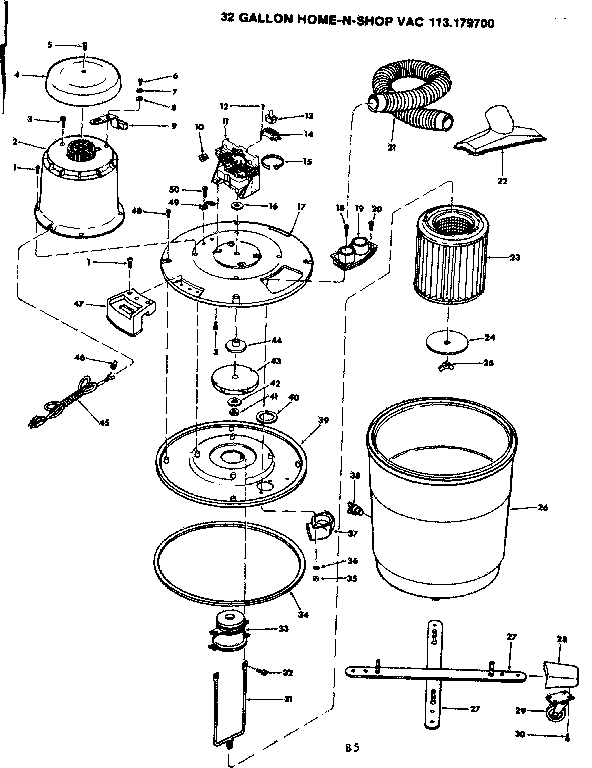

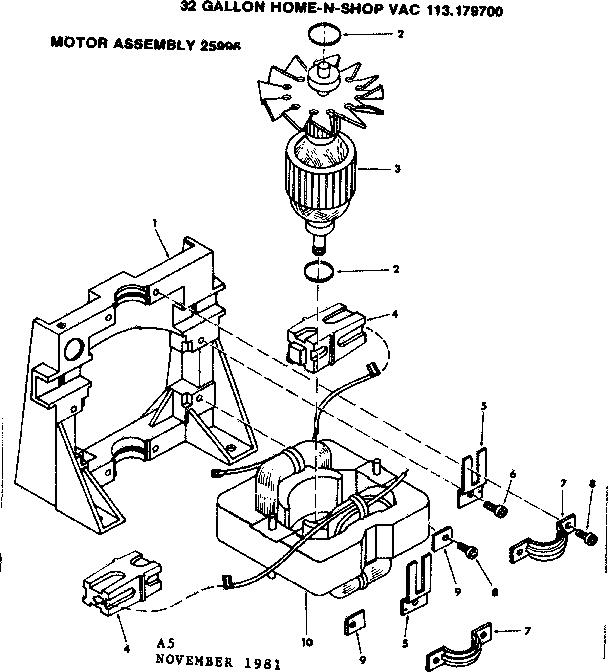

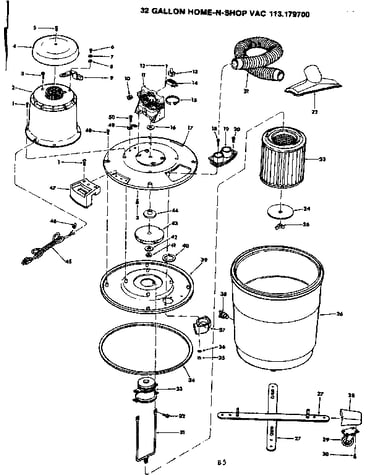

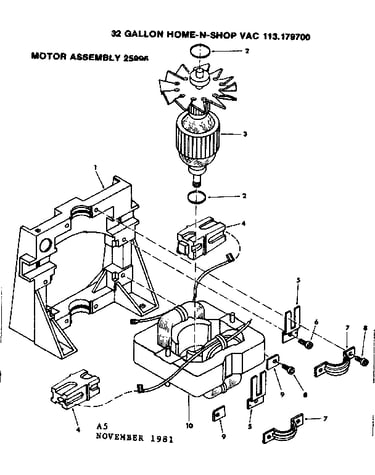

Unit diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (black) 28229-01
#37

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch 20432
#13

Unit diagram

Shop vacuum on/off switch

Part #20432

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch Button 22210-01
#9

Unit diagram

Shop vacuum on/off switch button

Part #22210-01

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 20866
#40

Unit diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Connector STD375007
#46

Unit diagram

Connector

Part #STD375007

The manufacturer no longer makes this part, and there's no substitute part

Dome 73152
#4

Unit diagram

Dome

Part #73152

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611005
#5

Unit diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610807
#20

Unit diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part

Ferrules 22212-01
#19

Unit diagram

Ferrules

Part #22212-01

The manufacturer no longer makes this part, and there's no substitute part
