Whirlpool WTW4655JW1 washer Parts

Whirlpool washer parts are only interchangeable when the replacement part is listed as compatible with your exact washer model. For Whirlpool model WTW4655JW1, we recommend matching by model number first, then confirming the part ID and fit notes in the parts list or the WTW4655JW1 owner's manual.

Parts can look identical but still differ in mounting points, wiring connectors, or calibration. The safest approach is to match by model and function, not appearance.

Common examples where “close” parts cause problems:

• Lid lock and strike alignment differences (won’t start or won’t lock)
• Actuator connector or shift pattern differences (won’t agitate or spin)
• Belt length and pulley diameter differences (slipping, noise, poor spin)
• Water valve flow rate or coil style differences (fill errors, slow fill)
• Control or harness revisions (intermittent operation)

Use this checklist before ordering:

• Verify the full model number on the washer’s model tag: WTW4655JW1
• Match the part by part ID (not just a description)
• Compare the part’s function and location (lid, drive system, drain, fill)
• Check for any “replaces” or “substitute” notes tied to your model
• Use the manual for installation and safety steps (power off, water off)

Using a non-matching part can create new symptoms (no spin, no fill, error beeps), shorten component life, or lead to repeat repairs. Matching to WTW4655JW1 keeps fit, electrical connections, and performance consistent.

Last updated: February 2026

On a Whirlpool washer, the E01 F09 code means the washer is taking too long to drain (a long-drain condition). On your Whirlpool WTW4655JW1, this usually points to a drain restriction, a drain hose issue, or a problem with the drain pump system.

• Press Cancel/Stop to end the cycle; wait a minute, then try Drain & Spin.
• Make sure the drain hose is not kinked, crushed, or pushed too far down the standpipe.
• Confirm the standpipe or laundry tub is draining freely (a slow household drain can trigger long-drain errors).
• Reduce oversudsing: use HE detergent and measure carefully; too many suds can slow draining.
• If the tub is full, unplug the washer for 1 minute, plug back in, then try Drain & Spin again.

Your WTW4655JW1 installation requirements include a minimum siphon break height of 28 inches from the bottom of the washer. If the drain hose is routed too low or sealed too tightly into the standpipe, the washer can siphon or struggle to drain correctly.

For the exact routing and height guidance, follow the WTW4655JW1 owner's manual.

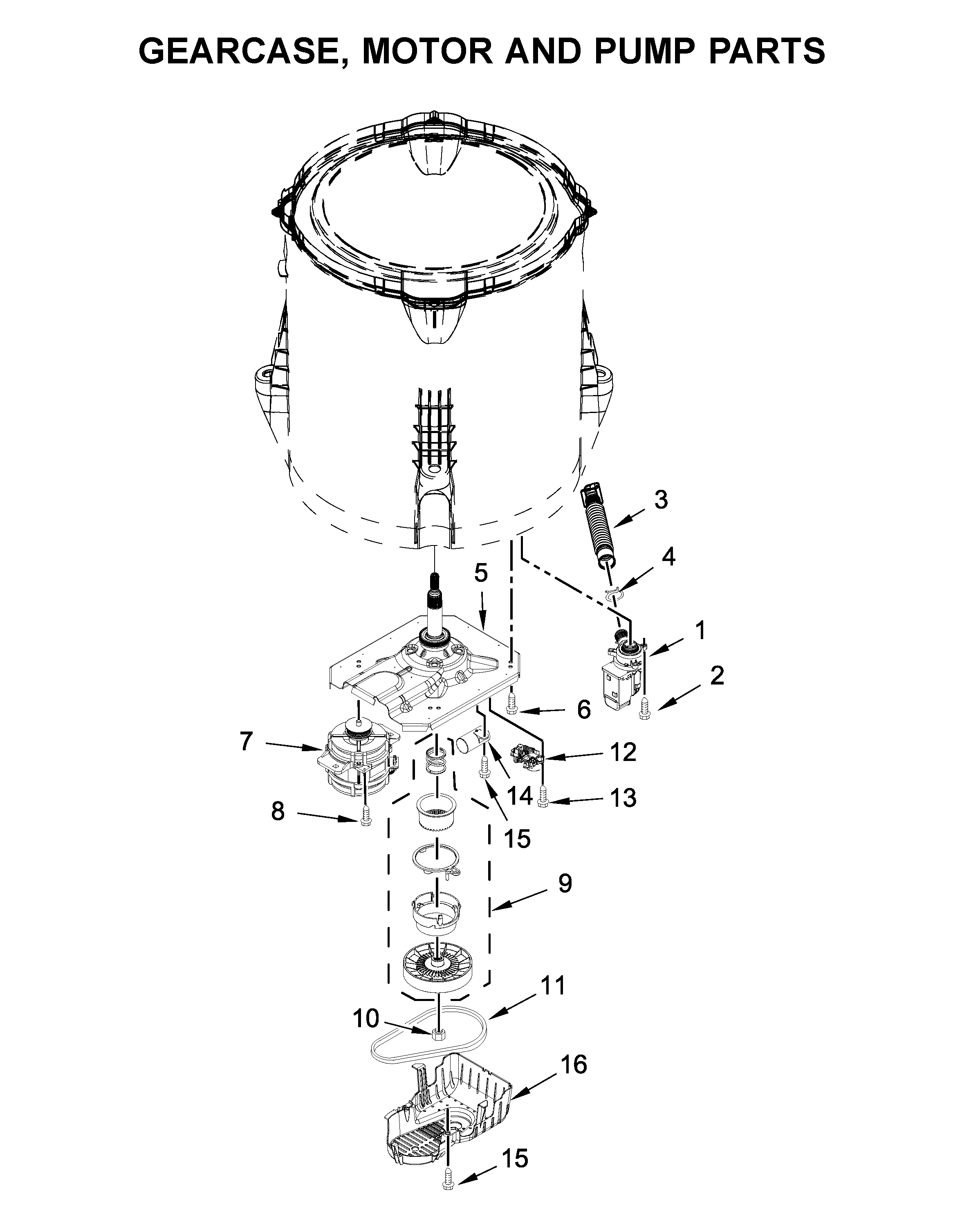

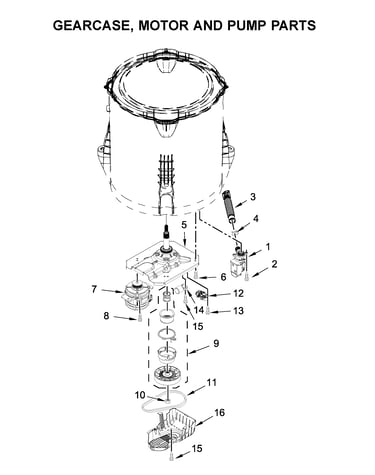

If the hose and household drain are good and E01 F09 returns, the drain pump may be jammed, worn, or electrically failing.

Common symptoms that point to the pump:

• You hear the pump hum but little or no water leaves
• Draining is intermittent (works sometimes, fails other times)
• The washer stops mid-cycle with water still in the tub

A common replacement for this model is the washer drain pump W10919003.

A long-drain condition can leave water in the tub, prevent high-speed spin, and cause repeated cycle interruptions. Fixing the drain path quickly helps protect the drive system and keeps wash performance consistent.

Last updated: February 2026

For the Whirlpool WTW4655JW1 top-load washer, the most common customer-reported problems are “won’t drain or spin,” excessive shaking, and not starting a cycle; these are usually caused by an unbalanced load, a drain restriction, or a lid lock issue. Use the WTW4655JW1 owner's manual to match symptoms to the correct checks.

• Won’t drain: drain hose kinked, standpipe issue, or a failing drain pump
• Won’t spin: lid not locking, load out of balance, or drive system problem
• Loud banging or walking: washer not level, weak suspension, or overloaded basket
• Won’t start: lid lock not engaging, power supply issue, or control not sensing a closed lid
• Poor cleaning: wrong cycle, too much detergent, or overloading

1. Confirm power and outlet: this washer needs a grounded 3-prong outlet (no adapter or extension cord).
2. Level the washer: an out-of-level cabinet increases vibration and can trigger spin problems; the manual’s leveling steps are the best reference.
3. Fix load balance: redistribute bulky items (towels, blankets) and run a spin again.
4. Inspect the drain hose setup: make sure it is secured and not pushed too far down the standpipe (helps prevent siphoning and drain issues).
5. Check water supply: both faucets fully open; look for slow fill that can stall cycles.

If the basic checks do not fix it, these parts are frequent culprits on top-load Whirlpool washers like WTW4655JW1:

Drain, spin, and balance problems can look like a “bad washer,” but they often come from setup (leveling, hose routing) or a single wear part (lid lock, pump, suspension). Fixing the root cause prevents repeat failures and reduces noise and vibration.
