Whirlpool RB130PXV4 built-in double oven

Whirlpool RB130PXV4 built-in double oven Parts

Here are the diagrams and repair parts for Whirlpool RB130PXV4 built-in double oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

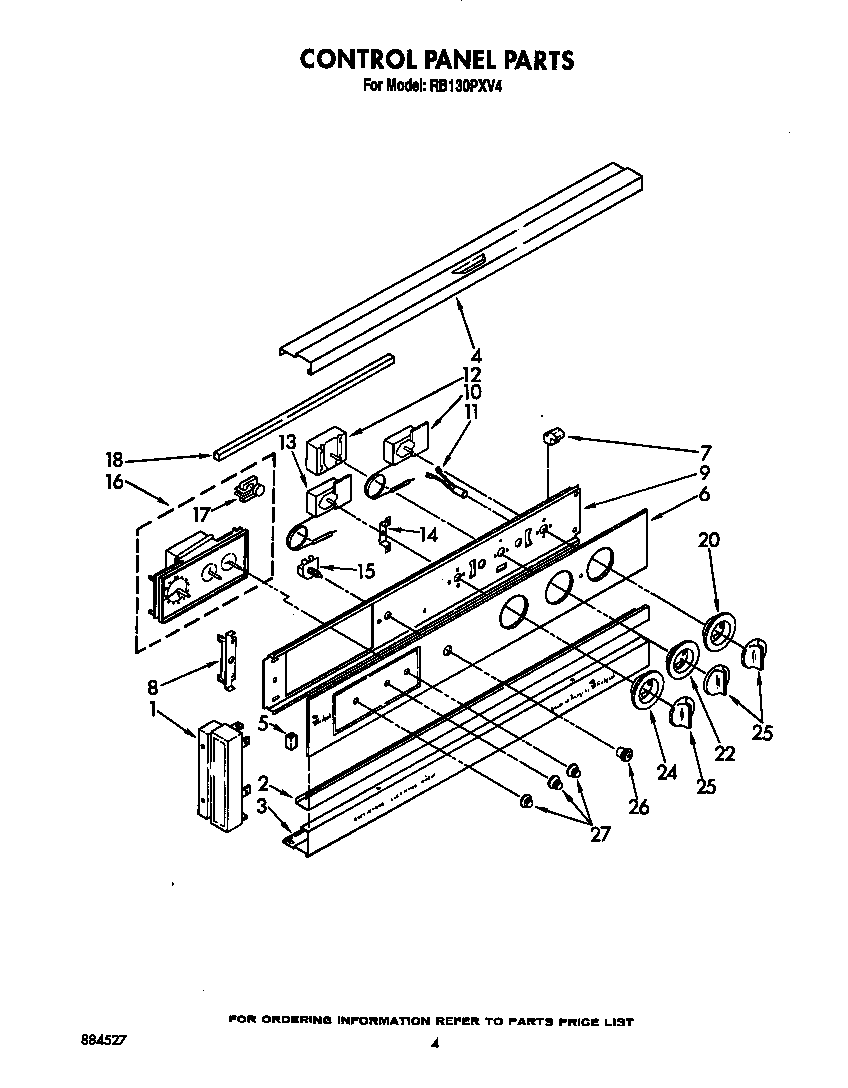

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RB130PXV4 Wall Ovens

  • Appliance Silicone Sealant for Whirlpool RB130PXV4 - Part WP482338

    #NI

    All parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $24.46
    27% OFF Was : $33.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RB130PXV4 - Part WP308685

    Screw

    Part #253549

    Replaced by #WP308685

    Info Icon
    Manufacturer substitution
    This part replaces 253549. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.09
    16% OFF Phone Price : $6.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw, 10-16 X 1/2-in for Whirlpool RB130PXV4 - Part WP681414

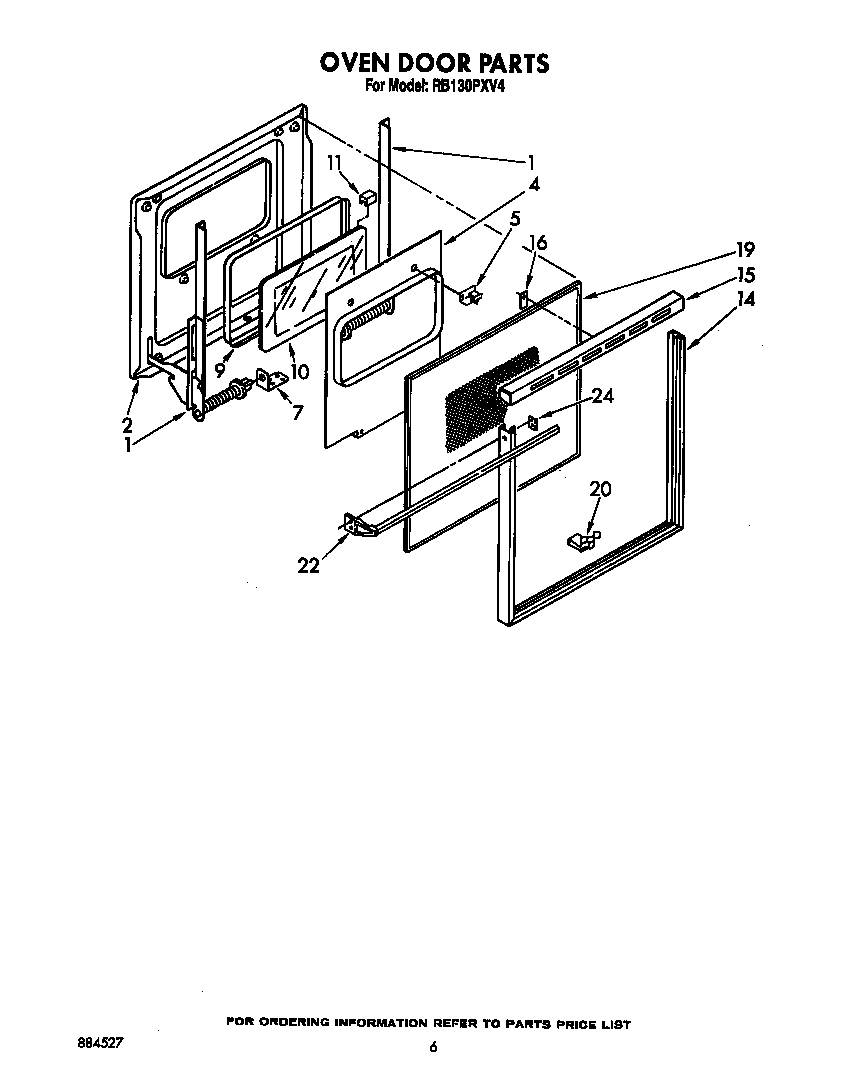

    Oven door diagram

    Screw

    Part #343641

    Replaced by #WP681414

    Info Icon
    Manufacturer substitution
    This part replaces 343641. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Whirlpool RB130PXV4 - Part 326791

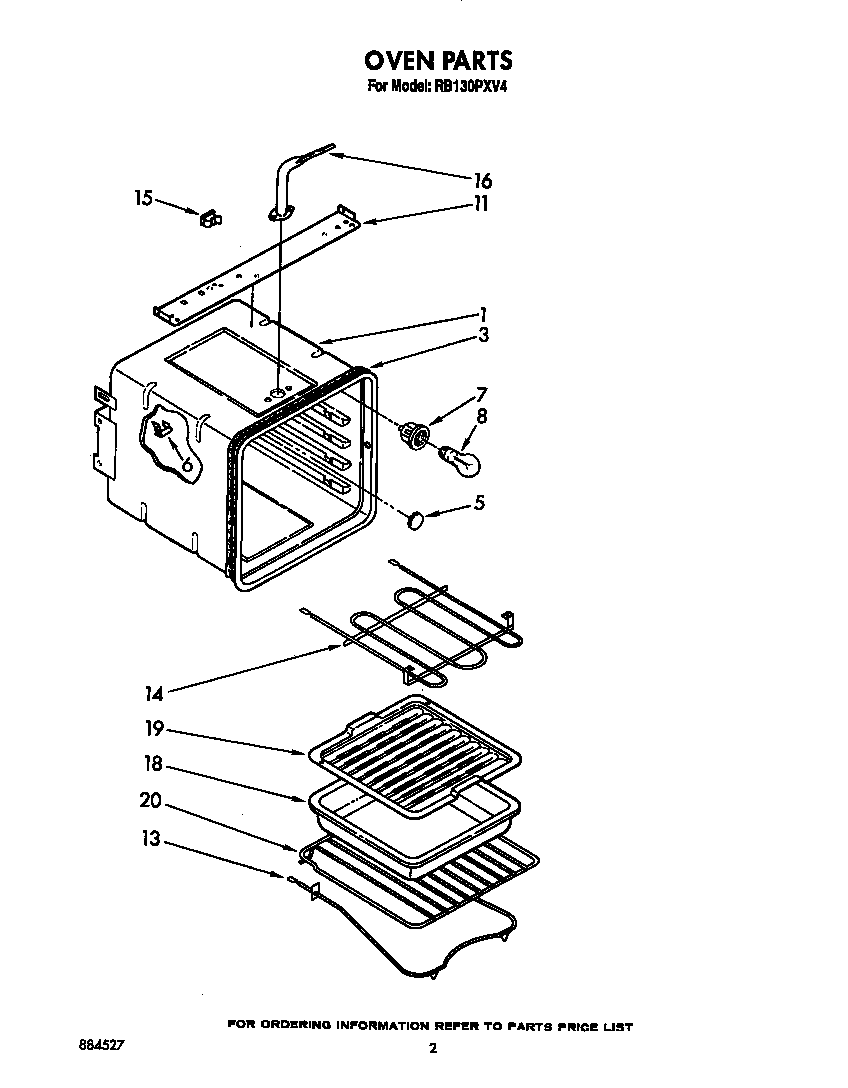

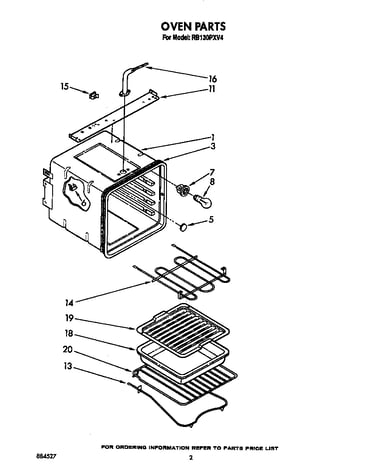

    Oven diagram

    Oven Unit

    Part #660542

    Replaced by #326791

    Info Icon
    Manufacturer substitution
    This part replaces 660542. Substitute parts can look different from the original.
    In Stock
    $62.25
    9% OFF Phone Price : $68.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Whirlpool RB130PXV4 - Part WP660579

    Oven diagram

    Range Broil Element

    Part #660579

    Replaced by #WP660579

    Info Icon
    Manufacturer substitution
    This part replaces 660579. Substitute parts can look different from the original.
    In Stock
    $78.38
    7% OFF Phone Price : $84.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Whirlpool RB130PXV4 - Part WP488627

    Oven door diagram

    Screw

    Part #338156

    Replaced by #WP488627

    Info Icon
    Manufacturer substitution
    This part replaces 338156. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.31
    11% OFF Phone Price : $9.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Terminal Block Hex Nut for Whirlpool RB130PXV4 - Part WP112432

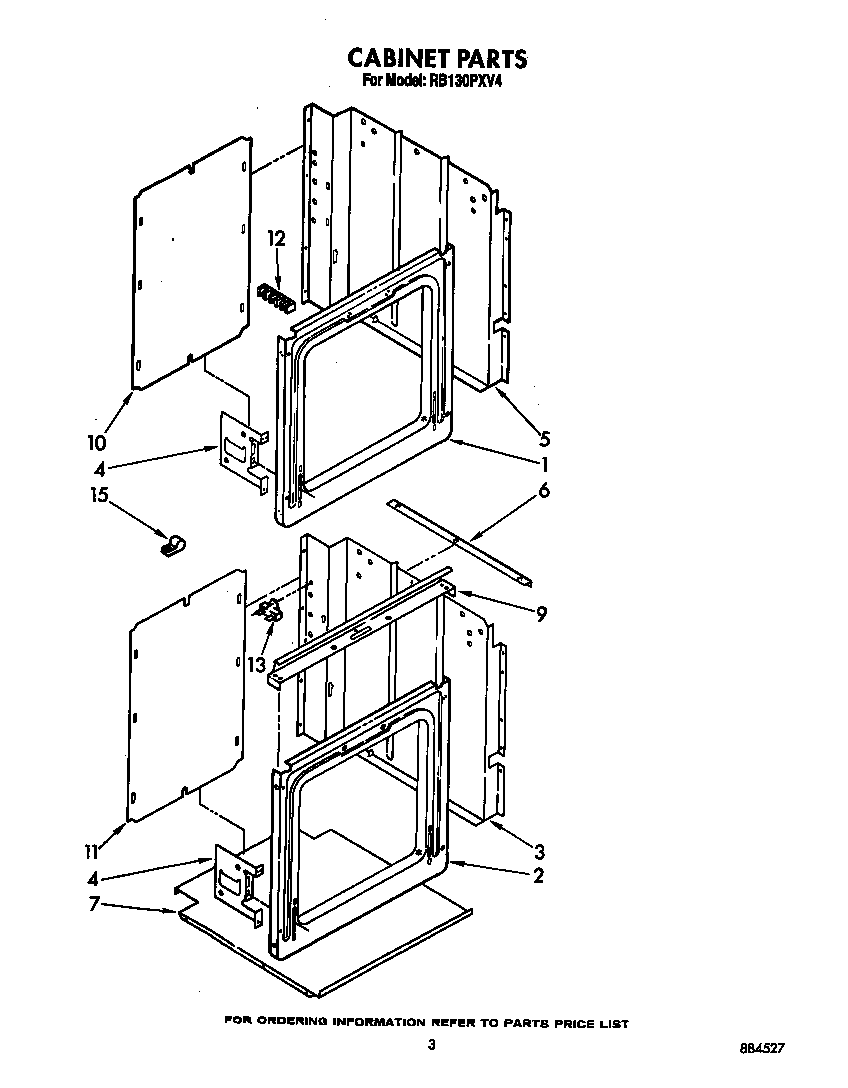

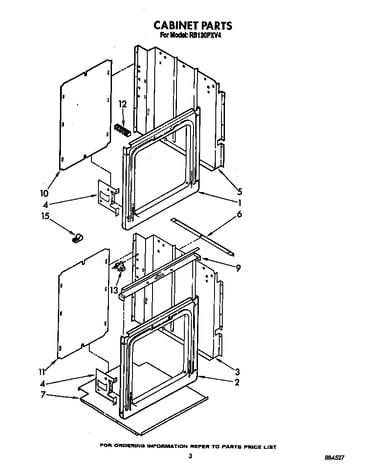

    Cabinet diagram

    Nut

    Part #112432

    Replaced by #WP112432

    Info Icon
    Manufacturer substitution
    This part replaces 112432. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Whirlpool RB130PXV4 - Part W10841059

    Cabinet diagram

    Screw

    Part #98445

    Replaced by #W10841059

    Info Icon
    Manufacturer substitution
    This part replaces 98445. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.46
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (almond) for Whirlpool RB130PXV4 - Part 350956

    #NI

    All parts diagram

    Spray Al

    Part #350956

    Replaced by #350956

    Info Icon
    Manufacturer substitution
    This part replaces 350956. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.02
    16% OFF Phone Price : $37.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (black) for Whirlpool RB130PXV4 - Part 285006

    #NI

    All parts diagram

    Spray Bl

    Part #830864

    Replaced by #285006

    Info Icon
    Manufacturer substitution
    This part replaces 830864. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $45.09
    12% OFF Phone Price : $51.09Info Icon
    Minus Item
    Qty
    Plus Item
