Eureka
Upright Vacuum

Model # 4870HZ Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4870HZ upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Headlight 57940-3
#7

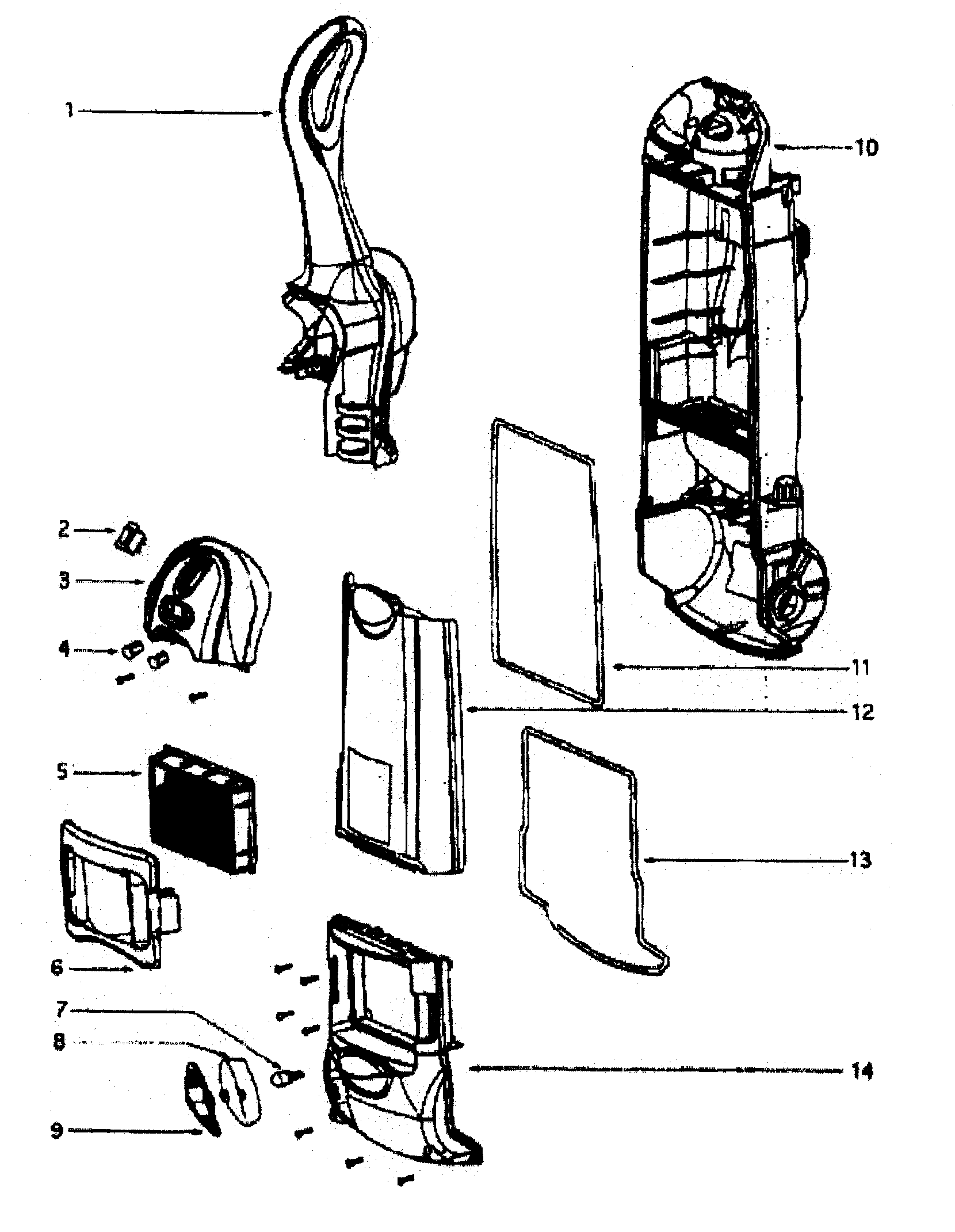

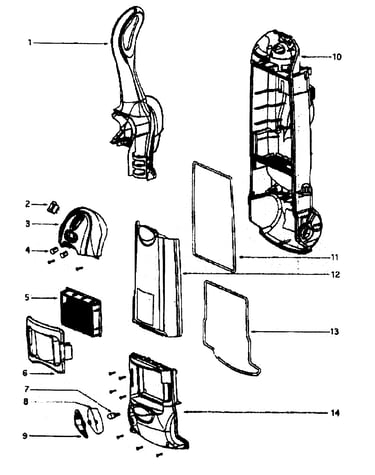

Main body diagram

Headlight

Part #57940-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 54943
#12

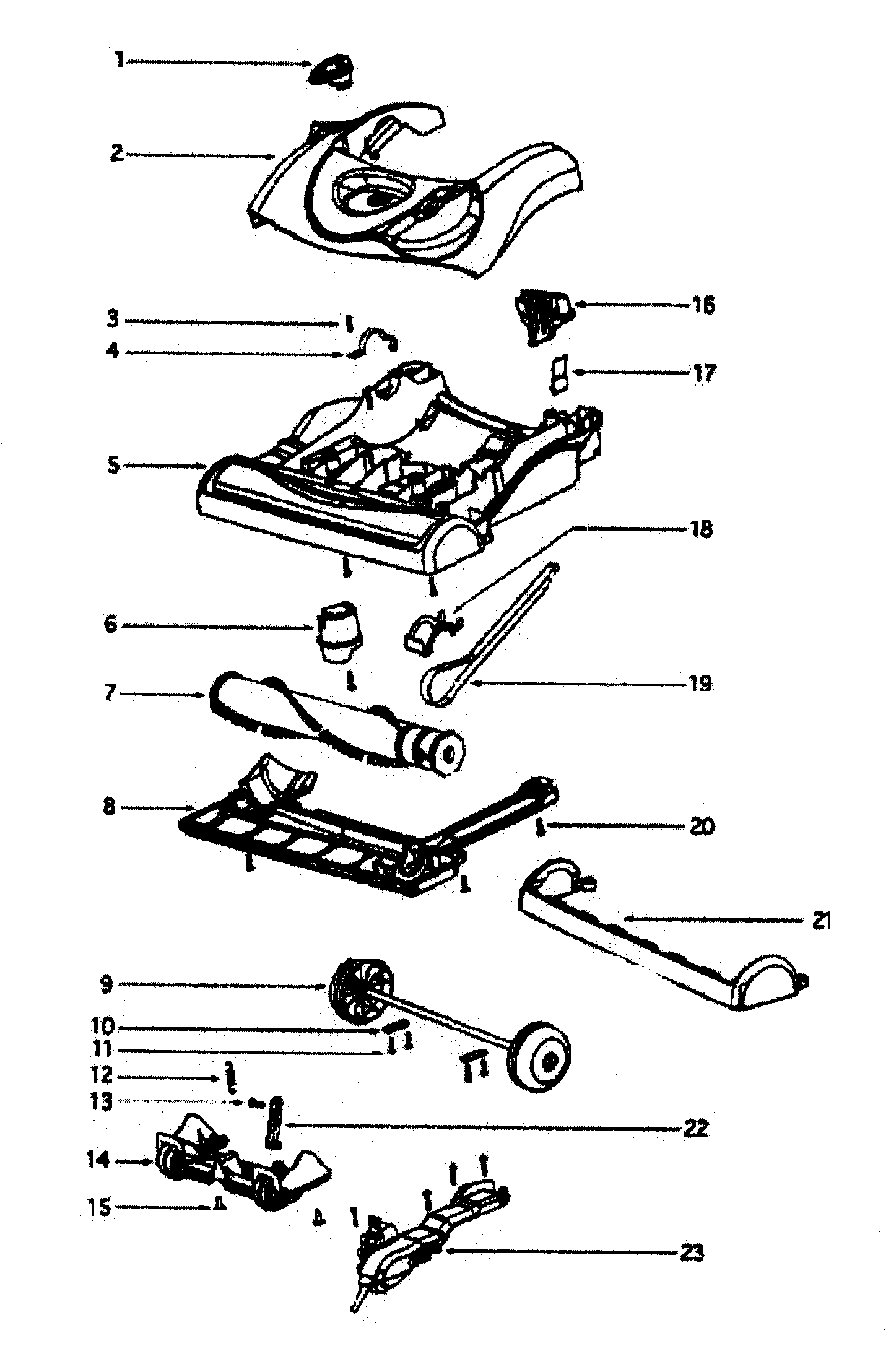

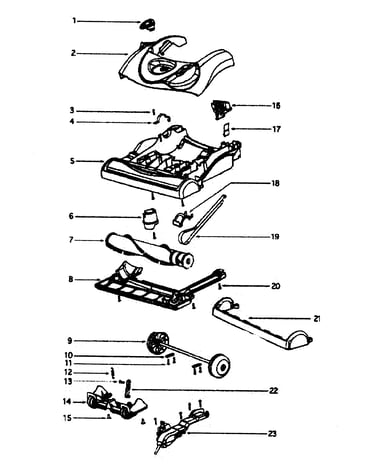

Base assy diagram

Vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 74584
#NI

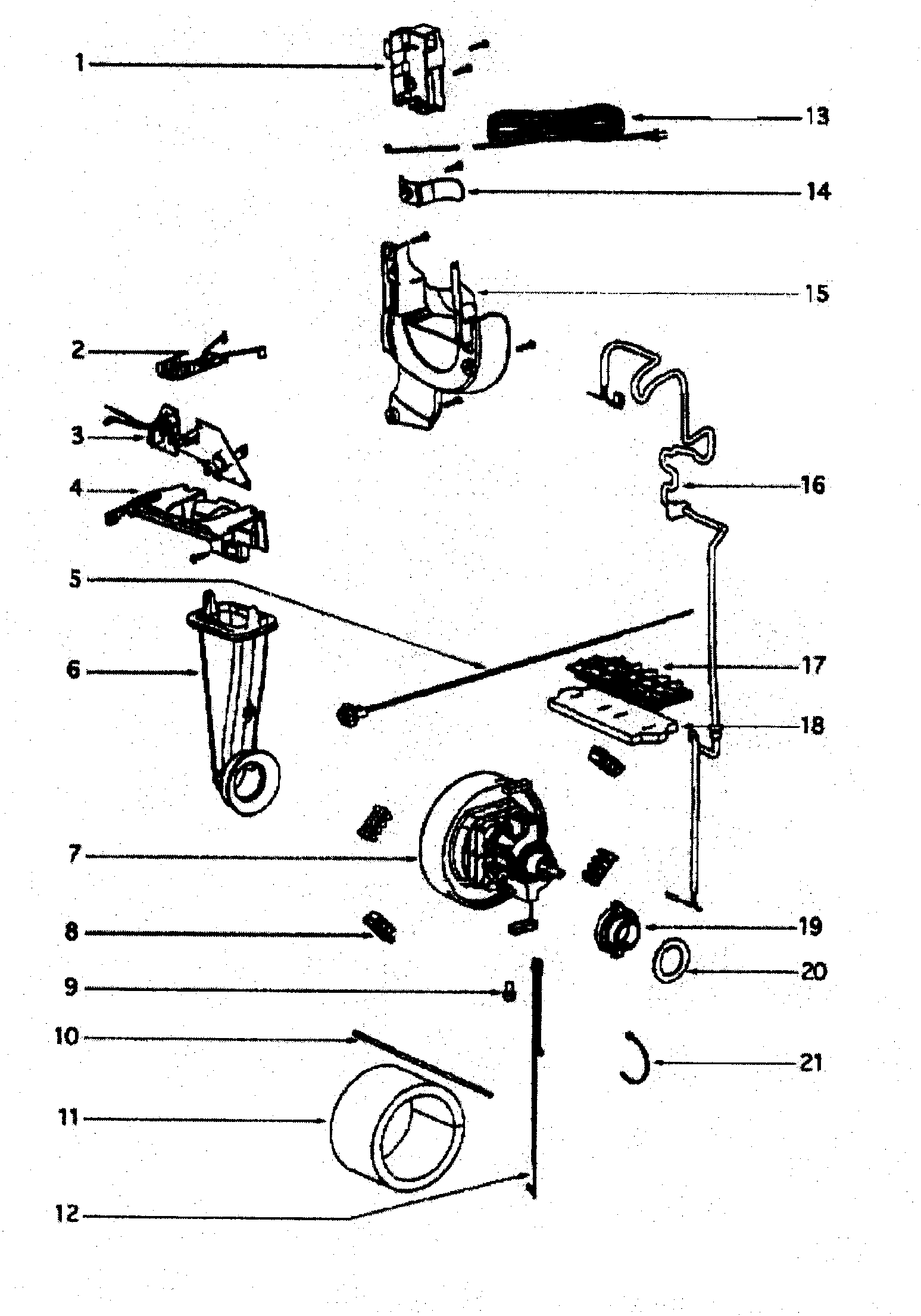

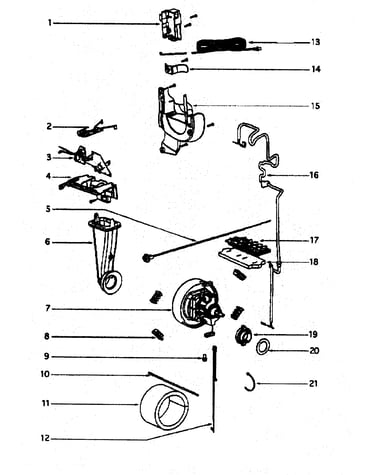

Motor assy diagram

Motor shield

Part #74584

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Clip 70582-119N
#14

Motor assy diagram

Vacuum clip

Part #70582-119N

The manufacturer no longer makes this part, and there's no substitute part

Lens 70088-1
#9

Main body diagram

Lens

Part #70088-1

The manufacturer no longer makes this part, and there's no substitute part

Hose&adptr 70588-1
#15

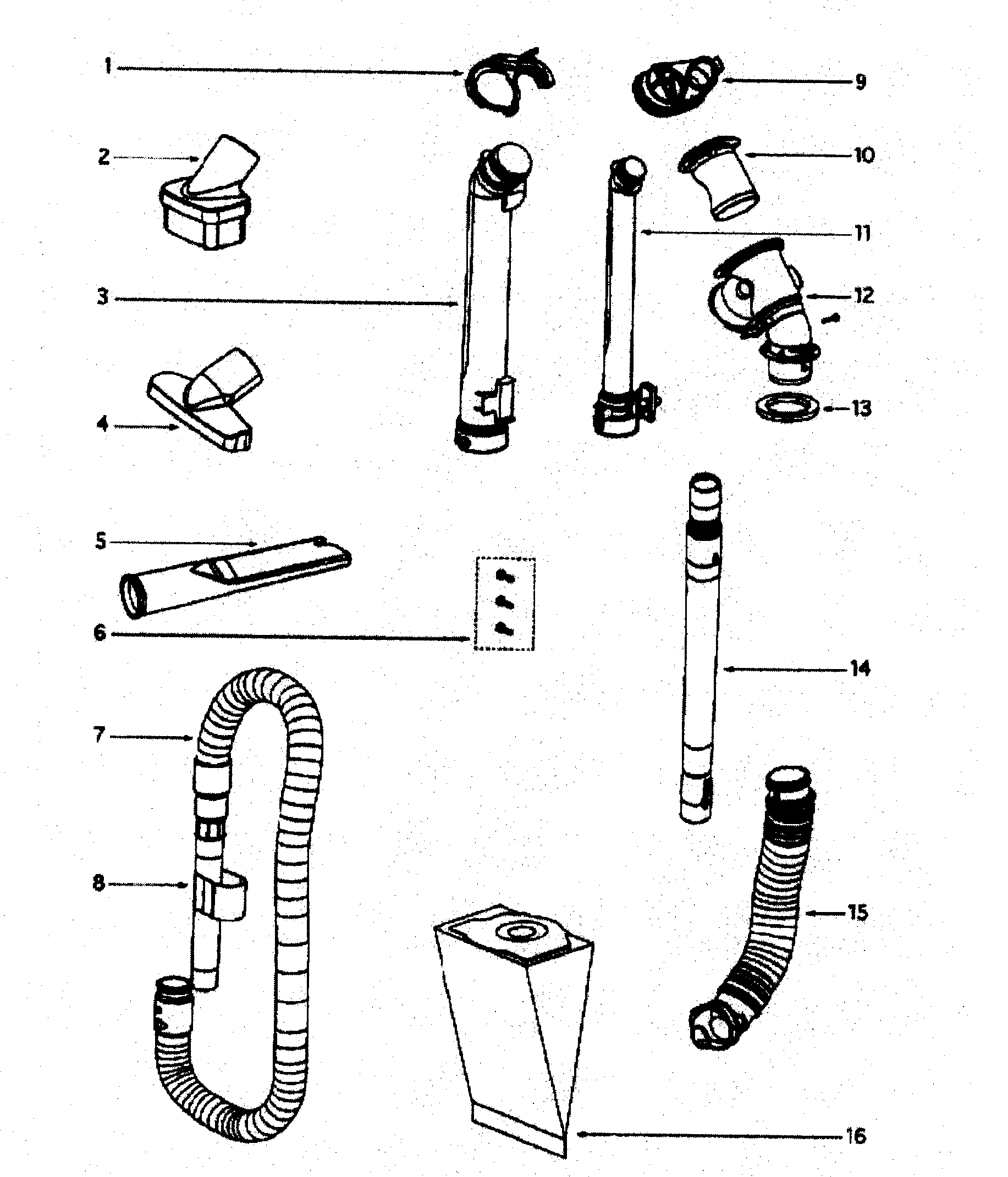

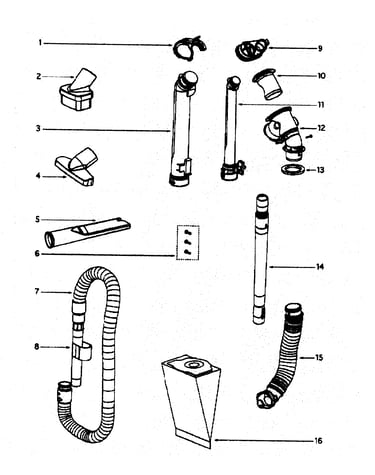

Accessories diagram

Hose&adptr

Part #70588-1

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-1
#12

Motor assy diagram

Thermostat

Part #39252-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 60860
#13

Base assy diagram

Vacuum screw, 10-pack

Part #60860

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly 70024ASV
#8

Base assy diagram

Plate assembly

Part #70024ASV

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 46713-5
#21

Motor assy diagram

Wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part
