Amana AES5730BAF electric range Parts
Here are the diagrams and repair parts for Amana AES5730BAF electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for AES5730BAF Ranges
Body diagram
Power Bracket
Part #74004180Replaced by #W10190166
Manufacturer substitutionThis part replaces 74004180. Substitute parts can look different from the original.In Stock$32.70
Qty
Screw (off-white)
Part #74009541Replaced by #WP74009541
Manufacturer substitutionThis part replaces 74009541. Substitute parts can look different from the original.In Stock$28.42QtyBody diagram
Panel, Shiel
Part #74010822Replaced by #2618F206-51

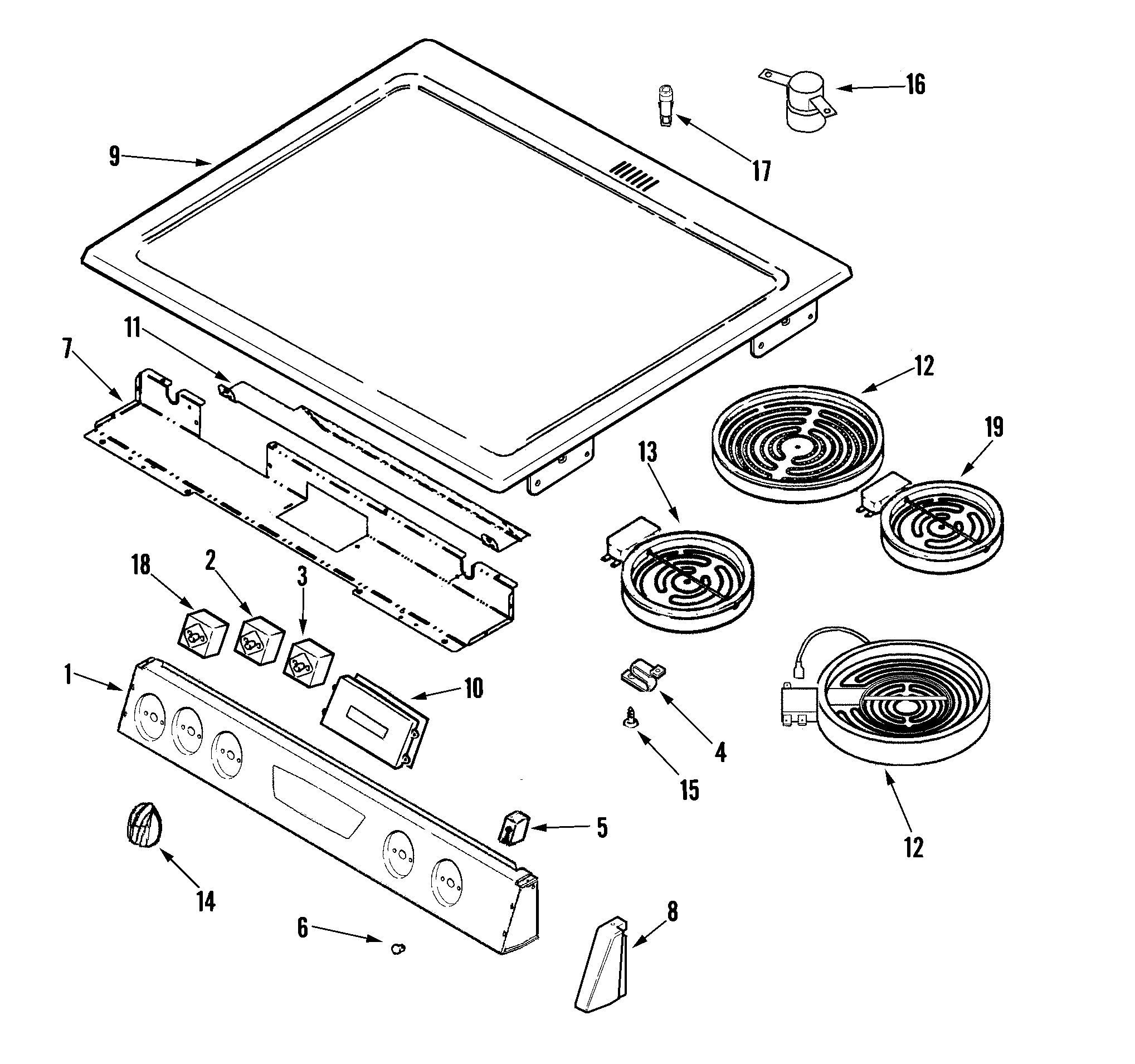

Manufacturer substitutionThis part replaces 74010822. Substitute parts can look different from the original.In Stock$117.52QtyControl panel/top asy diagram
Screw
Part #74003357Replaced by #WP7101P498-60

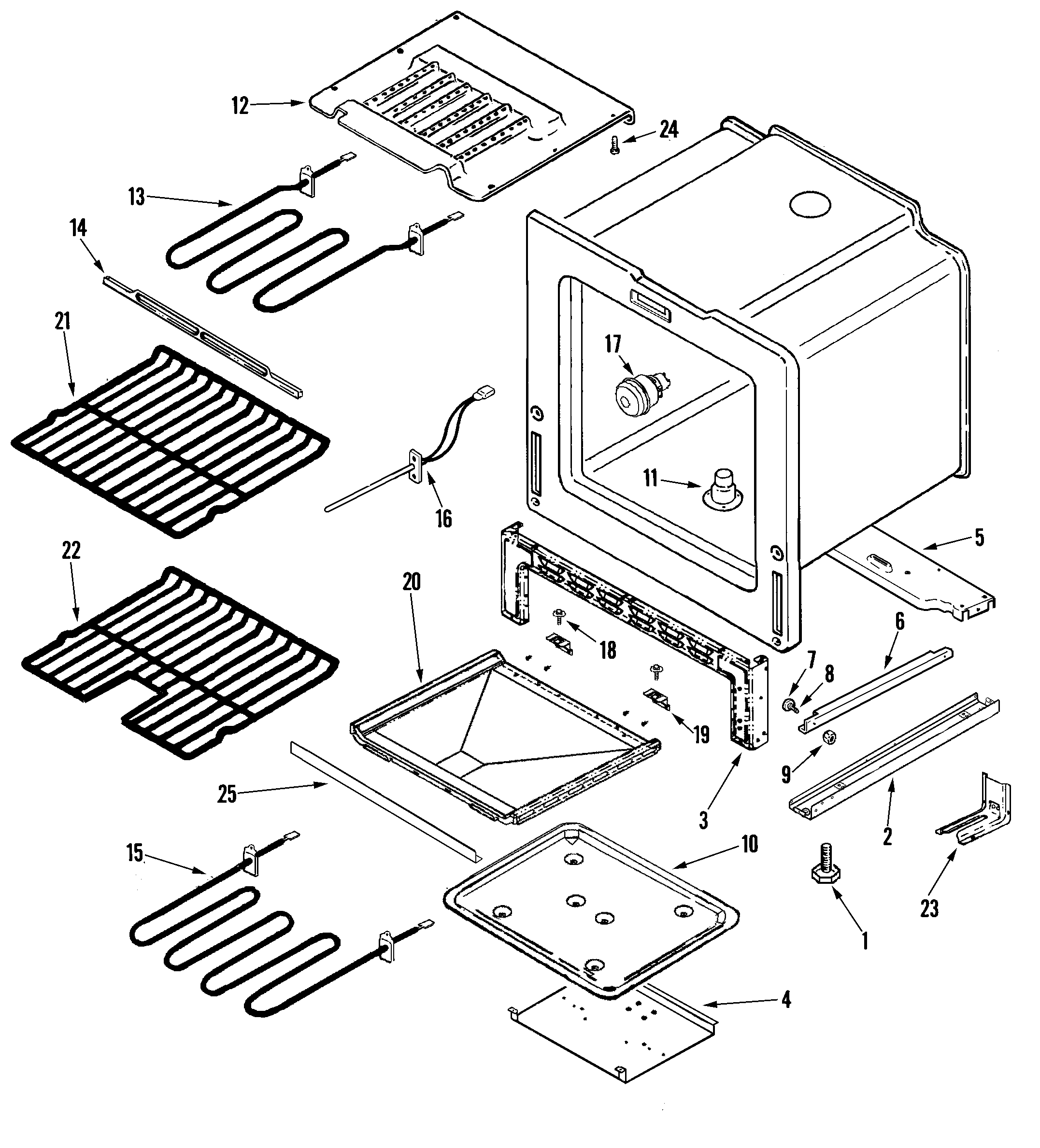

Manufacturer substitutionThis part replaces 74003357. Substitute parts can look different from the original.In Stock$28.42QtyOven/base diagram
Range Level Screw
Part #74010805
The manufacturer no longer makes this part, and there's no substitute part

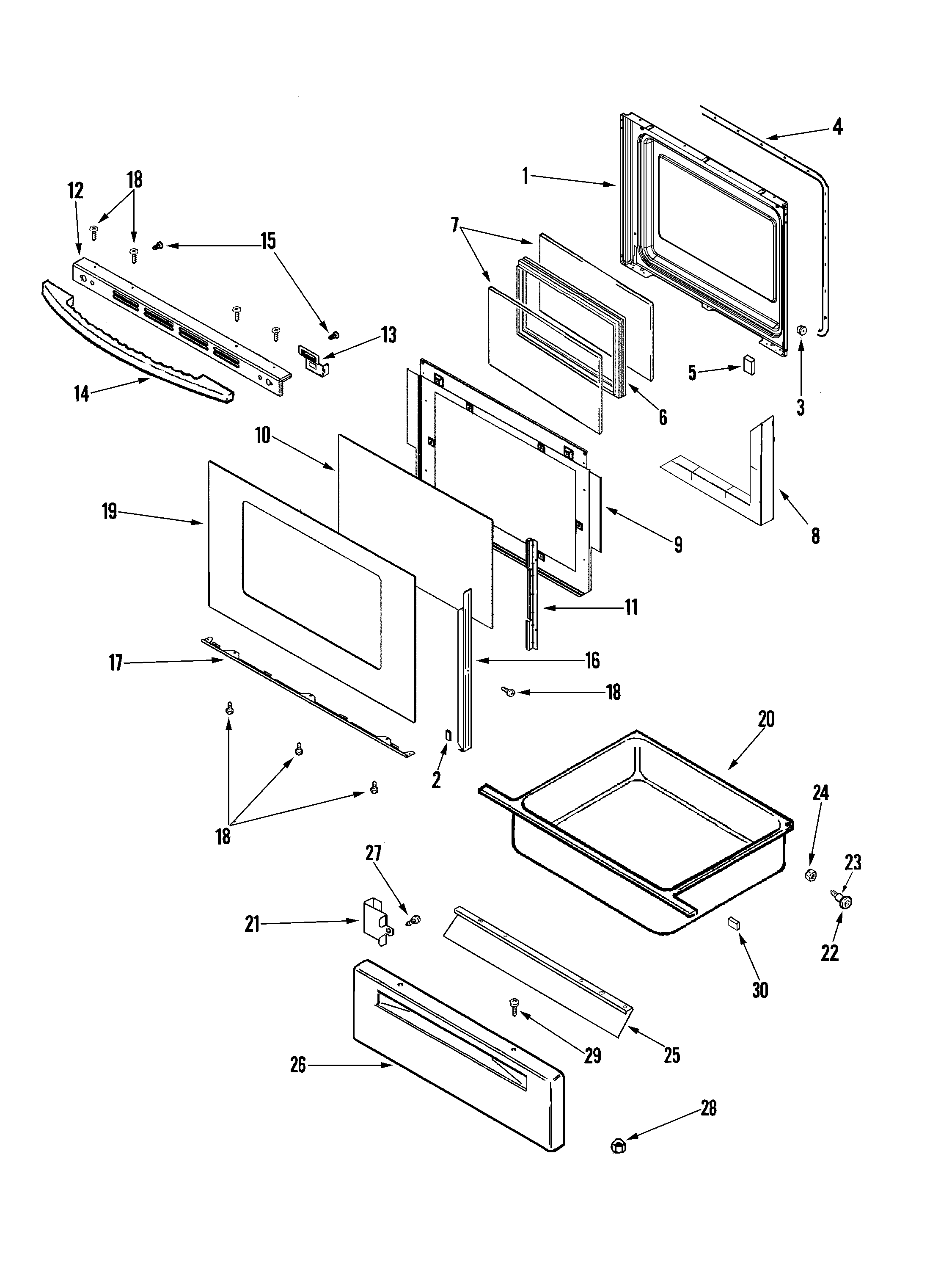

Door/drawer diagram
Door Bracket
Part #74009699Replaced by #3801F832-45
Manufacturer substitutionThis part replaces 74009699. Substitute parts can look different from the original.In Stock$39.94QtyRange Storage Drawer Roller
Part #74004078Replaced by #WP74004078
Manufacturer substitutionThis part replaces 74004078. Substitute parts can look different from the original.In Stock$10.3516% OFF Phone Price : $12.35
QtyControl panel/top asy diagram
Element (120
Part #74008568Replaced by #W10823711
Manufacturer substitutionThis part replaces 74008568. Substitute parts can look different from the original.In Stock$137.928% OFF Phone Price : $149.92QtyOven/base diagram
Oven
Part #74010853Replaced by #WP2205F060-19
Manufacturer substitutionThis part replaces 74010853. Substitute parts can look different from the original.In Stock$259.43$12.00 OFF Phone Price : $271.43QtyDoor/drawer diagram
Glass Support
Part #74009687Replaced by #WP3807F708-71
Manufacturer substitutionThis part replaces 74009687. Substitute parts can look different from the original.In Stock$93.916% OFF Phone Price : $99.91Qty
