Whirlpool RCC3024RQ05 electric counter unit Parts
Here are the diagrams and repair parts for Whirlpool RCC3024RQ05 electric counter unit, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for RCC3024RQ05 Cooktops

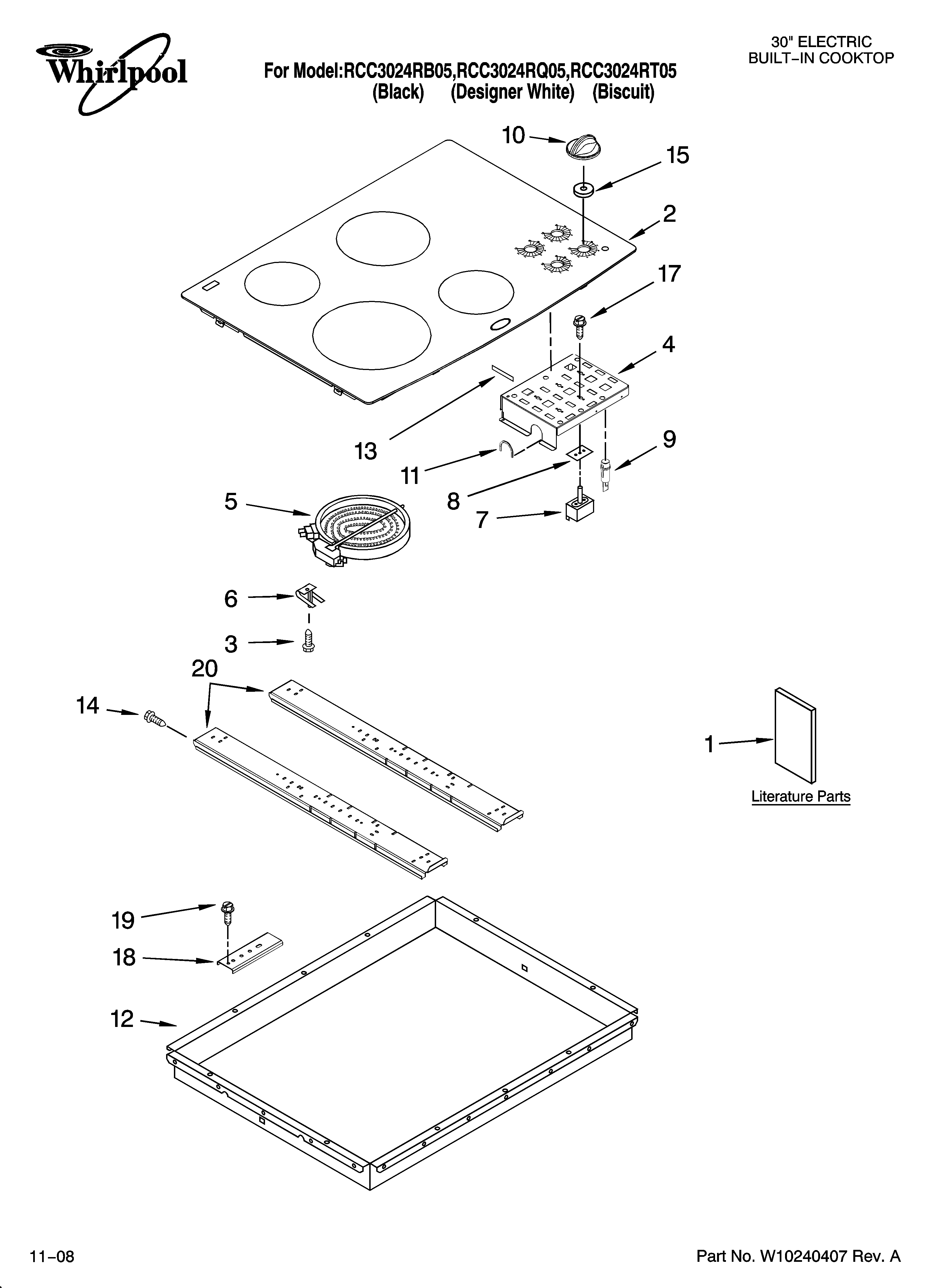

Cooktop parts, optional parts diagram
Range Screw
Part #3196160Replaced by #W10491985
Manufacturer substitutionThis part replaces 3196160. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91
Qty
Cooktop parts, optional parts diagram
Mounting Bracket
Part #4455917Replaced by #8186533
Manufacturer substitutionThis part replaces 4455917. Substitute parts can look different from the original.In Stock$29.3617% OFF Phone Price : $35.36QtyCooktop parts, optional parts diagram
Screw
Part #246119Replaced by #WP486754
Manufacturer substitutionThis part replaces 246119. Substitute parts can look different from the original.This item is not returnableIn Stock$28.49QtyCooktop parts, optional parts diagram
Spring
Part #9759094This item is not returnableIn Stock$25.51QtyCooktop parts, optional parts diagram
Cooktop Indicator Light
In Stock$57.899% OFF Phone Price : $63.89QtyCooktop parts, optional parts diagram
Cooktop Knob Grommet
In Stock$94.24QtyCooktop parts, optional parts diagram
Range Surface Burner Knob
In Stock$22.2021% OFF Phone Price : $28.20QtyCooktop parts, optional parts diagram
Cooktop Element Control Switch Seal
Part #3183956This item is not returnableIn Stock$41.8313% OFF Phone Price : $47.83QtyCooktop parts, optional parts diagram
Cooktop Burner Knob (biscuit)
In Stock$109.91QtyCooktop parts, optional parts diagram
Range Surface Element Control Switch
Part #3191049Replaced by #WP3191049
Manufacturer substitutionThis part replaces 3191049. Substitute parts can look different from the original.In Stock$98.5311% OFF Phone Price : $110.53Qty
