GE TFX20JRSBWW side-by-side refrigerator Parts

Here are the diagrams and repair parts for GE TFX20JRSBWW side-by-side refrigerator, as well as links to manuals and error code tables, if available.

GE TFX20JRSBWW side-by-side refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for TFX20JRSBWW Refrigerators

  • Refrigerator Screw, 2-pack for GE TFX20JRSBWW - Part WZ4X230D

    #65

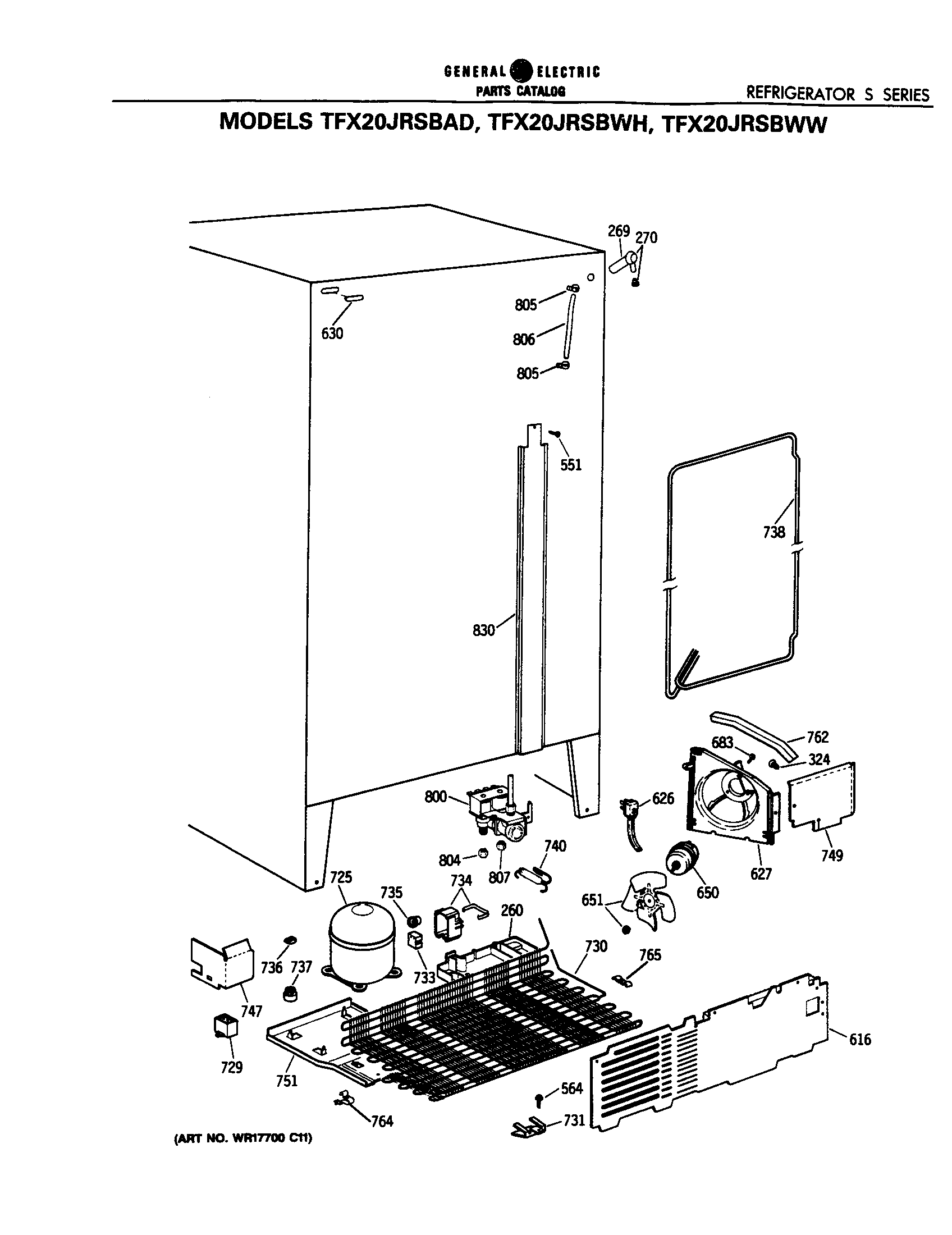

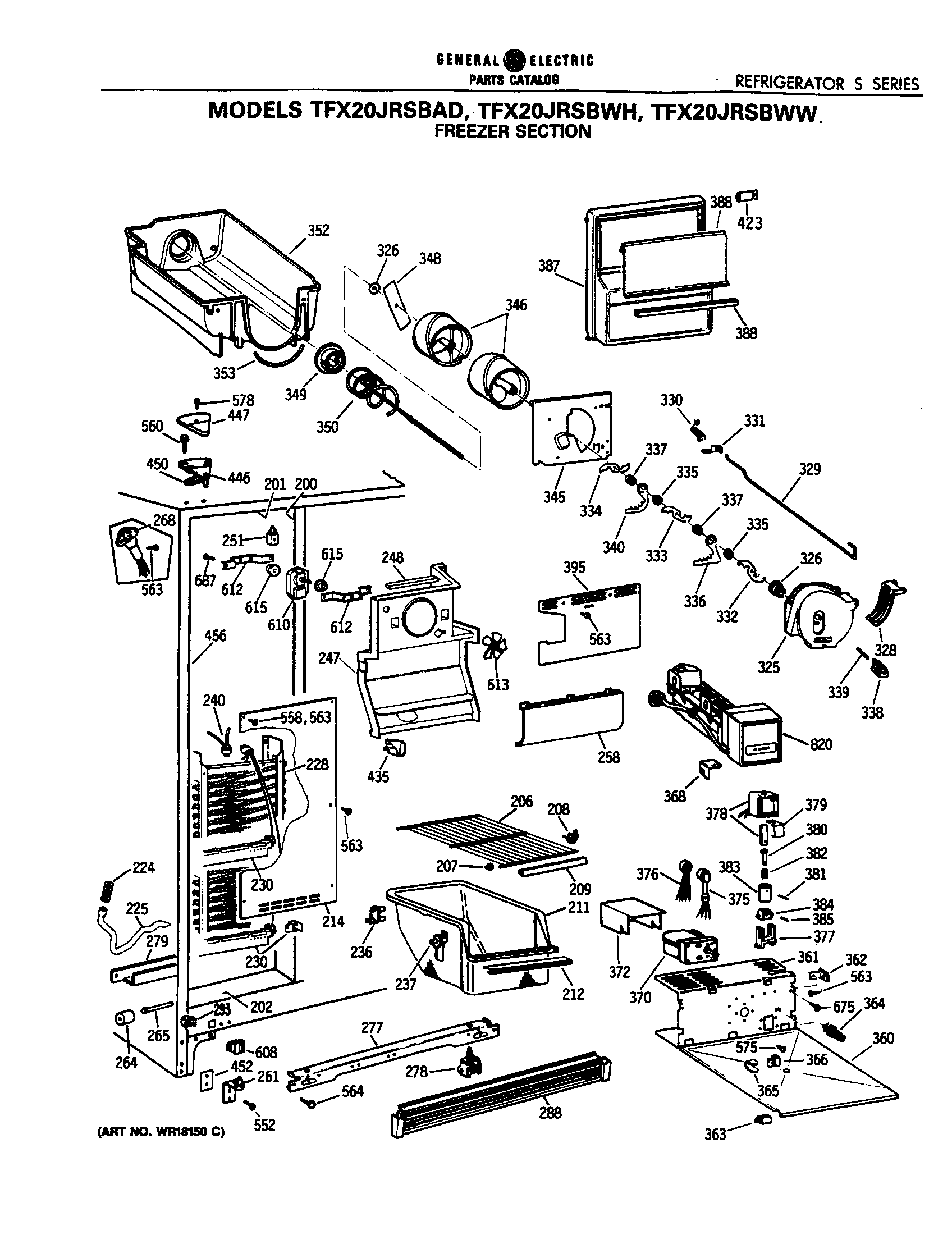

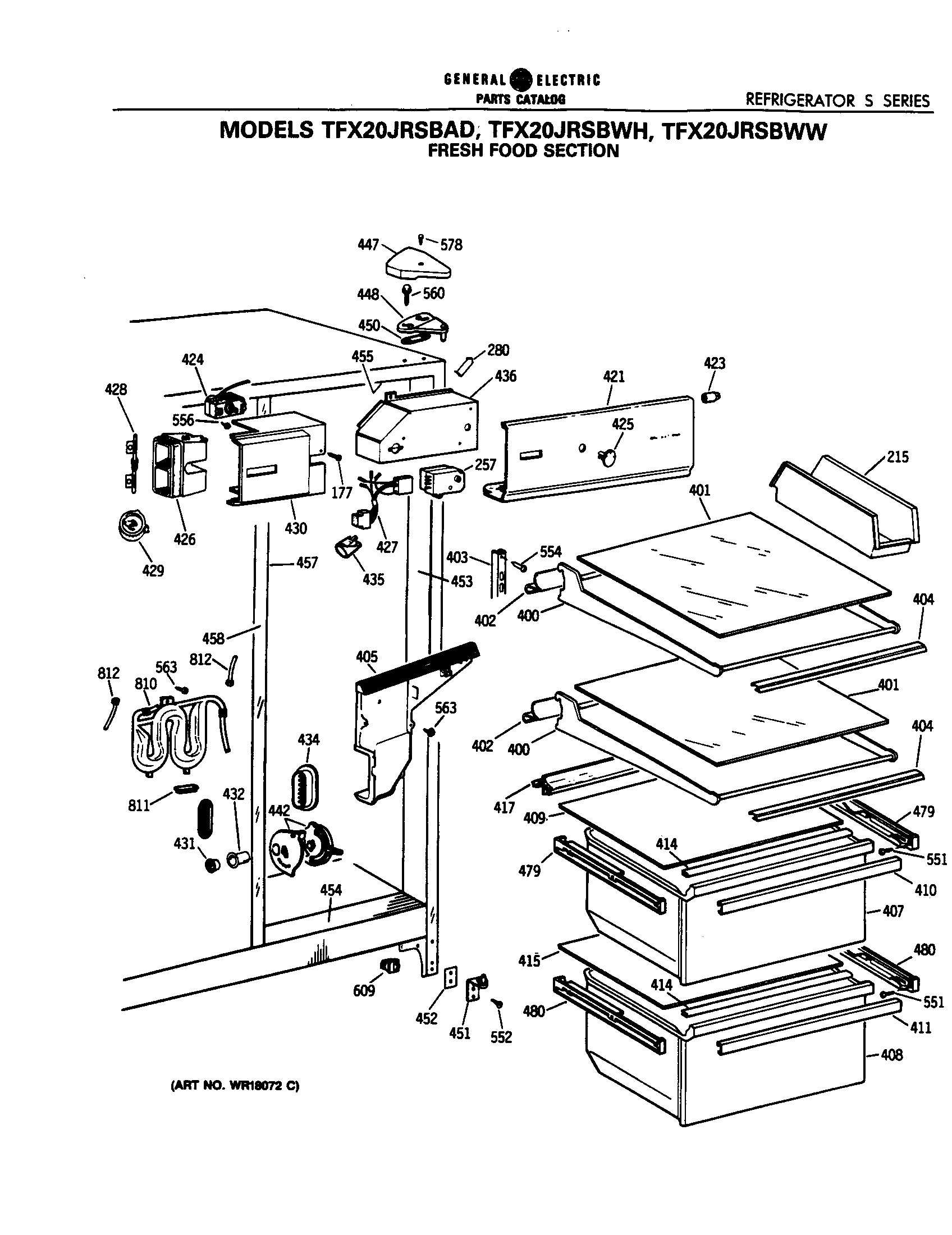

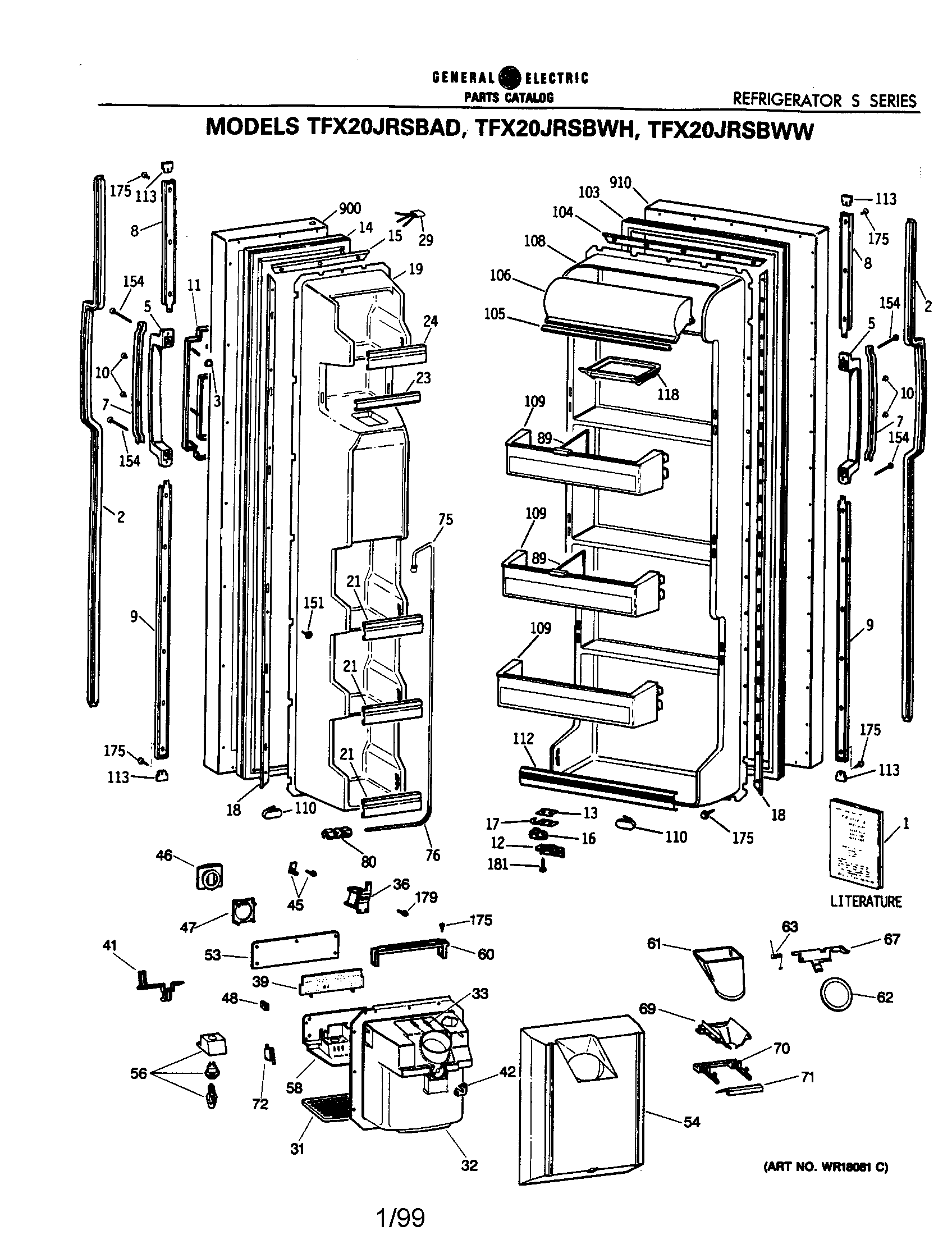

    All parts diagram

    Refrigerator Screw

    Part #WZ04X0230

    Replaced by #WZ4X230D

    Info Icon
    Manufacturer substitution
    This part replaces WZ04X0230. Substitute parts can look different from the original.
    In Stock
    $33.21
    15% OFF Phone Price : $39.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for GE TFX20JRSBWW - Part WR1X5278

    #805

    All parts diagram

    Str Relief

    Part #WR02X3736

    Replaced by #WR1X5278

    Info Icon
    Manufacturer substitution
    This part replaces WR02X3736. Substitute parts can look different from the original.
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clamp for GE TFX20JRSBWW - Part WR2X4754

    #270A

    All parts diagram

    Refrigerator Clamp Fill Tube

    Part #WR01X5223

    Replaced by #WR2X4754

    Info Icon
    Manufacturer substitution
    This part replaces WR01X5223. Substitute parts can look different from the original.
    In Stock
    $9.02
    10% OFF Phone Price : $10.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Dispenser Solenoid Stirrup for GE TFX20JRSBWW - Part WR62X26536

    #380

    All parts diagram

    Refrigerator Ice Dispenser Solenoid Plunger

    Part #WR17X1064

    Replaced by #WR62X26536

    Info Icon
    Manufacturer substitution
    This part replaces WR17X1064. Substitute parts can look different from the original.
    In Stock
    $62.30
    9% OFF Phone Price : $68.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Rca Refrigerator Ice Dispenser Motor Cover for GE TFX20JRSBWW - Part WR02X11295

    #372

    All parts diagram

    Motor Shield

    Part #WR17X2946

    Replaced by #WR02X11295

    Info Icon
    Manufacturer substitution
    This part replaces WR17X2946. Substitute parts can look different from the original.
    In Stock
    $28.42
    17% OFF Phone Price : $34.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Fastener for GE TFX20JRSBWW - Part WR1X1936

    #809

    All parts diagram

    Refrigerator Fastener

    Part #WR01X1936

    Replaced by #WR1X1936

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1936. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Screw, #10-16 X 1/2-in for GE TFX20JRSBWW - Part WD2X5166

    #676

    All parts diagram

    Refrigerator Screw

    Part #WZ04X0263

    Replaced by #WD2X5166

    Info Icon
    Manufacturer substitution
    This part replaces WZ04X0263. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Dispenser Pivot Pin for GE TFX20JRSBWW - Part WR2X4143

    #328B

    All parts diagram

    Refrigerator Pivot

    Part #WR02X4143

    Replaced by #WR2X4143

    Info Icon
    Manufacturer substitution
    This part replaces WR02X4143. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Dispenser Solenoid Stirrup for GE TFX20JRSBWW - Part WR62X26536

    #381

    All parts diagram

    Refrigerator Spiral Pin

    Part #WR02X4257

    Replaced by #WR62X26536

    Info Icon
    Manufacturer substitution
    This part replaces WR02X4257. Substitute parts can look different from the original.
    In Stock
    $62.30
    9% OFF Phone Price : $68.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Mounting Clip for GE TFX20JRSBWW - Part WR2X8583

    #736

    All parts diagram

    Refrigerator Clip

    Part #WR02X8583

    Replaced by #WR2X8583

    Info Icon
    Manufacturer substitution
    This part replaces WR02X8583. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
