What is the function of the indoor coil while in heating mode?

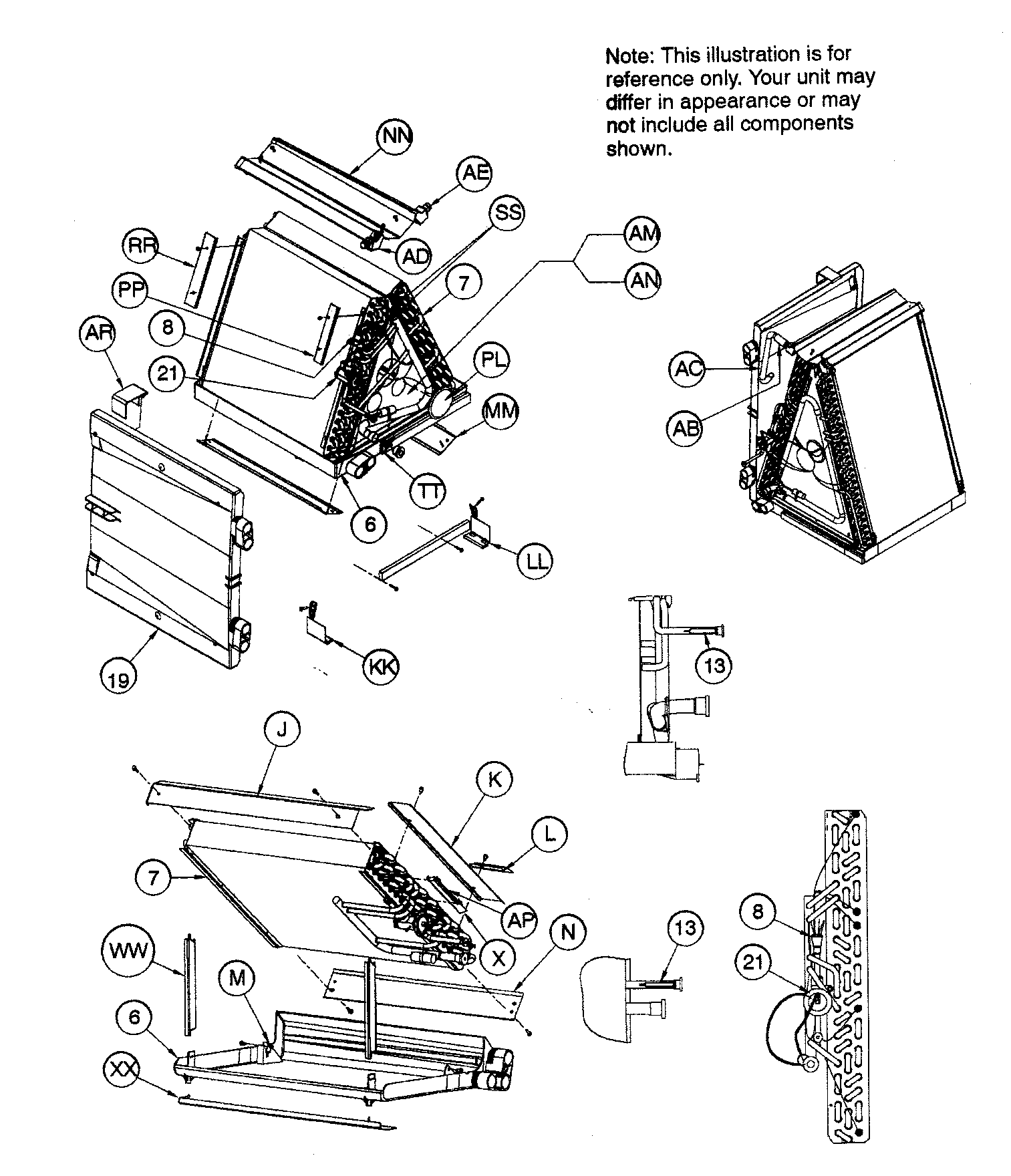

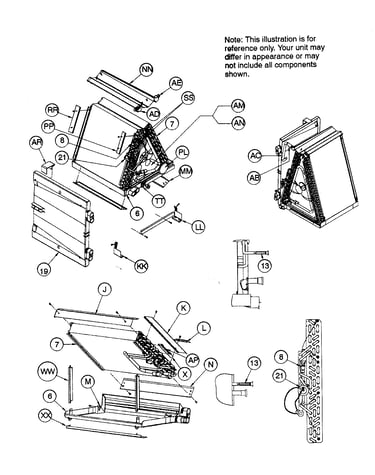

In an Icp fan coil like model FSM2X3000A1 paired with a heat pump, the indoor coil’s job in heating mode is to act as the condenser: it releases heat into the indoor airstream so the blower can deliver warm air through your ducts.
What changes in heating mode
A heat pump uses a reversing valve (in the outdoor unit) to swap which coil absorbs heat and which coil releases it.
- The outdoor coil becomes the evaporator and absorbs heat from outdoor air.
- The indoor coil becomes the condenser and rejects heat into the air moving across it.
- The blower motor pushes air across the indoor coil and into the ductwork.
- The indoor coil also helps dehumidify less in heating mode than in cooling mode.
What you’ll notice if the indoor coil is not transferring heat well
If airflow is restricted or the coil is dirty, heat transfer drops and comfort suffers.
- Weak airflow from vents
- Longer run times or lukewarm supply air
- Higher energy use
- Frost or ice issues (often tied to airflow or refrigerant problems)
- More frequent cycling
Parts on this model that support indoor heat delivery
These parts do not create heat by themselves, but they help the fan coil move air and control operation so the indoor coil can deliver heat effectively.
| What it affects | Common symptom | Example part for FSM2X3000A1 |
|---|---|---|
| Airflow across the coil | Weak or no airflow | Central air conditioner air handler blower motor 1171723 |
| Fan operation and timing | Blower won’t run or runs incorrectly | Air handler fan control board 1171734 |
| Electrical power to controls | No low-voltage control power | Transformer 1172028 |
| Air restriction | Reduced airflow, overheating, poor comfort | Furnace air filter 1171652 |
Why it matters
When the indoor coil is acting as the condenser, airflow and coil cleanliness directly control how much heat gets into your home. Keeping the filter changed and the blower operating correctly helps the system heat evenly and efficiently.
Last updated: February 2026
Is a fan coil the same as an air handler?

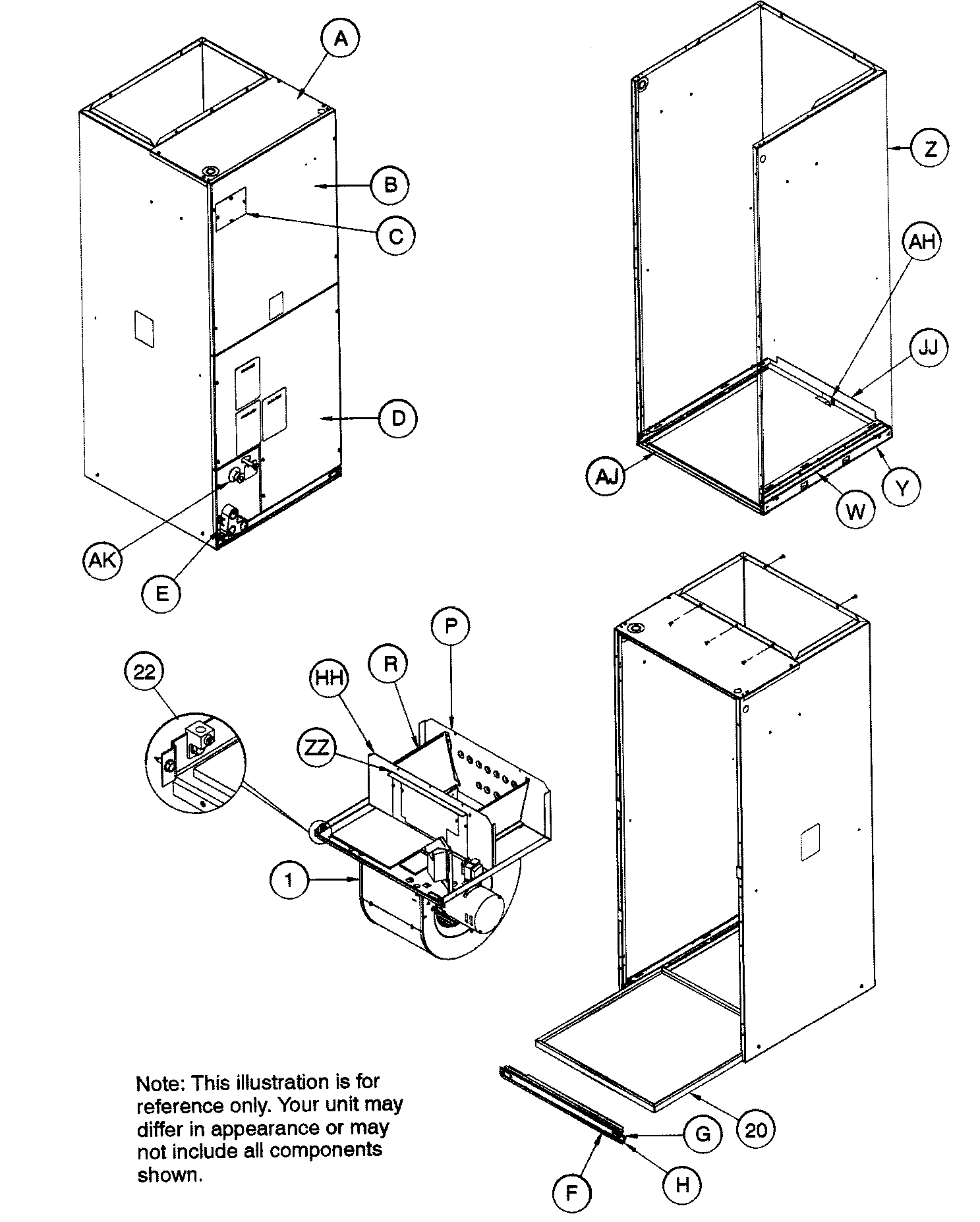

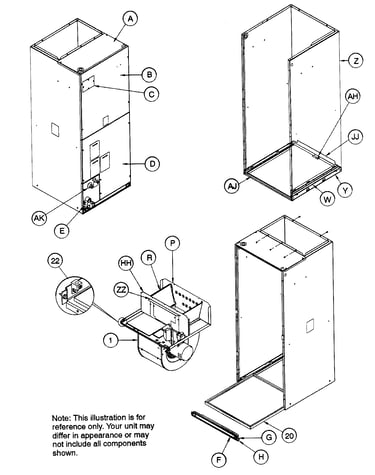

Yes. For your Icp FSM2X3000A1, “fan coil” and “air handler” are commonly used to describe the same indoor unit: it moves air with a blower and conditions it by passing that air across a heating or cooling coil.
How the terms are used (and why both show up)
In HVAC, the names often depend on the system type and what the indoor unit is paired with.
- Fan coil: emphasizes the fan plus the coil (hot water, chilled water, or refrigerant coil)
- Air handler: emphasizes the indoor air-moving cabinet that supports heating and cooling functions
- In many residential split systems, people use the terms interchangeably
- In some setups, “fan coil” is used more when the unit is primarily a coil plus blower (often with hydronic coils)
What’s inside a typical fan coil or air handler
Most units like the FSM2X3000A1 include the same core components.

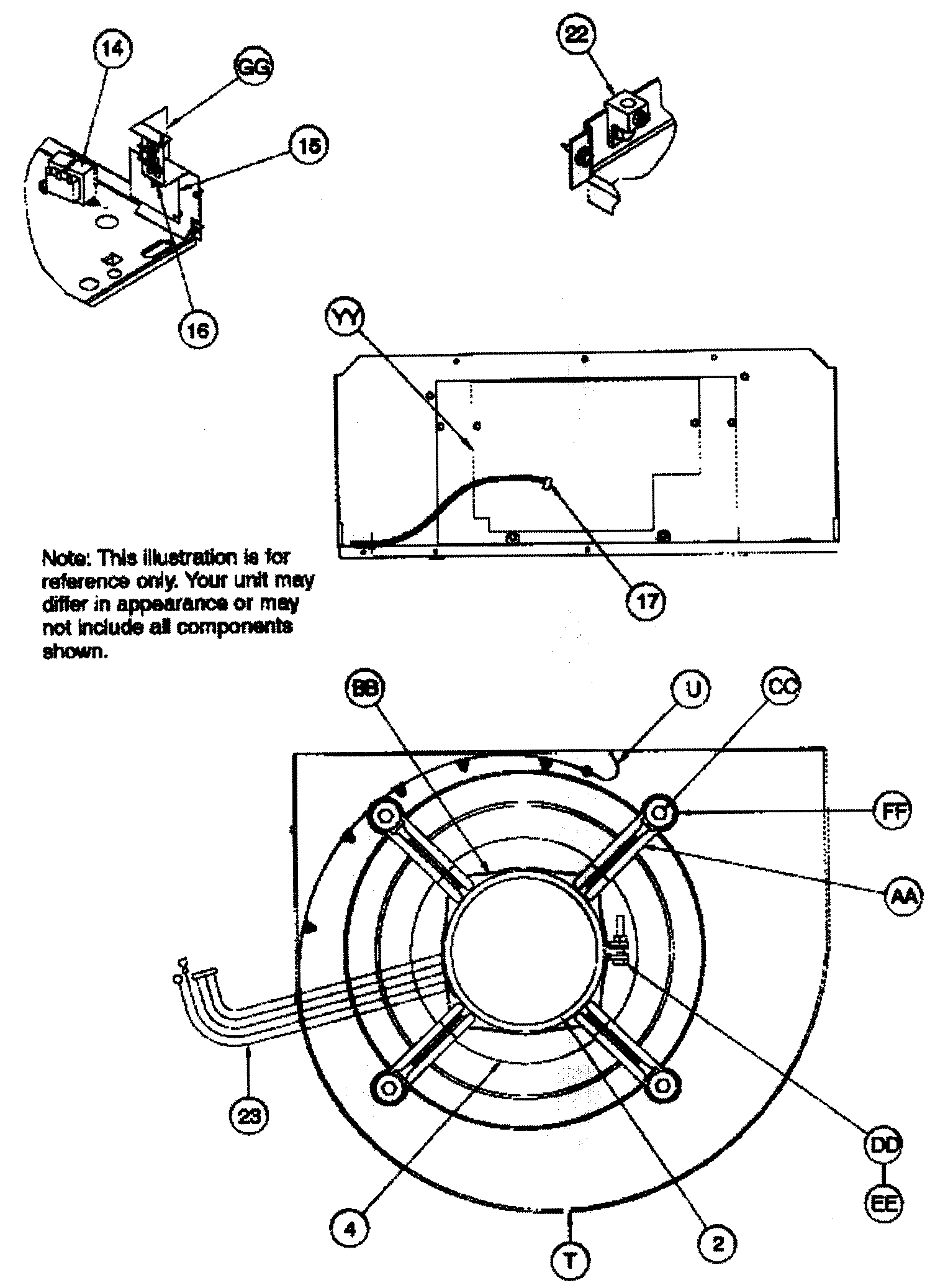

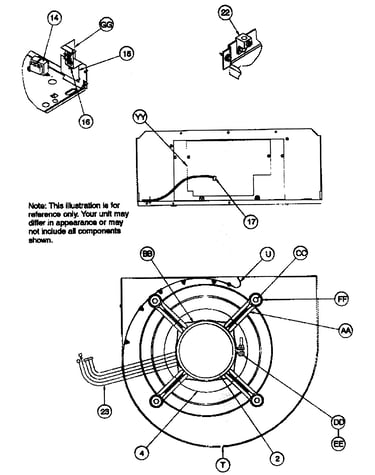

- Blower motor and blower wheel
- Control board and low-voltage controls
- Transformer for 24-volt control power
- Capacitor (for certain blower motor designs)
- Air filter and filter rack
If you are troubleshooting airflow or fan operation, these model-matched parts are commonly involved:
| Symptom | Common area to check | Example model-matched part |
|---|---|---|
| No blower operation | Controls or power conversion | Air handler fan control board 1171734 or transformer 1172028 |
| Hums but won’t start | Motor start/run components | Capacitor 12908 |
| Weak airflow or noise | Blower assembly | Central air conditioner air handler blower motor 1171723 or wheel 1171781 |
| Reduced airflow over time | Filtration | Furnace air filter 1171652 |
Why it matters
Knowing that “fan coil” and “air handler” often mean the same thing helps you match the right parts and troubleshooting steps to the indoor unit, especially when diagnosing airflow problems, control issues, or filter-related restrictions.
Last updated: February 2026
Is an evaporator coil the same as an air handler?
No. On your Icp fan coil model FSM2X3000A1, the air handler (fan coil) is the indoor cabinet that moves air; the evaporator coil is a component inside that cabinet that absorbs heat for cooling. They work together, but they are not the same part.
What each part does
- Air handler (fan coil): Houses the blower, controls, and often the filter; it circulates conditioned air through your ductwork.
- Evaporator coil: Sits in the air stream; refrigerant inside the coil absorbs heat and removes humidity during cooling.
- Electric heat kit (if equipped): Heat strips inside the air handler provide heat when the system runs in electric heat mode.
Quick comparison
| Item | What it is | Where it is | Common symptoms when there’s a problem |
|---|---|---|---|
| Air handler (fan coil) | The indoor air-moving unit | Inside the home (closet, attic, basement) | No airflow, weak airflow, fan won’t run |
| Evaporator coil | The cooling coil | Inside/attached to the air handler | Poor cooling, icing, water leaks, musty odor |
Why people mix them up
- The evaporator coil is installed in the same cabinet as the blower on many fan coil systems.
- Service techs may refer to “the coil” when diagnosing cooling issues, even though the cabinet is the air handler.
- Many comfort problems (low airflow, icing, water leaks) involve both airflow and the coil, so symptoms overlap.
Parts on this model that relate to airflow (not the coil)
If your question comes from a “no air” or “weak air” problem, these model-specific parts are commonly involved:
- Central air conditioner air handler blower motor 1171723 (blower won’t run, noisy motor, weak airflow)
- Capacitor 12908 (motor hums, hard starting, intermittent blower)
- Air handler fan control board 1171734 (fan won’t start, erratic fan operation)
- Furnace air filter 1171652 (restricted airflow, icing risk, reduced comfort)
Why it matters
Knowing the difference helps you troubleshoot correctly: air handler issues usually show up as airflow or control problems, while evaporator coil issues usually show up as cooling performance, icing, or condensate drainage problems.
Last updated: February 2026
How are the blower and coil arranged in most heat pump blower coils?
In most heat pump fan coil (blower coil) setups like the Icp FSM2X3000A1, the blower and coil are arranged in one of two standard airflow configurations: blow-through (blower before the coil) or draw-through (blower after the coil). Both are common; the key difference is where the blower sits relative to the coil.
The two common arrangements
- Blow-through: return air hits the blower first, then the air is pushed through the coil
- Draw-through: return air hits the coil first, then the blower pulls air through the coil
- Either layout can be used with a heat pump indoor coil; what matters is correct airflow direction, drainage, and duct sealing
Quick comparison
| Configuration | Airflow order | Typical effect on the coil | What you may notice |
|---|---|---|---|
| Blow-through | Blower Coil | Coil sees more even, “pushed” airflow | Often steadier airflow at registers |
| Draw-through | Coil Blower | Coil is under suction, can improve air distribution across coil | Can be a bit quieter in some installs |
Why it matters
The blower-to-coil arrangement affects real-world performance items like airflow stability, condensate management, and how sensitive the system is to restrictions (dirty filter, blocked return, matted coil). If airflow is wrong for the installation, you can see icing, poor heating/cooling, or water leaks.
What to check if performance is poor
- Replace or confirm the correct air filter is installed (a restricted filter is the most common airflow problem); see furnace air filter 1171652
- Confirm the blower is running at the correct speed and actually moving air (weak airflow can point to a failing motor or control issue)
- Inspect the indoor coil and return path for blockage (dust, pet hair, collapsed duct)
- If the blower is not running consistently, check the fan control and low-voltage power components
- Use safe electrical testing practices when diagnosing controls; see how to use a multimeter to test electrical parts video
If you suspect an electrical control issue on the FSM2X3000A1, common related parts include the air handler fan control board 1171734 and transformer 1172028.
Last updated: February 2026
