Kenmore
Canister Vacuum

Model # 1165568590C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165568590C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Gasket 742968
#41

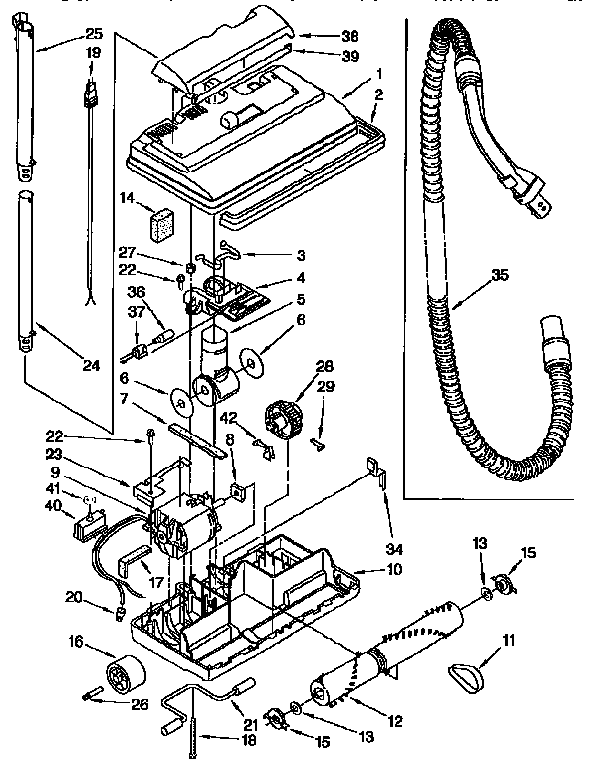

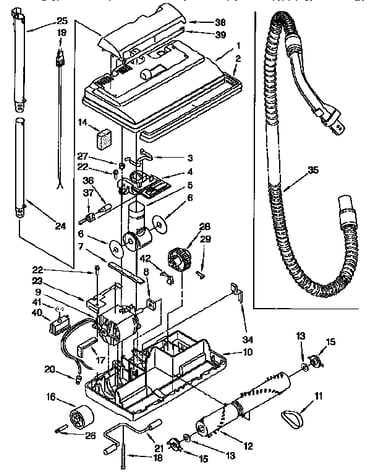

Power-mate diagram

Gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Yoke Bearing Seal 741423
#6

Power-mate diagram

Yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 681638
#18

Power-mate diagram

Screw

Part #681638

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam 4147437
#28

Power-mate diagram

Indicator cam

Part #4147437

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 4154956
#4

Power-mate diagram

Swivel cap

Part #4154956

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 4369499
#26

Power-mate diagram

Vacuum wheel axle

Part #4369499

The manufacturer no longer makes this part, and there's no substitute part

Gasket Motor 4148528
#17

Power-mate diagram

Gasket motor

Part #4148528

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4369856
#38

Power-mate diagram

Housng-blb

Part #4369856

The manufacturer no longer makes this part, and there's no substitute part

Seal 743498
#8

Power-mate diagram

Seal

Part #743498

The manufacturer no longer makes this part, and there's no substitute part
