Model # A06LH6F1 Official Frigidaire room air conditioner - lf34088070

Here are the diagrams and repair parts for Official Frigidaire A06LH6F1 room air conditioner - lf34088070, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

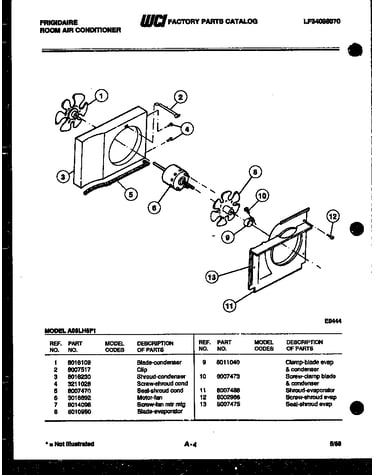

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Filter Drier 8004930
#20

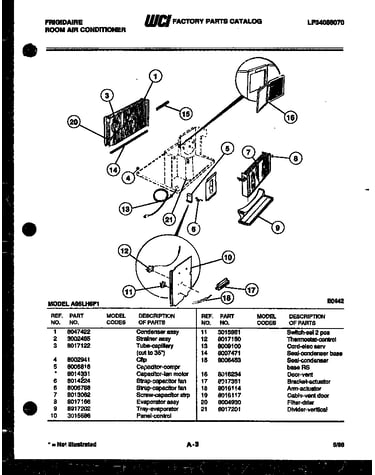

Unit parts diagram

Filter drier

Part #8004930

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 8004930. Substitute parts can look different from the original.
$110.08
In Stock
Strainer 3002485
#2

Unit parts diagram

Strainer

Part #3002485

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3002485. Substitute parts can look different from the original.
$110.08
In Stock
Guide (2) 8016085
#2

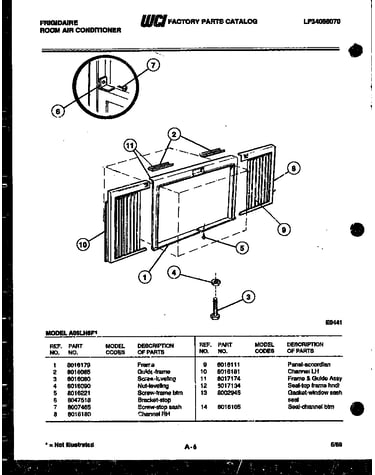

Window mounting parts diagram

Guide (2)

Part #8016085

The manufacturer no longer makes this part, and there's no substitute part

Seal 8017352
#21

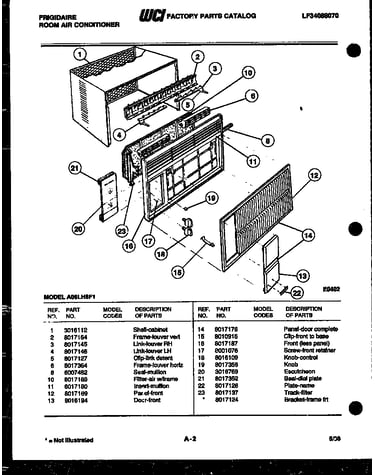

Cabinet parts diagram

Seal

Part #8017352

The manufacturer no longer makes this part, and there's no substitute part

Insert-mullion 8017180
#11

Cabinet parts diagram

Insert-mullion

Part #8017180

The manufacturer no longer makes this part, and there's no substitute part

Cap Cover 3002055
#7

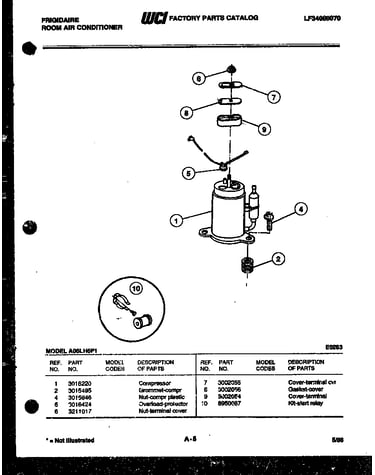

Compressor parts diagram

Cap cover

Part #3002055

The manufacturer no longer makes this part, and there's no substitute part

Nut 3015946
#4

Compressor parts diagram

Nut

Part #3015946

The manufacturer no longer makes this part, and there's no substitute part

Screw 8007465
#7

Window mounting parts diagram

Screw

Part #8007465

The manufacturer no longer makes this part, and there's no substitute part

Knob 8016109
#18

Cabinet parts diagram

Knob

Part #8016109

The manufacturer no longer makes this part, and there's no substitute part

Frame & Guide Assy 8017174
#11

Window mounting parts diagram

Frame & guide assy

Part #8017174

The manufacturer no longer makes this part, and there's no substitute part
