Kenmore
Chest Freezer

Model #2539133582 Kenmore chest freezer

Here are the diagrams and repair parts for Kenmore 2539133582 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 68 parts

    Freezer Door Key#5

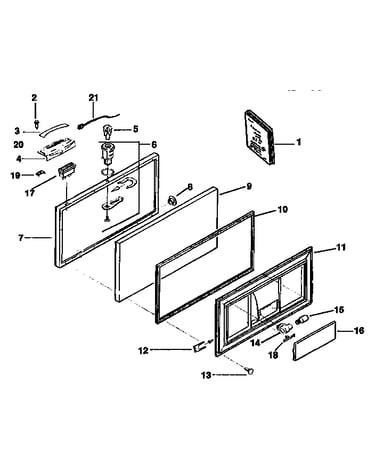

    Lid parts Diagram

    Key

    Part #5308037402
    Replaced by #297147700
    ?
    Manufacturer substitution
    This part replaces 5308037402. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.19
    Freezer Drain Hose Adapter#11

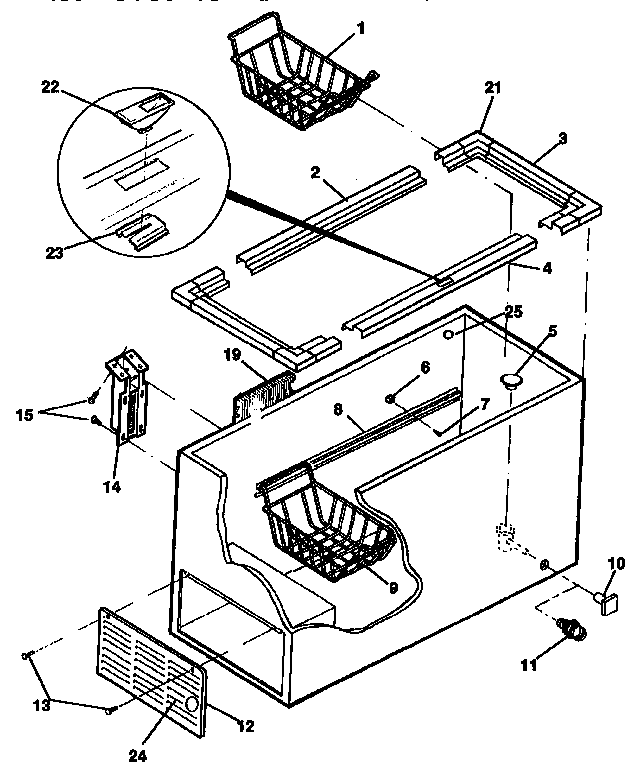

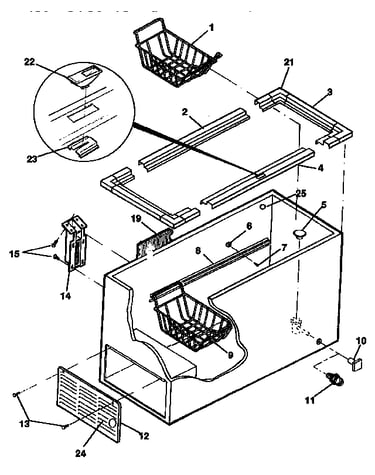

    Cabinet parts Diagram

    Freezer drain hose adapter

    Part #216269500
    BEST SELLER
    This item is not returnable
    In Stock
    $15.69
    Freezer Light Bulb#15

    Lid parts Diagram

    Bulb

    Part #5303091423
    Replaced by #216846400
    ?
    Manufacturer substitution
    This part replaces 5303091423. Substitute parts can look different from the original.
    In Stock
    $35.69 |
    26% OFF
    MSRP: $48.00
    Freezer Screw#7

    Cabinet parts Diagram

    Screw

    Part #5303161215
    Replaced by #216858001
    ?
    Manufacturer substitution
    This part replaces 5303161215. Substitute parts can look different from the original.
    In Stock
    $11.09
    Freezer Door Hinge#14

    Cabinet parts Diagram

    Hinge (almond)

    Part #5303925007
    Replaced by #297321900
    ?
    Manufacturer substitution
    This part replaces 5303925007. Substitute parts can look different from the original.
    In Stock
    $73.29
    Freezer Cabinet Anchor Nut#6

    Cabinet parts Diagram

    Nut

    Part #3017666
    Replaced by #301036
    ?
    Manufacturer substitution
    This part replaces 3017666. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.29
    Refrigerator Door Insulation#9

    Lid parts Diagram

    Insulation

    Part #5300128901
    Replaced by #5303917276
    ?
    Manufacturer substitution
    This part replaces 5300128901. Substitute parts can look different from the original.
    In Stock
    $221.49 |
    15% OFF
    MSRP: $260.00
    Ground Wire#16

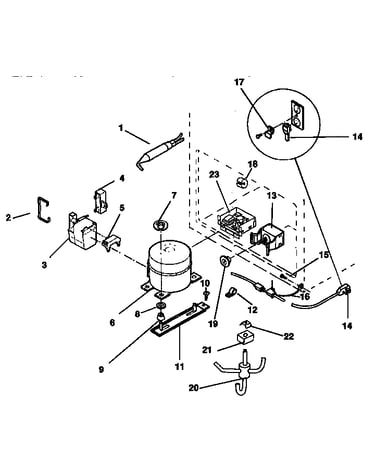

    Unit parts Diagram

    Ground wire

    Part #5303294326
    This item is not returnable
    In Stock
    $4.99
    Refrigerator Overload Relay Cover Clamp#2

    Unit parts Diagram

    Refrigerator overload relay cover clamp

    Part #215012000
    This item is not returnable
    In Stock
    $2.16
    Frost Indicator#25

    Cabinet parts Diagram

    Frost indicator

    Part #216140400
    This item is not returnable
    In Stock
    $2.16
