GE GSD3460G00SS dishwasher Parts

Most GE dishwashers like model GSD3460G00SS are a standard 24-inch built-in size; to tell what size yours is, we measure the cabinet opening (width, height, and depth) and confirm the model number on the tub wall just inside the door. For exact fit details, use the GSD3460G00SS owner's manual.

What to measure (the 3 numbers that matter)

Measure the opening, not the door.

• Width: left cabinet wall to right cabinet wall
• Height: from the floor up to the underside of the countertop
• Depth: from the back wall to the front edge of the cabinet opening
• Toe-kick clearance: note any trim or baseboard that could interfere
• Door swing space: make sure the door can open fully without hitting nearby cabinets

Where to find the model number

On GE dishwashers, we find the model number on the tub wall just inside the door. Matching the model number helps ensure you get the right parts and installation dimensions.

Typical dishwasher sizes (quick reference)

These are the common built-in dishwasher size classes used for planning.

Dishwasher type	Typical width	Typical height	Typical depth
Standard built-in	~24 in.	~34 to 35 in.	~24 in.
Compact built-in	~18 in.	~34 to 35 in.	~24 in.

Why it matters

Correct measurements prevent installation problems like a dishwasher that will not slide in, a door that rubs the cabinet, or a toe panel that will not fit. Accurate sizing also helps when ordering replacement items such as a lower rack or door seal.

Last updated: February 2026

For a standard 24-inch built-in GE dishwasher like model GSD3460G00SS, the rough cabinet opening is typically 24 inches wide x 24 inches deep x 34 1/2 inches high. We recommend confirming the exact cutout and utility locations in the owner's manual.

Typical rough opening and hookups

Most built-in dishwashers in this class fit a standard opening, but small differences in flooring, countertop height, and plumbing can matter.

• Width: 24 inches (minimum)
• Depth: 24 inches (minimum, plus room for hoses/wiring behind)
• Height: 34 1/2 inches (minimum, adjustable with leveling legs)
• Electrical: grounded outlet or hardwire within reach of the junction area
• Water: hot water supply line accessible under the sink or adjacent cabinet
• Drain: route to disposer or sink drain with a proper high loop/air gap as required

Quick measurement checklist

Measure before you slide the dishwasher in; we see most fit issues caused by flooring changes or a bowed countertop.

• Measure opening at the front and the back (cabinets can taper)
• Check height at left, center, and right (countertops can sag)
• Confirm the floor is level; plan to adjust the leveling legs
• Verify the water line and drain hose path will not kink when pushed in
• Leave slack so the unit can be pulled out for service

Rough opening guide (typical)

Item	Typical minimum	Why it matters
Opening width	24 in.	Prevents binding and vibration
Opening depth	24 in.	Allows door to close and hoses to route
Opening height	34 1/2 in.	Ensures the dishwasher can level under the counter

Why it matters

A correct rough opening helps the dishwasher sit level (better cleaning and draining), prevents door alignment issues that can lead to leaks, and avoids pinched wiring or hoses.

Last updated: February 2026

The most common GE dishwasher problems are the dishwasher not starting, not draining, or not cleaning well. On the GE GSD3460G00SS, these issues are usually tied to power or door-latch setup, water temperature (needs 120°F to 150°F), or a restriction in the drain path or wash system; our owner's manual walks through the key checks.

Most common symptoms and what they usually mean

• Won’t run at all: tripped breaker or blown fuse, door not fully latched, or a control/timer issue
• Won’t drain: drain hose restriction, air gap blockage (if equipped), or a drain actuator/solenoid problem
• Dishes not clean: incoming water below 120°F, blocked spray action, or loading that blocks detergent cup
• Spots or filming: hard water, low water temperature, or empty rinse-aid dispenser
• Detergent cup problems: dishes blocking the cup, or the dial not in the OFF position when latching (on dial models)

Quick checks we recommend first (fast, no parts)

• Confirm the door is fully latched before starting a cycle.
• Verify hot water at the sink nearest the dishwasher reaches 120°F to 150°F.
• Run the hot water at the sink for 30 to 60 seconds before starting the cycle.
• Check the drain path for kinks or clogs; inspect the hose routing under the sink.
• Make sure large items do not block the detergent dispenser or spray pattern.

Common causes and likely fixes (at-a-glance)

Symptom	Most likely cause	What to do next
Won’t start	Power issue or door not latched	Reset breaker, latch door firmly, then retry cycle start
Standing water	Drain restriction	Inspect hose and air gap; consider drain components
Poor cleaning	Water too cool or spray blocked	Confirm 120°F+, improve loading, check spray arms
Spots/film	No rinse aid or hard water	Fill rinse aid; adjust detergent for water hardness

When a part is the most likely solution

If the basics check out, these model-matched parts commonly address the “big three” complaints:

• Drain problems: inspect/replace the dishwasher drain hose WD24X10014 if it’s split, kinked, or internally restricted
• No fill or weak fill: test the dishwasher water inlet valve WD15X10003

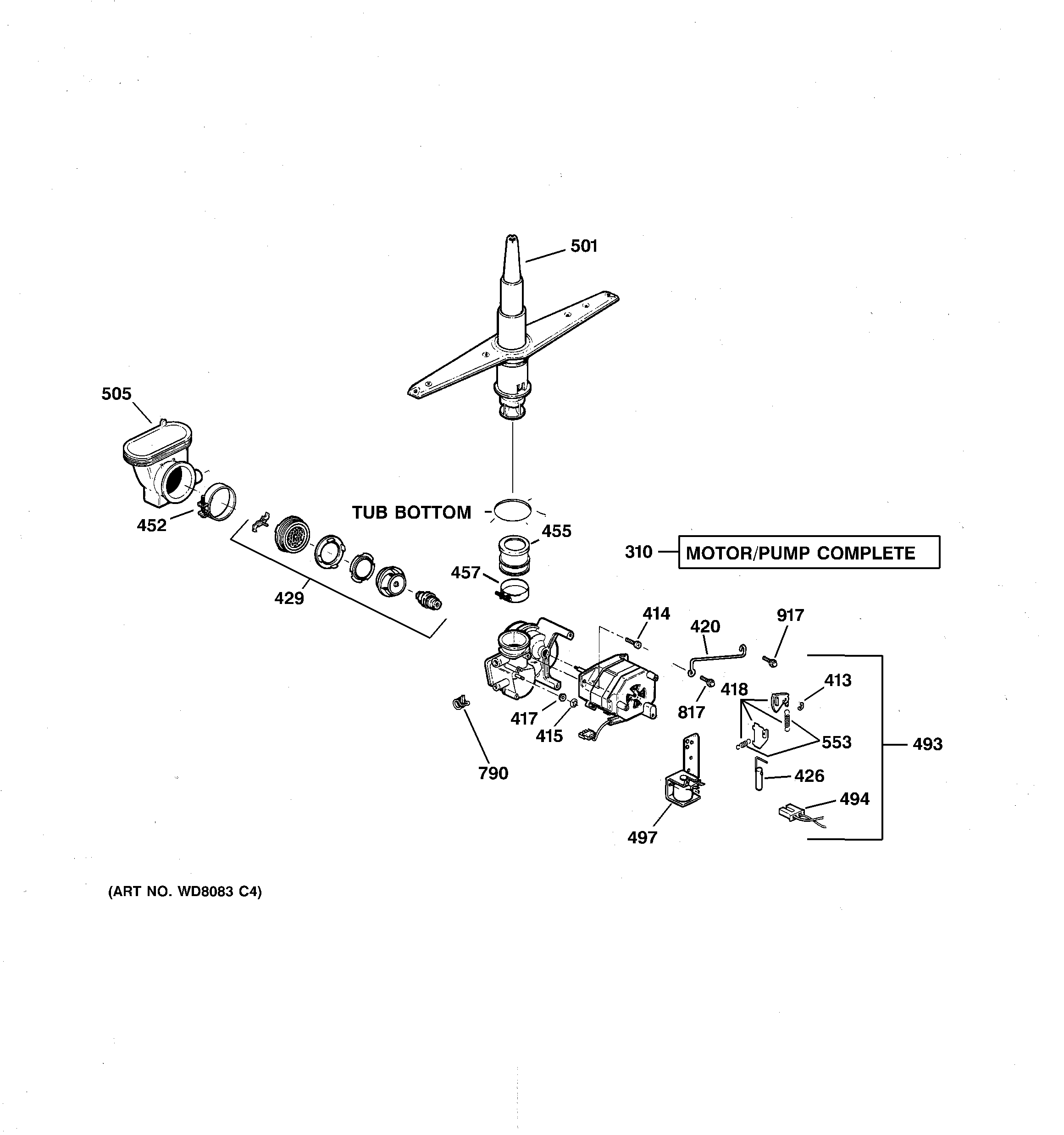

• Poor wash or loud wash motor: the pump and motor mechanism WD26X10013 is a common repair path when circulation is failing

Why it matters

Most “GE dishwasher problems” trace back to water temperature, drainage, or wash circulation. Fixing the root cause prevents repeat clogs, improves cleaning, and reduces strain on the pump, motor, and heater.

Last updated: February 2026

GSD3460G00SS is the model number for a GE dishwasher; we use it to identify the exact parts, diagrams, and operating information that fit your specific dishwasher. It is not an “error code” or phone area code; it is the identifier you’ll use when ordering replacement parts or checking cycle options in the owner's manual.

Where to find the model number on the dishwasher

The model number is typically located on the tub wall just inside the door. This is the best place to confirm you have GSD3460G00SS before ordering parts.

• Open the door and look along the inner tub wall
• Write the full model number exactly as shown
• Use the model number to match parts like seals, racks, and valves
• Keep it handy for troubleshooting and cycle selection

What the model number helps you do

Using the correct model number prevents ordering the wrong part and helps you follow the right operating steps.

What you’re trying to do	Use GSD3460G00SS to…	Example for this model page
Replace a leaking seal	Match the correct door sealing parts	Gasket WD08X10057
Fix poor cleaning	Identify wash system parts and spray arms	Spray arm WD22X155
Solve fill or drain problems	Match hoses, valves, and drain components	Dishwasher water inlet valve WD15X10003
Confirm cycles and options	Follow the correct control and cycle chart	Owner's manual

If you meant an error code instead

This GE dishwasher model uses a model number (GSD3460G00SS) for identification; error codes are a separate topic. If your dishwasher is showing a code or flashing pattern, use our GE code resources to match the symptom to a likely cause.

• Note the exact code or light pattern
• Reset power for 1 minute and retry a cycle
• Check for standing water, a kinked drain hose, or a door that is not fully latched
• If the unit fills but won’t wash, the pump and motor area is a common checkpoint

Why it matters: Using the correct identifier (model number vs. error code) saves time; it ensures you pull the right troubleshooting steps and order parts that actually fit.

Last updated: February 2026

A GE dishwasher typically lasts 10 to 12 years. With normal use and basic care (cleaning, correct detergent, and proper water temperature), many units reach the upper end of that range before major repairs become more common. For model GSD3460G00SS, follow the care guidance in the owner's manual.

What affects dishwasher lifespan most

• Water temperature: GE notes incoming water should be 120°F to 150°F for effective cleaning.
• Rinse aid use: Helps reduce spotting and film buildup that can make the machine work harder.
• Loading habits: Avoid blocking the detergent cup and spray paths.
• Leaks and seal wear: A worn door seal can lead to moisture damage around the door.
• Drain performance: Slow draining strains the pump and can leave dirty water behind.

Quick maintenance checklist (best return for the effort)

• Run hot water at the sink until it is hot before starting a cycle.
• Keep the rinse aid dispenser filled; a full dispenser commonly lasts about a month.
• Wipe up rinse aid spills right away.
• Use automatic dishwasher detergent only (not hand dish soap).
• Inspect the door sealing surfaces for debris; clean gently as needed.

Common “wear” items that can extend service life

If performance issues show up, these model-matched parts are often involved:

Symptom	Common part to check	Example part for GSD3460G00SS
Leaking at the door	Door seal	Gasket WD08X10057
Not draining well	Drain hose	Dishwasher drain hose WD24X10014
Poor wash coverage	Spray arm	Spray arm WD22X155
Not filling or fills slowly	Water inlet valve	Dishwasher water inlet valve WD15X10003

Why it matters

A dishwasher near the end of its typical lifespan is more likely to develop issues like leaks, weak washing, or draining problems. Staying on top of water temperature, rinse aid, and seals helps reduce strain on the pump and motor and keeps cycles consistent.

Last updated: February 2026
