Kenmore 9114803590 built-in double convection oven Parts
Here are the diagrams and repair parts for Kenmore 9114803590 built-in double convection oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 9114803590 Wall Ovens

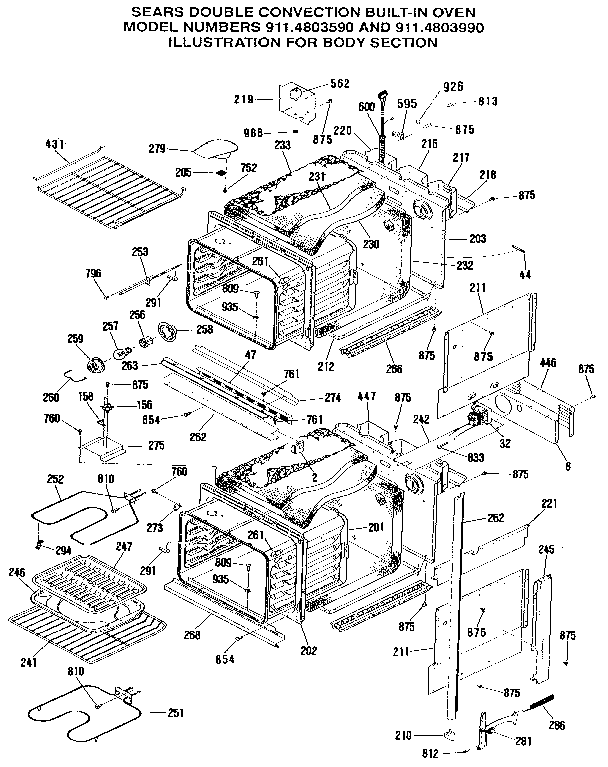

Body section diagram
40a15 Bulb
Part #STD372401Replaced by #40A15
Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.In Stock$15.4011% OFF Phone Price : $17.40
Qty
Body section diagram
Sensor
Part #WB20X0106Replaced by #WB21X5301
Manufacturer substitutionThis part replaces WB20X0106. Substitute parts can look different from the original.In Stock$128.509% OFF Phone Price : $140.50QtyBody section diagram
Bake Element
Part #WB44K5008Replaced by #WB44K5013
Manufacturer substitutionThis part replaces WB44K5008. Substitute parts can look different from the original.In Stock$70.438% OFF Phone Price : $76.43QtyBody section diagram
Broil Support
Part #WB02X9719Replaced by #WB2X9719
Manufacturer substitutionThis part replaces WB02X9719. Substitute parts can look different from the original.In Stock$10.8416% OFF Phone Price : $12.84QtyControl panel diagram
Wall Oven Thermal Fuse
In Stock$56.4710% OFF Phone Price : $62.47QtyDoor section diagram

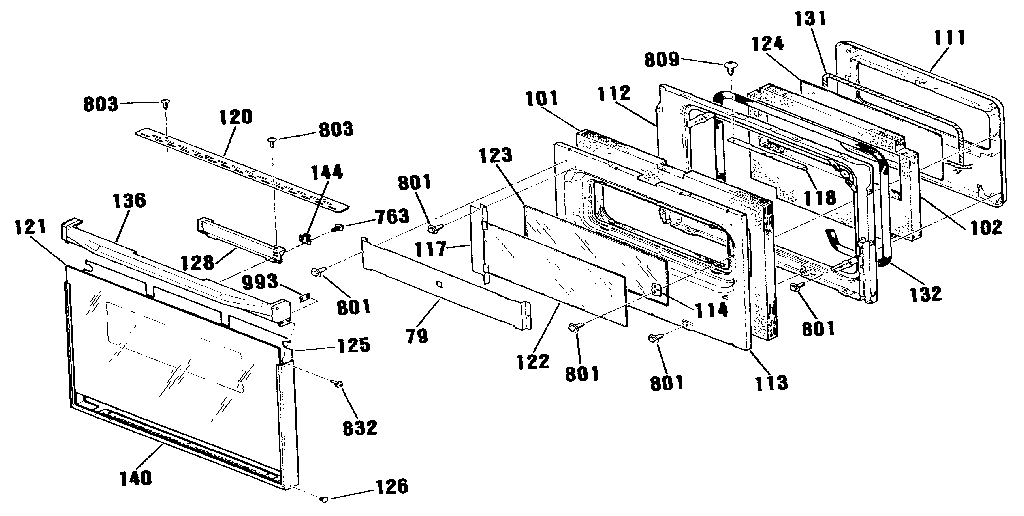

Screw 10
Part #WB01M0001Replaced by #WB1M1
Manufacturer substitutionThis part replaces WB01M0001. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13QtyBody section diagram
Screw
Part #WB01K5057Replaced by #WH2X930
Manufacturer substitutionThis part replaces WB01K5057. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyDoor section diagram
Oven Door Gasket
Part #WB32K5025Replaced by #WB32K5038
Manufacturer substitutionThis part replaces WB32K5025. Substitute parts can look different from the original.In Stock$125.769% OFF Phone Price : $137.76QtyControl panel diagram
Screw
Part #WB01K5062Replaced by #WB1K5062
Manufacturer substitutionThis part replaces WB01K5062. Substitute parts can look different from the original.This item is not returnableIn Stock$5.1448% OFF Was : $9.86QtyDoor lock section diagram
Washer
Part #WB01X1254Replaced by #WB1X119D
Manufacturer substitutionThis part replaces WB01X1254. Substitute parts can look different from the original.This item is not returnableIn Stock$24.6020% OFF Phone Price : $30.60Qty
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
