Thermador T24ID80NLP/17 built-in freezer column Parts
Here are the diagrams and repair parts for Thermador T24ID80NLP/17 built-in freezer column, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for T24ID80NLP/17 Freestanding Freezers

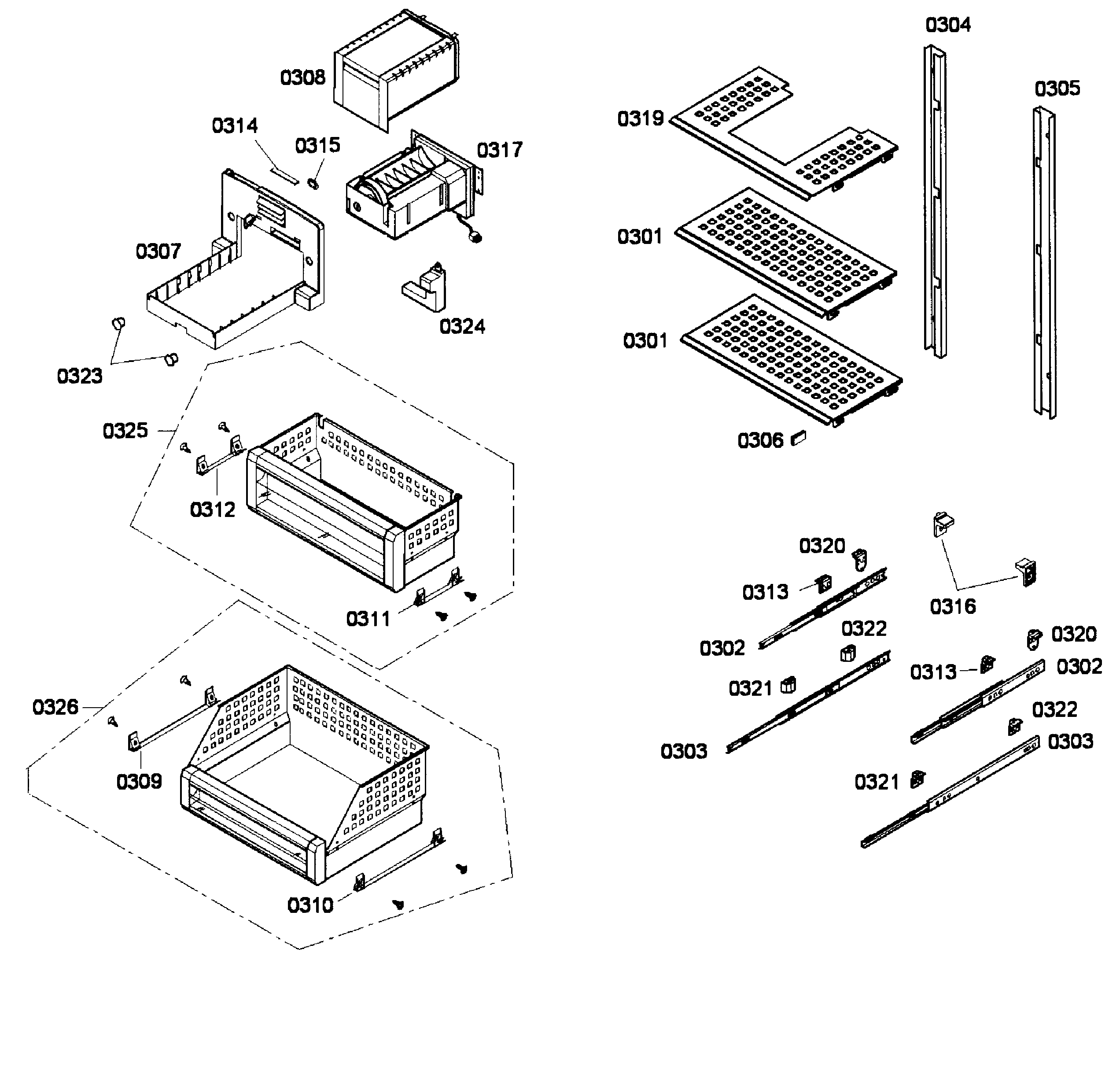

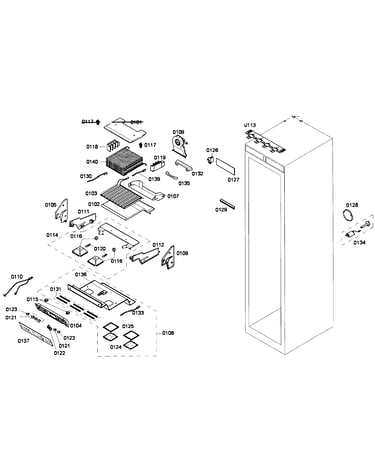

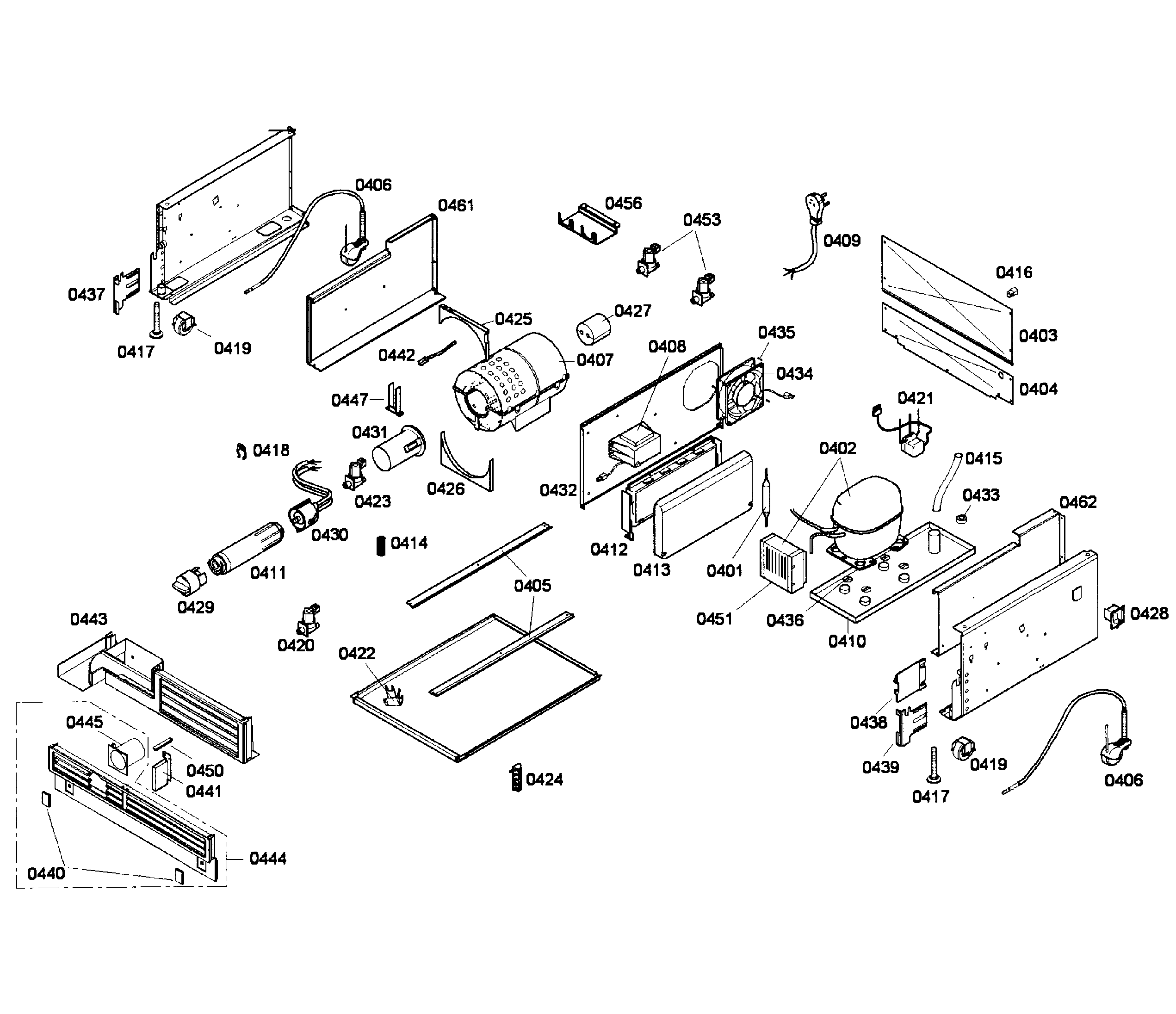

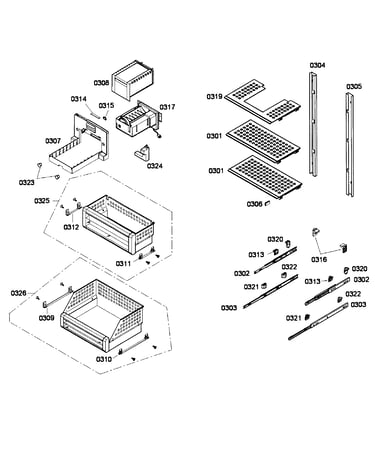

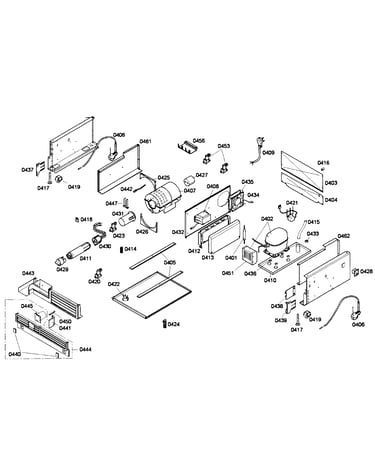

Compressor diagram
Refrigerator Water Filter
Part #641425Get free shipping with Automatic ReorderReplaced by #11034152
Manufacturer substitutionThis part replaces 641425. Substitute parts can look different from the original.In Stock$114.46
Qty
Compressor diagram
Freezer Water Valve
Part #603967Replaced by #10011040
Manufacturer substitutionThis part replaces 603967. Substitute parts can look different from the original.In Stock$50.0711% OFF Phone Price : $56.07
QtyCompressor diagram
Dryer
Part #93110Replaced by #00093110

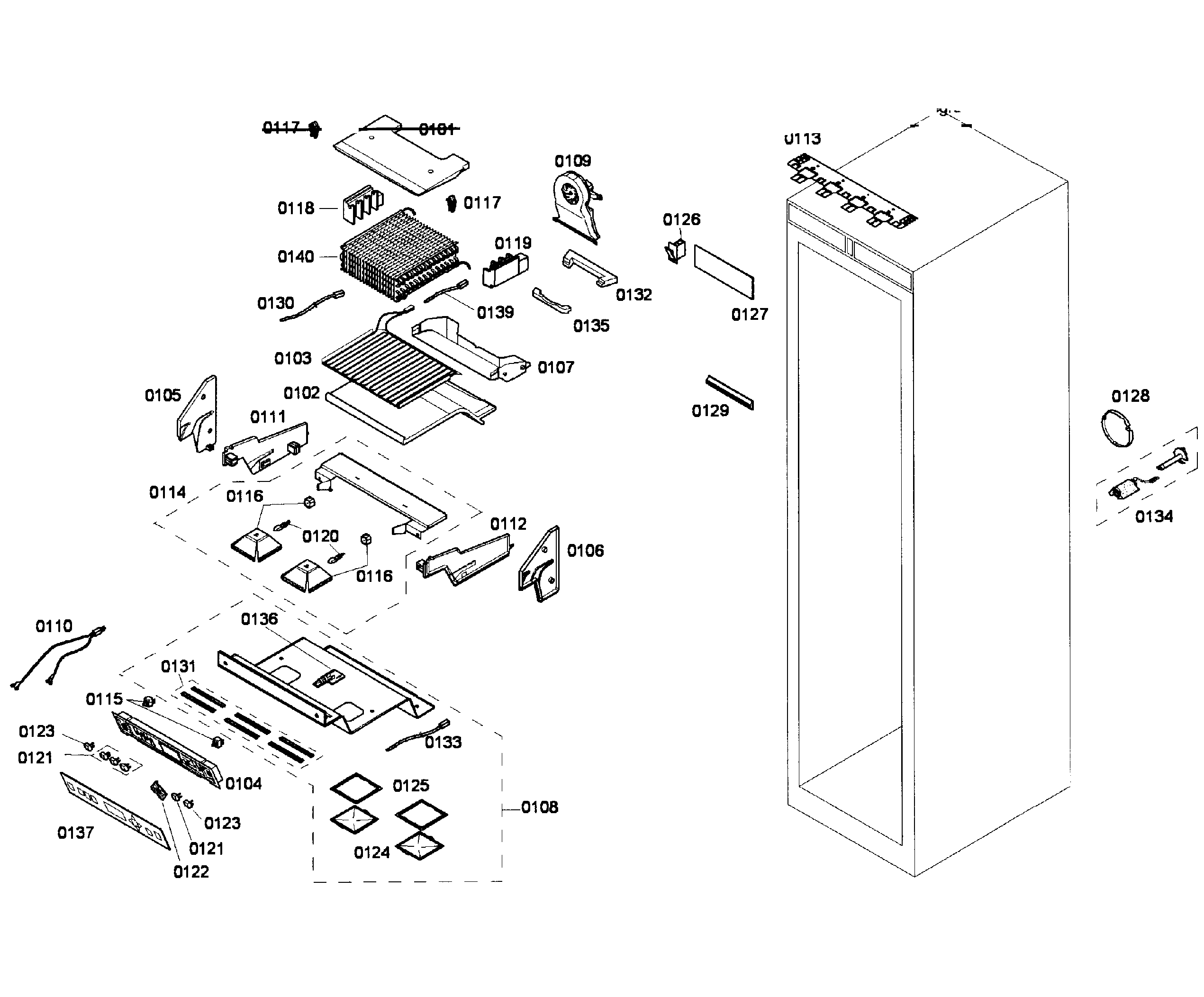

Manufacturer substitutionThis part replaces 93110. Substitute parts can look different from the original.In Stock$72.2063% OFF Was : $195.81QtyCabinet parts diagram
Operating
Part #667838Replaced by #11041652

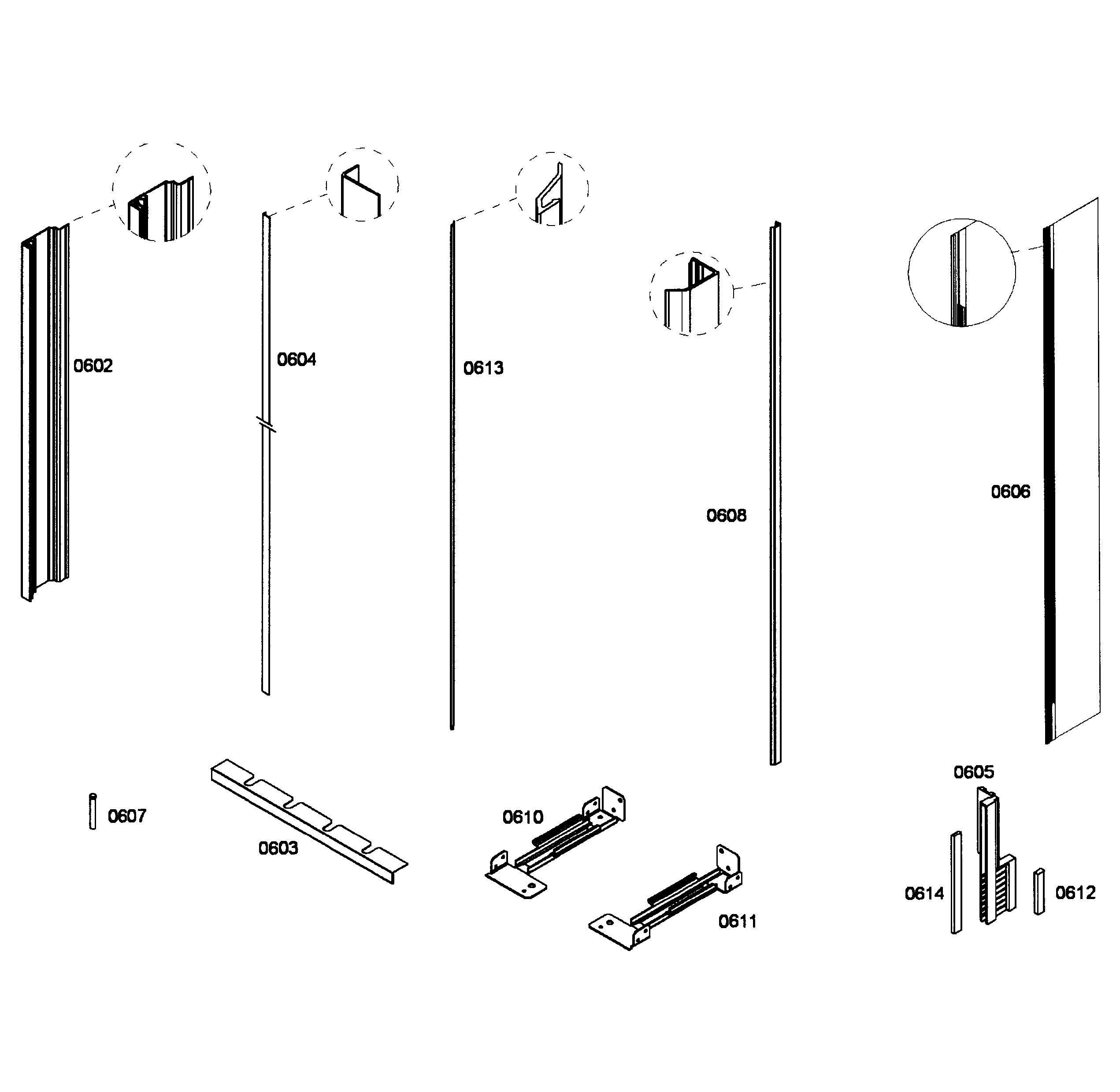

Manufacturer substitutionThis part replaces 667838. Substitute parts can look different from the original.In Stock$346.97$12.00 OFF Phone Price : $358.97QtyFraming diagram
Profile
Part #661225Replaced by #00661225

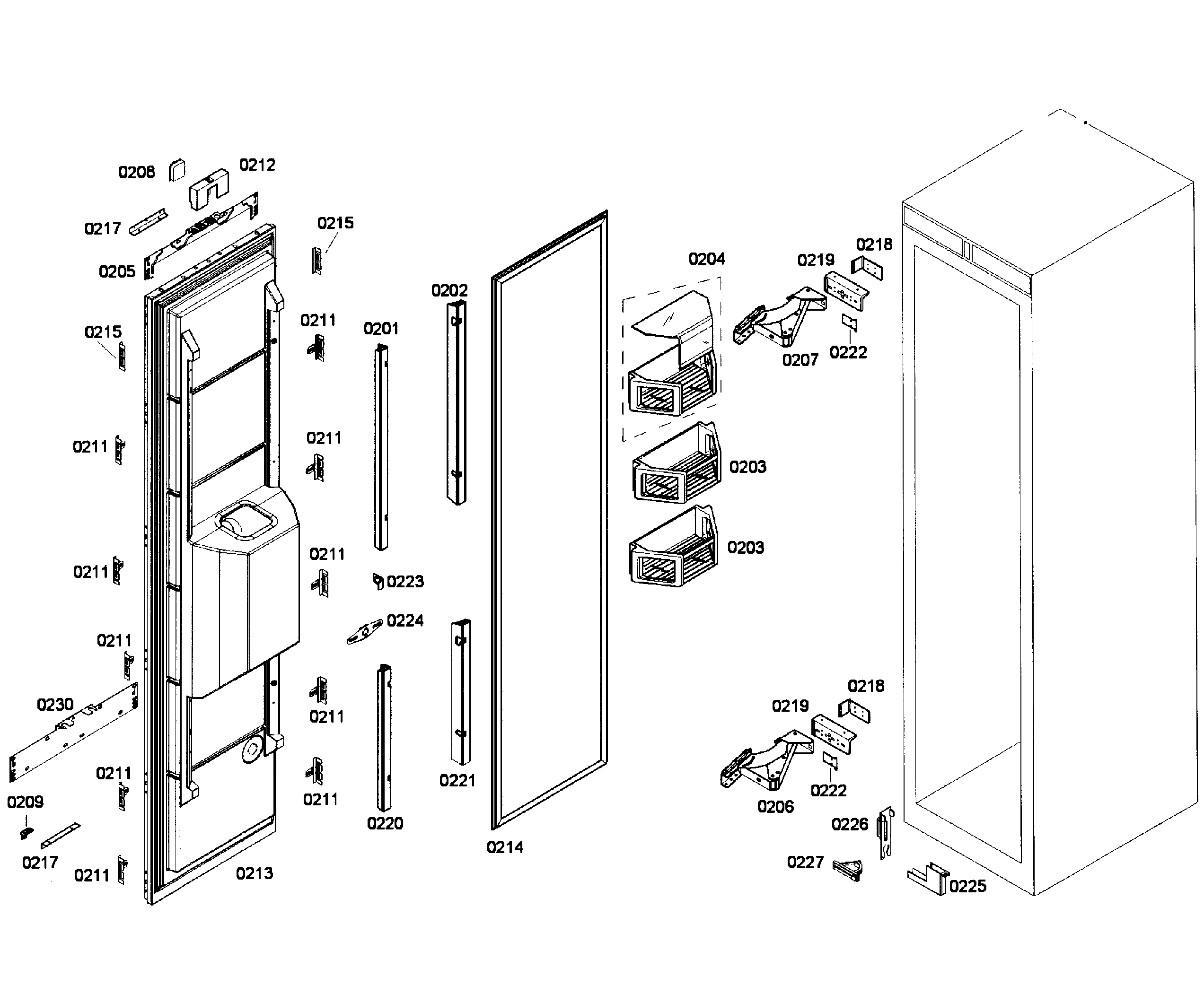

Manufacturer substitutionThis part replaces 661225. Substitute parts can look different from the original.In Stock$64.07QtyDoor assy diagram
Door Seal
Part #247252Replaced by #00716384
Manufacturer substitutionThis part replaces 247252. Substitute parts can look different from the original.In Stock$184.406% OFF Phone Price : $196.40QtyCompressor diagram
Compressor
Part #144508Replaced by #00145436
Manufacturer substitutionThis part replaces 144508. Substitute parts can look different from the original.In Stock$804.19QtyFraming diagram
Profile
Part #680446Replaced by #00680446

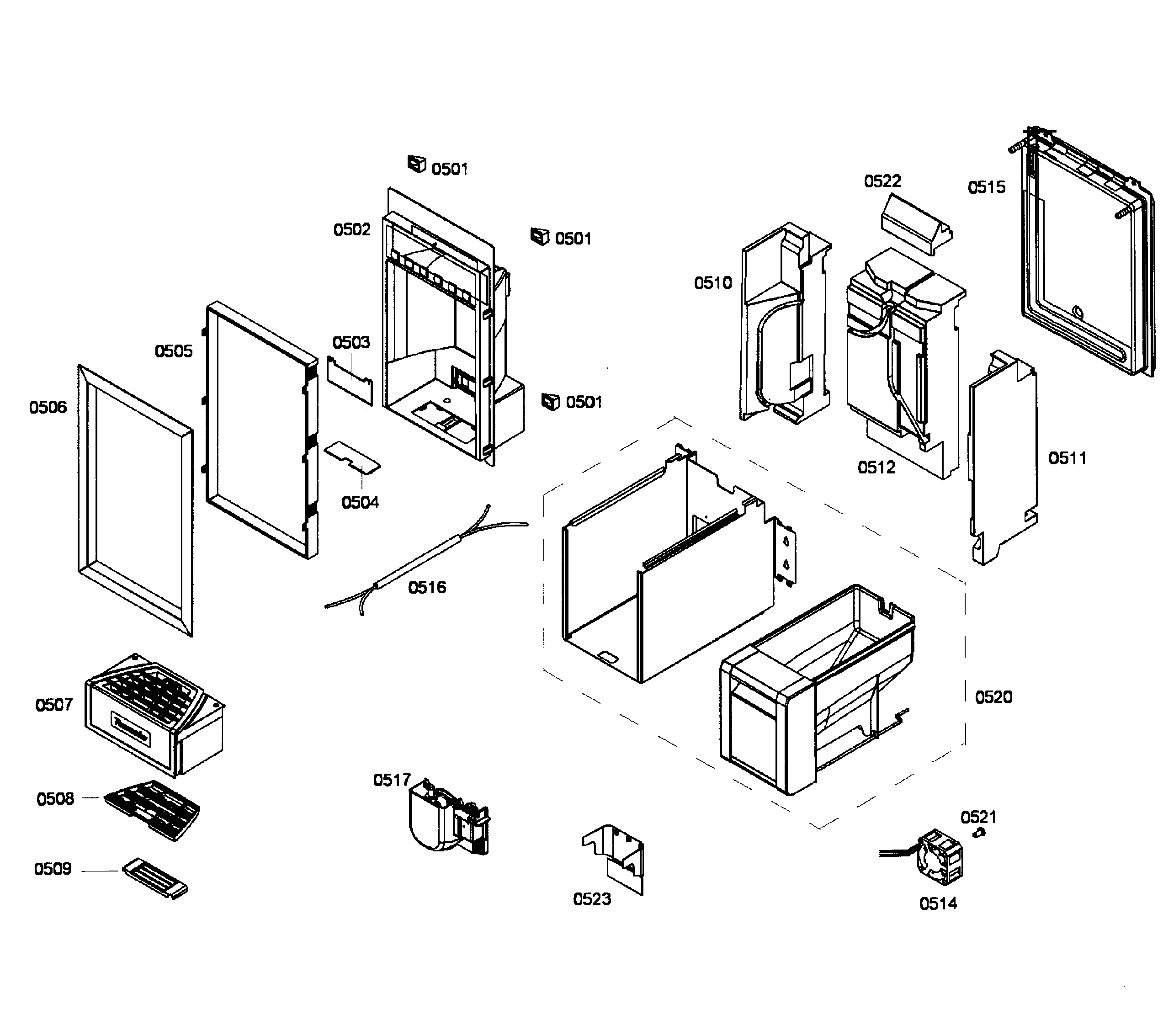

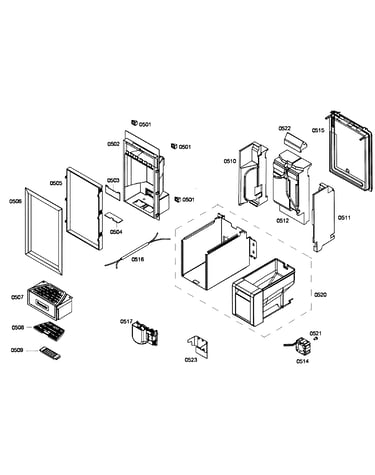

Manufacturer substitutionThis part replaces 680446. Substitute parts can look different from the original.In Stock$60.61QtyDispenser diagram
Insulating
Part #664222Replaced by #00664222
Manufacturer substitutionThis part replaces 664222. Substitute parts can look different from the original.In Stock$48.85QtyCompressor diagram
Base Panel
Part #664201Replaced by #00686049
Manufacturer substitutionThis part replaces 664201. Substitute parts can look different from the original.In Stock$161.38Qty
