Model # ASV05LDS1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASV05LDS1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

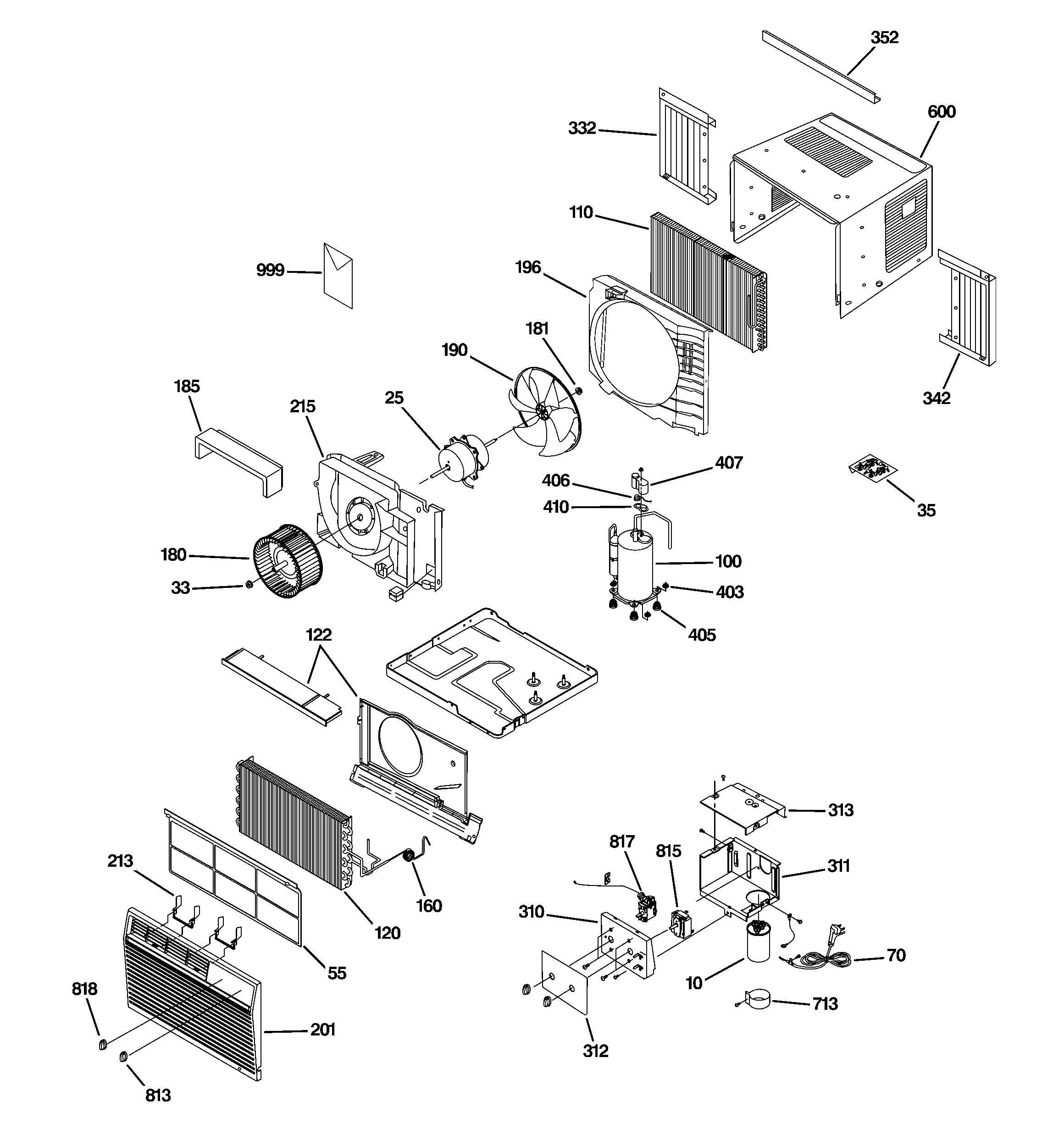

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Asn05+5 Uc/i 49-7471
#999

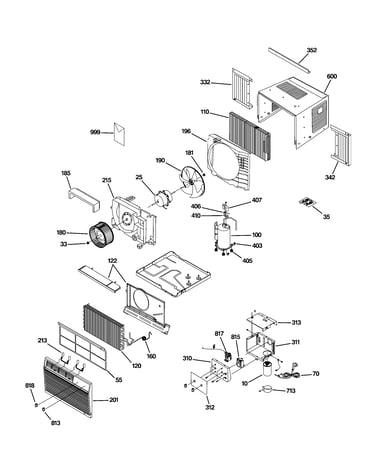

Room air conditioner diagram

Asn05+5 uc/i

Part #49-7471

In Stock
Shutter Angl WJ86X10066
#352

Room air conditioner diagram

Shutter angl

Part #WJ86X10066

The manufacturer no longer makes this part, and there's no substitute part

Mounting Hardware WJ86X10037
#35

Room air conditioner diagram

Mounting hardware

Part #WJ86X10037

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WJ28X10030
#817

Room air conditioner diagram

Thermostat

Part #WJ28X10030

The manufacturer no longer makes this part, and there's no substitute part

Fan Propeller WJ73X10125
#190

Room air conditioner diagram

Fan propeller

Part #WJ73X10125

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob WJ12X10043
#813

Room air conditioner diagram

Thermostat knob

Part #WJ12X10043

The manufacturer no longer makes this part, and there's no substitute part

Knob WJ12X10035
#818

Room air conditioner diagram

Knob

Part #WJ12X10035

The manufacturer no longer makes this part, and there's no substitute part

Nut-flange B WJ01X10162
#181

Room air conditioner diagram

Nut-flange b

Part #WJ01X10162

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WJ53X10114
#160

Room air conditioner diagram

Capillary tube

Part #WJ53X10114

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Air Filter WJ85X10068
#55

Room air conditioner diagram

Room air conditioner air filter

Part #WJ85X10068

The manufacturer no longer makes this part, and there's no substitute part
