Model # TB4000 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt TB4000 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Spark Arrestor Screen 182153

#NI04

All parts diagram

Spark arrestor screen

Part #182153

The manufacturer no longer makes this part, and there's no substitute part

Recoil Case (includes 89 And 90) 182120
#88

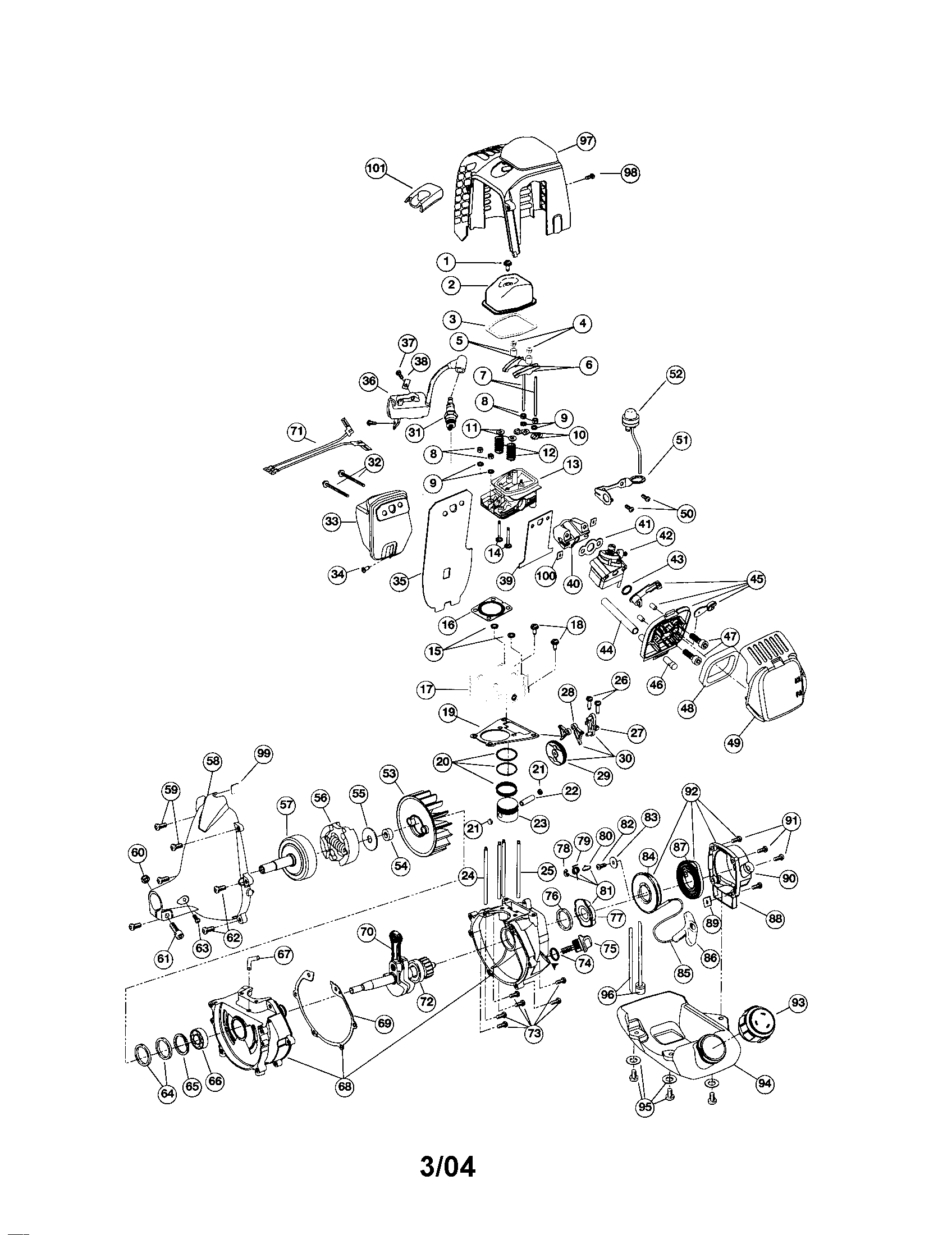

Engine parts diagram

Recoil case (includes 89 and 90)

Part #182120

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 182128
#65

Engine parts diagram

Snap ring

Part #182128

The manufacturer no longer makes this part, and there's no substitute part

Gasket 182099
#3

Engine parts diagram

Gasket

Part #182099

The manufacturer no longer makes this part, and there's no substitute part

Washer 181741
#83

Engine parts diagram

Washer

Part #181741

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 181690
#7

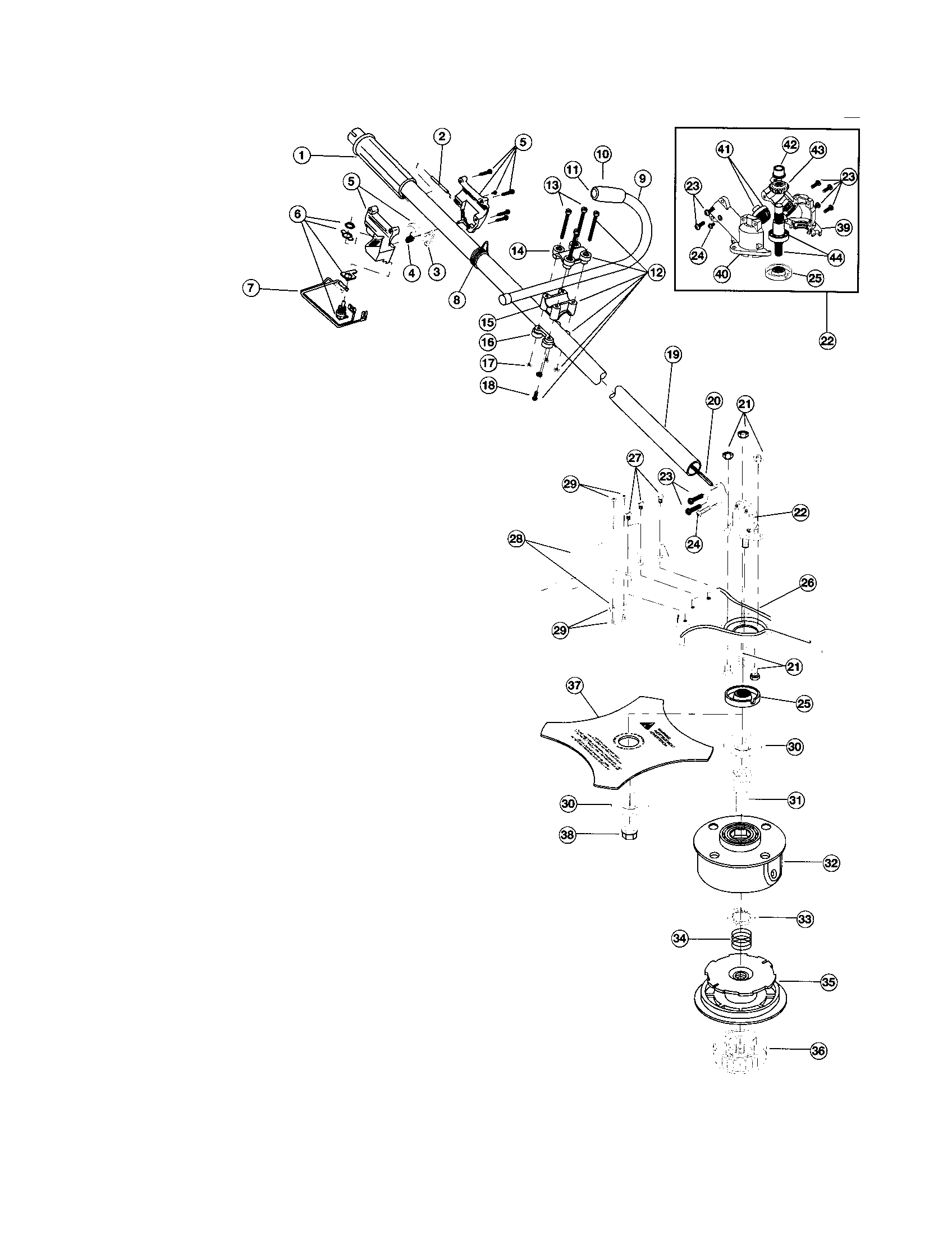

Boom and trimmer diagram

Lead wire

Part #181690

The manufacturer no longer makes this part, and there's no substitute part

Pulley Nut 182187
#77

Engine parts diagram

Pulley nut

Part #182187

The manufacturer no longer makes this part, and there's no substitute part

Bolt 181760
#61

Engine parts diagram

Bolt

Part #181760

The manufacturer no longer makes this part, and there's no substitute part

Muffler Mounting Screw 182105
Muffler mounting screw

Part #182105

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 683295
#12

Boom and trimmer diagram

Bracket assembly

Part #683295

The manufacturer no longer makes this part, and there's no substitute part
