Model # JES9860AAB Official Jenn-Air electric slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JES9860AAB electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

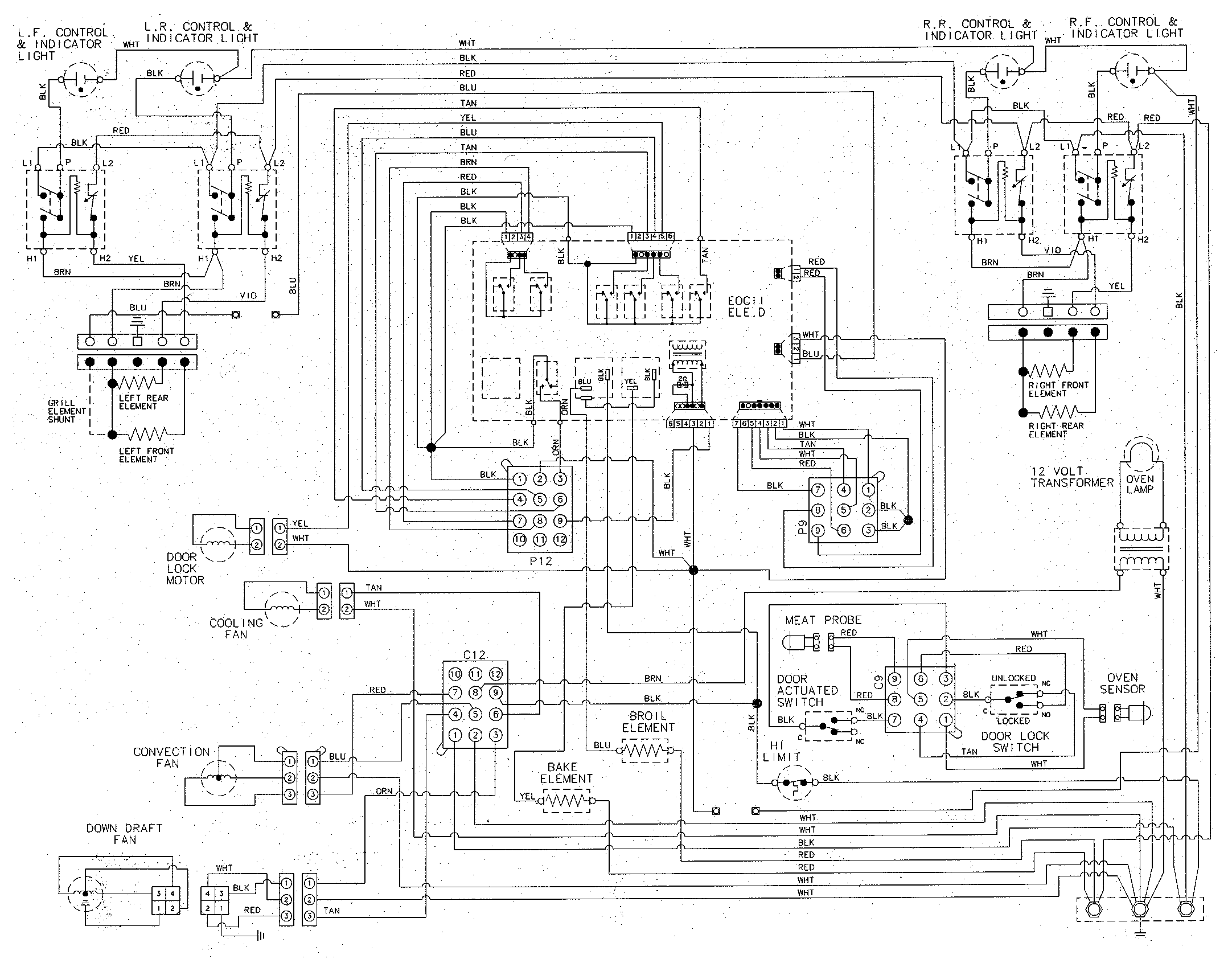

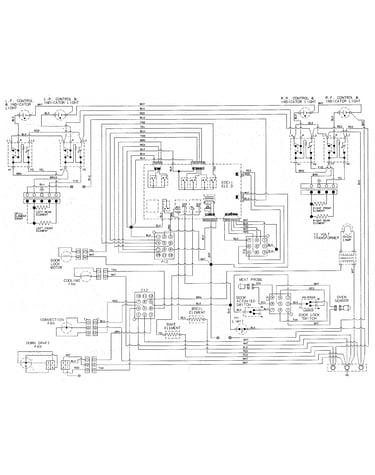

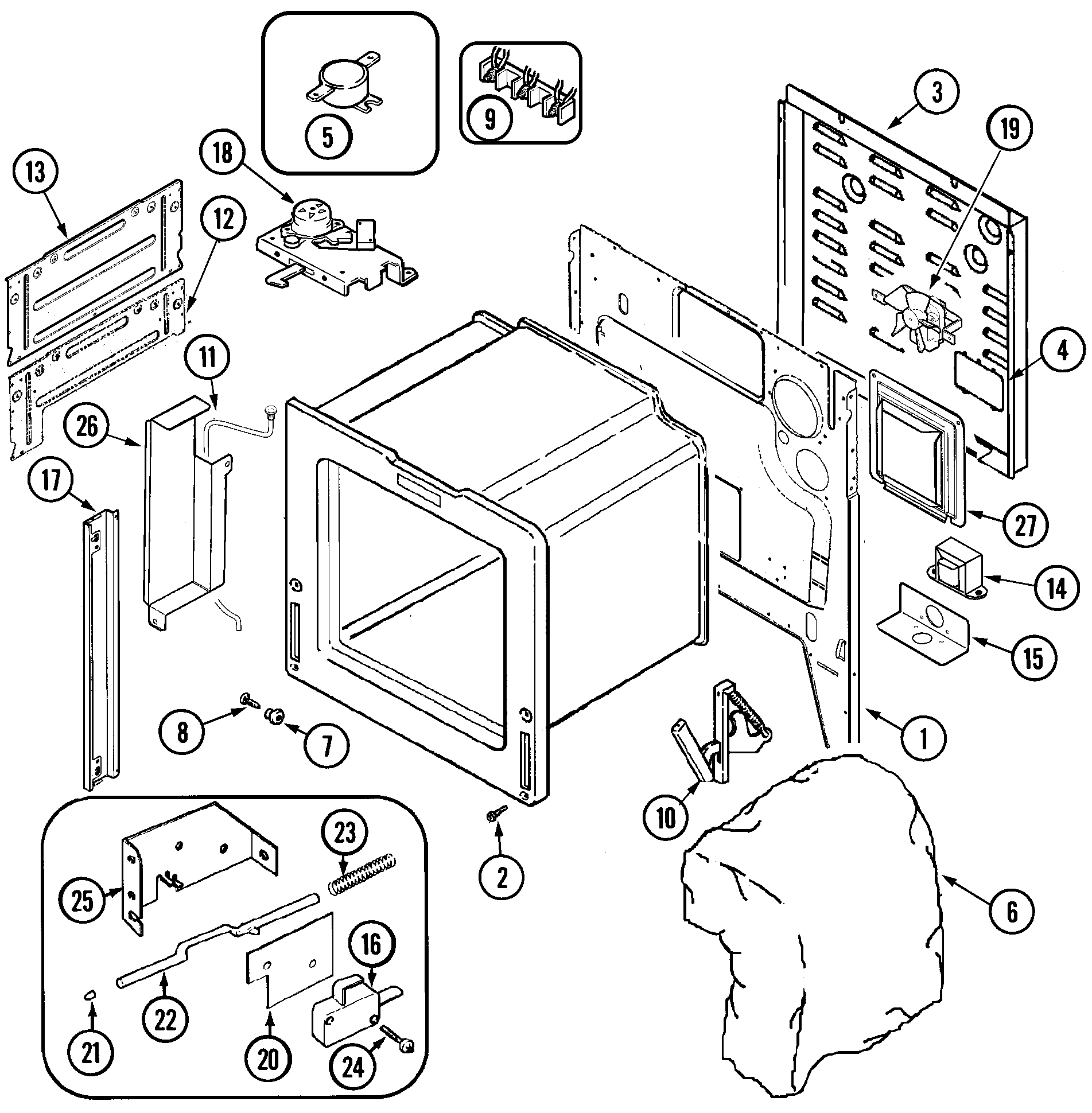

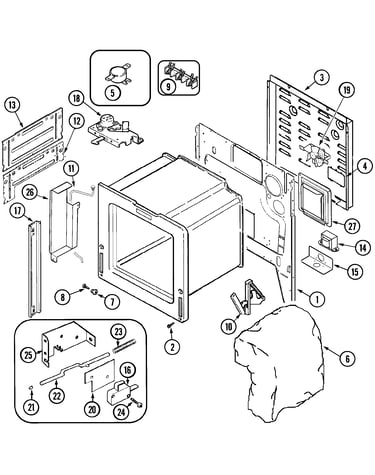

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

Range Downdraft Vent Grease Filter 71002111
#8

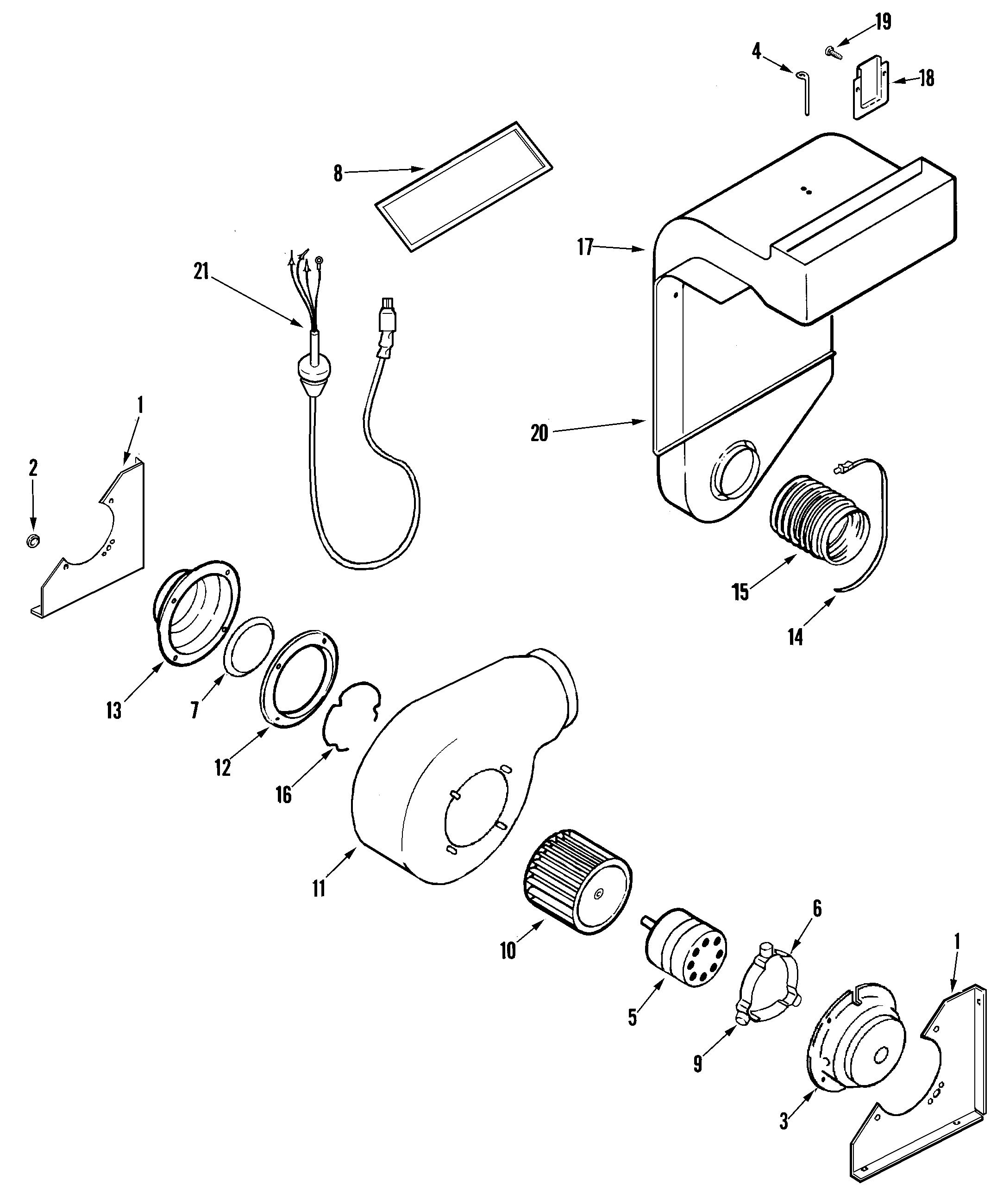

Blower assembly (plenum) diagram

Range downdraft vent grease filter

Part #71002111

Replaced by #WP71002111

?
Manufacturer substitution
This part replaces 71002111. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.99
10% OFF Was : $19.99
In Stock
Door Gasket 7201P046-60
#4

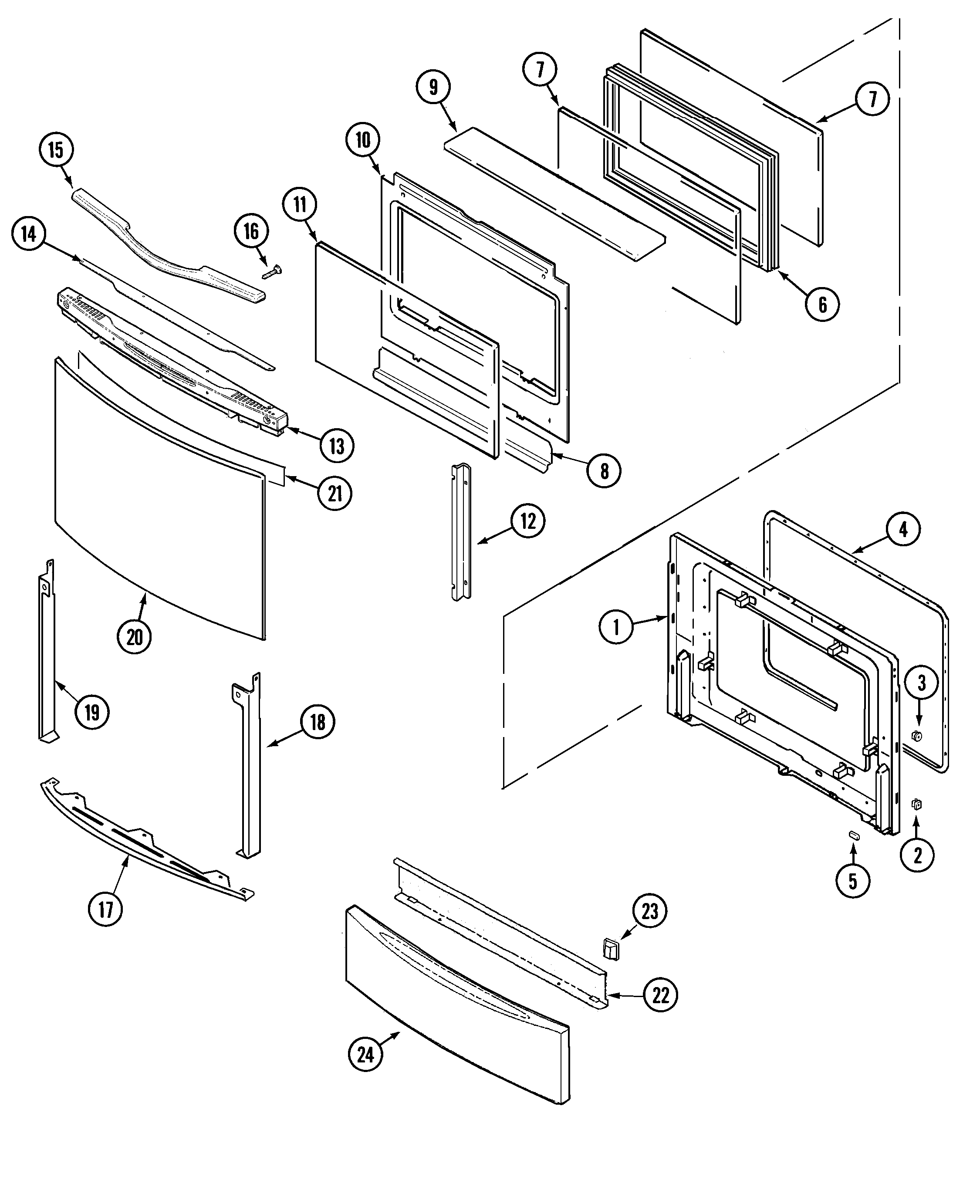

Door/access panel diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38
7% OFF Phone Price : $69.38
In Stock
Bracket Screw 7101P040-60
#19B

Door/access panel diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.59
58% OFF MSRP : $11.00
In Stock
Screw 790448
Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.59
58% OFF MSRP : $11.00
In Stock
Oven Rack 74001757
#6

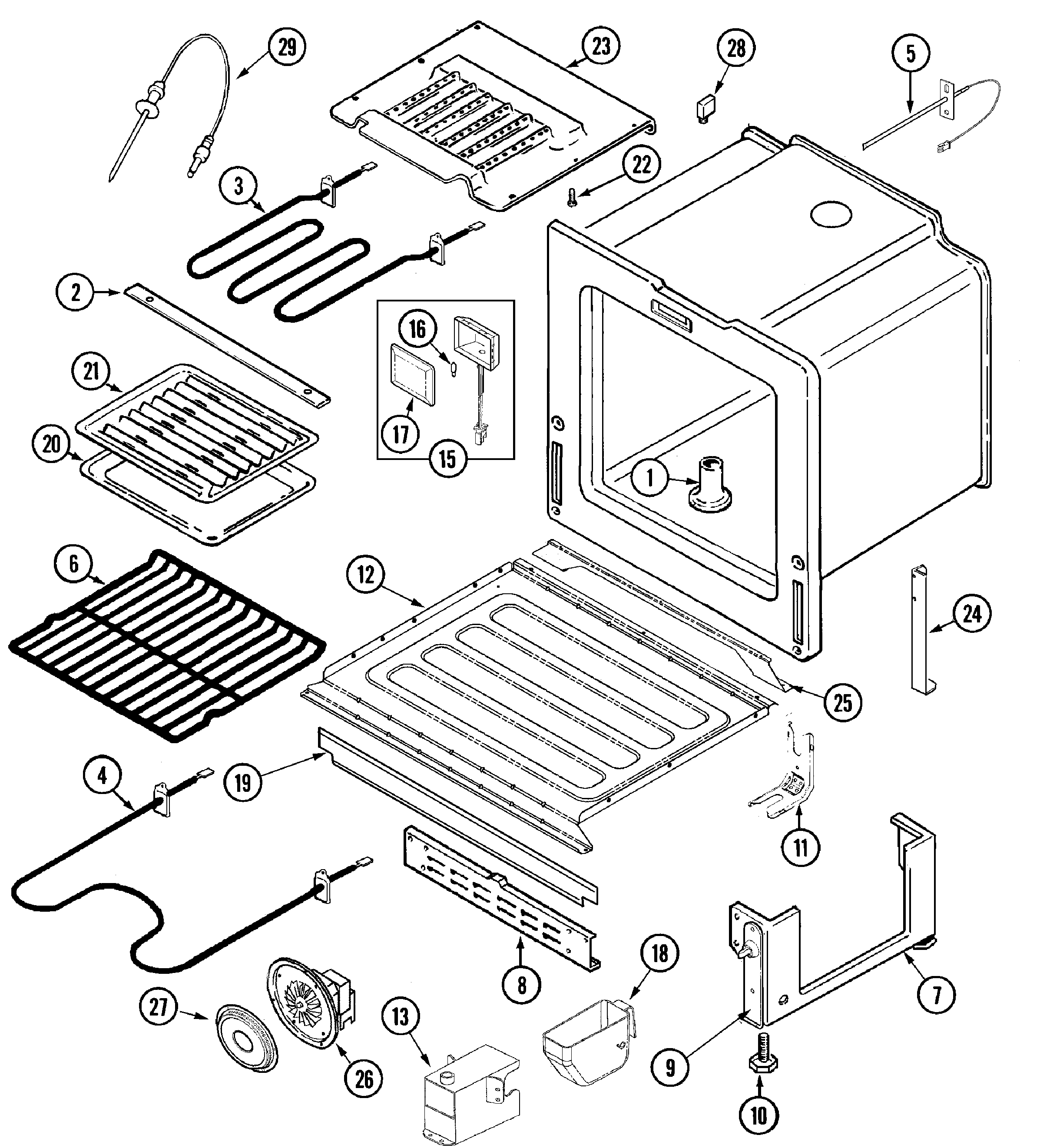

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89
8% OFF Phone Price : $61.89
In Stock
Bracket, Ant 74005564
#11

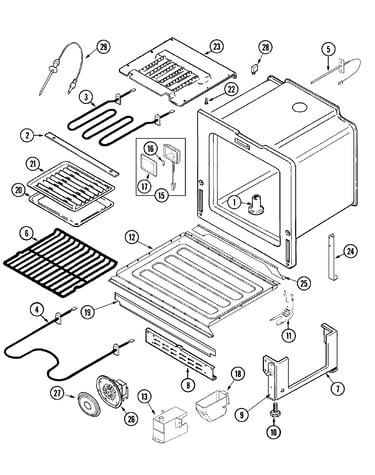

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03
17% OFF Phone Price : $6.03
In Stock
Lock Nut 707702
#2

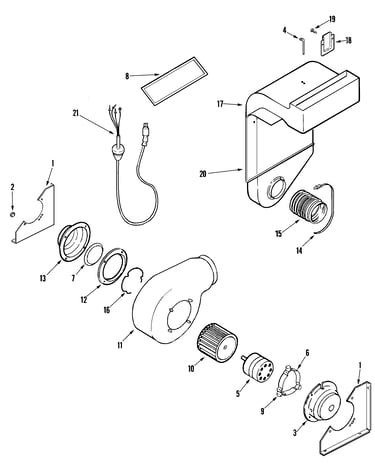

Blower assembly (plenum) diagram

Lock nut

Part #707702

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 707702. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Spade, Conta 708572
#26

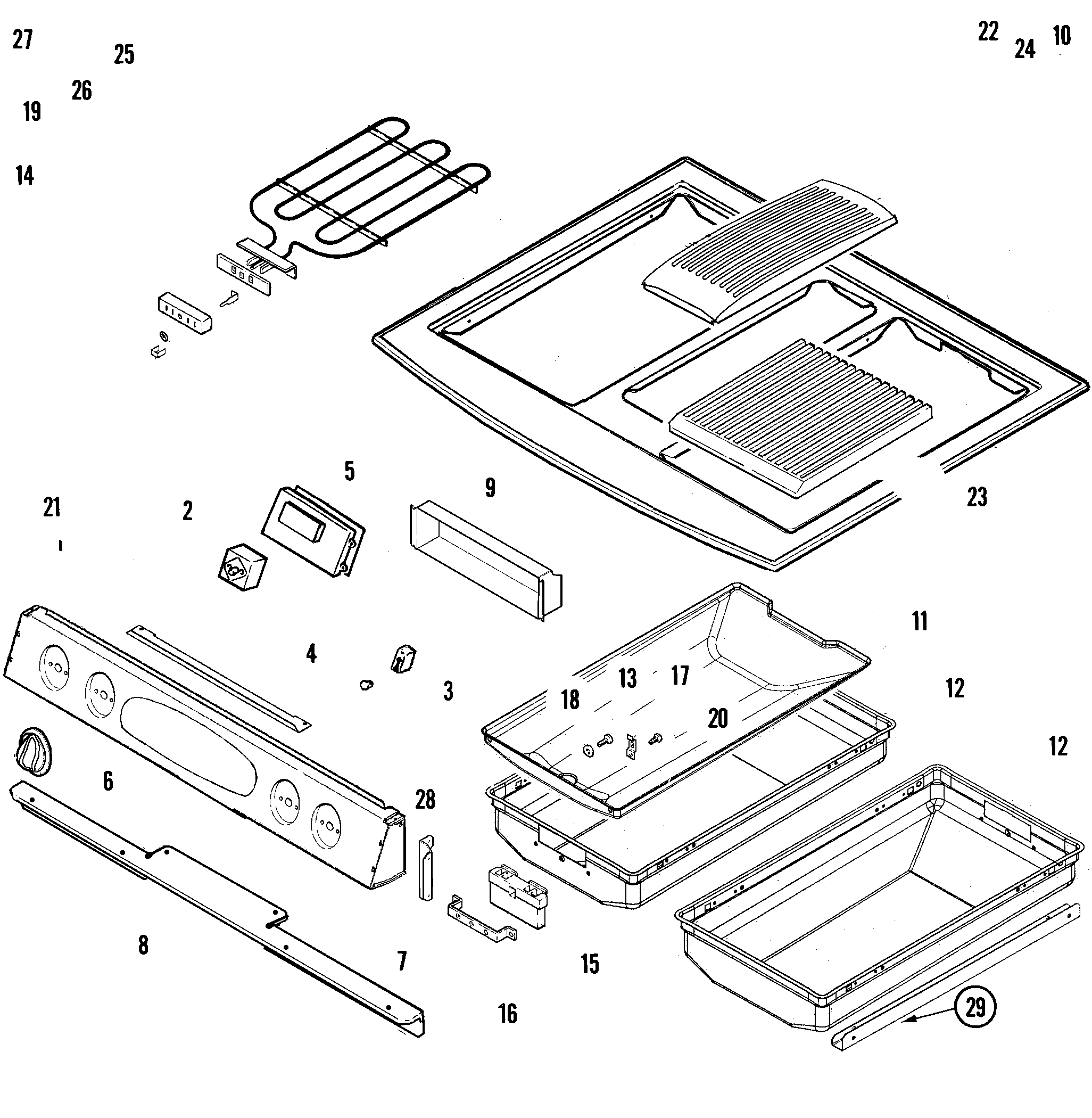

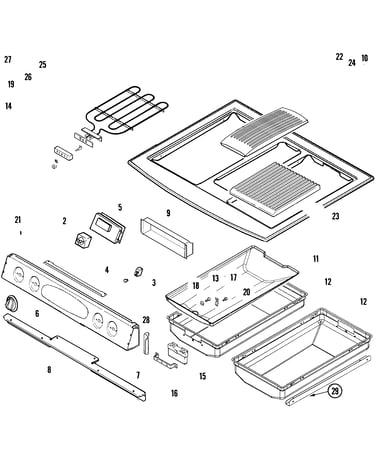

Control panel/top assembly diagram

Spade, conta

Part #708572

Replaced by #Y708572

?
Manufacturer substitution
This part replaces 708572. Substitute parts can look different from the original.
This item is not returnable
$9.09
10% OFF Phone Price : $10.09
In Stock
Contact Wire 74005814
#15F

Control panel/top assembly diagram

Contact wire

Part #74005814

Replaced by #WP5708M007-60

?
Manufacturer substitution
This part replaces 74005814. Substitute parts can look different from the original.
$65.50
7% OFF Phone Price : $70.50
In Stock
Motor 71002108
#5

Blower assembly (plenum) diagram

Motor

Part #71002108

Replaced by #WPW10201322

?
Manufacturer substitution
This part replaces 71002108. Substitute parts can look different from the original.
$254.99
$10.00 OFF Phone Price : $264.99
In Stock
