Frigidaire
Electric Cooktop

Model # FPIC3695MSB Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FPIC3695MSB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Cooktop Induction Power Supply Board 318416300
#97

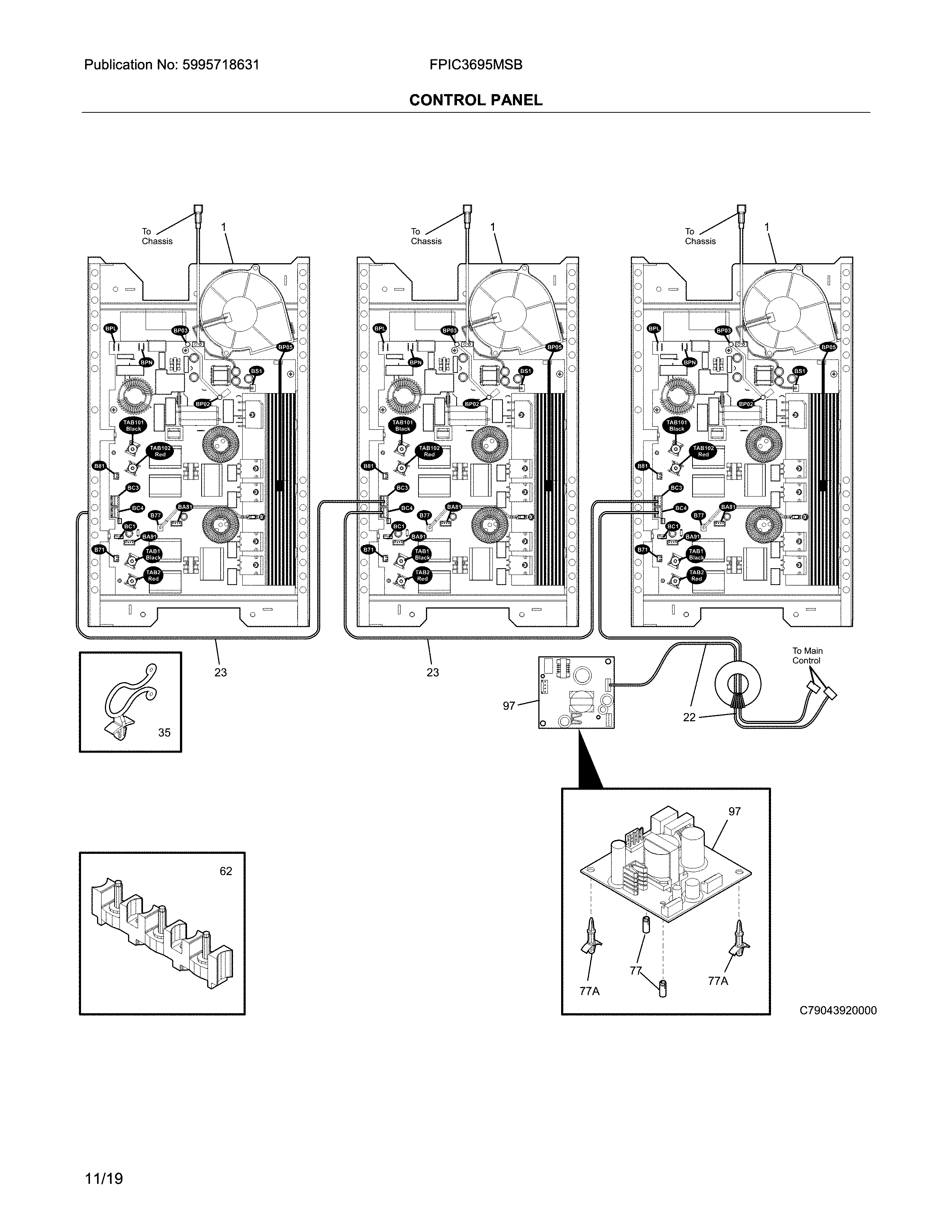

Control panel diagram

Cooktop induction power supply board

Part #318416300

$166.62
6% OFF Phone Price : $176.62
In Stock
Cooktop Main Top Assembly 318935221
#16

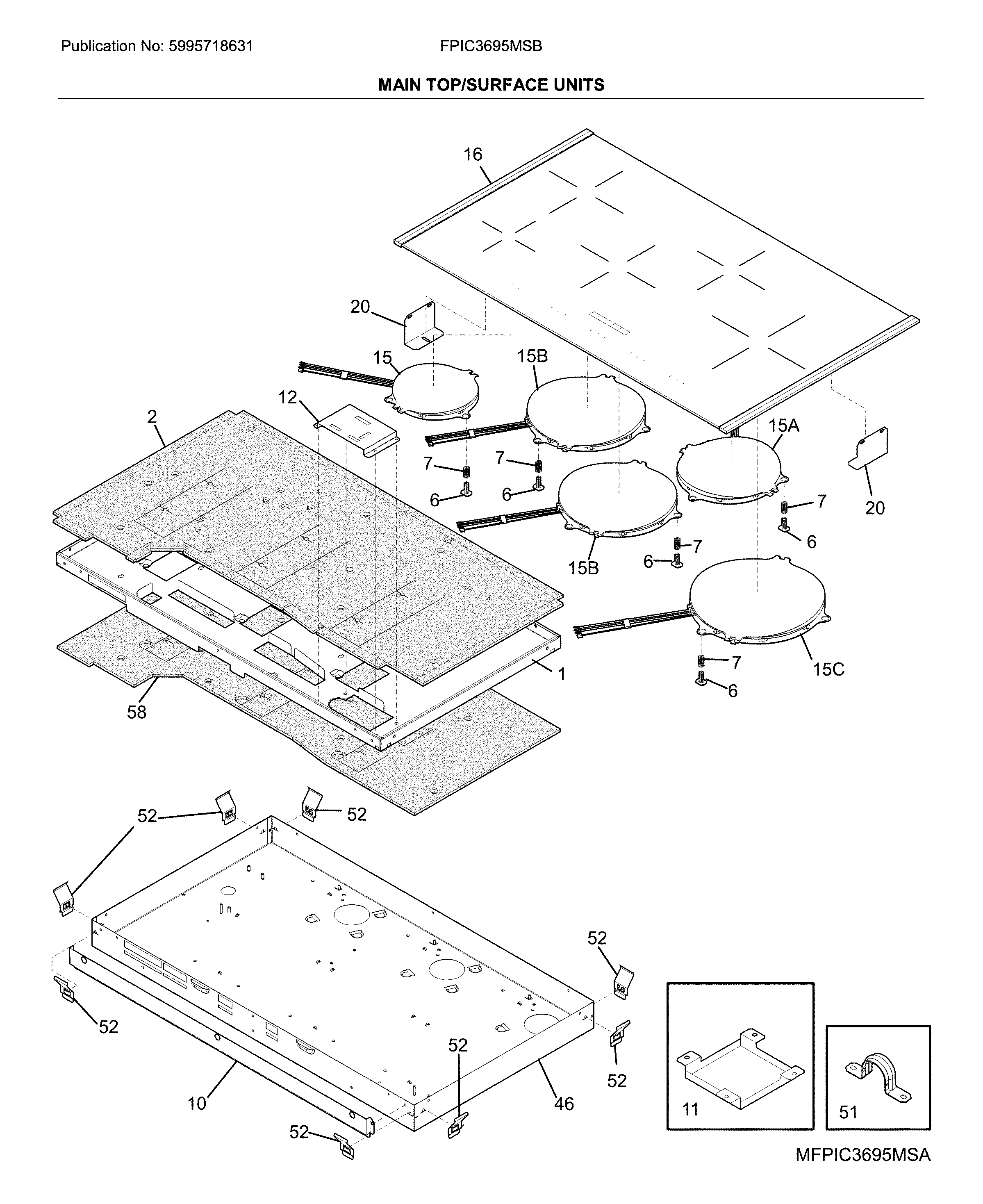

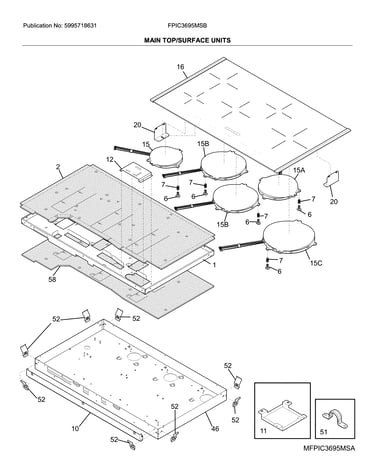

Main top/surface units diagram

Cooktop main top assembly

Part #318935221

In Stock
Keps Nut 5303325170
Keps nut

Part #5303325170

This item is not returnable
In Stock
Cooktop Main Top Seal, 0.5 X 14-in 5304424462
#NI

Main top/surface units diagram

Cooktop main top seal, 0.5 x 14-in

Part #5304424462

In Stock
Cooktop Element 318329241
#15

Main top/surface units diagram

Cooktop element

Part #318329241

In Stock
Range Surface Induction Element 318329243
#15B

Main top/surface units diagram

Range surface induction element

Part #318329243

In Stock
Range Surface Induction Element, 180-mm 318329242
#15A

Main top/surface units diagram

Range surface induction element, 180-mm

Part #318329242

In Stock
Range Power Control Board Support 316114100
#77A

Control panel diagram

Range power control board support

Part #316114100

$52.42
9% OFF Phone Price : $57.42
In Stock
Range Induction Element Pin 318405000
#6

Main top/surface units diagram

Range induction element pin

Part #318405000

In Stock
Washer Screw 5304447555
#NI

Control panel diagram

Washer screw

Part #5304447555

In Stock
